AC Axial Compact Design
The 4656N is an Ebmpapst 4000N series AC axial compact fan with a square 119 x 119 mm frame and 38 mm installation depth.

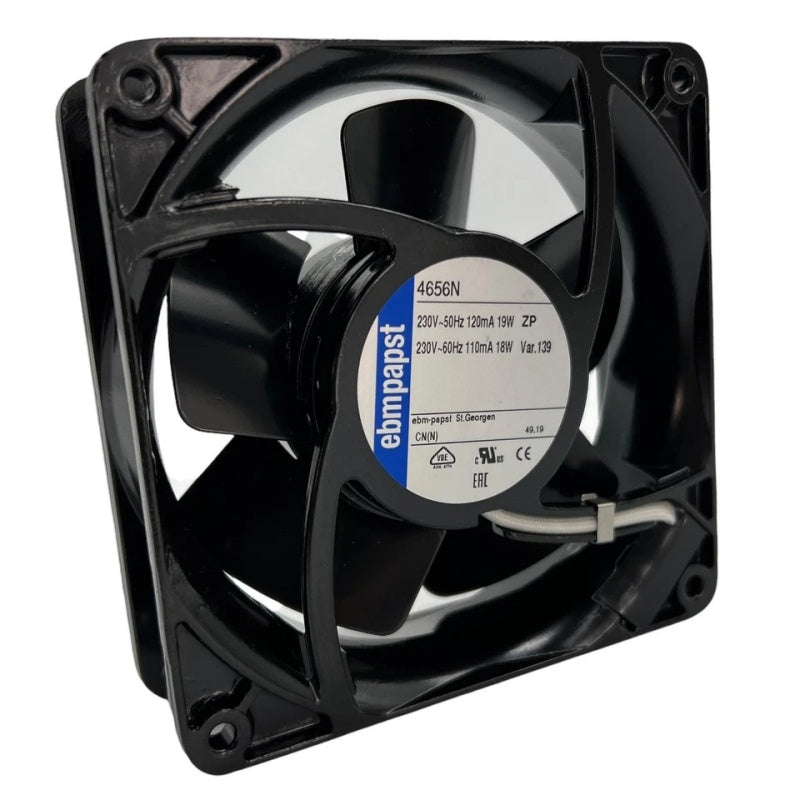

Ebmpapst 4656N Axial Fan 230VAC 119x119x38mm 160m³/h 19W
Available in stock (200)
Regular price
$29.02
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4656N |
| Product Category | Axial Fan |
| Series | 4000N |
| Fan Type | AC Axial Compact Fan |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Input | 19 W |
| Speed | 2650 RPM |
| Air Flow | 160 m³/h |
| Sound Pressure Level | 47 dBA |
| Dimensions | 119 x 119 x 38 mm |
| Bearing Type | Ball Bearing |
| Degree of Protection | IP20 |
| Housing Material | Metal |
| Impeller Material | Metal |
| Electrical Connection | 2 Flat-Pin Terminals, 2.8 x 0.5 mm |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Weight | Approx. 0.54 kg |
Key Features
230 VAC Operation
The manufacturer nominal data specifies single-phase 230 VAC operation at 50 Hz.
19 W Power Input
The documented power consumption is 19 W with a nominal rotational speed of 2650 RPM.
160 m³/h Airflow
The manufacturer datasheet specifies an airflow of 160 m³/h for the 4656N.
Metal Construction
The fan uses a metal housing and metal impeller with a ball-bearing configuration.
Wide Temperature Range
The manufacturer datasheet specifies an ambient operating temperature range from -40°C to +85°C.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Industrial electronics ventilation
- Equipment air circulation
- Heat exchanger airflow
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst 4656N Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst 4656N?
It is a 4000N series AC axial compact fan with a 119 x 119 x 38 mm frame.
What voltage does 4656N use?
The manufacturer datasheet specifies a nominal voltage of 230 VAC.
What frequency does 4656N use?
The manufacturer nominal data specifies 50 Hz.
What is the power consumption?
The documented power consumption is 19 W.
What is the fan speed?
The manufacturer datasheet specifies 2650 RPM.
What is the airflow?
The documented airflow is 160 m³/h, approximately 94 CFM.
What are the dimensions?
The fan measures approximately 119 x 119 x 38 mm.
What bearing type is used?
The 4656N uses a ball-bearing configuration.
What is the noise level?
The manufacturer datasheet specifies a sound pressure level of 47 dBA.
What materials are used?
Published technical data identifies metal construction for both the fan housing and impeller.
What is the ambient temperature range?
The manufacturer datasheet specifies -40°C to +85°C.
What should be checked before ordering 4656N?
Check the complete model number, 230 VAC supply, 50 Hz frequency, 119 x 119 x 38 mm dimensions, airflow requirement, terminal connection and mounting arrangement before purchasing.
