All-Metal High-Temperature Construction
The 4650N-465 uses an all-metal construction associated with high-temperature resistance, suitable for cabinet cooling in demanding thermal environments.
1 / 1
Ebmpapst

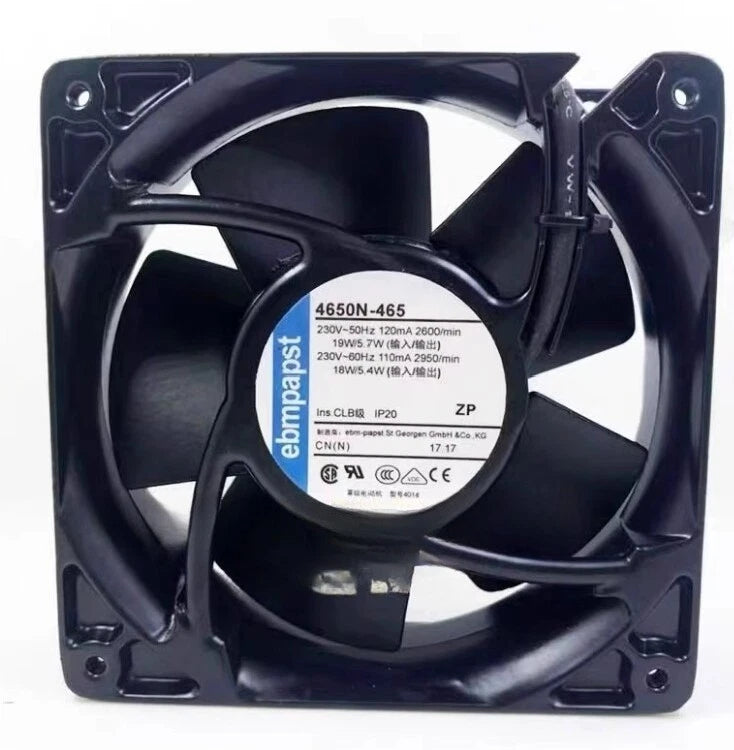

Ebmpapst 4650N-465 Axial Fan 230VAC 119x119x38mm 19W
PRODUCT PRICE
USD
$29.78
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4650N-465 |
| Product Category | Axial Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 19 W / 18 W |
| Current Draw | 0.21 A |
| Speed | 2650 rpm / 2680 rpm |
| Dimensions | 119 x 119 x 38 mm |
| Air Flow | 106 CFM / 157.7 m³/h |
| Noise Level | 50 dBA |
| Protection Rating | IP54 / IP65 |
Key Features
IP54 / IP65 Protection
The fan is documented with IP54 and IP65 protection ratings, providing options for dust and water-jet resistance depending on the configuration.
106 CFM in a 119 mm Frame
Airflow is 106 CFM (157.7 m³/h) within a 119 x 119 x 38 mm axial frame at speeds around 2650–2680 rpm.
230 VAC AC Motor
A 230 VAC motor draws approximately 0.21 A with 19 W power consumption, with the fan operating at 50 Hz.
Applications
- Cabinet cooling
- High-temperature industrial enclosures
- Electrical panel thermal management
- Industrial equipment ventilation
- Axial fan replacement in cabinets
- Process control enclosure cooling
- Machinery cooling
Purchase Information
We support online purchase of the Ebmpapst 4650N-465 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4650N-465? It is a 119 x 119 x 38 mm axial fan that operates on 230 VAC.
What is the airflow of the 4650N-465? Airflow is 106 CFM (157.7 m³/h).
What power does the 4650N-465 consume? Power consumption is documented at 19 W and 18 W in different references.
What current does the 4650N-465 draw? Current draw is 0.21 A.
What speed does the 4650N-465 run at? Speed is documented at 2650 rpm and 2680 rpm.
What is the protection rating of the 4650N-465? The fan is documented with IP54 and IP65 ratings.
What is the noise level of the 4650N-465? Noise level is 50 dBA.
What construction does the 4650N-465 use? It uses an all-metal construction associated with high-temperature resistance.
What should be checked before ordering the 4650N-465? Verify the complete model number, 230 VAC 50 Hz supply, 119 x 119 x 38 mm installation space, required 106 CFM airflow, IP54 or IP65 suitability, and the ambient temperature conditions of the cabinet.
