4000N Series Axial Design
The 4600N-466 is an AC axial fan with a compact 119 x 119 x 38 mm frame for forced-air cooling and ventilation applications.

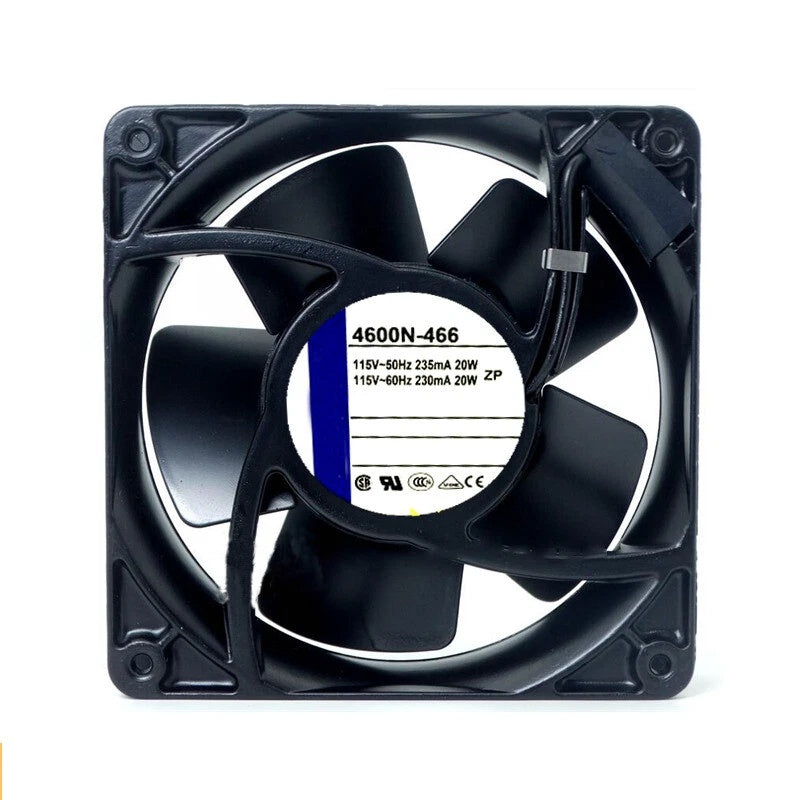

Ebmpapst 4600N-466 Axial Fan 115VAC 119x119x38mm 106 CFM
Available in stock (200)
Regular price
$34.49
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4600N-466 |
| Product Category | Axial Fan |
| Series | 4000N |
| Fan Type | AC Axial Fan |
| Motor Technology | Shaded-Pole Motor with External Rotor |
| Rated Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Power Input | 18 W at 50 Hz / 17 W at 60 Hz |
| Speed | 2680 RPM at 50 Hz / 3060 RPM at 60 Hz |
| Air Flow | 160 m³/h at 50 Hz / 180 m³/h at 60 Hz |
| Air Flow CFM | 94.2 CFM at 50 Hz / 105.9 CFM at 60 Hz |
| Sound Pressure Level | 46 dBA at 50 Hz / 50 dBA at 60 Hz |
| Dimensions | 119 x 119 x 38 mm |
| Number of Blades | 5 |
| Bearing Type | Sleeve Bearing |
| Housing Material | Metal |
| Impeller Material | Sheet Steel |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Air Intake | Over Struts |
| Motor Protection | Impedance Protection |
| Electrical Connection | Terminal Connection |
| Mounting Position | Any |
| Weight | 0.55 kg |
Key Features
115 VAC Operation
The documented nominal voltage is 115 VAC with operating data specified for both 50 Hz and 60 Hz.
160/180 m³/h Airflow
Documented maximum airflow is 160 m³/h at 50 Hz and 180 m³/h at 60 Hz.
2680/3060 RPM Speed
The documented nominal speed is 2680 RPM at 50 Hz and 3060 RPM at 60 Hz.
Metal Fan Construction
The fan uses an all-metal construction with five sheet-steel blades and a metal housing.
Shaded-Pole Motor
The fan is driven by a shaded-pole motor with an external rotor and documented impedance protection.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Industrial electronics ventilation
- Equipment air circulation
- Machinery cooling systems
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst 4600N-466 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst 4600N-466?
It is a 4000N series AC axial fan with a 119 x 119 x 38 mm frame.
What voltage does 4600N-466 use?
The documented nominal voltage is 115 VAC.
What frequency does 4600N-466 support?
The fan has documented operating data for both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 18 W at 50 Hz and 17 W at 60 Hz.
What is the fan speed?
The documented nominal speed is 2680 RPM at 50 Hz and 3060 RPM at 60 Hz.
What is the airflow?
Maximum airflow is documented as 160 m³/h at 50 Hz and 180 m³/h at 60 Hz.
What are the dimensions?
The fan dimensions are 119 x 119 x 38 mm.
What bearing type is used?
The documented configuration uses sleeve bearings.
What motor technology is used?
The fan uses a shaded-pole motor with an external rotor.
What materials are used?
The fan has metal construction with a sheet-steel impeller and metal housing.
What is the ambient temperature range?
The documented range is -10°C to +50°C at 50 Hz and -10°C to +60°C at 60 Hz.
What should be checked before ordering 4600N-466?
Check the complete model number, 115 VAC supply, operating frequency, 119 x 119 x 38 mm dimensions, airflow requirement, electrical connection and mounting arrangement before purchasing.
