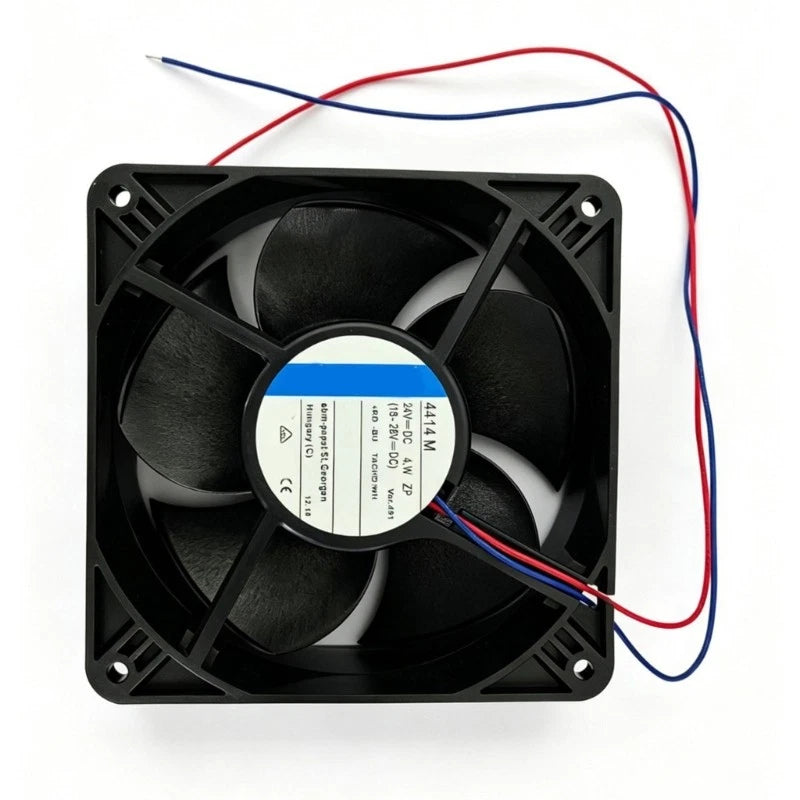

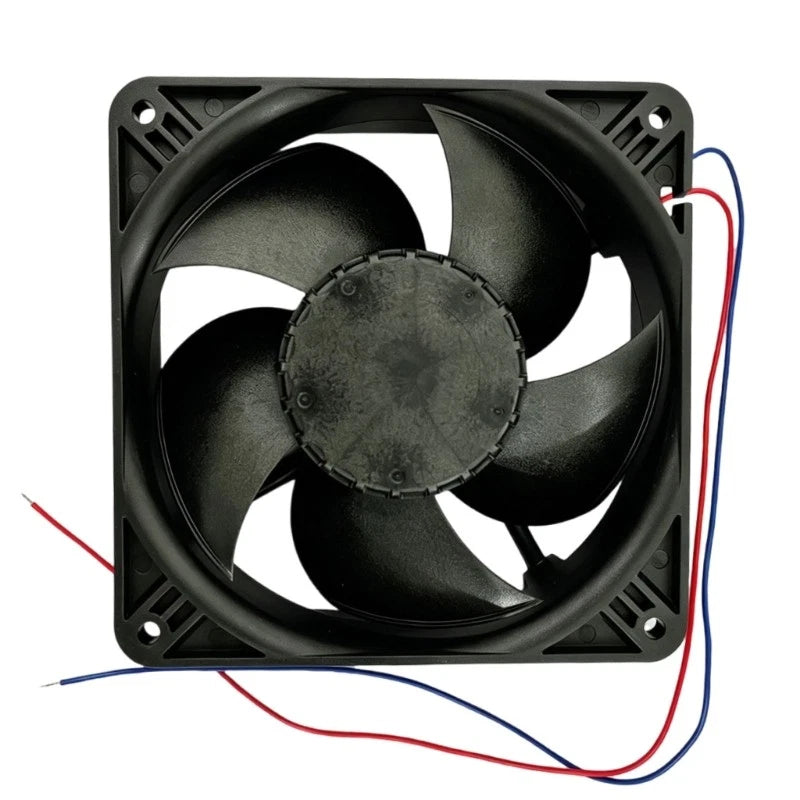

119mm DC Axial Fan
Square 119 x 119 x 38 mm frame designed for 24 VDC operation across an 18 to 28 VDC range.
1 / 3
Ebmpapst

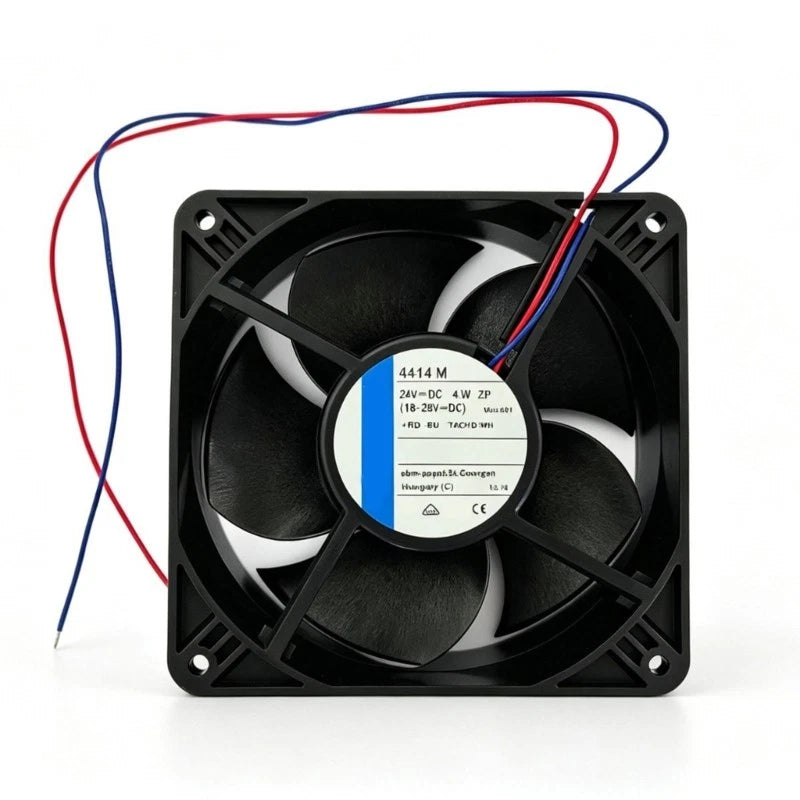

Ebmpapst 4414M Axial Fan 24VDC 119x119x38mm 3.5W
PRODUCT PRICE
USD
$26.30
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4414M |
| Product Category | Axial Fan |
| Fan Type | DC Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 18 to 28 VDC |
| Power Consumption | 3.6 to 4.1 W |
| Speed | 3300 RPM |
| Air Flow | 108.3 CFM (184 m³/h / 51.0 l/s) |
| Noise Level | 42 dBA |
| Frame Dimensions | 119 x 119 x 38 mm |
| Bearing Type | Ball Bearing (reference) |
| IP Rating | IP20 |
| Termination | 2 Lead Wires |
Key Features
184 m³/h Air Flow
Delivers approximately 184 m³/h (108.3 CFM) at 3300 RPM for medium-volume forced-air cooling.
Low Power Draw
Power consumption is in the range of 3.6 to 4.1 W, suitable for continuous-duty DC cooling.
42 dBA Noise Level
Published noise level of 42 dBA for general industrial enclosure cooling.
IP20 Protection
IP20-rated for installation in protected control cabinets and electronic enclosures.
Applications
- Industrial control cabinet cooling
- Power supply and drive ventilation
- Electronic enclosure airflow
- Automation equipment thermal management
- DC cooling in machinery and panels
- General purpose axial ventilation
Purchase Information
We support online purchase of the Ebmpapst 4414M Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4414M? The 4414M is a 24 VDC axial fan with a 119 x 119 x 38 mm frame, used for cooling in industrial and electronic equipment.
What is the voltage range of the 4414M? It operates from 18 to 28 VDC with a nominal voltage of 24 VDC.
What is the air flow of the 4414M? Air flow is rated at 184 m³/h (108.3 CFM or 51.0 l/s) at 3300 RPM.
What is the power consumption of the 4414M? Power consumption is listed in the range of 3.6 to 4.1 W.
What is the speed of the 4414M? The rated speed is 3300 RPM.
What is the noise level of the 4414M? The published noise level is 42 dBA.
What is the IP rating of the 4414M? The fan has an IP20 rating.
What bearing type does the 4414M use? It uses ball bearings, based on available distributor data.
How is the 4414M connected? It uses 2 lead wires.
What should be checked before ordering the 4414M? Confirm the 24 VDC supply range (18-28 VDC), the 119 mm square frame opening, the IP20 installation environment, and the 2-wire connection.
