Ultra-Compact 40mm DC Fan
40 x 40 x 10 mm axial fan for space-constrained 24 VDC cooling applications.
1 / 3
Ebmpapst

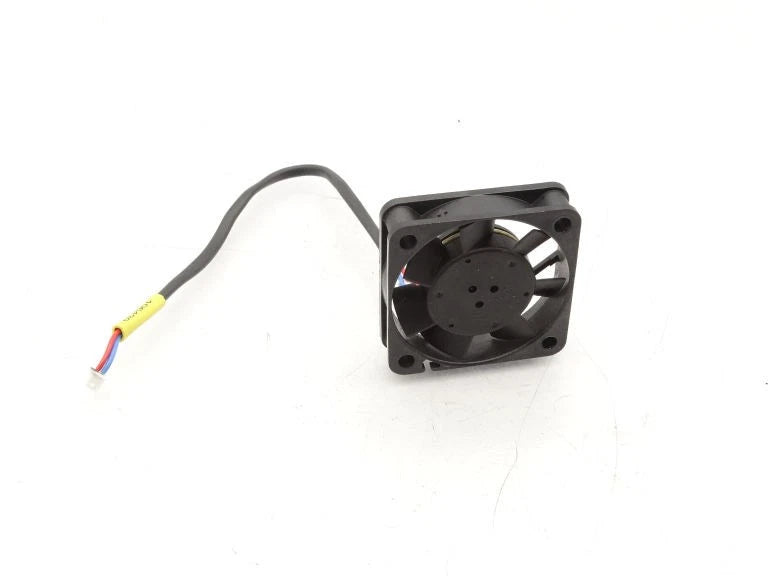

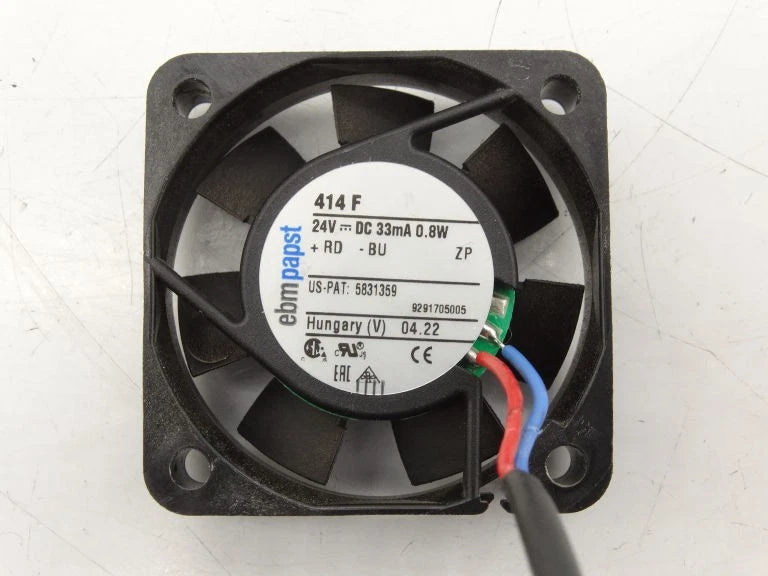

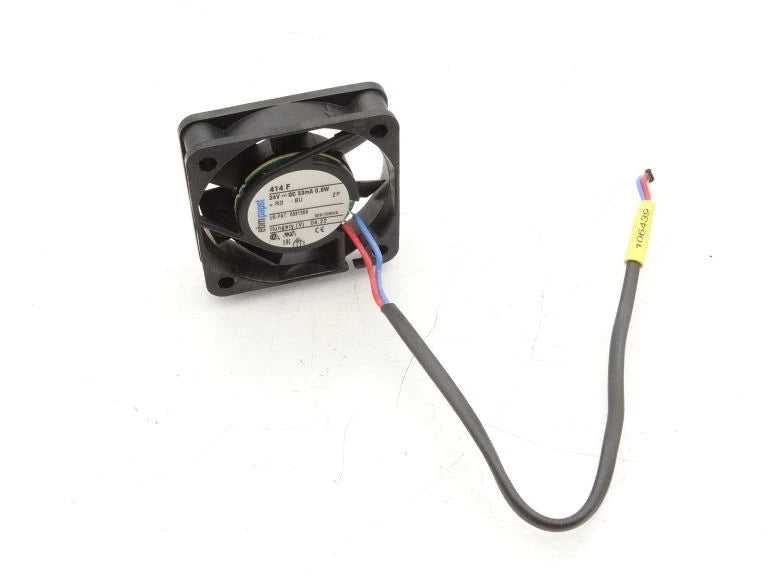

Ebmpapst 414F Axial Fan 24VDC 40x40x10mm 1.3W
PRODUCT PRICE
USD
$23.17
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 414F |
| Product Category | Axial Fan |
| Fan Type | DC Tubeaxial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 20 to 28 VDC |
| Power Consumption | 0.8 W |
| Speed | 5400 RPM |
| Air Flow | 4.7 CFM (8.0 m³/h / 2.22 l/s) |
| Noise Level | 22.1 dBA |
| Frame Dimensions | 40 x 40 x 10 mm |
| Bearing Type | Sintec Sleeve Bearing |
| Housing Material | PBT (glass-fiber reinforced) |
| Impeller Material | PA (glass-fiber reinforced) |
| IP Rating | IP20 |
| Operating Temperature | -20 to +70 °C |
| Service Life L10 | 45000 h at 20 °C / 15000 h at 60 °C |
| Termination | 2 single wires (AWG28) |
| Weight | 17 g |
Key Features
0.8 W Low Power Consumption
Draws only 0.8 W while delivering 4.7 CFM (8.0 m³/h) of air flow at 5400 RPM.
Sintec Sleeve Bearing
Uses Sintec sleeve bearings with a published L10 service life of 45000 hours at 20 °C.
22.1 dBA Noise Level
Low published noise output for noise-sensitive or densely packed electronic enclosures.
IP20 Protection
IP20-rated for use in protected indoor environments away from dust and water ingress.
Applications
- Compact electronic enclosure cooling
- Point-of-load thermal management
- Small power supply and converter cooling
- Telecom and networking equipment airflow
- Instrumentation and control panel ventilation
- Space-limited DC cooling applications
Purchase Information
We support online purchase of the Ebmpapst 414F Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 414F? The 414F is a 24 VDC axial fan with a 40 x 40 x 10 mm frame, intended for compact electronic cooling applications.
What is the voltage range of the 414F? It operates from 20 to 28 VDC with a nominal voltage of 24 VDC.
What is the air flow of the 414F? Air flow is rated at 4.7 CFM (8.0 m³/h or 2.22 l/s) at 5400 RPM.
What is the power consumption of the 414F? Power consumption is 0.8 W.
What bearing type does the 414F use? It uses Sintec sleeve bearings.
What is the noise level of the 414F? The published noise level is 22.1 dBA.
What is the operating temperature range of the 414F? The operating temperature range is -20 to +70 °C.
What is the service life of the 414F? The published L10 service life is 45000 hours at 20 °C and 15000 hours at 60 °C.
How is the 414F connected? It uses 2 single AWG28 wires that are stripped and tinned.
What should be checked before ordering the 414F? Verify the 24 VDC supply (within 20-28 VDC), the 40 x 40 x 10 mm mounting space, the IP20 installation environment, and the 2-wire connection requirement.
