500 m³/h Airflow
Delivers 500 m³/h (294 CFM) airflow from a 119 x 119 x 38 mm frame for high-performance compact cooling.
1 / 2
Ebmpapst

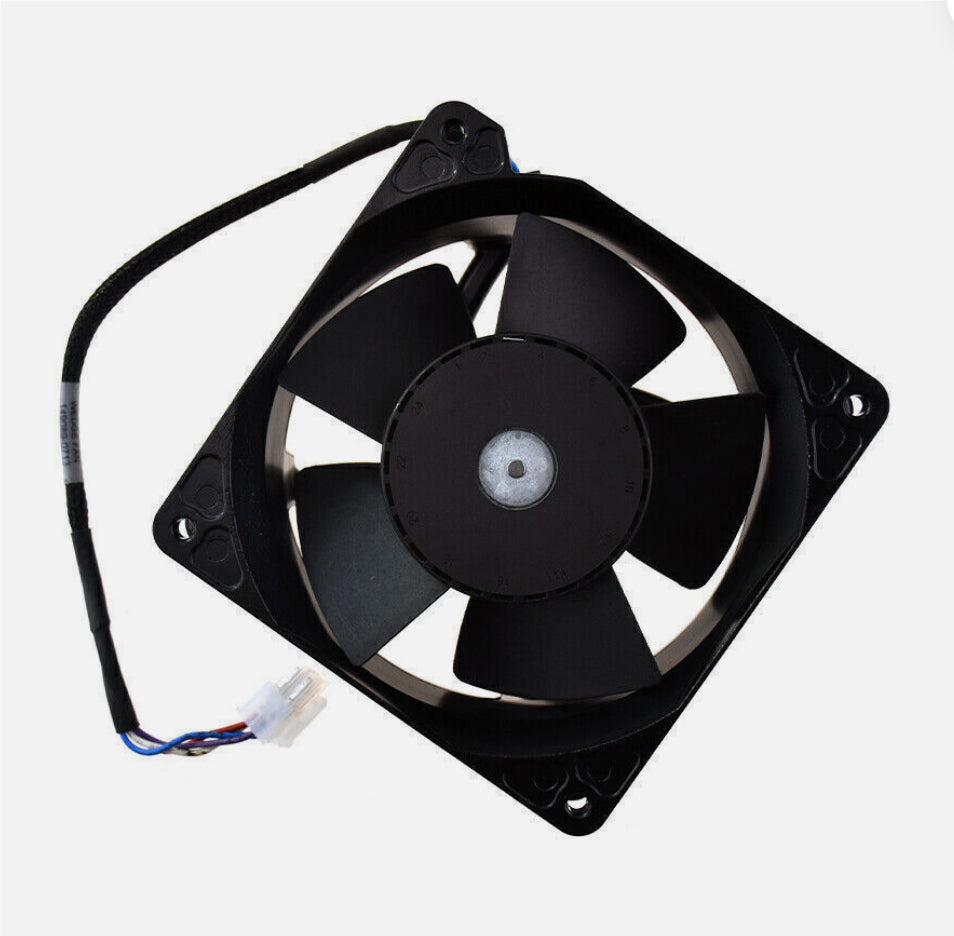

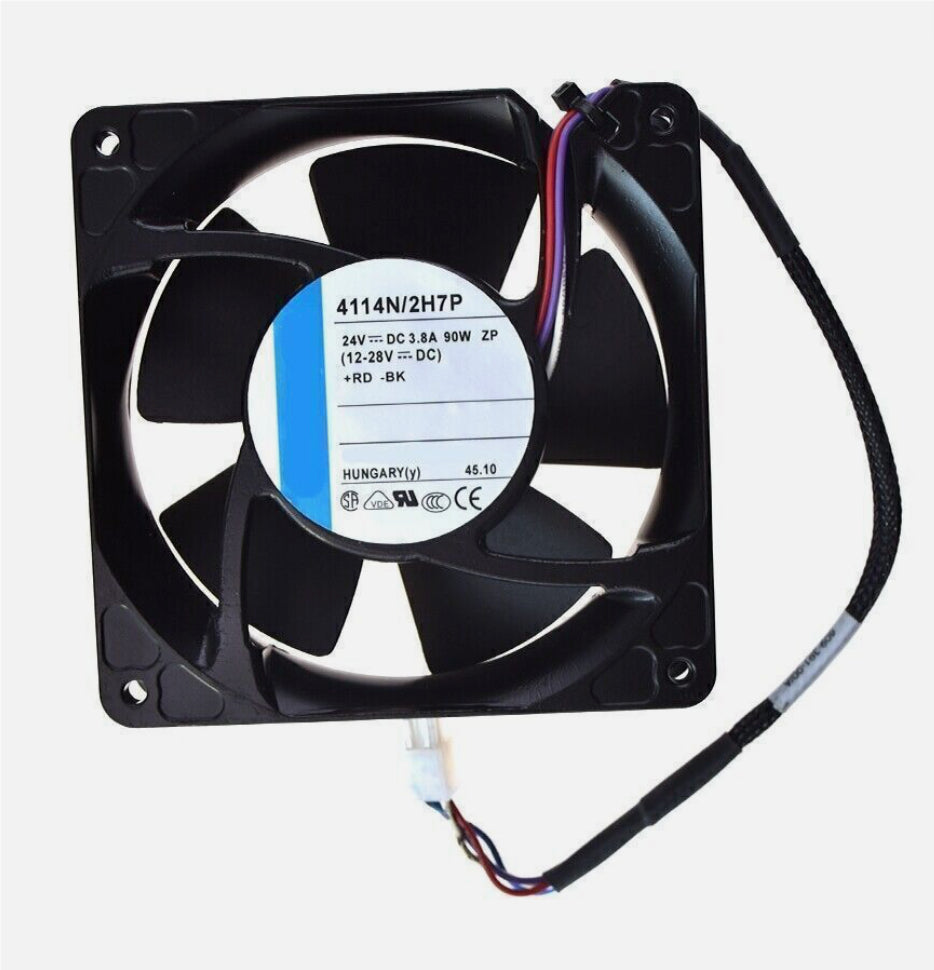

Ebmpapst 4114N/2H7P Axial Fan 24VDC 119x119x38mm 10W
PRODUCT PRICE
USD
$57.72
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4114N/2H7P |
| Product Category | Axial Fan |
| Fan Type | DC Axial Fan |
| Rated Voltage | 24 VDC |
| Power Consumption | 90 W |
| Dimensions | 119 x 119 x 38 mm |
| Airflow | 500 m³/h (294 CFM) |
| Speed | 9500 RPM |
| Noise Level | 76 dBA |
| Bearing Type | Ball Bearing |
| Connection | 4 Lead Wires, PWM Control, Sensor Output |
Key Features
9500 RPM Speed
Rated speed of 9500 RPM supports high air movement in space-limited installations.
PWM and Sensor Output
4-wire connection provides PWM speed control and sensor output for system integration.
90 W Power
Power consumption of 90 W at 24 VDC rated voltage.
Ball Bearing
Ball bearing construction for the 119 mm axial fan platform.
Applications
- High-density electronics cooling
- Industrial drive thermal management
- Power supply ventilation
- Server and telecom enclosure cooling
- Inverter heat dissipation
- Compact high-airflow cooling systems
Purchase Information
We support online purchase of the Ebmpapst 4114N/2H7P Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4114N/2H7P? It is a 24 VDC axial fan with a 119 x 119 x 38 mm frame.
What is the airflow of the 4114N/2H7P? The airflow is 500 m³/h (294 CFM).
What is the speed? The rated speed is 9500 RPM.
Does it support PWM control? Yes, it has PWM control and sensor output via 4 lead wires.
What is the power consumption? The power consumption is 90 W.
What is the noise level? The noise level is 76 dBA.
