24 VDC High-Speed Operation
Operates from a 24 VDC nominal supply with a 12-28 VDC range and reaches 6800 rpm.
1 / 1
Ebmpapst

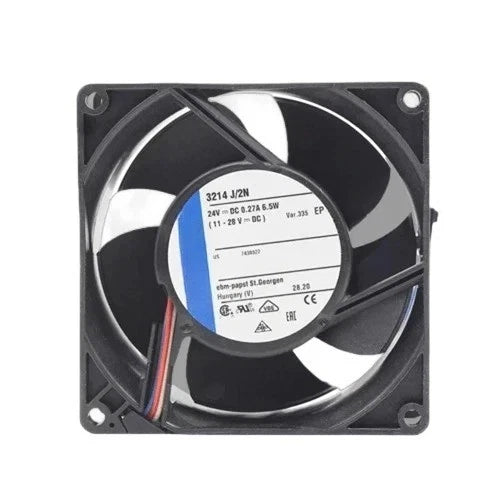

Ebmpapst 3214J/2N Axial Fan 24VDC 92x92x38mm 3.7W
PRODUCT PRICE
USD
$40.37
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 3214J/2N |
| Product Category | Axial Fan |
| Fan Type | DC Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 12-28 VDC |
| Power Consumption | 9 W (3214J series) |
| Speed | 6800 rpm |
| Air Flow | 86 CFM / 146 m³/h |
| Dimensions | 92 x 92 x 38 mm |
| Bearing Type | Ball Bearing |
| Noise Level | 55 dB(A) |
| Operating Temperature | -20°C to +70°C |
| Termination | 2 Wire Leads |
| Approvals | CSA, UL, VDE |
Key Features
86 CFM Air Flow
Published data identifies 86 CFM (2.41 m³/min) air flow for the 3214J series high-speed configuration.
38 mm Deep Frame
The 92 x 92 x 38 mm frame provides additional depth relative to standard 25 mm axial fans for higher pressure capability.
Ball Bearing Construction
Equipped with ball bearings for the intended mounting position and continuous operation.
55 dB(A) Noise Level
The documented noise level is 55 dB(A) at the rated operating point.
Industrial Temperature Range
Rated for operation from -20°C to +70°C according to published data.
Applications
- Industrial control cabinet cooling
- Power electronics and drive heat dissipation
- Compact equipment ventilation with 24 VDC supply
- Telecom and data enclosure airflow
- Automation panel thermal management
- High-static-pressure cooling in dense enclosures
- Medical and laboratory equipment ventilation
- General axial cooling in machinery with limited 92 mm mounting space
Purchase Information
We support online purchase of the Ebmpapst 3214J/2N Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 3214J/2N? It is a DC axial fan in the 3214J series with a 92 x 92 x 38 mm frame.
What is the nominal voltage of the 3214J/2N? The nominal voltage is 24 VDC, with an operating range of 12 to 28 VDC.
What is the power consumption? Published 3214J series data identifies 9 W power consumption for the high-speed configuration.
What are the speed and air flow? The fan operates at 6800 rpm and delivers 86 CFM (146 m³/h) according to published data.
What is the noise level of the 3214J/2N? The documented noise level is 55 dB(A).
What bearing type does the 3214J/2N use? The fan uses ball bearings.
What is the operating temperature range? The published operating temperature range is -20°C to +70°C.
How is the 3214J/2N terminated? The fan is documented with 2 wire leads.
What is the significance of the 38 mm depth? The 38 mm frame depth accommodates a wider impeller for higher pressure capability compared with thinner 92 mm axial fans, subject to the installation space.
What should be checked before ordering the 3214J/2N? Check the complete 3214J/2N catalog number, 24 VDC supply, required air flow and static pressure, 92 x 92 x 38 mm mounting space, termination type and operating temperature against the application.
