12 VDC High-Speed Axial Fan
92 x 92 x 38 mm axial fan with 12 VDC nominal voltage and 6.5 W power consumption.
1 / 1
Ebmpapst

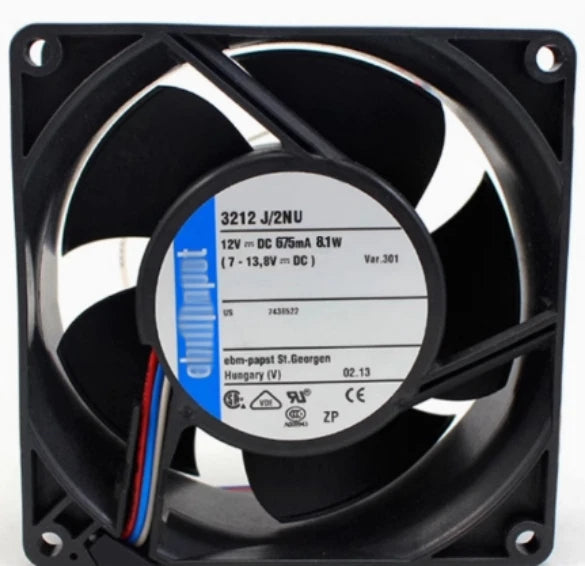

Ebmpapst 3212J/2NU Axial Fan 12VDC 92x92x38mm 6.5W
PRODUCT PRICE
USD
$133.90
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 3212J/2NU |
| Product Category | Axial Fan |
| Nominal Voltage | 12 VDC |
| Dimensions | 92 x 92 x 38 mm |
| Power Consumption | 6.5 W |
| Air Flow | 76.5 CFM / 130 m3/h |
| Speed | 6000 rpm |
| Noise Level | 51 dBA |
| Bearing Type | Ball bearing |
| IP Rating | IP68 |
| Voltage Range | 7 VDC to 13.8 VDC |
| Connection | 2 wire leads |
Key Features
6000 rpm and 130 m3/h
Delivers 130 m3/h (76.5 CFM) air flow at 6000 rpm for high-static-pressure cooling.
IP68 Protection
IP68 rating supports use in wet, dusty or washdown-prone environments where a standard fan would be unsuitable.
Wide Voltage Range
Operating voltage range of 7 VDC to 13.8 VDC provides tolerance for 12 VDC supply variation.
Applications
- Outdoor electronic enclosures
- Washdown-area control panels
- Telecom equipment cooling
- Industrial automation in harsh environments
- Power electronics cooling
- Transportation equipment cooling
- Food and beverage processing equipment
- Marine and offshore enclosures
Purchase Information
We support online purchase of the Ebmpapst 3212J/2NU Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 3212J/2NU? It is a 92 x 92 x 38 mm DC axial fan with 12 VDC nominal voltage and 6.5 W power consumption.
What is the air flow of the 3212J/2NU? The air flow is 130 m3/h (76.5 CFM).
What is the fan speed? The speed is 6000 rpm.
What is the IP rating? The IP rating is IP68.
What is the operating voltage range? The operating voltage range is 7 VDC to 13.8 VDC.
What bearing type does it use? It uses a ball bearing.
What is the noise level? The noise level is 51 dBA.
What should be checked before ordering? Check the supply voltage range, air flow, IP protection and mounting arrangement against the equipment requirements.
Need help confirming a model?
Send us your part number and technical requirements.
