92mm DC Axial Fan
92 x 92 x 38 mm square fan designed for 12 VDC operation across a 7 to 13.8 VDC range.
1 / 1
Ebmpapst

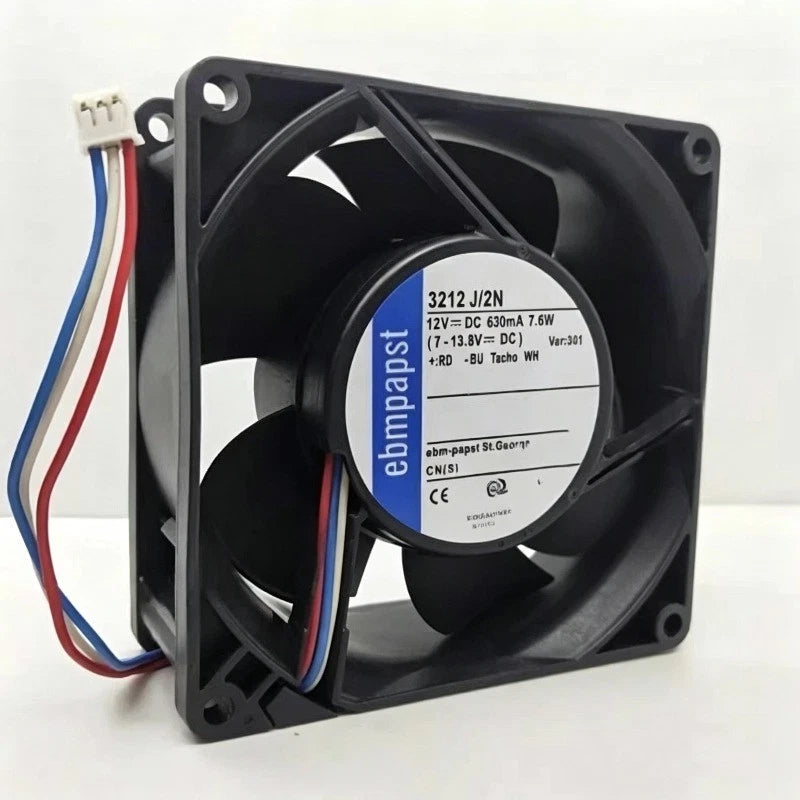

Ebmpapst 3212J/2N Axial Fan 12VDC 92x92x38mm 3.4W
PRODUCT PRICE
USD
$22.87
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 3212J/2N |
| Product Category | Axial Fan |
| Fan Type | DC Tubeaxial Fan |
| Nominal Voltage | 12 VDC |
| Voltage Range | 7 to 13.8 VDC |
| Power Consumption | 7.5 W |
| Speed | 6000 RPM |
| Air Flow | 77.0 CFM (2.16 m³/min / 128.4 m³/h) |
| Noise Level | 51 dBA |
| Frame Dimensions | 92 x 92 x 38 mm |
| Bearing Type | Ball Bearing |
| Termination | 3 Wire Leads |
Key Features
77 CFM Air Flow
Delivers 77.0 CFM (2.16 m³/min or 128.4 m³/h) at 6000 RPM for medium-volume forced-air cooling.
7.5 W Power Consumption
Rated at 7.5 W for continuous-duty DC cooling in electronic enclosures.
3-Wire Connection
Uses 3 wire leads, typically including a speed sensor or tach output for monitoring.
Ball Bearing Construction
Ball bearing assembly supports the fan within the published speed, power, and airflow ratings.
Applications
- Industrial control cabinet cooling
- Power supply and drive ventilation
- Electronic enclosure airflow
- Telecom and networking equipment cooling
- Automation equipment thermal management
- Compact DC cooling with speed feedback
Purchase Information
We support online purchase of the Ebmpapst 3212J/2N Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 3212J/2N? The 3212J/2N is a 12 VDC axial fan with a 92 x 92 x 38 mm frame and a 3-wire connection, used for cooling in industrial electronics.
What is the voltage range of the 3212J/2N? It operates from 7 to 13.8 VDC with a nominal 12 VDC supply.
What is the air flow of the 3212J/2N? Air flow is rated at 77.0 CFM (2.16 m³/min or 128.4 m³/h) at 6000 RPM.
What is the power consumption of the 3212J/2N? Power consumption is 7.5 W.
What is the speed of the 3212J/2N? The rated speed is 6000 RPM.
What is the noise level of the 3212J/2N? The published noise level is 51 dBA.
What bearing type does the 3212J/2N use? It uses ball bearings.
How is the 3212J/2N connected? It uses 3 wire leads, typically providing a speed sensor signal in addition to power.
What is the frame size of the 3212J/2N? The frame dimensions are 92 x 92 x 38 mm.
What should be checked before ordering the 3212J/2N? Verify the 12 VDC supply (within 7-13.8 VDC), the 92 mm square mounting opening, the 3-wire connection requirement, and the ambient temperature at the installation point.
Need help confirming a model?
Send us your part number and technical requirements.
