12 VDC Brushless Cooling
Delta TAA0412CD is a 12 VDC brushless axial fan designation. Complete-model sellers commonly identify a 0.60 A current marking, but the current drawn during operation depends on the exact configuration.
DELTA

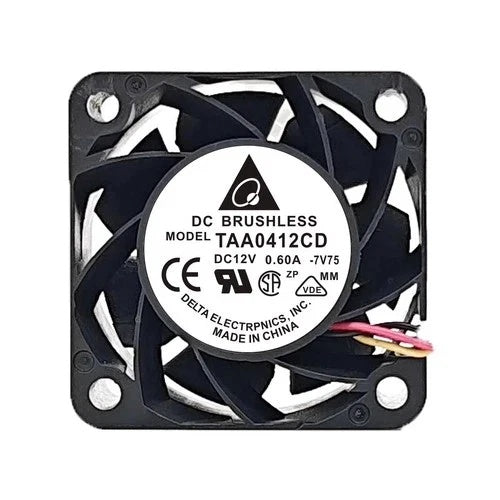

Delta Electronics TAA0412CD DC Axial Fan 12VDC 40x40x20mm 0.60A
$8.50
Available
PRODUCT GALLERY
01 / 7
Product images for part identification
DELTA
Delta Electronics TAA0412CD DC Axial Fan 12VDC 40x40x20mm 0.60A
PRODUCT PRICE
USD
$8.50
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | TAA0412CD |
| Product Category | DC Axial Fan |
| Product Family | TAA 40 x 40 x 20 mm Series |
| Fan Type | DC Brushless Axial Cooling Fan |
| Frame Dimensions | 40 x 40 x 20 mm (complete-model distributor listings and Delta TAA-family drawing) |
| Nominal Voltage | 12 VDC |
| Listed Label Current | 0.60 A (complete-model supplier listings and Delta safety-label designation for related configurations) |
| Advertised Operating Current | Approximately 0.50 A in some complete-model supplier listings; not independently confirmed as a universal rating |
| Calculated Power at 0.50 A | 6.00 W (12 V x 0.50 A; calculated reference only) |
| Listed Speed | 13000 RPM (multiple unsuffixed-model supplier listings) |
| Listed Acoustical Noise | 54.5 dB(A) (complete-model supplier listings) |
| Listed Bearing System | Two Ball Bearings (complete-model suppliers) |
| Common Electrical Configuration | 4 wires, 4-pin connector (multiple complete-model supplier listings) |
| Alternative Connector Listing | 3-pin configuration offered under the unsuffixed model number by another supplier |
| Electrical Signal Functions | PWM and speed feedback documented for specific four-wire TAA0412CD configurations; verify exact assembly |
| Delta Safety Model | TAA0412CD (identified in TAA0412CDECC and TAA0412CD-CN approval specifications) |
| Documented Variant | TAA0412CDECC (distinct model configuration) |
| ECC Variant Operating Voltage | 7.0–15.0 VDC (not established for every TAA0412CD configuration) |
| ECC Variant Input Current | 0.43 A average; 0.52 A maximum; 0.60 A safety current on label |
| ECC Variant Input Power | 5.16 W average; 6.24 W maximum |
| ECC Variant Speed | 15600 RPM ±10% |
| ECC Variant Maximum Free-Air Flow | 20.56 CFM (0.582 m³/min) |
| ECC Variant Maximum Static Pressure | 1.385 inH₂O (35.16 mmH₂O) |
| ECC Variant Acoustical Noise | 52.0 dB(A) average; 56.0 dB(A) maximum |
| ECC Variant Mounting Hole Pattern | 32.0 x 32.0 mm; four Ø3.5 mm holes |
| ECC Variant Lead Wire Specification | UL1061 AWG28, approximately 300 mm lead length |
| ECC Variant Lead Colors | Red: positive; black: negative; blue: frequency feedback; yellow: PWM input |
| ECC Variant Frame and Impeller | Plastic, UL 94 V-0 |
| ECC Variant Weight | 25 g |
| ECC Variant Operating Temperature | -10°C to +70°C |
Key Features
40 x 40 x 20 mm Frame
The TAA0412CD fan family uses a 40 mm square housing with 20 mm depth. The Delta TAA0412CDECC drawing illustrates a 32 mm square mounting-hole pattern, which should be checked for the actual assembly.
Published 13000 RPM Listing
Multiple sellers of the unsuffixed TAA0412CD describe 13000 RPM. Separately identified Delta configurations can operate at different speeds, including 15600 RPM for TAA0412CDECC.
Ball Bearing Construction
Complete-model supplier listings identify two ball bearings. The manufacturer also specifies two ball bearings and plastic housing components for the separately documented TAA0412CDECC configuration.
Four-Wire Configurations Available
Several sellers offer TAA0412CD with four leads and a four-pin connector. PWM and speed monitoring are documented in specific TAA0412CD variants, but the wiring functions must be checked against the supplied fan.
Variant-Specific Thermal Performance
The Delta TAA0412CDECC approval document lists 20.56 CFM maximum free-air flow and 1.385 inH₂O maximum static pressure. These values apply to that documented variant and are not universal specifications for every TAA0412CD.
Applications
- Compact server and network equipment cooling
- Industrial electronic enclosure ventilation
- Embedded controller thermal management
- Compact power supply forced-air cooling
- Electronic test equipment ventilation
- Telecommunications module cooling
- Equipment with a matching 40 mm axial fan mount
- Maintenance of compatible TAA0412CD cooling assemblies
Purchase Information
We support online purchase of the Delta Electronics TAA0412CD DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics TAA0412CD?
TAA0412CD is a Delta Electronics 12 VDC brushless axial cooling fan designation associated with a 40 x 40 x 20 mm housing. The manufacturer also uses TAA0412CD as a safety model identifier for separately specified variants.
What voltage does TAA0412CD require?
Multiple suppliers identify a nominal voltage of 12 VDC. The allowable operating voltage range must be checked against the complete assembly configuration rather than inferred from a different suffix.
What are the dimensions of TAA0412CD?
The commonly listed frame measures 40 x 40 x 20 mm. A related Delta approval drawing specifies 32 mm mounting-hole spacing; check the installed unit for physical confirmation.
What does the 0.60 A current marking represent?
Several TAA0412CD sellers advertise 0.60 A. In Delta's TAA0412CDECC approval specification, 0.60 A is expressly identified as the safety current printed on the label, while average operating current is 0.43 A. These are different quantities.
What is the input power?
Several unsuffixed-model sellers list approximately 6 W alongside an operating current of 0.50 A. Delta's separate TAA0412CDECC approval document specifies 5.16 W average and 6.24 W maximum. Confirm the specific assembly rather than treating these figures as interchangeable.
What is the fan speed?
Multiple TAA0412CD supplier listings state 13000 RPM. Delta's separately identified TAA0412CDECC specification instead lists 15600 RPM ±10%, showing why the complete configuration matters.
What is the maximum airflow?
A manufacturer-confirmed maximum airflow for every unsuffixed TAA0412CD assembly was not established. Delta documents 20.56 CFM for TAA0412CDECC, but that figure should only be used for a matching variant.
What is the maximum static pressure?
A universal value for the unsuffixed model was not confirmed. The TAA0412CDECC approval specification lists 1.385 inH₂O at zero airflow. Maximum airflow and maximum static pressure occur at different points on the performance curve.
What is the published noise rating?
Several unsuffixed-model sellers list 54.5 dB(A). The manufacturer specifies 52.0 dB(A) average and 56.0 dB(A) maximum for the separate TAA0412CDECC configuration.
What bearing system does TAA0412CD use?
Complete-model sellers commonly identify two ball bearings. Delta's approval document for the related TAA0412CDECC version also specifies a two-ball-bearing assembly.
Does TAA0412CD have three or four wires?
Multiple complete-model suppliers list a four-wire, four-pin configuration, while another supplier offers a three-pin version under the same base model. The manufacturer-confirmed TAA0412CDECC variant has four wires for DC power, frequency feedback and PWM. Verify connector and pinout before installation.
What should be checked before ordering Delta TAA0412CD?
Confirm the complete TAA0412CD marking and any suffix, 12 VDC nominal voltage, current label, 40 x 40 x 20 mm dimensions, mounting pattern, rotational speed, airflow requirements, bearing construction, wire count, connector type and control-signal assignments for the specific equipment.
