Technical specifications, features, applications and purchasing information.
| Brand | Delta Electronics |
| Model Number | QFR1212GHE |
| Product Category | DC Axial Fan |
| Product Series | QFR 120 x 120 x 38 mm Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Motor Configuration | Single-Phase, Four-Pole Brushless Motor |
| Frame Dimensions | 120 x 120 x 38 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 8.0–13.2 VDC |
| Input Current | 1.80 A (maximum 2.70 A) |
| Input Power | 21.60 W (maximum 32.40 W) |
| Reference Speed | 6000 RPM |
| Maximum Free-Air Flow | 210.38 CFM (5.957 m³/min) |
| Minimum Specified Free-Air Flow | 189.34 CFM (5.361 m³/min) |
| Maximum Static Pressure | 1.170 inH₂O (29.179 mmH₂O) |
| Minimum Specified Maximum Static Pressure | 0.945 inH₂O (23.635 mmH₂O) |
| Acoustical Noise | 64.0 dB(A) average (68.0 dB(A) maximum) |
| Bearing System | Two Ball Bearings |
| Frame Material | Plastic, UL 94 V-0 |
| Impeller Material | Plastic, UL 94 V-0 |
| Electrical Termination | 2 Lead Wires |
| Lead Wire Specification | UL1430 AWG22 |
| Power Lead Polarity | Red: Positive (+); Black: Negative (-) |
| Lead Wire Length | 340 ±10 mm (manufacturer drawing) |
| Mounting Hole Spacing | 105.0 x 105.0 mm |
| Mounting Hole Diameter | 4.5 ±0.3 mm |
| Mounting Hole Quantity | 8 total across both fan faces |
| Rotation Direction | Clockwise, viewed from nameplate side |
| External Cover | Open Type |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 5–90% RH |
| Reference Weight | 330 g |
Delta Electronics QFR1212GHE uses a single-phase, four-pole brushless motor rated at 12 VDC. Its manufacturer approval specification lists 1.80 A input current and 21.60 W input power, with respective maximum values of 2.70 A and 32.40 W.
The fan features a 120 mm square housing with 38 mm depth. Delta's mechanical drawing specifies a 105 mm square mounting-hole pattern and 4.5 mm diameter mounting holes.
The exact-model manufacturer approval specification identifies 6000 RPM reference speed at rated voltage, supporting forced-air cooling applications that require substantial airflow.
The manufacturer specifies 210.38 CFM maximum free-air flow and 1.170 inH₂O maximum static pressure. These are separate performance-curve endpoints; installed airflow depends on the equipment's resistance.
QFR1212GHE uses two ball bearings and UL 94 V-0 plastic frame and impeller components. The specified average acoustical noise is 64.0 dB(A), and the unit weighs approximately 330 g.
The base model uses red positive and black negative DC power leads. Delta documents locked-rotor protection, overcurrent shutdown, reverse-polarity withstand capability and a low-speed starting sequence.
We support online purchase of the Delta Electronics QFR1212GHE DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
What is Delta Electronics QFR1212GHE?
QFR1212GHE is a Delta Electronics 12 VDC brushless axial cooling fan with a 120 x 120 x 38 mm frame, two ball bearings and a two-wire power connection.
What voltage does QFR1212GHE require?
The Delta manufacturer approval specification identifies a nominal voltage of 12 VDC and an operating voltage range of 8.0–13.2 VDC.
What are the physical dimensions and mounting pattern?
The frame measures 120 x 120 x 38 mm. The manufacturer drawing specifies 105 x 105 mm mounting-hole spacing with 4.5 mm diameter holes and a reference wire length of 340 ±10 mm.
What is the input current?

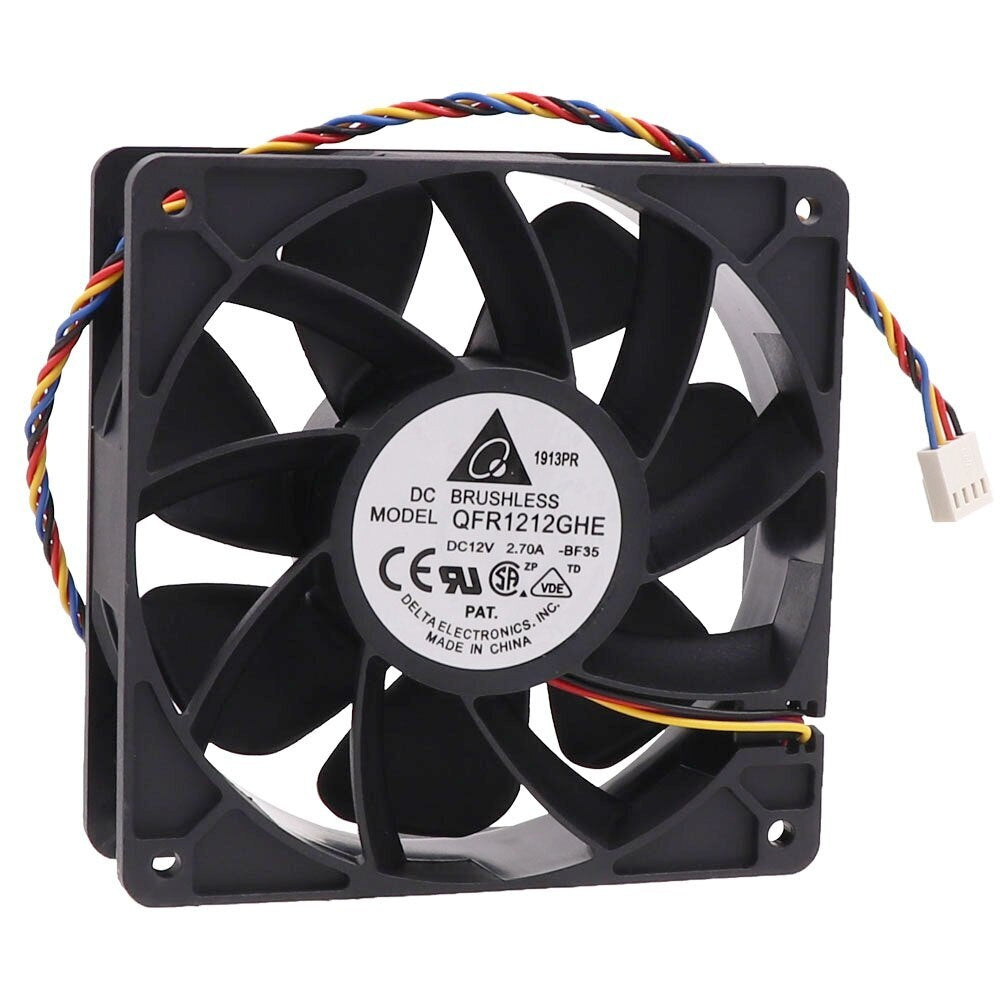

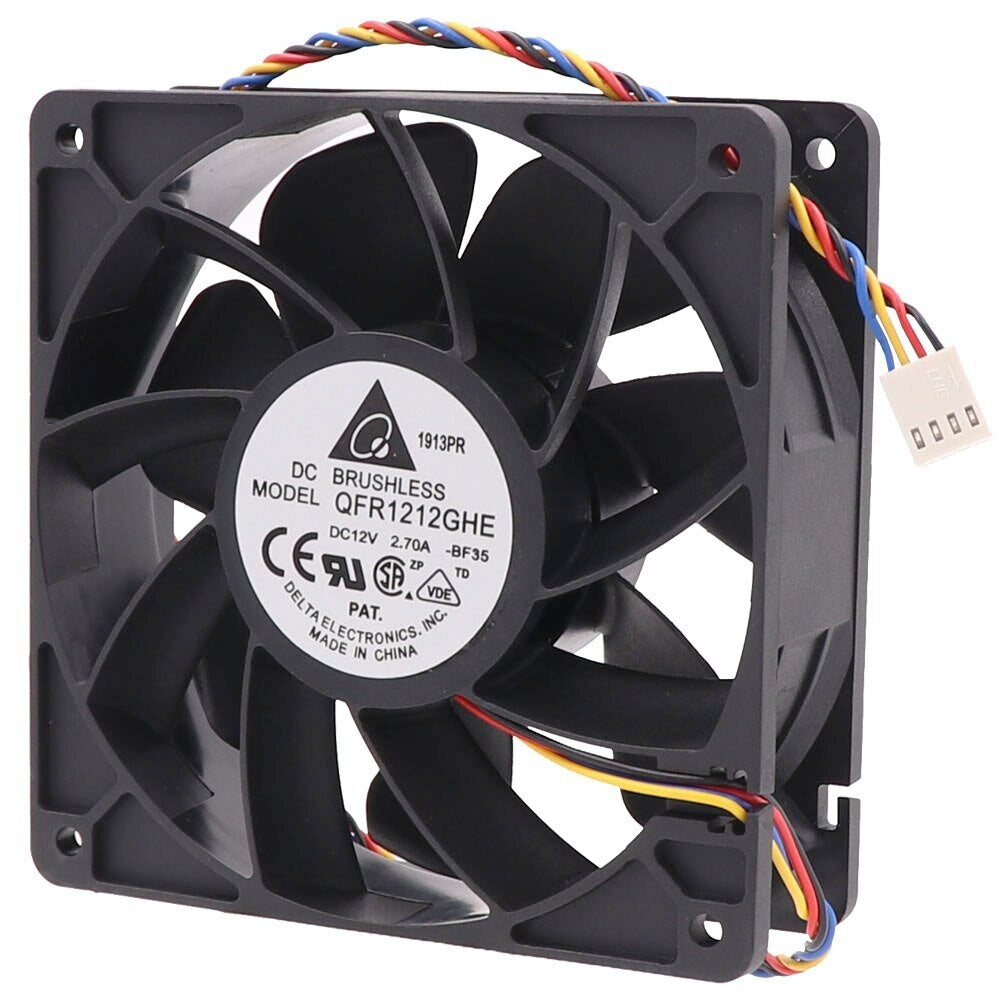

Delta specifies 1.80 A input current and 2.70 A maximum. The mechanical drawing shows a 2.70 A current marking on the fan label, representing the maximum rather than the nominal input current.
What is the input power?
The manufacturer approval specification lists 21.60 W input power and 32.40 W maximum. Power supply capacity should account for the documented electrical requirements.
What is the reference rotational speed?
The exact-model approval specification lists 6000 RPM at rated voltage. This is the base QFR1212GHE reference speed, not a performance claim for every specialized suffix variant.
What is the maximum airflow?
Delta specifies 210.38 CFM (5.957 m³/min) maximum free-air flow, with a minimum specified value of 189.34 CFM. Actual airflow depends on the equipment's pressure-flow resistance.
What is the maximum static pressure?
The manufacturer lists 1.170 inH₂O (29.179 mmH₂O) maximum static pressure, with a minimum specified maximum-pressure value of 0.945 inH₂O. Maximum static pressure occurs at zero airflow, separately from maximum free-air flow.
What is the acoustical noise rating?
Delta lists 64.0 dB(A) average and 68.0 dB(A) maximum. The specification describes a measurement at one meter from the fan intake in free air under anechoic test conditions.
What bearing system and construction materials are used?
The fan uses two ball bearings, a UL 94 V-0 plastic frame and a UL 94 V-0 plastic impeller. The manufacturer lists a weight of 330 g and a reference life of 50,000 hours at 40°C under specified test conditions.
Does QFR1212GHE have PWM control or speed feedback?
The unsuffixed QFR1212GHE approval drawing identifies two DC power leads without separate PWM or speed-feedback wiring. Delta's series documentation identifies -F00 and -R00 monitoring-signal options; their connection functions differ from the base model.
What should be checked before ordering Delta QFR1212GHE?
Confirm the complete QFR1212GHE marking and any suffix, 12 VDC supply, 1.80 A operating and 2.70 A maximum current, 120 x 120 x 38 mm frame, 105 mm mounting-hole spacing, 6000 RPM reference speed, 210.38 CFM airflow rating, two-wire polarity, connector arrangement and equipment cooling requirements.
