12 VDC Axial Cooling
Rated for 12 VDC with an operating voltage range of 7.0-13.2 VDC, as specified by Delta Electronics.
DELTA
Delta Electronics PFB0612SHE DC Axial Fan 12VDC 60x60x38mm 0.48A
$13.60
Available
PRODUCT GALLERY
01 / 9

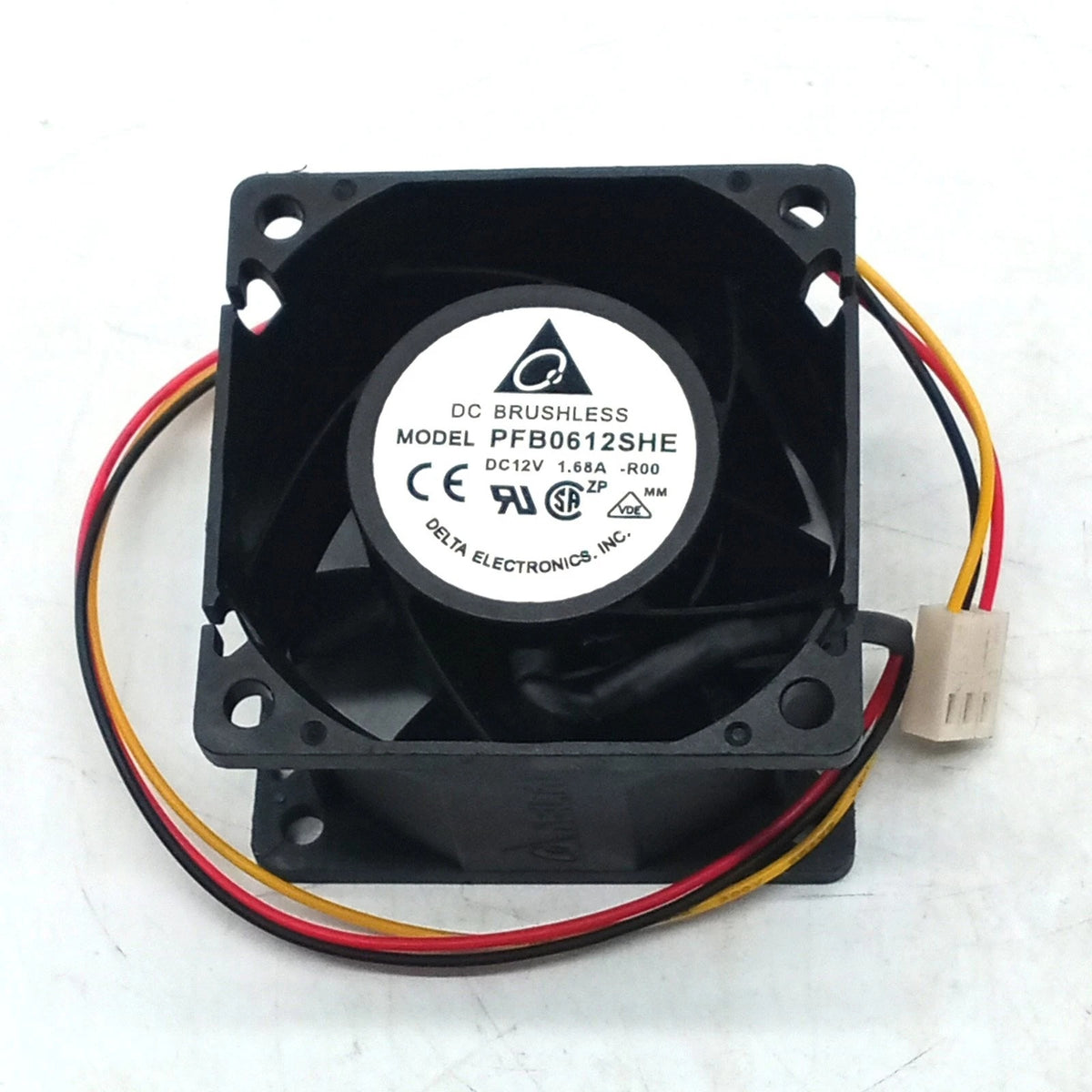

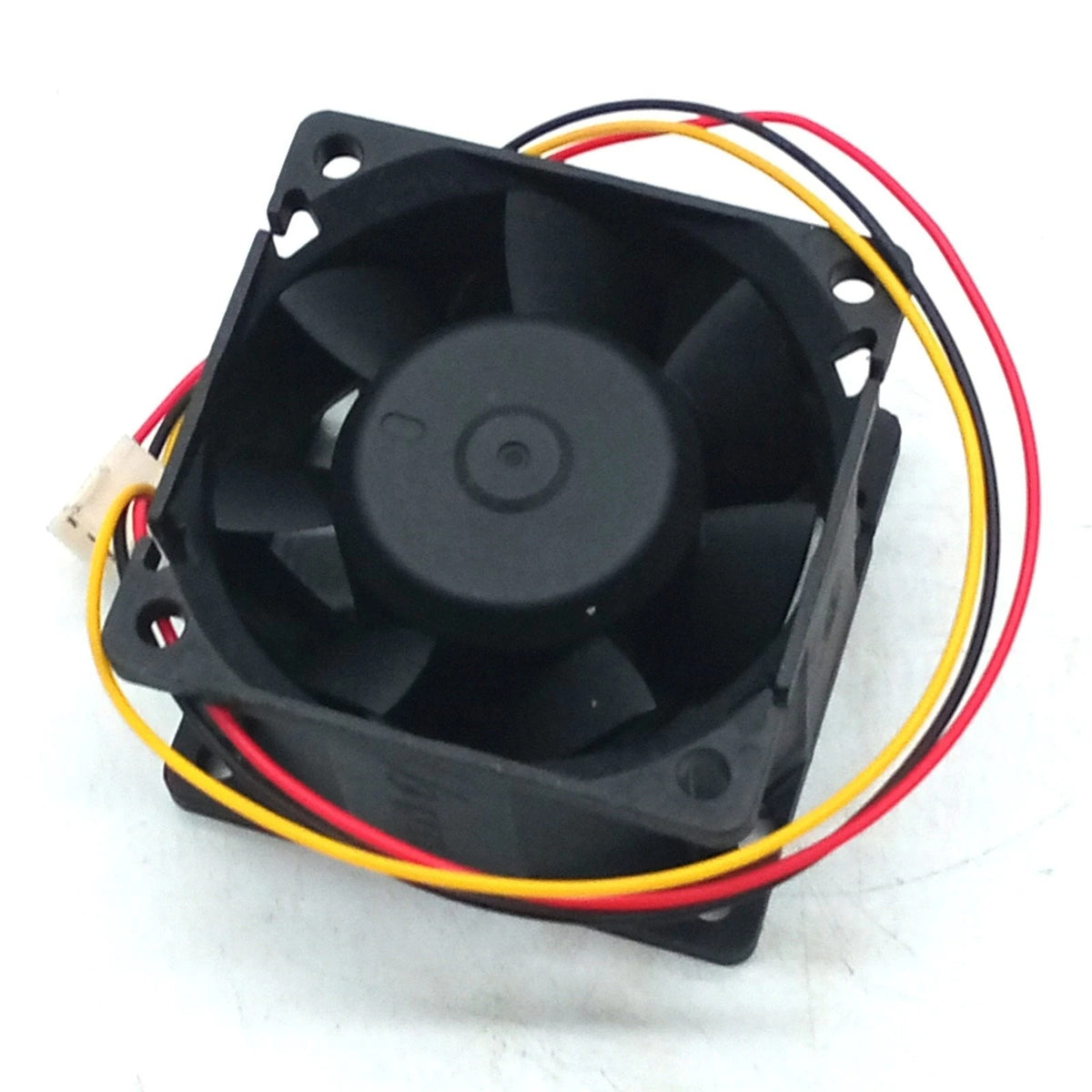

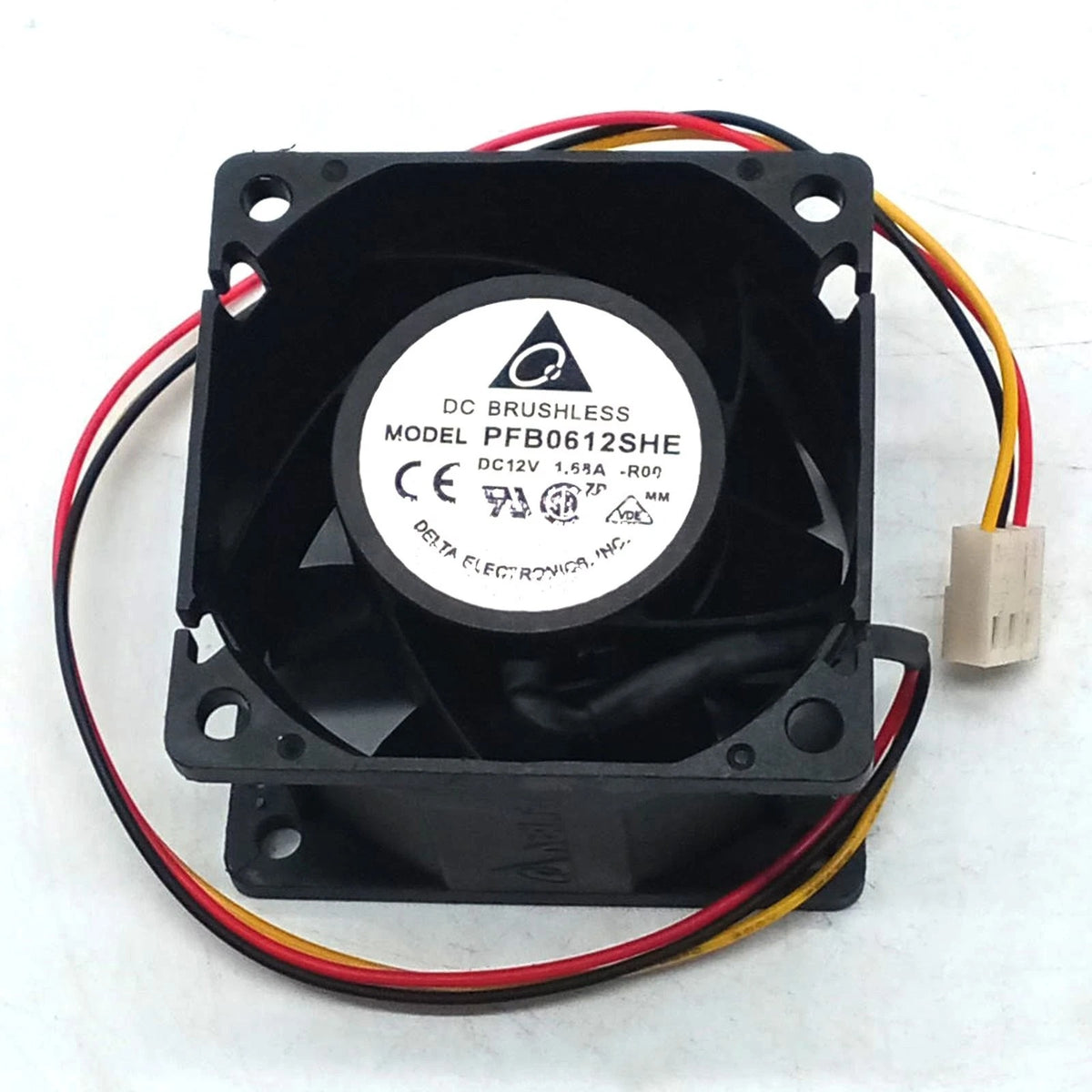

Product images for part identification
DELTA
Delta Electronics PFB0612SHE DC Axial Fan 12VDC 60x60x38mm 0.48A
PRODUCT PRICE
USD
$13.60
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | PFB0612SHE |
| Product Category | DC Axial Fan |
| Product Series | PFB |
| Fan Type | DC Brushless Axial Flow Fan |
| Motor Design | Single-Phase, Four-Pole |
| Dimensions | 60 x 60 x 38 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.0-13.2 VDC |
| Input Current | 0.48 A (0.72 A Maximum) |
| Input Power | 5.76 W (8.64 W Maximum) |
| Rotation Speed | 8000 RPM ±10% |
| Maximum Airflow | 43.57 CFM (1.234 m3/min) |
| Maximum Static Pressure | 0.918 inH2O (23.32 mmH2O) |
| Acoustical Noise | 50.5 dB(A) Average (54.5 dB(A) Maximum) |
| Bearing Type | Ball Bearings |
| Frame and Impeller | Plastic |
| Insulation Class | UL Class A |
| Operating Temperature | -10°C to +60°C |
| Lead Wires | 2: Red Positive (+), Black Negative (-) |
| Rotation Direction | Clockwise Viewed from Nameplate Side |
| Life Expectancy | 70,000 Hours at 40°C and 15-65% RH |
| Weight | 130 g |
Key Features
43.57 CFM Maximum Airflow
Delivers a specified maximum airflow of 43.57 CFM (1.234 m3/min) at zero static pressure.
8000 RPM Fan Speed
The manufacturer specifies a reference rotational speed of 8000 RPM with a tolerance of ±10%.
Static Pressure Capability
Maximum static pressure is specified as 0.918 inH2O (23.32 mmH2O) at zero airflow.
Ball Bearing Construction
Uses ball bearings in a 60 x 60 x 38 mm frame for compatible electronic cooling assemblies.
Two-Wire DC Connection
The specified two-wire connection uses red for positive power and black for negative power.
Applications
- Electronic equipment cooling
- Industrial electronic enclosure ventilation
- Power supply cooling assemblies
- Forced-air cooling of electronic components
- Compact equipment thermal management
- Electronics cooling with axial airflow
- Cooling system maintenance projects
- Fan replacement following electrical and mechanical verification
Purchase Information
We support online purchase of the Delta Electronics PFB0612SHE fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics PFB0612SHE?
PFB0612SHE is a Delta Electronics DC brushless axial flow fan in the PFB series, with a single-phase, four-pole motor.
What are the dimensions of PFB0612SHE?
The specified frame dimensions are 60 x 60 x 38 mm.
What voltage does PFB0612SHE require?
Its rated voltage is 12 VDC, with a documented operating voltage range of 7.0-13.2 VDC.
What is the rated input current?
The manufacturer specifies 0.48 A, with a maximum input current of 0.72 A.
What is the input power rating?
The specified input power is 5.76 W, with a maximum of 8.64 W.
What is the rotation speed?
Delta specifies 8000 RPM with a tolerance of ±10%.
What is the maximum airflow?
The specified maximum free-air flow is 43.57 CFM (1.234 m3/min) at zero static pressure.
What is the maximum static pressure?
The specified maximum static pressure is 0.918 inH2O (23.32 mmH2O) at zero airflow.
What is the acoustical noise rating?
The manufacturer specifies an average of 50.5 dB(A), with a maximum of 54.5 dB(A), under its stated test conditions.
What bearing system does PFB0612SHE use?
The manufacturer identifies ball bearings for this axial fan.
What are the operating temperature and connection details?
The operating temperature range is -10°C to +60°C. The two power leads are red positive and black negative.
What should be checked before ordering a replacement?
Verify the complete PFB0612SHE model number, 12 VDC supply, 60 x 60 x 38 mm dimensions, current rating, airflow and static pressure needs, mounting requirements and two-wire connection against the existing equipment.
Need help confirming a model?
Send us your part number and technical requirements.
