5 VDC Laptop Cooling
Delta Electronics NS85B13-17K23 is listed as a 5 VDC laptop cooling blower with a 0.50 A current marking. Complete-model supplier photographs and specifications associate it with part number 6033B0062501.
DELTA
Delta Electronics NS85B13-17K23 DC Laptop Blower Fan 5VDC 0.50A 4-Pin
$15.80
Available
PRODUCT GALLERY
01 / 9

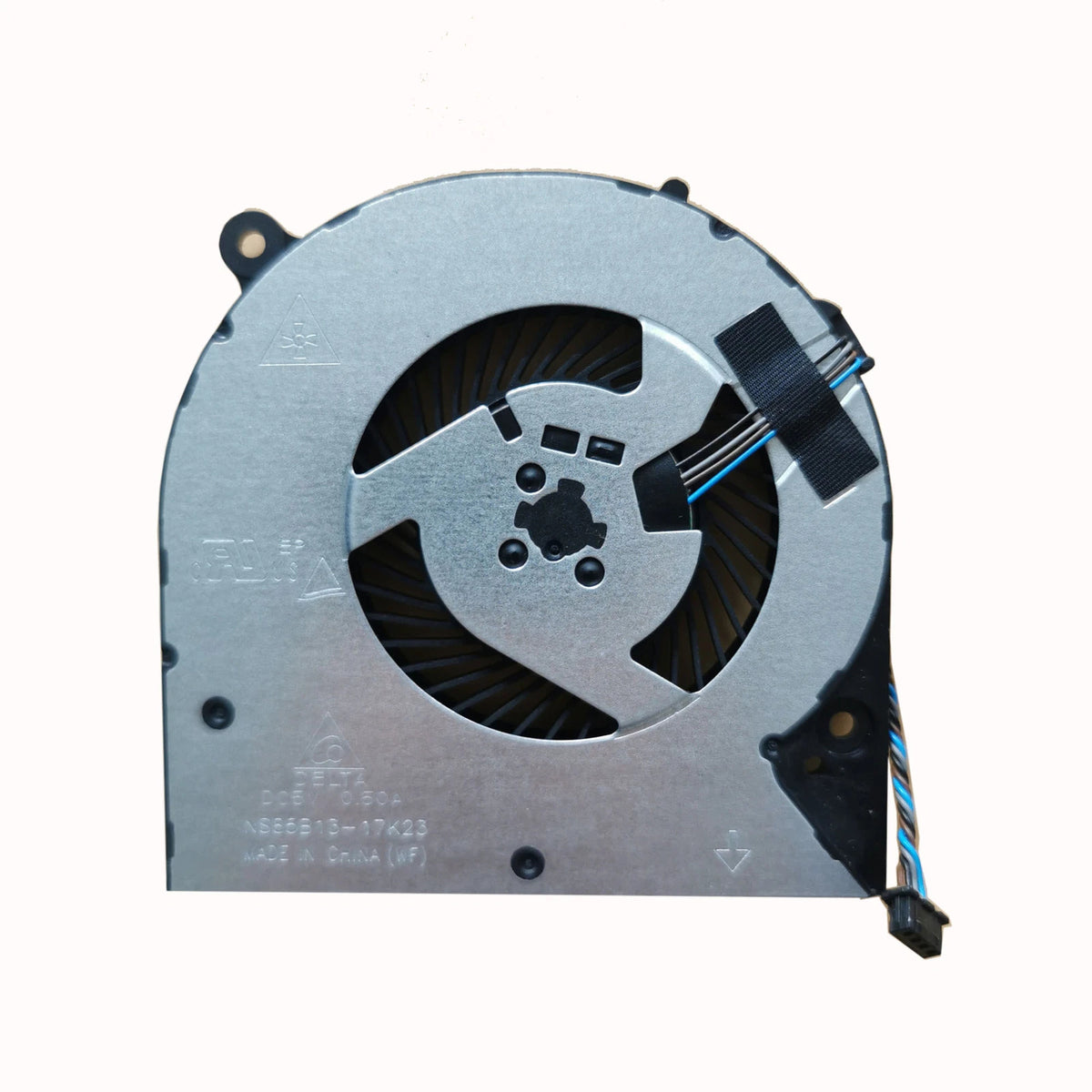

Product images for part identification
DELTA
Delta Electronics NS85B13-17K23 DC Laptop Blower Fan 5VDC 0.50A 4-Pin
PRODUCT PRICE
USD
$15.80
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | NS85B13-17K23 |
| Product Category | DC Centrifugal Blower Fan |
| Application Category | Laptop CPU Cooling Fan |
| Fan Type | DC Brushless Radial Blower |
| Model Family | NS85B13 |
| Related Part Number | 6033B0062501 |
| Nominal Voltage | 5 VDC |
| Listed Current | 0.50 A (complete-model supplier specifications and product label) |
| Calculated Electrical Power | 2.50 W (5 V x 0.50 A; calculated reference, not a separately verified operating-power specification) |
| Fan Size Description | 60 mm nominal (supplier description; not a confirmed rectangular housing measurement) |
| Airflow Arrangement | Radial impeller with side-discharge outlet |
| Electrical Termination | 4 Wire Leads |
| Connector | 4-Pin Laptop Fan Connector |
| PWM Control | Advertised by replacement fan suppliers; electrical signal specification not independently verified from a Delta approval sheet |
| Mounting Arrangement | Laptop-specific mounting tabs and screw locations; verify against the installed assembly |
| Related Search Identifier | NS85BL3 (one supplier's alternative search designation) |
| Associated Laptop Manufacturer | HP |
| Listed Laptop Series | HP 14-CF, 14S-CF, 14-CK, 14-CM and 14-DK series (replacement supplier references) |
| Examples of Listed Laptop Models | HP 14S-CF006TX, 14S-CF0010TX and 14S-CF0057TX |
| Additional Equipment Reference | HP 240 G7/G8 and HP 245 G7/G8 appear in multi-model replacement fan listings; individual compatibility must be confirmed |
| Related HP Service Part | L23189-001 appears in compatible fan listings; cross-reference rather than a confirmed identical Delta assembly number |
Key Features
Compact Radial Blower Design
The fan uses a radial impeller and side-discharge housing suited to laptop cooling passages. A supplier describes it as a 60 mm fan, but exact housing dimensions should be checked against the installed unit.
Four-Wire Connection
Multiple complete-model listings identify four leads and a four-pin connector. Replacement suppliers advertise PWM speed regulation, although the precise signal levels and pin positions have not been established from a matching Delta engineering specification.
HP Notebook Application
The NS85B13-17K23 / 6033B0062501 assembly is marketed for selected HP 14-CF and 14S-CF notebooks, including 14S-CF006TX, 14S-CF0010TX and 14S-CF0057TX configurations.
Laptop-Specific Mechanical Fit
The cooling assembly features housing contours, mounting tabs and cable routing intended to match compatible notebook layouts. Fan shape and screw locations are more important than a nominal 60 mm size description alone.
Part-Number Verification
The product may be found under NS85B13-17K23, NS85B13 and 6033B0062501. Other fans offered for the same HP laptop families may have different markings, housings or connectors and require separate fitment checks.
Applications
- HP 14-CF series laptop CPU cooling
- HP 14S-CF series notebook thermal management
- HP 14S-CF006TX compatible fan replacement
- HP 14S-CF0010TX compatible cooling assembly maintenance
- HP 14S-CF0057TX compatible laptop ventilation
- Selected HP 14-CK and 14-CM notebook cooling configurations
- Selected HP 14-DK laptop CPU heat-exhaust assemblies
- Repair of compatible 5 VDC four-pin laptop blower installations
Purchase Information
We support online purchase inquiries for the Delta Electronics NS85B13-17K23 DC Laptop Blower Fan. For individual replacement or bulk purchasing requirements, please provide the complete fan marking, related part number 6033B0062501, laptop model and required quantity. Our team can discuss product identification, quantity quotations, delivery arrangements and transportation methods. Laptop compatibility should be confirmed using the existing fan's shape, mounting tabs and connector before ordering.
Frequently Asked Questions
What is Delta Electronics NS85B13-17K23?
NS85B13-17K23 is a Delta Electronics DC brushless laptop centrifugal blower fan. Complete-model listings specify 5 VDC, 0.50 A, four wires and the related part number 6033B0062501.
Is NS85B13-17K23 an axial fan or a centrifugal blower?
It is a laptop-style centrifugal blower with a radial impeller and side-discharge outlet. Its mechanical shape differs from a standard square-frame axial cooling fan.
What is the rated voltage?
The fan is listed at 5 VDC. This value appears in complete-model parts listings and product photographs. A separate manufacturer-confirmed operating voltage range was not established.
What is the listed input current?
The complete model is commonly listed at 0.50 A. Confirm the actual fan label before selecting a replacement or designing an electrical connection.
What is the electrical power?
Multiplying 5 VDC by 0.50 A produces 2.50 W. This is a calculated reference and not an independently verified typical or maximum power consumption specification.
What are the fan dimensions?
A complete-model supplier describes the assembly as a 60 mm fan, but the exact rectangular housing dimensions and mounting distances were not independently established. Compare the full housing profile, screw locations and outlet position with the installed part.
How many connector pins does NS85B13-17K23 have?
Multiple complete-model suppliers identify four wires and a four-pin connector. Connector size, keying, wire order and cable length should be checked before installation.
Does NS85B13-17K23 support PWM control?
Some replacement suppliers advertise four-pin PWM speed regulation. However, the precise PWM input specification and connector pinout were not independently verified from a matching Delta approval document.
Which HP laptops are listed as compatible?
Replacement suppliers identify selected HP 14-CF, 14S-CF, 14-CK, 14-CM and 14-DK models, including 14S-CF006TX, 14S-CF0010TX and 14S-CF0057TX. Compatibility depends on the precise laptop hardware configuration.
Is NS85B13-17K23 the same as 6033B0062501?
Complete-model supplier documentation associates NS85B13-17K23 with part number 6033B0062501. Verify both identifiers against the installed fan label before selecting a replacement.
Can NS85B13-17K23 replace DFS200005AR0T or other HP laptop fans?
Some replacement suppliers list DFS200005AR0T / 6033B0062401 and B7506ASHSF2300TN as alternative fans for overlapping HP laptop families. These identifiers do not establish identical dimensions, connectors or electrical characteristics; each replacement requires physical and electrical verification.
What should be checked before ordering Delta NS85B13-17K23?
Confirm the complete NS85B13-17K23 marking, 6033B0062501 part number, 5 VDC supply, 0.50 A listed current, radial blower housing, outlet direction, mounting tabs, four-pin connector, wire sequence, cable routing and the exact HP laptop model and revision.
