24 VDC Brushless Cooling
The FFB1224SHE operates at a rated 24 VDC with a specified operating voltage range of 14.0-26.4 VDC for compatible electronic cooling systems.
DELTA

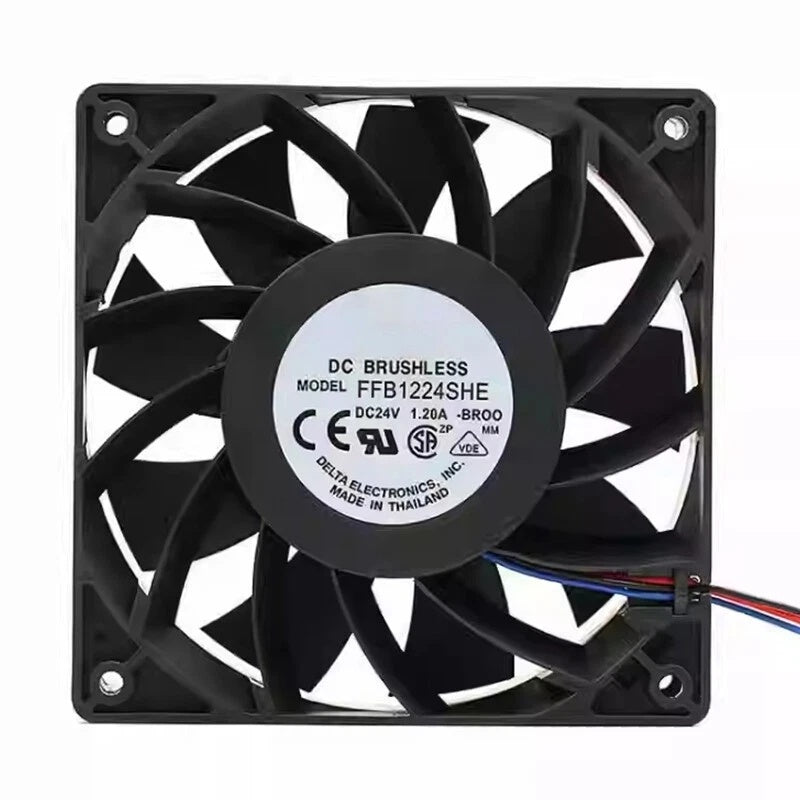

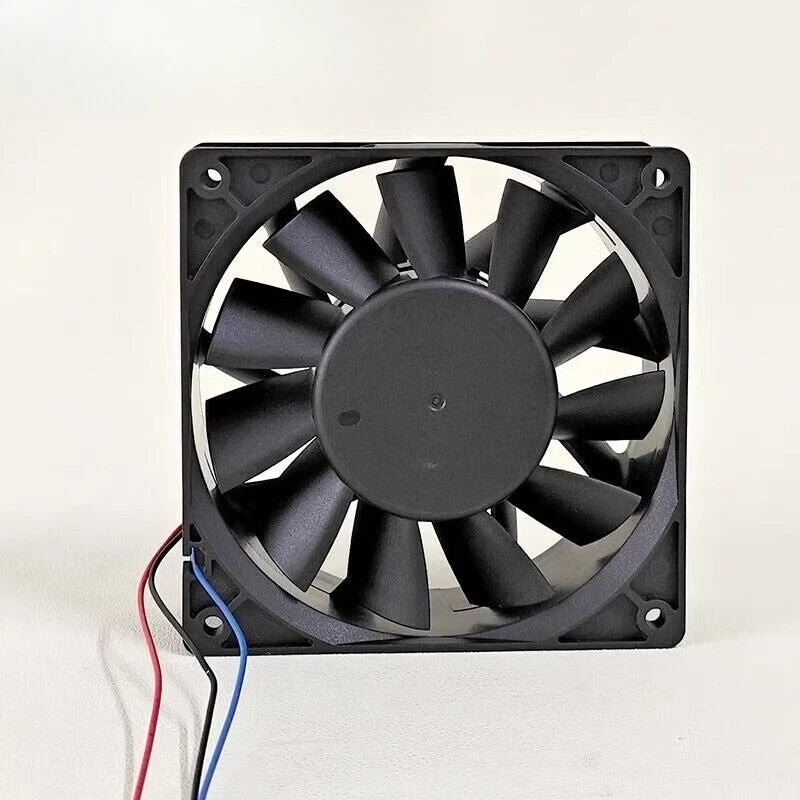

Delta Electronics FFB1224SHE DC Axial Fan 24VDC 120x120x38mm 0.80A
$19.82
Available
PRODUCT GALLERY
01 / 7
Product images for part identification
DELTA
Delta Electronics FFB1224SHE DC Axial Fan 24VDC 120x120x38mm 0.80A
PRODUCT PRICE
USD
$19.82
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | FFB1224SHE |
| Product Category | DC Axial Fan |
| Product Series | FFB |
| Fan Type | DC Brushless Axial Flow Fan |
| Motor Configuration | Two-Phase, Four-Pole |
| Dimensions | 120 x 120 x 38 mm |
| Rated Voltage | 24 VDC |
| Operating Voltage Range | 14.0-26.4 VDC |
| Input Current | 0.80 A (1.20 A Maximum) |
| Input Power | 19.20 W (28.80 W Maximum) |
| Fan Speed | 3600 RPM (Reference) |
| Maximum Airflow | 170.92 CFM (4.840 m3/min) |
| Maximum Static Pressure | 0.563 inH2O (14.30 mmH2O) |
| Acoustical Noise | 56.5 dB(A) Average (60.5 dB(A) Maximum) |
| Bearing System | Two Ball Bearings |
| Frame Material | Plastic, UL 94V-0 |
| Impeller Material | Plastic, UL 94V-0 |
| Insulation Class | UL Class A |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +75°C |
| Operating Humidity | 5-90% RH |
| Storage Humidity | 5-95% RH |
| Lead Wires | 2: Red Positive (+), Black Negative (-) |
| Wire Specification | UL 1007-F, AWG 24 |
| Rotation Direction | Clockwise Viewed from Nameplate Side |
| Locked Rotor Protection | Overcurrent Shutdown |
| Starting Protection | Low-Speed Start, Full Speed After 10 Seconds |
| Life Expectancy | 70,000 Hours at 40°C and 15-65% RH |
| Weight | 370 g |
Key Features
170.92 CFM Maximum Airflow
Delta specifies a maximum airflow of 170.92 CFM (4.840 m3/min), measured at zero static pressure.
3600 RPM Reference Speed
The fan uses a two-phase, four-pole brushless DC motor with a documented reference speed of 3600 RPM.
0.563 inH2O Static Pressure
The published maximum static pressure is 0.563 inH2O (14.30 mmH2O), measured at zero airflow.
Dual Ball Bearing Construction
The 120 x 120 x 38 mm fan assembly incorporates two ball bearings and a plastic frame and impeller rated UL 94V-0.
Locked Rotor Protection
The manufacturer specifies overcurrent shutdown when the rotor is locked, together with a low-speed starting sequence that reaches full speed after approximately 10 seconds.
Applications
- Industrial electronic equipment cooling
- Electrical control cabinet ventilation
- Server and networking equipment airflow management
- Power electronics forced-air cooling
- Electronic enclosure heat dissipation
- DC axial fan cooling assemblies
- Industrial equipment cooling system maintenance
- Fan replacement after electrical and mechanical verification
Purchase Information
We support online purchase of the Delta Electronics FFB1224SHE DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics FFB1224SHE?
FFB1224SHE is a Delta Electronics DC brushless axial flow fan in the FFB series, featuring a two-phase, four-pole motor.
What are the dimensions of FFB1224SHE?
The specified external dimensions are 120 x 120 x 38 mm.
What is the rated voltage of FFB1224SHE?
The rated voltage is 24 VDC, with a documented operating voltage range of 14.0-26.4 VDC.
What is the input current?
The manufacturer specifies 0.80 A input current, with a maximum of 1.20 A.
What is the input power rating?
The documented input power is 19.20 W, with a maximum of 28.80 W.
What is the reference fan speed?
The published reference speed is 3600 RPM.
What is the maximum airflow?
The maximum airflow is 170.92 CFM (4.840 m3/min) at zero static pressure.
What is the maximum static pressure?
The manufacturer specifies 0.563 inH2O (14.30 mmH2O) at zero airflow.
What is the acoustical noise rating?
The published acoustical noise is 56.5 dB(A) average and 60.5 dB(A) maximum under the specified test conditions.
What bearing system does FFB1224SHE use?
The fan uses two ball bearings, and the specified frame and impeller materials are UL 94V-0 rated plastic.
What electrical connections and protection features are specified?
The standard FFB1224SHE uses two leads, red positive and black negative. Its documentation identifies locked rotor overcurrent shutdown and a low-speed starting sequence.
What should be checked before ordering a replacement?
Verify the complete FFB1224SHE model number, 24 VDC supply, 0.80 A input current, 120 x 120 x 38 mm dimensions, mounting requirements, airflow and static pressure requirements, and two-wire power connection. Suffix variants such as FFB1224SHE-F00 and FFB1224SHE-R00 have different signal wiring configurations and should not be assumed interchangeable.
