12 VDC Axial Cooling
Operates at a rated 12 VDC with a documented 7.0-13.8 VDC operating voltage range.
DELTA
Delta Electronics FFB0912HHE DC Axial Fan 12VDC 92x92x38mm
$11.80
Available
PRODUCT GALLERY
01 / 9

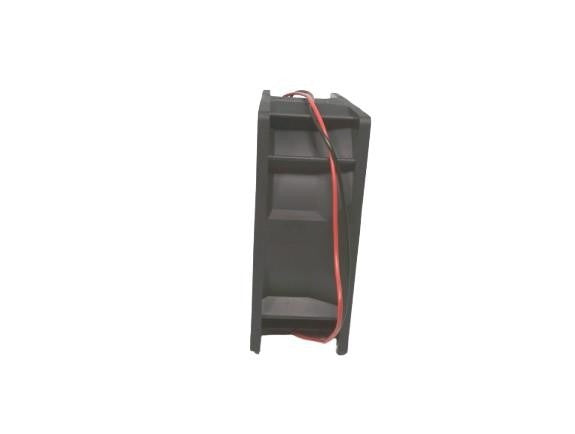

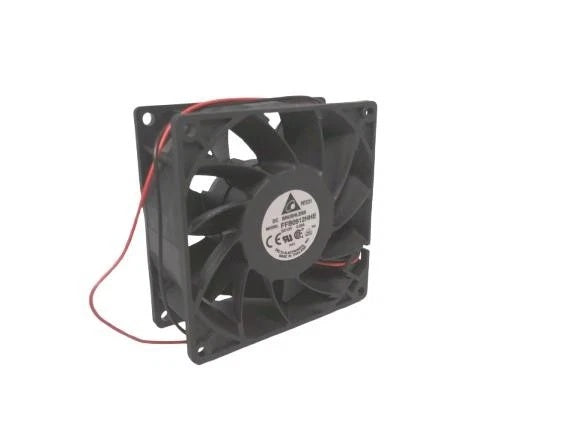

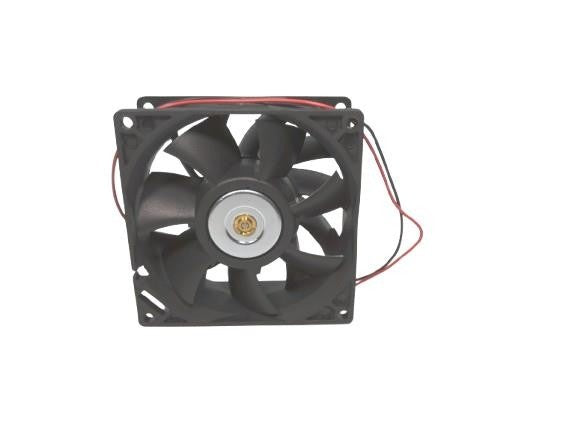

Product images for part identification
DELTA
Delta Electronics FFB0912HHE DC Axial Fan 12VDC 92x92x38mm
PRODUCT PRICE
USD
$11.80
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | FFB0912HHE |
| Product Category | DC Axial Fan |
| Product Series | FFB |
| Fan Type | DC Brushless Axial Flow Fan |
| Motor Design | Two-Phase, Four-Pole |
| Dimensions | 92 x 92 x 38 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage | 7.0-13.8 VDC |
| Input Current | 0.35 A (0.53 A maximum) |
| Input Power | 4.20 W (6.36 W maximum) |
| Speed | 3200 RPM (reference) |
| Maximum Airflow | 71.69 CFM (2.030 m3/min) |
| Maximum Static Pressure | 0.298 inH2O (7.58 mmH2O) |
| Acoustical Noise | 42.5 dB(A) average (46.5 dB(A) maximum) |
| Bearing System | Two Ball Bearings |
| Frame and Impeller | Plastic, UL 94V-0 |
| Operating Temperature | -10°C to +70°C |
| Weight | 198 g |
Key Features
71.69 CFM Maximum Airflow
The specified maximum free-air flow is 71.69 CFM (2.030 m3/min) at zero static pressure.
3200 RPM Reference Speed
Delta lists a 3200 RPM reference rotation speed for this two-phase, four-pole brushless DC fan.
Two Ball Bearings
The documented two-ball-bearing system is used in the FFB0912HHE fan assembly.
Static Pressure Performance
The published maximum static pressure is 0.298 inH2O (7.58 mmH2O) at zero airflow.
Defined Operating Conditions
Published specifications identify -10°C to +70°C operation and a 42.5 dB(A) average noise level under stated test conditions.
Applications
- Industrial electronics enclosure ventilation
- Electrical control cabinet cooling
- Electronic equipment heat dissipation
- Power electronics airflow management
- DC axial fan cooling assemblies
- Forced-air cooling of electrical components
- Maintenance of existing cooling systems
- Fan replacement projects after specification verification
Purchase Information
We support online purchase of the Delta Electronics FFB0912HHE fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics FFB0912HHE?
It is a DC brushless axial flow fan with a two-phase, four-pole motor, as identified in the Delta product specification.
What are the dimensions of FFB0912HHE?
The fan measures 92 x 92 x 38 mm.
What voltage does FFB0912HHE require?
The rated supply voltage is 12 VDC, and the published operating range is 7.0-13.8 VDC.
What is the specified input current?
Delta specifies 0.35 A input current, with a maximum of 0.53 A.
What is the input power rating?
The documented input power is 4.20 W, with a maximum of 6.36 W.
What is the fan speed?
The published reference speed is 3200 RPM.
What is the maximum airflow?
Delta specifies 71.69 CFM (2.030 m3/min) at zero static pressure.
What is the maximum static pressure?
The published value is 0.298 inH2O (7.58 mmH2O) at zero airflow.
What is the documented noise level?
The specification lists an average of 42.5 dB(A), with a maximum of 46.5 dB(A), under its stated test conditions.
What bearing system is used?
The FFB0912HHE uses two ball bearings.
What is its operating temperature range?
The specified operating temperature range is -10°C to +70°C.
What should be verified before ordering a replacement?
Check the complete model, 92 x 92 x 38 mm dimensions, voltage and current, mounting, airflow requirements and the red positive and black negative lead-wire connections against the existing equipment.
Need help confirming a model?
Send us your part number and technical requirements.
