12 VDC Brushless Motor
Delta FFB0612EHE uses a two-phase, four-pole brushless motor rated at 12 VDC. The exact-model approval specification lists 0.80 A input current and 9.60 W input power, with maximum specified values of 1.20 A and 14.40 W.
DELTA
Delta Electronics FFB0612EHE DC Axial Fan 12VDC 60x60x38mm 50.15CFM
$8.54
Available
PRODUCT GALLERY
01 / 9

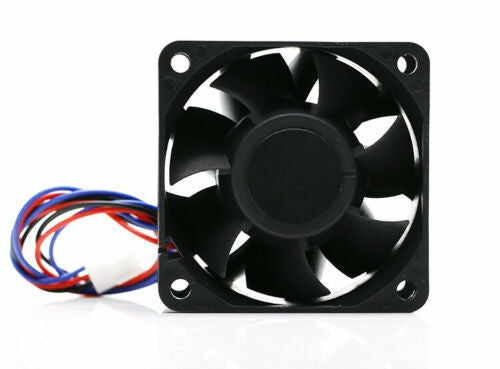

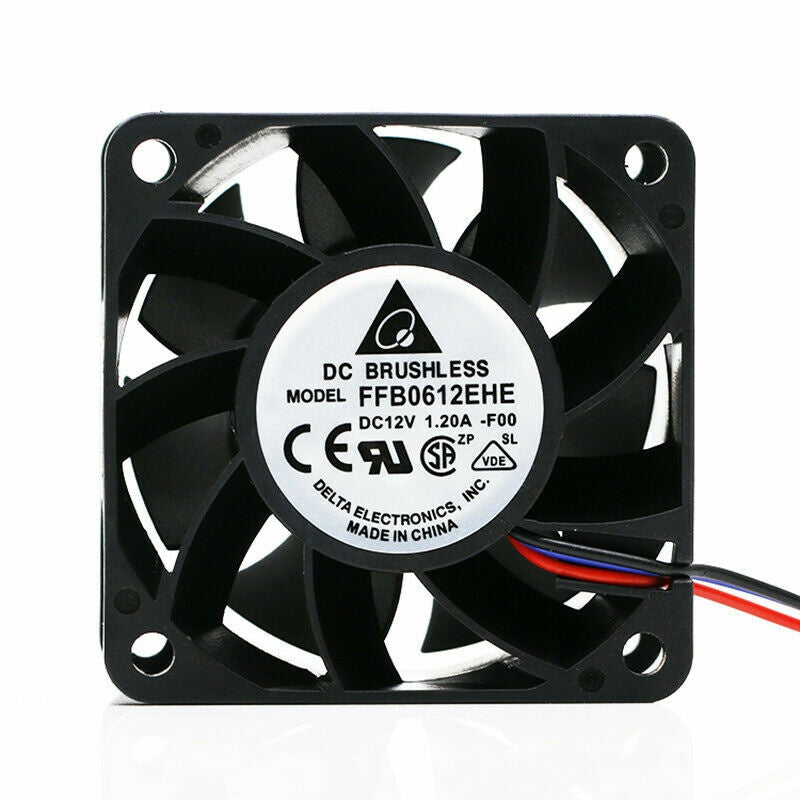

Product images for part identification
DELTA

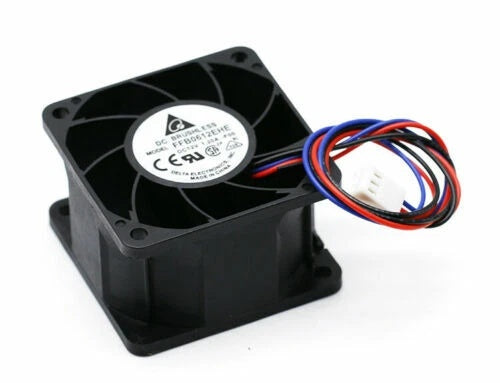

Delta Electronics FFB0612EHE DC Axial Fan 12VDC 60x60x38mm 50.15CFM
PRODUCT PRICE
USD
$8.54
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | FFB0612EHE |
| Product Category | DC Axial Fan |
| Product Series | FFB 60 x 60 x 38 mm Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Motor Configuration | Two-Phase, Four-Pole Brushless Motor |
| Frame Dimensions | 60 x 60 x 38 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.0–13.2 VDC (exact-model approval specification) |
| Input Current | 0.80 A (maximum 1.20 A) |
| Input Power | 9.60 W (maximum 14.40 W) |
| Reference Speed | 8000 RPM |
| Maximum Free-Air Flow | 50.15 CFM (1.420 m³/min) |
| Minimum Specified Free-Air Flow | 44.14 CFM (1.250 m³/min) |
| Maximum Static Pressure | 0.972 inH₂O (24.70 mmH₂O) |
| Minimum Specified Maximum Static Pressure | 0.788 inH₂O (20.01 mmH₂O) |
| Acoustical Noise | 54.5 dB(A) average (58.5 dB(A) maximum) |
| Bearing System | Two Ball Bearings |
| Frame Material | Plastic, UL 94 V-0 |
| Impeller Material | Plastic, UL 94 V-0 |
| Electrical Termination | 2 Lead Wires (base model) |
| Lead Wire Specification | UL1007-F AWG24 |
| Lead Wire Polarity | Red: Positive (+); Black: Negative (-) |
| Lead Wire Length | 325 ±10 mm (exact-model drawing) |
| Mounting Hole Spacing | 50.0 x 50.0 mm |
| Mounting Hole Diameter | 4.5 mm (eight holes across both frame faces) |
| Rotation Direction | Clockwise, viewed from nameplate side |
| External Cover | Open Type |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Operating Humidity | 5–90% RH |
| Storage Humidity | 5–95% RH |
| Insulation Classification | UL Class A |
| Protection Functions | Locked-Rotor Protection and Overcurrent Shutdown |
| Weight | 106 g |
Key Features
60 x 60 x 38 mm Housing
The fan features a 60 mm square frame with 38 mm depth. The manufacturer drawing identifies 50 mm mounting-hole spacing and 4.5 mm diameter mounting holes for mechanical comparison.
8000 RPM Reference Speed
The manufacturer lists 8000 RPM as the reference rotational speed for FFB0612EHE under the documented nominal operating conditions.
50.15 CFM Maximum Airflow
Delta specifies 50.15 CFM maximum free-air flow and 0.972 inH₂O maximum static pressure. These ratings represent separate endpoints of the pressure-airflow curve.
Two Ball Bearing Construction
The manufacturer specification identifies two ball bearings, a UL 94 V-0 plastic frame and impeller, and an average acoustical noise level of 54.5 dB(A).
Two-Wire Power Connection
The base FFB0612EHE uses red positive and black negative power leads. The manufacturer series also identifies separate -F00 speed-feedback and -R00 locked-rotor-signal variants, which require matching wiring documentation.
Applications
- Industrial control enclosure forced-air cooling
- Compact industrial power supply ventilation
- Server and networking equipment thermal management
- Telecommunications equipment cooling assemblies
- Industrial computing chassis ventilation
- Electronic instrumentation enclosure airflow
- Power electronics systems with restrictive air passages
- Maintenance of compatible 12 VDC 60 mm axial fan assemblies
Purchase Information
We support online purchase of the Delta Electronics FFB0612EHE DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics FFB0612EHE?
FFB0612EHE is a Delta Electronics 12 VDC brushless axial cooling fan with a 60 x 60 x 38 mm frame, two ball bearings and two power leads.
What is the rated supply voltage of FFB0612EHE?
The Delta manufacturer approval specification identifies a nominal voltage of 12 VDC and an operating range of 7.0–13.2 VDC. An older Delta FFB series catalog lists 4.5–13.8 VDC, so the exact-model approval specification is used for this listing.
What are the dimensions of FFB0612EHE?
The manufacturer drawing specifies a 60 x 60 x 38 mm frame, a 50 mm mounting-hole pattern and 4.5 mm diameter mounting holes.
What is the input current of FFB0612EHE?
The exact-model Delta specification lists 0.80 A input current and a maximum of 1.20 A. Electrical supply sizing should account for the applicable maximum rating.
What input power is specified?
Delta lists 9.60 W input power with a maximum specified value of 14.40 W at the nominal voltage.
What is the reference rotational speed?
The manufacturer identifies a reference speed of 8000 RPM at rated voltage under its documented testing conditions.
What is the maximum free-air flow?
FFB0612EHE is specified at 50.15 CFM (1.420 m³/min) maximum free-air flow, with a minimum specified value of 44.14 CFM. Actual installed airflow depends on system resistance.
What is the maximum static pressure?
The manufacturer specifies 0.972 inH₂O (24.70 mmH₂O) at zero airflow. Maximum static pressure and maximum free-air flow are not simultaneous operating conditions.
What acoustic noise level is specified?
The Delta datasheet lists 54.5 dB(A) average and 58.5 dB(A) maximum, measured in free air at one meter from the fan intake in an anechoic chamber.
What bearing system and materials are used?
The exact-model manufacturer specification confirms two ball bearings and UL 94 V-0 plastic frame and impeller materials. The documented unit weight is 106 g.
Does FFB0612EHE have two wires or a speed-feedback connection?
The base FFB0612EHE is documented with two power leads: red positive and black negative. The optional -F00 variant provides a speed-sensing function, while -R00 provides a locked-rotor signal. These variants should not be treated as identical to the base model.
What should be checked before ordering Delta FFB0612EHE?
Confirm the full model and optional suffix, 12 VDC supply, 0.80 A input current and 1.20 A maximum, 60 x 60 x 38 mm frame, mounting-hole pattern, 8000 RPM reference speed, 50.15 CFM airflow requirement, 0.972 inH₂O static-pressure rating, connector arrangement and equipment operating environment.
