12 VDC Brushless Cooling
Delta Electronics FFB0412VHN is a 12 VDC brushless axial fan. Model-specific component listings specify a rated current of 0.16 A and input power of 1.92 W.
DELTA

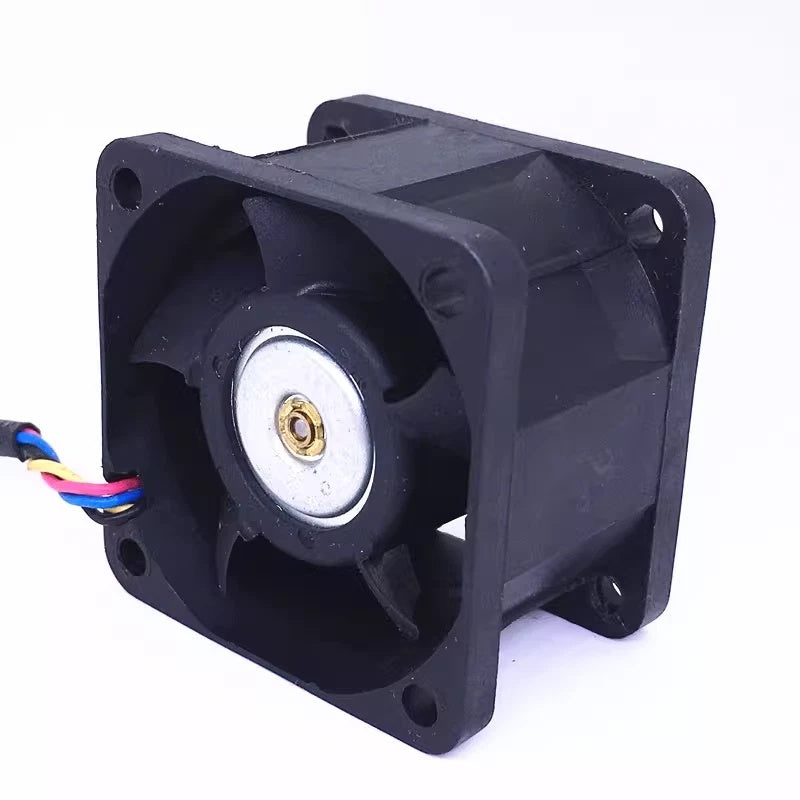

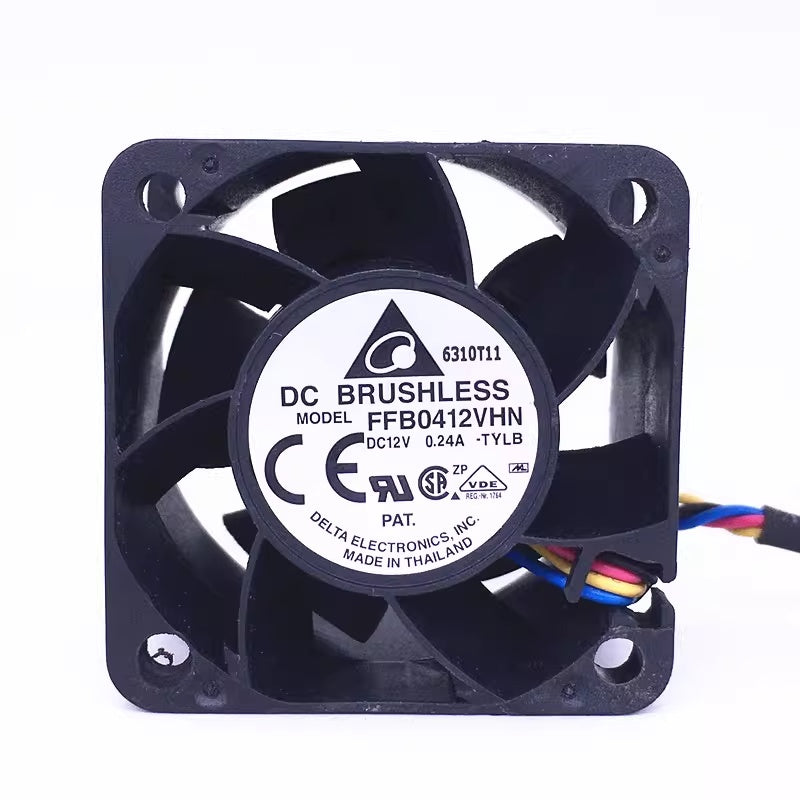

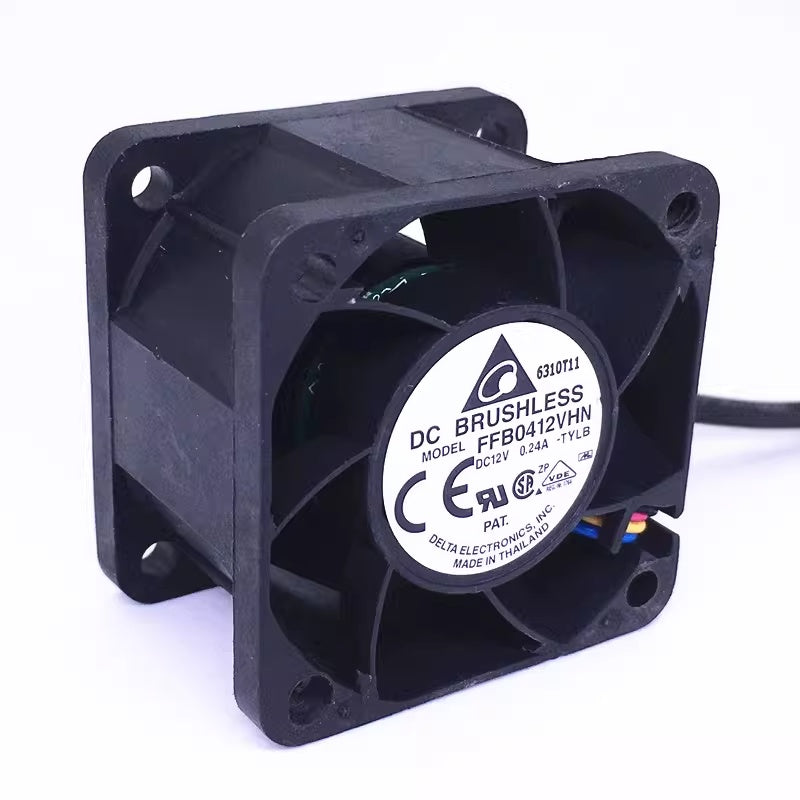

Delta Electronics FFB0412VHN DC Axial Fan 12VDC 40x40x28mm 15.79CFM
$9.36
Available
PRODUCT GALLERY
01 / 9
Product images for part identification
DELTA
Delta Electronics FFB0412VHN DC Axial Fan 12VDC 40x40x28mm 15.79CFM
PRODUCT PRICE
USD
$9.36
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | FFB0412VHN |
| Product Category | DC Axial Fan |
| Product Series | FFB Series |
| Fan Type | DC Brushless Tubeaxial Fan |
| Frame Dimensions | 40 x 40 x 28 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 4.5–13.2 VDC (model-specific product listing) |
| Rated Current | 0.16 A |
| Input Power | 1.92 W |
| Rated Speed | 9500 RPM |
| Maximum Free-Air Flow | 15.79 CFM (0.447 m³/min; product listing) |
| Maximum Static Pressure | 0.509 inH₂O (12.94 mmH₂O) |
| Acoustical Noise | 45.0 dB(A) |
| Bearing System | Ball Bearings |
| Frame Material | Plastic |
| Impeller Material | Plastic |
| Electrical Termination | 2 Lead Wires (base FFB0412VHN) |
| Fan Protection | Locked-Rotor Protection |
| Operating Temperature | -10°C to +70°C |
| Weight | Approximately 32 g |
Key Features
40 x 40 x 28 mm Frame
The fan has a 40 mm square housing with 28 mm depth. Verify the mounting-hole locations, frame clearance and airflow orientation against the intended equipment.
9500 RPM Rated Speed
The published rotational speed is 9500 RPM under rated-voltage conditions. The fan is designed to move cooling air through compact electronic assemblies.
15.79 CFM Free-Air Flow
Model-specific specifications identify 15.79 CFM maximum free-air flow and 0.509 inH₂O maximum static pressure. These values represent separate points on the fan performance curve.
Ball Bearing Construction
The FFB0412VHN uses ball bearings with a plastic frame and impeller. Its published acoustic noise is 45.0 dB(A), and the listed weight is approximately 32 g.
Two-Wire Base Configuration
The unsuffixed FFB0412VHN has two power leads. Separate -F00, -R00 and -TP03 versions add different signal or control connections, so the complete suffix must be checked.
Applications
- Compact industrial electronics ventilation
- Embedded control system cooling
- Small power supply forced-air cooling
- Telecommunications equipment thermal management
- Networking device enclosure ventilation
- Electronic test instrument cooling
- Compact computing hardware airflow
- Maintenance of compatible 12 VDC 40 mm axial fan assemblies
Purchase Information
We support online purchase of the Delta Electronics FFB0412VHN DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics FFB0412VHN?
FFB0412VHN is a Delta Electronics 12 VDC brushless tubeaxial cooling fan with a 40 x 40 x 28 mm frame, ball bearings and a two-wire power connection.
What is the rated supply voltage?
The rated voltage is 12 VDC. The model-specific fan catalog lists an operating voltage range of 4.5–13.2 VDC.
What are the dimensions of FFB0412VHN?
The fan measures 40 x 40 x 28 mm. The housing is 40 mm square and 28 mm thick; mounting features should be compared with the equipment.
What is the rated current of FFB0412VHN?
Model-specific supplier specifications and distributor listings identify a rated current of 0.16 A at 12 VDC.
What input power is specified?
The listed input power is 1.92 W at the rated 12 VDC supply.
What is the rotational speed?
The published rated speed for the base FFB0412VHN is 9500 RPM.
What is the maximum airflow?
The model-specific product listing specifies 15.79 CFM (0.447 m³/min) in free air. Actual airflow depends on the resistance of the installed ventilation path.
What is the maximum static pressure?
The listed maximum static pressure is 0.509 inH₂O (12.94 mmH₂O) at zero airflow. Maximum static pressure and maximum free-air flow are different operating points.
What is the acoustic noise rating?
The published noise value is 45.0 dB(A). Actual equipment noise depends on mounting and airflow conditions.
What bearing system does FFB0412VHN use?
The manufacturer part listing and component distributors identify ball bearings and plastic frame and impeller components.
Does the base FFB0412VHN include tachometer or PWM wiring?
No additional signal lead is specified for the unsuffixed two-wire FFB0412VHN. The separate FFB0412VHN-F00 has three leads with tachometer feedback; -R00 has a locked-rotor signal; and -TP03 is a four-wire variant. Their connections must be verified individually.
What should be checked before ordering Delta FFB0412VHN?
Confirm the complete model number and suffix, 12 VDC supply, 0.16 A current rating, 40 x 40 x 28 mm dimensions, 9500 RPM speed, 15.79 CFM airflow requirement, mounting geometry, two-wire connection and the equipment's electrical and cooling requirements.
