12 VDC Axial Cooling
Operates at a rated 12 VDC with a specified operating voltage range of 7.0-13.8 VDC for compatible DC cooling systems.
DELTA
Delta Electronics FFB03812HN DC Axial Fan 12VDC 38x38x28mm 0.40A
$13.42
Available
PRODUCT GALLERY
01 / 9

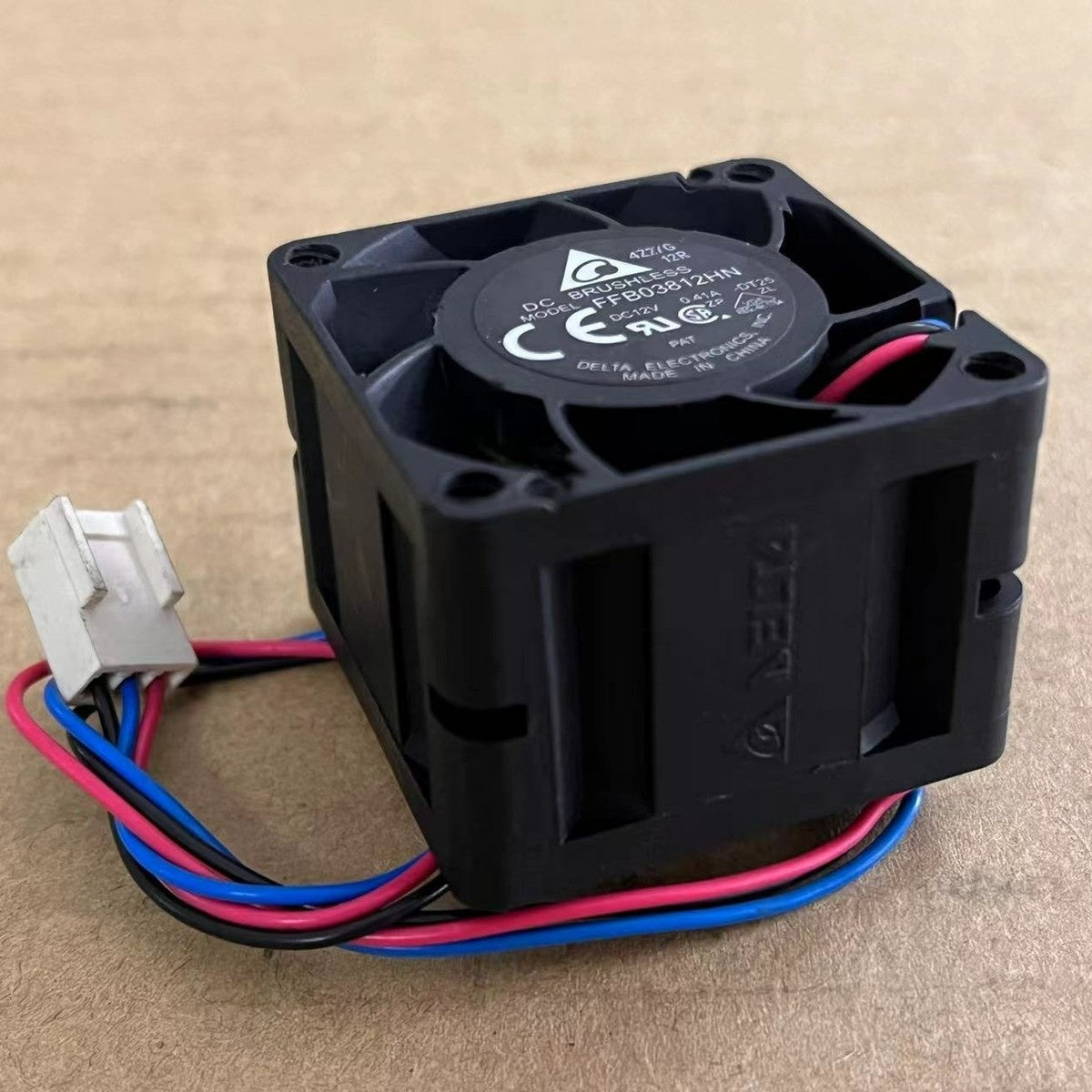

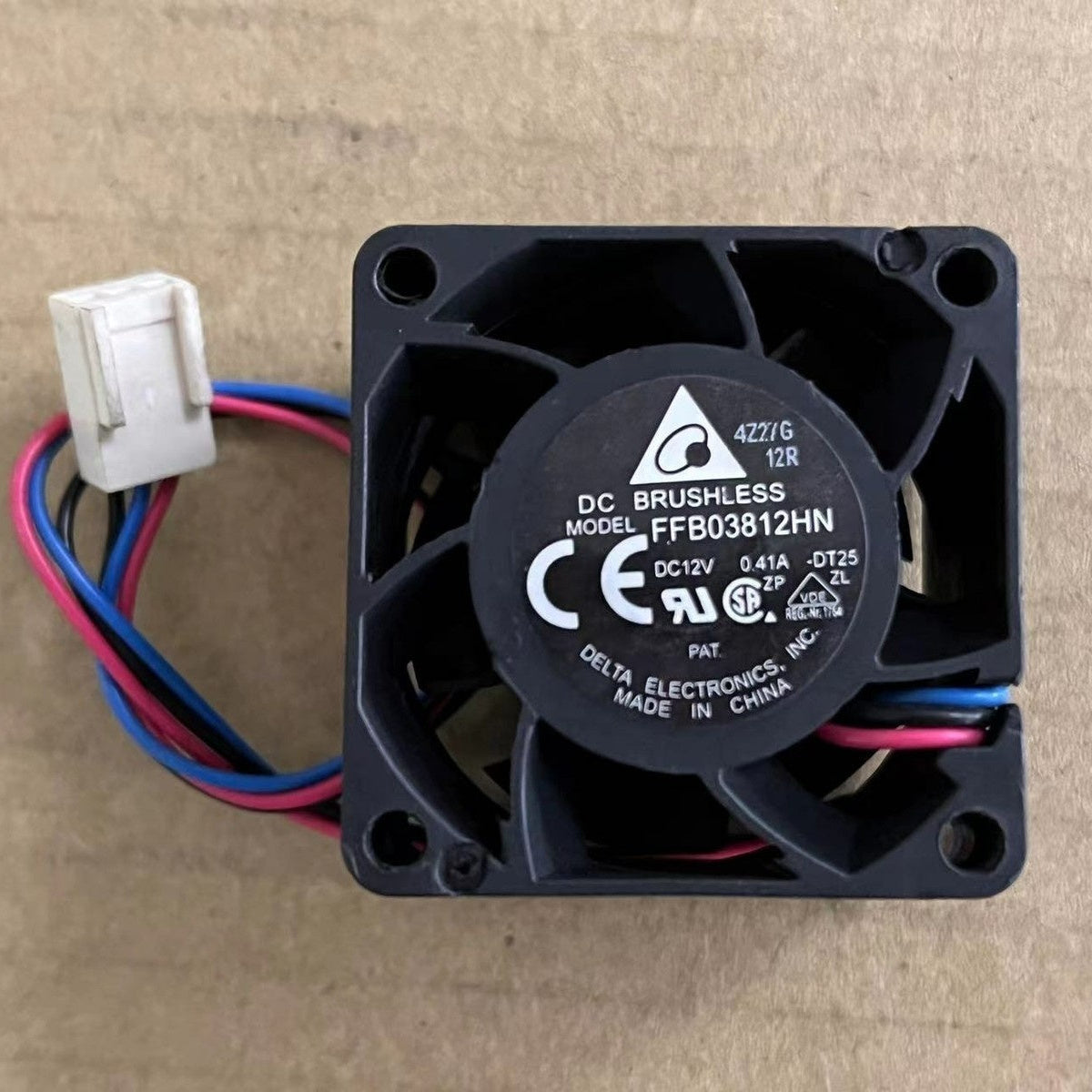

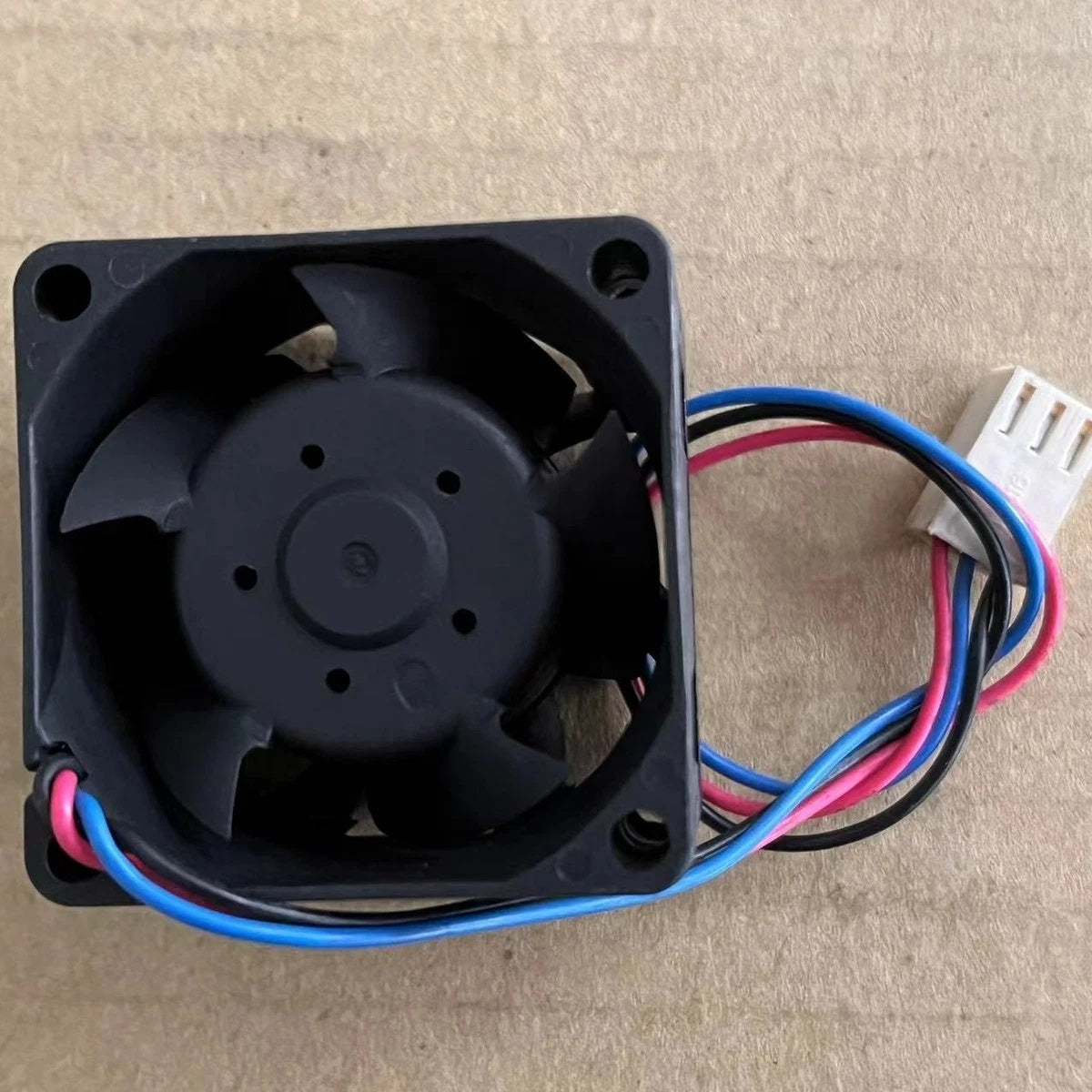

Product images for part identification
DELTA
Delta Electronics FFB03812HN DC Axial Fan 12VDC 38x38x28mm 0.40A
PRODUCT PRICE
USD
$13.42
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | FFB03812HN |
| Product Category | DC Axial Fan |
| Product Series | FFB |
| Fan Type | DC Axial Flow Fan |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.0-13.8 VDC |
| Dimensions | 38 x 38 x 28 mm |
| Rated Current | 0.40 A |
| Rated Power | 4.80 W |
| Fan Speed | 12000 RPM |
| Maximum Airflow | 15.22 CFM (0.431 m3/min) |
| Maximum Static Pressure | 0.839 inH2O (21.31 mmH2O) |
| Acoustical Noise | 51.5 dB(A) |
| Bearing Type | Ball Bearing |
| Termination | 2 Lead Wires |
| Frame Material | Plastic |
| Impeller Material | Plastic |
| Operating Temperature | -10°C to +70°C |
| Weight | 46 g |
| Rated Lifetime | 70000 Hours at 40°C |
Key Features
12000 RPM Fan Speed
The published rotational speed is 12000 RPM, providing a defined operating reference for cooling system selection.
15.22 CFM Maximum Airflow
Delta Electronics specifies maximum airflow of 15.22 CFM (0.431 m3/min) under zero static pressure conditions.
0.839 inH2O Static Pressure
The published maximum static pressure is 0.839 inH2O (21.31 mmH2O) at zero airflow.
Compact 38 mm Frame
The fan measures 38 x 38 x 28 mm, providing a compact axial airflow configuration for suitable electronic cooling assemblies.
Ball Bearing Construction
The specified ball bearing system is combined with a plastic frame and impeller, with a published operating temperature range of -10°C to +70°C.
Applications
- Electronic equipment cooling
- Compact electronic enclosure ventilation
- Server and networking equipment cooling
- Forced-air cooling of electronic components
- Power supply cooling assemblies
- High-density electronic equipment ventilation
- DC axial fan cooling systems
- Cooling fan maintenance and replacement projects
Purchase Information
We support online purchase of the Delta Electronics FFB03812HN DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics FFB03812HN?
FFB03812HN is a DC axial cooling fan from the Delta Electronics FFB series, designed for forced-air cooling applications in compatible electronic equipment.
What are the dimensions of FFB03812HN?
The specified dimensions are 38 x 38 x 28 mm.
What is the rated voltage of FFB03812HN?
The rated voltage is 12 VDC, and the published operating voltage range is 7.0-13.8 VDC.
What is the rated current?
Delta Electronics specifies a current rating of 0.40 A for FFB03812HN.
What is the rated power consumption?
The published power rating is 4.80 W.
What is the fan speed?
The manufacturer lists a rotational speed of 12000 RPM.
What is the maximum airflow of FFB03812HN?
The specified maximum airflow is 15.22 CFM (0.431 m3/min) at zero static pressure.
What is the maximum static pressure?
The manufacturer specifies a maximum static pressure of 0.839 inH2O (21.31 mmH2O) at zero airflow.
What is the acoustical noise rating?
The published acoustical noise value is 51.5 dB(A).
What type of bearing does FFB03812HN use?
The product specification identifies a ball bearing system.
How many electrical lead wires does FFB03812HN have?
The standard FFB03812HN configuration is specified with two lead wires. Connector details and polarity should be verified before installation.
What should be checked before ordering FFB03812HN?
Verify the complete model number, 12 VDC rated voltage, 0.40 A current rating, 38 x 38 x 28 mm dimensions, mounting requirements, two-wire connection and cooling performance against the existing equipment specifications.
