12 VDC Brushless Axial Cooling

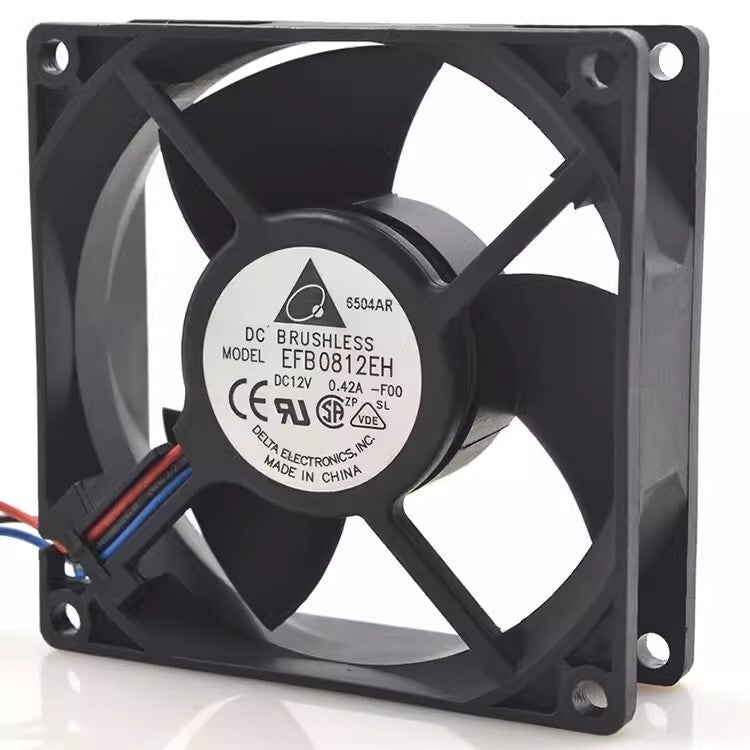

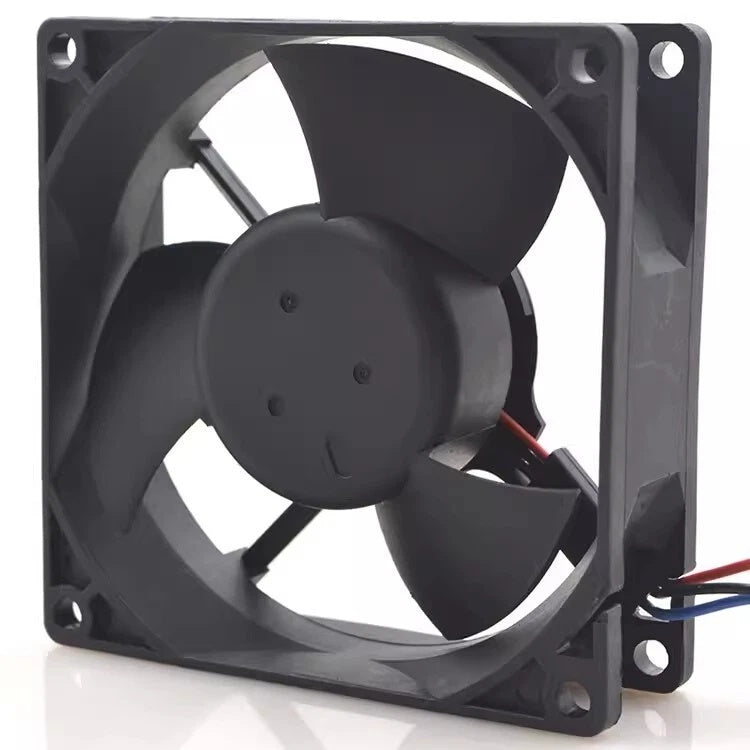

The Delta EFB0812EH-F00 is a 12 VDC brushless axial fan in the EFB series. Its full -F00 suffix identifies the speed-feedback function, which should be matched to the equipment control input.
1 / 8
DELTA
Delta Electronics EFB0812EH-F00 DC Axial Fan 12VDC 80x80x25.4mm 5000RPM
PRODUCT PRICE
USD
$8.95
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | EFB0812EH-F00 |
| Product Category | DC Axial Fan |
| Product Series | EFB 80 x 80 x 25.4 mm Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Dimensions | 80 x 80 x 25.4 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.0–13.8 VDC (Delta EFB series table) |
| Listed Current for -F00 | 0.42 A (complete-model parts and supplier listings) |
| Calculated Power from Listed Current | 5.04 W (12 V x 0.42 A) |
| Delta EFB0812EH Series Current | 0.28 A (older manufacturer series table; different from -F00 sales listings) |
| Delta EFB0812EH Series Input Power | 3.36 W (older manufacturer series table) |
| Reference Speed | 5000 RPM (manufacturer series and -F00 listings) |
| Maximum Free-Air Flow | 52.02 CFM (1.473 m³/min; manufacturer series table) |
| Maximum Static Pressure | 8.94 mmH₂O (approximately 0.352 inH₂O; manufacturer series table) |
| Alternative Seller Pressure Figure | 0.392 inH₂O (-F00 reseller listings; not reconciled with older manufacturer table) |
| Published Noise | 42.5 dB(A) (complete-model supplier listings) |
| Bearing Type | Ball Bearings (Delta series specification) |
| Housing and Impeller | Plastic, UL 94 V-0 (Delta series drawing) |
| Electrical Connection | 3 lead wires; often described as a 3-pin connection (-F00) |
| Functional Suffix | -F00: frequency / tachometer speed-feedback signal |
| Power Lead Polarity | Red positive (+), black negative (-) (Delta series drawing) |
| Power Lead Type | UL1007 AWG24 or equivalent (Delta series drawing) |
| Mounting Hole Spacing | 71.5 x 71.5 mm (Delta series drawing) |
| Mounting Hole Diameter | 4.5 mm (Delta series drawing) |
| Series Reference Weight | 86 g (Delta series drawing) |
Key Features
80 x 80 x 25.4 mm Frame
The Delta EFB mechanical drawing gives an 80 mm square housing with 25.4 mm depth, 71.5 mm mounting-hole spacing and 4.5 mm mounting holes for fitment checks.
5000 RPM Reference Speed
Both the Delta EFB0812EH family table and model-specific -F00 parts listings identify 5000 RPM reference speed at rated supply voltage.
52.02 CFM Published Airflow
The Delta family table lists 52.02 CFM maximum free-air flow and 8.94 mmH₂O maximum static pressure. These are separate performance-curve endpoints.
Ball Bearing Construction
The manufacturer series drawing identifies ball bearings and UL 94 V-0 plastic frame and impeller materials. The series drawing lists a reference weight of 86 g.
Three-Wire Speed Feedback
The -F00 suffix denotes a frequency or tachometer signal. Complete-model suppliers list three leads; confirm the signal wire, connector orientation and circuit interface from the supplied unit.
Applications
- Industrial control cabinet forced-air cooling
- Variable-frequency drive equipment ventilation
- Power supply and inverter cooling assemblies
- Server chassis and industrial computing airflow
- Networking and telecommunications enclosure cooling
- Electronic instrument and control system ventilation
- Maintenance of compatible 12 VDC 80 mm axial fans
- Equipment with a matching three-wire fan speed-monitoring interface
Purchase Information
We support online purchase of the Delta Electronics EFB0812EH-F00 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics EFB0812EH-F00?
EFB0812EH-F00 is a 12 VDC brushless axial fan in the Delta EFB 80 x 80 x 25.4 mm series. The -F00 functional suffix identifies a speed-feedback version.
What supply voltage does EFB0812EH-F00 require?
Complete-model supplier records specify 12 VDC. The Delta EFB0812EH family table lists a 7.0–13.8 VDC operating range; verify the full supplied fan approval specification for critical equipment.
What are the fan dimensions?
The Delta EFB series drawing shows an 80 x 80 x 25.4 mm frame with 71.5 mm mounting-hole pitch and 4.5 mm mounting holes.
Why are 0.28 A and 0.42 A both seen for this model family?
An older Delta EFB0812EH series table gives 0.28 A and 3.36 W, whereas multiple listings for the complete EFB0812EH-F00 fan show 0.42 A. These source-specific values should not be combined or treated as a single independently verified rated current.
What electrical power is associated with EFB0812EH-F00?
At the seller-listed 12 VDC and 0.42 A, calculated electrical power is 5.04 W. The older Delta EFB0812EH series table lists 3.36 W at 0.28 A; match the printed fan rating when selecting a power source.
What is the rated rotational speed?
The Delta EFB0812EH family table and complete-model -F00 product listings both identify 5000 RPM under stated rated-voltage conditions.
What is the maximum free-air flow?
The manufacturer EFB series table lists 52.02 CFM (1.473 m³/min) for EFB0812EH at zero static pressure. Installed flow varies with enclosure resistance.
What is the maximum static pressure?
The Delta series table reports 8.94 mmH₂O, approximately 0.352 inH₂O. Some -F00 resellers state 0.392 inH₂O. Use a matching manufacturer performance revision when pressure is a design-critical parameter.
What noise level is listed?
Complete-model -F00 suppliers commonly list 42.5 dB(A). A matching manufacturer approval sheet for this specific suffix was not confirmed for this acoustic value.
What type of bearing does the fan use?
Delta’s EFB 80 x 80 x 25.4 mm series drawing specifies ball bearings and UL 94 V-0 plastic frame and impeller materials.
What does the -F00 suffix mean, and how is it different from -R00?
In the Delta EFB series, -F00 designates a frequency or tachometer speed-feedback output, whereas -R00 designates a locked-rotor alarm output. These functions must not be exchanged without checking the equipment signal interface.
What should be checked before ordering EFB0812EH-F00?
Verify the complete EFB0812EH-F00 marking, 12 VDC supply, actual fan-label current, 80 x 80 x 25.4 mm dimensions, mounting hole pattern, 5000 RPM rating, three-wire connector, feedback signal pinout and system airflow requirements.
