24 VDC Rated Voltage
The 4184NX operates on a 24 VDC supply, as identified in manufacturer and distributor technical data.
1 / 1
Ebmpapst

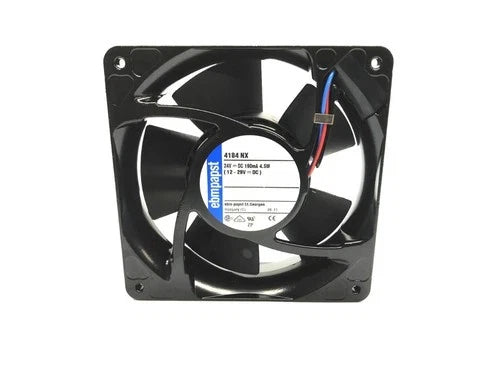

Ebmpapst 4184NX Axial Fan
PRODUCT PRICE
USD
$46.15
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4184NX |
| Product Category | Axial Fan |
| Rated Voltage | 24 VDC |
| Power Consumption | 4.9 W |
| Current Rating | 1.03 A |
| Speed | 3200 rpm |
| Air Flow | 105.9 CFM / 180 m3/h |
| Dimensions | 119 x 119 x 38 mm |
| Bearing Type | Ball Bearing |
| Noise Level | 49 dBA |
| Ingress Protection | IP20 |
| Operating Temperature Range | -22 to +75 degC |
| Approvals | UL, CSA, VDE |
| Termination | Terminals |
Key Features
105.9 CFM Air Flow
Delivers 105.9 CFM (180 m3/h) at 3200 rpm.
4.9 W Power Consumption
Published power consumption is 4.9 W with a current rating of 1.03 A.
119 mm Frame Size
Standard 119 x 119 x 38 mm axial fan format with flange mounting.
IP20 Protection
The fan is rated IP20 according to distributor technical data.
Ball Bearing Construction
Ball bearings are specified for the 4184NX.
Applications
- Industrial control cabinet cooling
- Power supply ventilation
- Electronics thermal management
- Equipment enclosure air circulation
- Drive cooling
- General industrial air movement
Purchase Information
We support online purchase of the Ebmpapst 4184NX Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4184NX? It is a 119 x 119 x 38 mm axial fan from Ebmpapst rated for 24 VDC operation.
What is the voltage of the 4184NX? The rated voltage is 24 VDC.
What is the air flow of the 4184NX? Published air flow is 105.9 CFM, equivalent to 180 m3/h.
What is the speed of the 4184NX? The fan operates at 3200 rpm.
What is the power consumption of the 4184NX? Power consumption is 4.9 W with a current rating of 1.03 A.
What is the noise level of the 4184NX? The published noise level is 49 dBA.
What is the ingress protection rating of the 4184NX? Distributor technical data identifies an IP20 rating.
What is the operating temperature range? The operating temperature range is -22 to +75 degC.
What bearing type does the 4184NX use? The fan uses ball bearings.
What approvals does the 4184NX carry? Manufacturer data lists UL, CSA, and VDE approvals.
Need help confirming a model?
Send us your part number and technical requirements.
