230 VAC Nominal Voltage
The RG160-28/56S operates on a 230 VAC nominal supply at 50 Hz, as specified in the manufacturer product data.
1 / 2
Ebmpapst

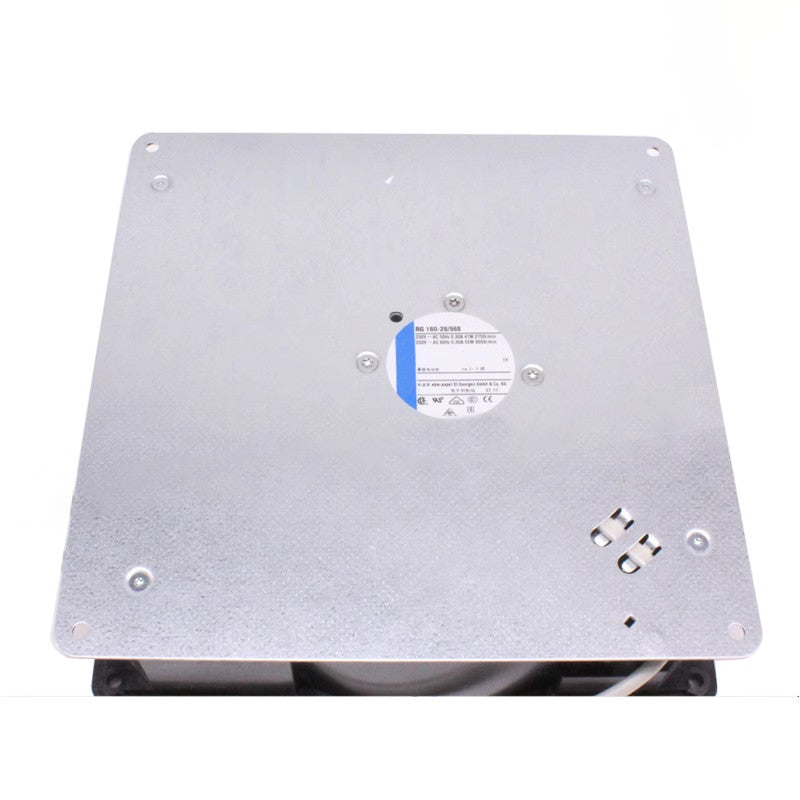

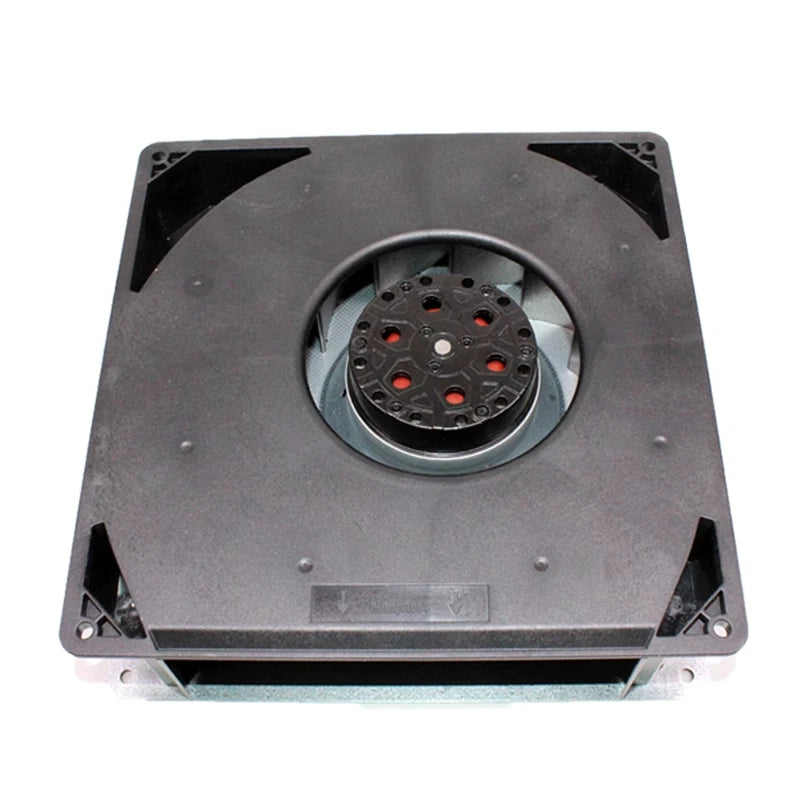

Ebmpapst RG160-28/56S Axial Fan
PRODUCT PRICE
USD
$186.97
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | RG160-28/56S |
| Product Category | Axial Fan |
| Fan Type | Radial Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 47 W |
| Speed | 2750 rpm |
| Air Flow | 202.0 m3/h / 118.9 CFM |
| Dimensions | 220 x 220 x 56 mm |
| Direction of Air Flow | Radial |
| Direction of Rotation | Counterclockwise |
| Bearing Type | Ball Bearings |
| Impeller Material | PA Plastic |
| Housing Material | Metal |
| Electrical Connection | 2 Leads, AWG 18, Stripped and Tinned |
| Sound Power Level | 6.6 Bel |
| Operating Temperature Range | -30 to +70 degC |
| Service Life L10 | 30000+ h at 40 degC / 15000 h at 70 degC |
| Approvals | VDE, UL, CSA, CE |
| Weight | 1700 g |
Key Features
202 m3/h Air Flow
Delivers an air flow volume of 202.0 m3/h (118.9 CFM) at its rated operating point.
2750 rpm Speed
Rated speed is identified as 2750 rpm in the manufacturer technical data.
Radial Air Flow Direction
Manufacturer data identifies the air flow direction as radial, with counterclockwise rotation.
Ball Bearing Construction
The fan is equipped with ball bearings and a PA plastic impeller within a metal housing.
Operating Temperature Range
Published operating temperature range is -30 to +70 degC.
Applications
- Industrial cabinet cooling
- Equipment thermal management
- Control panel ventilation
- Air circulation in enclosures
- Cooling of electronic assemblies
- General industrial air movement
Purchase Information
We support online purchase of the Ebmpapst RG160-28/56S Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst RG160-28/56S? The RG160-28/56S is a radial fan from Ebmpapst with a 220 x 220 x 56 mm frame size.
What is the nominal voltage of the RG160-28/56S? Manufacturer data specifies a nominal voltage of 230 VAC at 50 Hz.
What is the air flow of the RG160-28/56S? The published air flow is 202.0 m3/h, equivalent to 118.9 CFM.
What is the speed of the RG160-28/56S? The rated speed is 2750 rpm.
What is the power consumption of the RG160-28/56S? Manufacturer data lists power consumption at 47 W.
What is the direction of air flow? The RG160-28/56S is specified with radial air flow direction and counterclockwise rotation.
What bearing type does the RG160-28/56S use? The fan uses ball bearings.
What is the operating temperature range? The operating temperature range is -30 to +70 degC.
What are the dimensions of the RG160-28/56S? The fan measures 220 x 220 x 56 mm.
What approvals does the RG160-28/56S carry? Manufacturer data lists VDE, UL, CSA, and CE approvals.
