12 VDC Brushless Operation
EFB0412HHD-R00 uses a nominal 12 VDC supply, with a documented 7.0–13.8 VDC operating range. Its manufacturer specification lists 0.10 A input current and a 0.15 A maximum.
DELTA

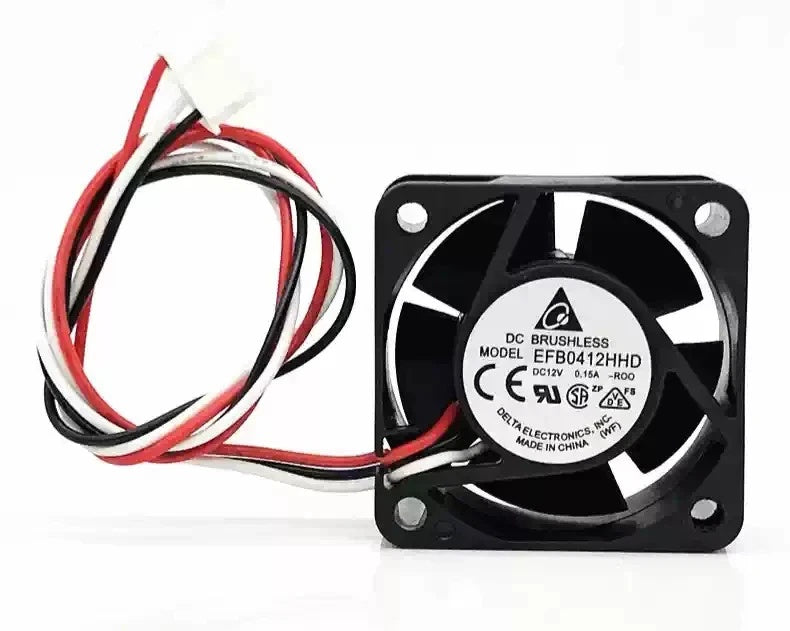

Delta Electronics EFB0412HHD-R00 DC Axial Fan 12VDC 40x40x20mm 8200RPM
$8.28
Available
PRODUCT GALLERY
01 / 9

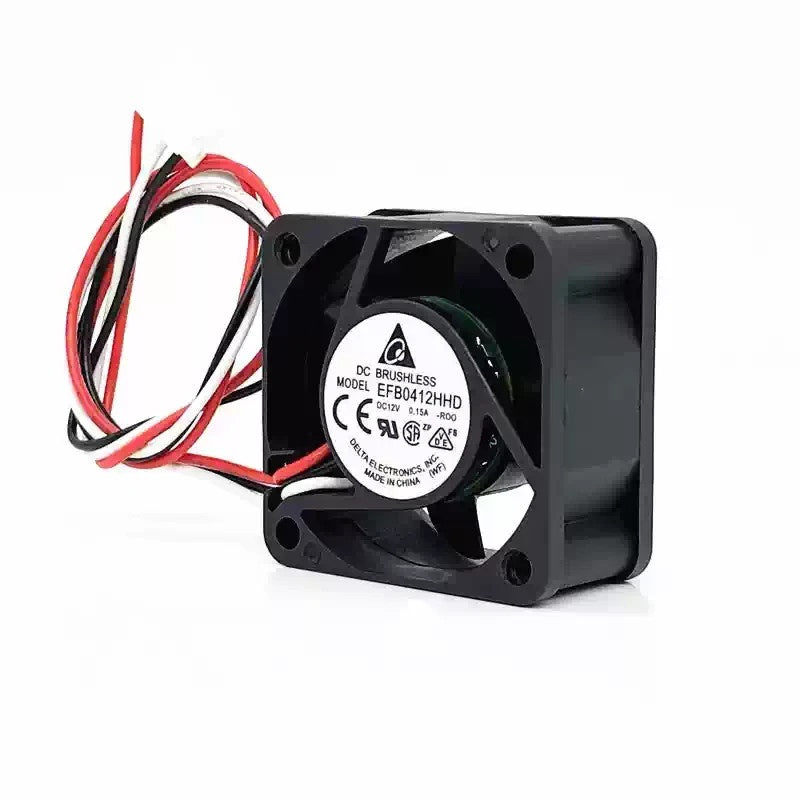

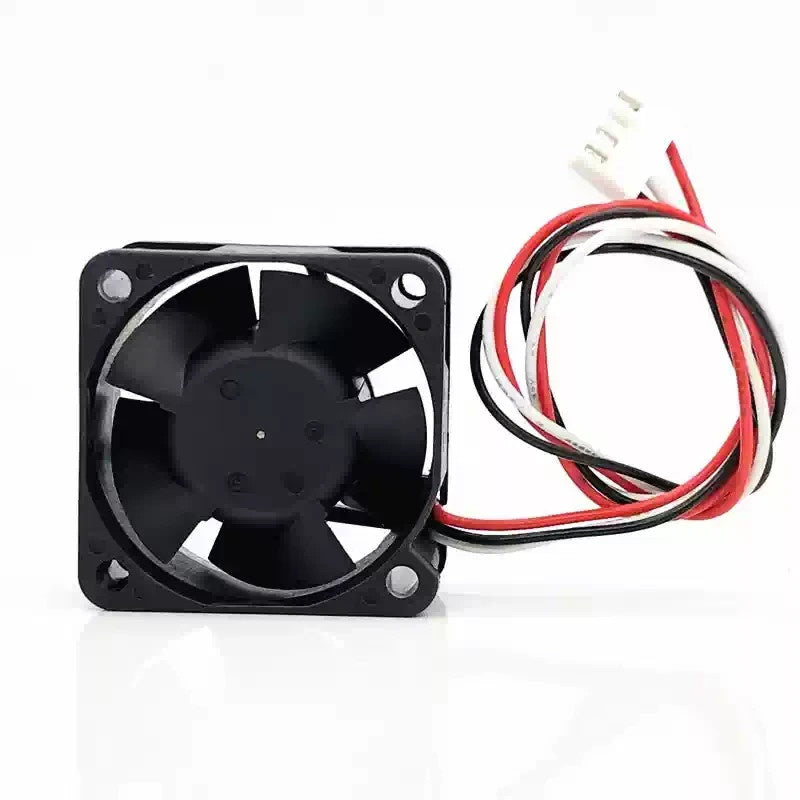

Product images for part identification
DELTA
Delta Electronics EFB0412HHD-R00 DC Axial Fan 12VDC 40x40x20mm 8200RPM
PRODUCT PRICE
USD
$8.28
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | EFB0412HHD-R00 |
| Product Category | DC Axial Fan |
| Product Series | EFB Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Frame Dimensions | 40 x 40 x 20 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.0–13.8 VDC |
| Starting Voltage | ≤5.0 VDC at 25°C |
| Input Current | 0.10 A (maximum 0.15 A) |
| Input Power | 1.20 W (maximum 1.80 W) |
| Reference Speed | 8200 RPM |
| Maximum Free-Air Flow | 9.43 CFM (0.267 m³/min) |
| Minimum Specified Free-Air Flow | 8.30 CFM (0.235 m³/min) |
| Maximum Static Pressure | 0.354 inH₂O (9.00 mmH₂O) |
| Minimum Specified Maximum Static Pressure | 0.289 inH₂O (7.33 mmH₂O) |
| Acoustical Noise | 30.5 dB(A) average (34.0 dB(A) maximum) |
| Bearing System | Two Ball Bearings |
| Motor Design | Two-Phase, Four-Pole Brushless Motor |
| Frame Material | Plastic, UL 94 V-0 |
| Impeller Material | Plastic, UL 94 V-0 |
| Lead Wire Count | 3 Lead Wires |
| Lead Wire Specification | UL1061-F AWG24 |
| Lead Wire Polarity | Red: Positive (+); Black: Negative (-) |
| Signal Lead | Blue: Lock Signal (-R00) |
| Locked-Rotor Protection | Motor winding protection and current shutdown under locked-rotor condition |
| Rotation Direction | Clockwise, viewed from nameplate side |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Operating Humidity | 5–90% RH |
| Weight | 33 g |
| Insulation Classification | UL Class A |
| Manufacturer Reference Life | 70,000 hours at 40°C and 15–65% RH |
Key Features
40 x 40 x 20 mm Axial Frame
The compact square frame measures 40 x 40 x 20 mm. Check the mounting geometry and space around the fan against the equipment design.
8200 RPM Reference Speed
Delta specifies 8200 RPM as the reference rotational speed of this exact -R00 model under the stated operating conditions.
9.43 CFM Free-Air Performance
The manufacturer lists 9.43 CFM maximum free-air flow and 0.354 inH₂O maximum static pressure. These are separate operating-curve endpoints.
Dual Ball Bearings
The fan uses two ball bearings, with UL 94 V-0 plastic frame and impeller components. Delta publishes a 30.5 dB(A) average acoustic reading.
Three Leads with Lock Signal
Delta documents red positive, black negative and blue lock-signal wires for the -R00 suffix. The blue lead is a locked-rotor status signal, not a stated PWM or tachometer connection.
Applications
- Compact industrial control enclosure ventilation
- Embedded electronic equipment cooling
- Industrial power supply cooling assemblies
- Electronic instrumentation thermal management
- Communications equipment ventilation
- Small power electronics enclosure airflow
- Equipment requiring a locked-rotor status signal
- Maintenance of compatible 12 VDC 40 mm axial fan systems
Purchase Information
We support online purchase of the Delta Electronics EFB0412HHD-R00 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics EFB0412HHD-R00?
EFB0412HHD-R00 is a Delta Electronics 12 VDC brushless axial fan with a 40 x 40 x 20 mm frame, two ball bearings, and a three-wire connection including a locked-rotor signal.
What voltage does EFB0412HHD-R00 use?
The Delta manufacturer specification lists a 12 VDC rated voltage and a 7.0–13.8 VDC operating range. It also specifies a starting voltage of no more than 5.0 VDC at 25°C.
What are the dimensions of EFB0412HHD-R00?
The fan has a 40 x 40 x 20 mm frame. Check mounting-point geometry and electrical lead routing against the equipment before ordering.
What is the rated input current?
The manufacturer specifies 0.10 A input current with a maximum of 0.15 A. These figures should be kept distinct when evaluating a power supply.
What input power does the fan require?
Delta specifies 1.20 W input power with a maximum of 1.80 W at the stated electrical operating conditions.
What rotational speed is specified for EFB0412HHD-R00?
The manufacturer lists 8200 RPM as the reference speed for the complete EFB0412HHD-R00 part number.
What is the maximum airflow?
The manufacturer specifies 9.43 CFM (0.267 m³/min) free-air flow, measured at zero static pressure. Actual airflow decreases as system resistance increases.
What is the maximum static pressure?
The maximum static pressure is 0.354 inH₂O (9.00 mmH₂O), specified at zero airflow. This should not be combined with the maximum free-air flow as one operating point.
What is the noise rating?
Delta lists 30.5 dB(A) average acoustic noise and a specified maximum of 34.0 dB(A), measured under its documented conditions.
What bearing system does EFB0412HHD-R00 use?
The manufacturer specification identifies two ball bearings and UL 94 V-0 plastic frame and impeller materials.
What does the -R00 suffix mean for wiring?
For this complete model, Delta documents three UL1061-F AWG24 leads: red positive, black negative, and blue lock signal. Do not mistake the lock signal for a PWM control or tachometer output.
What should be checked before ordering EFB0412HHD-R00?
Verify the full EFB0412HHD-R00 model marking, 12 VDC supply, 0.10 A input current with 0.15 A maximum, 40 x 40 x 20 mm frame, mounting arrangement, airflow requirements, three-wire pinout and blue locked-rotor signal function.
