12 VDC Electrical Rating
The full DSB0912M-K706 parts listing identifies a nominal 12 VDC input and a 0.19 A current rating. Match both values to the existing fan label and equipment power connection.
DELTA

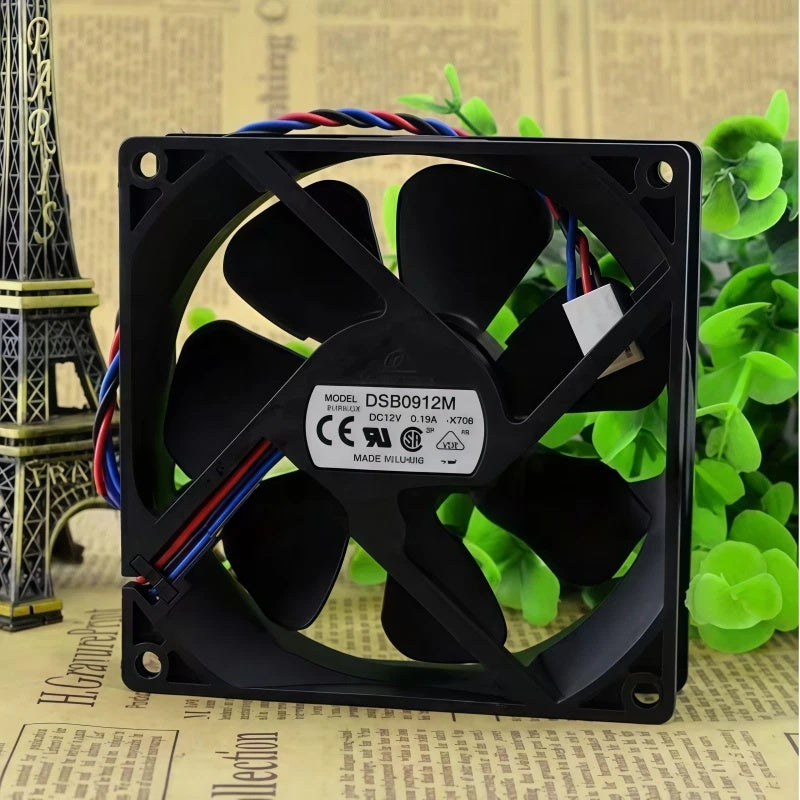

Delta Electronics DSB0912M-K706 DC Axial Fan 12VDC 0.19A 3-Pin
$6.02
Available
PRODUCT GALLERY
01 / 7
Product images for part identification
DELTA
Delta Electronics DSB0912M-K706 DC Axial Fan 12VDC 0.19A 3-Pin
PRODUCT PRICE
USD
$6.02
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | DSB0912M-K706 |
| Product Category | DC Axial Fan |
| Base Model | DSB0912M |
| Model Suffix | -K706 |
| Fan Type | DC Brushless Square-Frame Axial Cooling Fan |
| Rated Voltage | 12 VDC (complete-model parts listing) |
| Listed Current | 0.19 A (complete-model parts listing) |
| Nominal Input Power | 2.28 W (calculated from 12 V x 0.19 A) |
| Listed Frame Size | 90 x 90 x 25 mm (complete-model parts listing) |
| Alternative Seller Size Description | 92 x 92 x 25 mm (DSB0912M seller listings; check exact unit) |
| Electrical Connection | 3 Lead Wires, 3-Pin Connector |
| Listed Wire Length | 100 mm (complete-model parts listing) |
| Documented Product Use | Desktop computer and server chassis cooling |
Key Features
Axial Cooling Configuration
DSB0912M-K706 is sold as a square-frame axial cooling fan that moves air through its frame for desktop and server chassis ventilation.
Approximately 90 mm Fan Frame
The complete-model vendor describes a 90 x 90 x 25 mm frame. Other listings for the DSB0912M base model use 92 x 92 x 25 mm; measure the frame and mounting holes before ordering.
Three-Wire, Three-Pin Connection
A model-specific parts listing confirms three lead wires and a three-pin connector. Verify pin order, wire colors and the third-wire function on the actual fan.
100 mm Listed Cable Length
The DSB0912M-K706 parts supplier specifies a 100 mm cable. Check routing distance and plug orientation against the existing cooling assembly.
Computer Enclosure Cooling
Parts catalogs identify DSB0912M fans for desktop computer rear-panel and internal chassis cooling. Equipment compatibility must be established through mechanical and electrical checks.
Applications
- Desktop computer rear chassis cooling
- Computer case exhaust ventilation
- Server chassis internal air circulation
- Desktop system thermal management
- Electronic equipment enclosure ventilation
- Computer system replacement fan servicing
- 12 VDC cabinet cooling where mounting dimensions match
- Maintenance of compatible three-pin axial fan assemblies
Purchase Information
We support online purchase of the Delta Electronics DSB0912M-K706 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics DSB0912M-K706?
DSB0912M-K706 is a Delta Electronics square-frame DC axial cooling fan. Complete-model parts listings specify 12 VDC, 0.19 A, a three-wire three-pin connection and an approximately 90 mm frame.
Is DSB0912M-K706 an axial fan or a centrifugal blower?
It is described as a square-frame axial fan for computer chassis airflow, rather than a centrifugal blower with a side discharge outlet.
What voltage does DSB0912M-K706 use?
A complete-model parts listing identifies a rated voltage of 12 VDC. Check the installed fan marking before connecting power.
What current is listed for DSB0912M-K706?
The complete-model supplier identifies 0.19 A. At 12 VDC, that corresponds mathematically to 2.28 W; the power figure is a calculation, not a separately published manufacturer rating.
What are the physical dimensions of DSB0912M-K706?
One complete-model supplier lists 90 x 90 x 25 mm, while other DSB0912M seller descriptions use 92 x 92 x 25 mm. Confirm the actual frame width and mounting-hole spacing before selecting a replacement.
How many lead wires does DSB0912M-K706 have?
The complete-model supplier identifies three lead wires terminating in a three-pin connector. Verify wire order and connector orientation against the existing fan.
How long is the cable on DSB0912M-K706?
One complete-model supplier lists a 100 mm lead length. The length may differ on other assemblies, so check the fan being replaced.
What is the third wire used for?
The reviewed complete-model listing verifies three wires but does not establish the third-wire signal function. Check the equipment wiring or a matching fan diagram rather than assuming a particular signal.
What speed and airflow does DSB0912M-K706 provide?
The located complete-model listing does not provide verified RPM or CFM ratings. Do not apply speed or airflow data from a different DSB0912M suffix without a matching specification.
Which computers use DSB0912M fans?
Seller listings describe DSB0912M fans for some Dell and HP desktop chassis. Compatibility with any individual computer depends on the full part marking, chassis mount and connector.
Can DSB0912M-K706 replace another 92 mm computer fan?
Compare voltage, current, exact housing dimensions, mounting-hole spacing, blade clearance, connector and pinout before considering a substitute. Similar fan sizes alone do not establish compatibility.
What should be checked before ordering DSB0912M-K706?
Confirm the DSB0912M-K706 marking, 12 VDC supply, 0.19 A listed current, physical frame and hole spacing, three-pin plug, approximately 100 mm cable length and equipment airflow requirements.
