12 VDC Centrifugal Blower
The Delta BFB1012EH family comprises 12 VDC brushless centrifugal blowers. Confirm the complete suffix and the voltage on the unit label.
DELTA

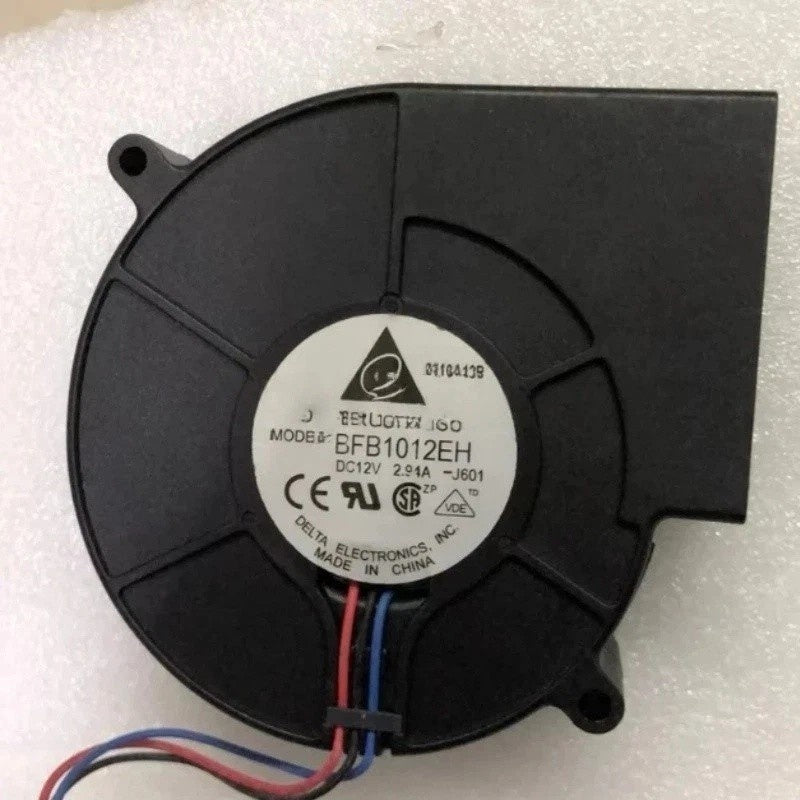

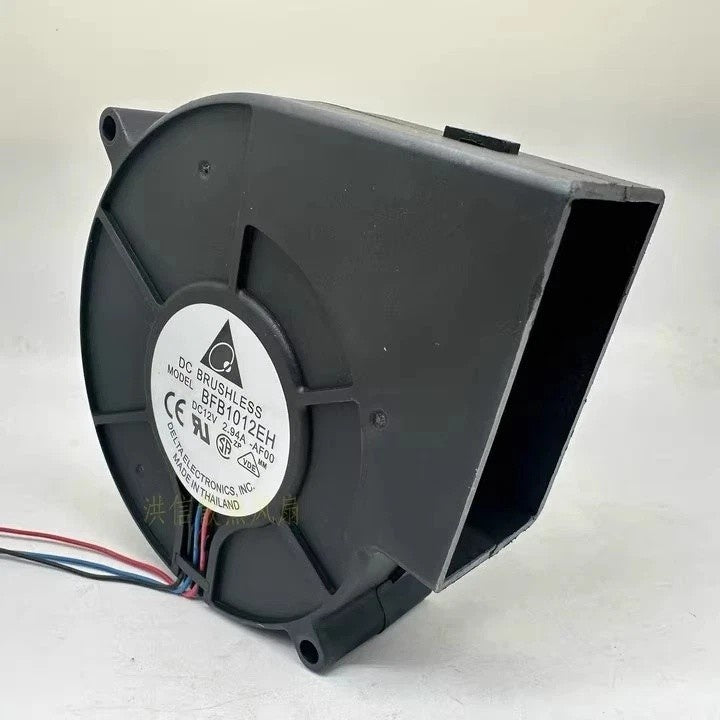

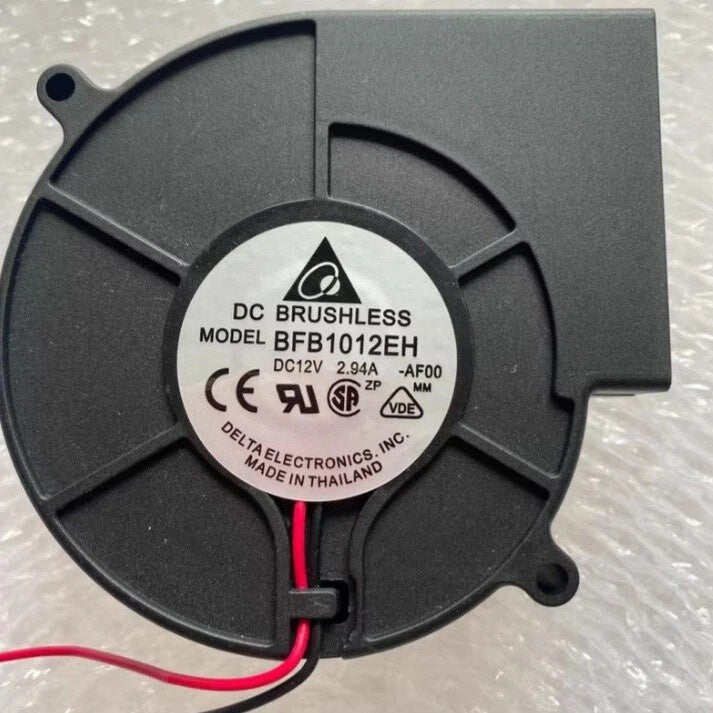

Delta Electronics BFB1012EH DC Centrifugal Blower Fan 12VDC
$14.03
Available
PRODUCT GALLERY
01 / 9
Product images for part identification
DELTA
Delta Electronics BFB1012EH DC Centrifugal Blower Fan 12VDC
PRODUCT PRICE
USD
$14.03
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | BFB1012EH |
| Product Category | DC Centrifugal Blower Fan |
| Product Family | BFB1012 |
| Fan Type | DC Brushless Centrifugal Blower |
| Nominal Voltage | 12 VDC (BFB1012EH documented variants) |
| Blower Airflow Pattern | Side-discharge centrifugal airflow |
| Bearing Type | Ball Bearing (documented variants) |
| Housing and Impeller Material | Plastic (documented variants) |
| Variant Examples | BFB1012EH-A; BFB1012EH-AF00; BFB1012EH-C18J |
Key Features
Side-Discharge Airflow
A centrifugal impeller directs air toward a side outlet, enabling localized cooling where an outlet duct or directed airflow path is required.
BFB1012 Fan Family
The BFB1012EH designation identifies a product family. Suffixes including -A, -AF00 and -C18J identify configurations with different performance and electrical connections.
Ball Bearing Configurations
Published Delta BFB1012EH-AF00 and BFB1012EH-C18J documentation lists ball bearing construction. Check the specification for the exact supplied variant.
Electrical Interface Options
Documented variants differ in connection: BFB1012EH-A has two leads, -AF00 has three leads and -C18J has four leads. Verify connector, wiring and signal functions.
Performance Depends on Full Part Number
For example, BFB1012EH-AF00 lists 5300 RPM and 46.0 CFM, whereas BFB1012EH-C18J lists 5800 RPM and 45.5 CFM. These are variant examples, not universal ratings for the unsuffixed model.
Applications
- Industrial power electronics thermal management
- Control cabinet forced-air cooling
- Power supply enclosure ventilation
- Telecommunications equipment airflow
- Server and computing enclosure cooling
- Equipment designs requiring a directed blower outlet
- Electronic instrumentation cooling assemblies
- Maintenance of compatible 12 VDC centrifugal blower systems
Purchase Information
We support online purchase of the Delta Electronics BFB1012EH DC Centrifugal Blower Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics BFB1012EH?
BFB1012EH is a Delta Electronics DC brushless centrifugal blower family designation. A suffix may identify the exact electrical and mechanical configuration.
Is BFB1012EH an axial fan or a blower?
It is a centrifugal blower that directs airflow through a side outlet, unlike a conventional square-frame axial cooling fan.
What nominal supply voltage is used by the BFB1012EH family?
Documented BFB1012EH variants are rated at 12 VDC. Confirm the full suffix and the voltage marked on the fan.
What are the physical dimensions of BFB1012EH?
Dimensions depend on the exact suffix. BFB1012EH-AF00 is listed at 97.2 x 94.4 x 33.0 mm, while BFB1012EH-C18J is listed at 96.6 x 94.3 x 32.9 mm. Neither dimension should be assigned to a suffix-free listing without verification.
What is the rated current of BFB1012EH?
The complete suffix is necessary to choose the correct rating. For example, -AF00 is listed at 2.45 A and -C18J at 1.97 A. Check the fan label and the matching datasheet.
What speed does BFB1012EH provide?
Speed varies by variant. Delta documentation lists 5300 RPM for -AF00 and 5800 RPM for -C18J. A single speed cannot be established from BFB1012EH alone.
What is the airflow rating?
The -AF00 specification lists 46.0 CFM and the -C18J product listing lists 45.5 CFM. Actual airflow also depends on airflow resistance and installation.
Does BFB1012EH use ball bearings?
Documented Delta -AF00 and -C18J blower variants use ball bearings. Verify the full model identification for the unit being purchased.
How many electrical lead wires are provided?
Published configurations differ: -A is listed with two leads, -AF00 with three and -C18J with four. Confirm the specific suffix, wire colors, connector and pinout.
Does this fan support tachometer or PWM control?
Some suffix-specific configurations offer additional functions. -AF00 is listed with a speed-sensor lead; -C18J is listed with PWM control and a speed sensor. Do not assume either function for an unspecified suffix.
Can a different BFB1012EH suffix be used as a substitute?
Compare nominal voltage, current, speed, airflow, static pressure, housing dimensions, outlet geometry, mounting points, wiring and any speed-control or monitoring signals before selecting a substitute.
What information is needed before ordering BFB1012EH?
Provide the complete label or suffix when available, plus supply voltage, current, physical dimensions, connector and number of leads, mounting pattern and the target equipment requirements.
Need help confirming a model?
Send us your part number and technical requirements.
