Technical Specifications

Key Features

Applications

• Server chassis forced-air cooling
• Computer case ventilation
• Industrial computing equipment airflow
• Electronic control enclosure cooling
• Networking device thermal management
• Electronic power supply ventilation
• Computer equipment fan servicing
• Maintenance of compatible 12 VDC 92 mm axial fan assemblies

Purchase Information

We support online purchase of the Delta Electronics AUB0912VH-SP16 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

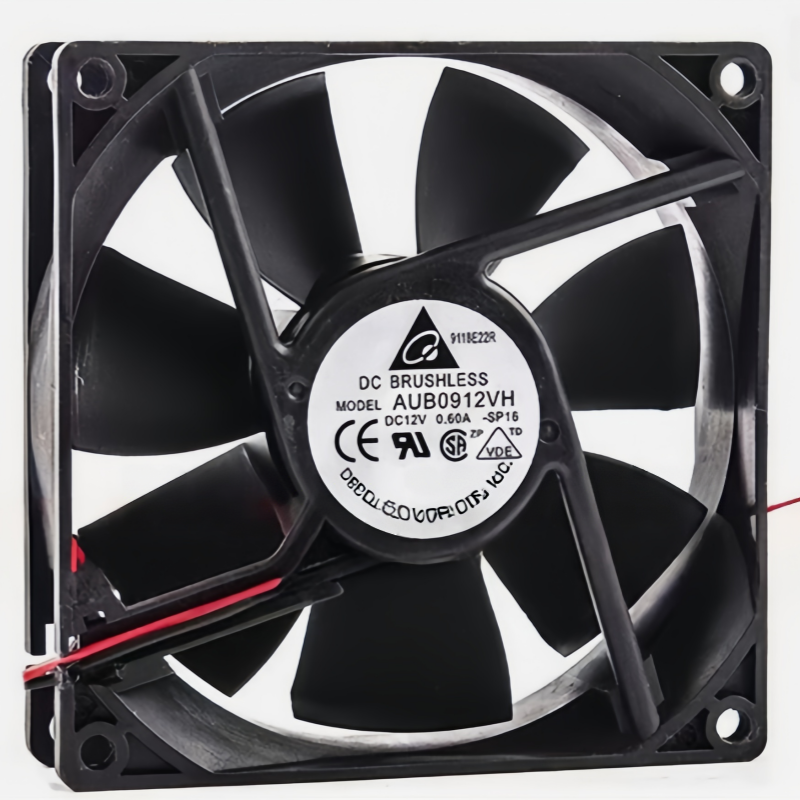

What is Delta Electronics AUB0912VH-SP16?
AUB0912VH-SP16 is a Delta Electronics 12 VDC brushless axial cooling fan in the AUB series. Complete-model suppliers list a 92 x 92 x 25 mm frame and a 0.60 A current.

What type of cooling fan is AUB0912VH-SP16?
It is a square-frame axial fan that moves air through its housing, not a centrifugal blower with a side-discharge outlet.

What voltage does AUB0912VH-SP16 use?
Complete-model parts catalogs and seller listings identify a nominal supply voltage of 12 VDC. Match the voltage on the installed fan label.

What is the current rating of AUB0912VH-SP16?
Model-specific suppliers list 0.60 A. Check the fan marking and the capacity of the equipment power connector.

What is the calculated power consumption?
At the listed 12 VDC and 0.60 A, the arithmetic product is 7.20 W. This value is derived from the reported electrical ratings rather than a separately verified manufacturer power specification.

What are the dimensions of AUB0912VH-SP16?
The complete-model PcHub listing identifies 92 x 92 x 25 mm. Some other sellers describe the nominal 92 mm size as 90 x 90 x 25 mm, so check the housing measurements and mounting points.

How many wires does AUB0912VH-SP16 have?
A specialist parts catalog lists four wires and a four-pin connector, while other marketplace listings offer a two-wire or two-pin assembly under the same model name. Confirm the physical part and equipment connection.

Does the SP16 model support PWM control?
A four-wire configuration is advertised, but the reviewed exact-model listings do not establish a manufacturer-confirmed PWM pin assignment. Do not infer PWM support from the wire count alone.

Does AUB0912VH-SP16 provide tachometer feedback?
The exact signal functions are not reliably established from the available complete-model supplier descriptions. Verify the wiring diagram or markings for the unit being installed.

What cable length is supplied?
A specialist supplier lists versions with approximately 170 mm and 95 mm leads. Confirm cable length and connector orientation for the actual assembly.

What are the speed, airflow and bearing specifications?
Some resellers report 4000 RPM, 80 CFM and ball bearing construction, but manufacturer-confirmed data for the complete -SP16 suffix has not been established. These claims are not treated as definitive model ratings.

What should be checked before ordering AUB0912VH-SP16?
Confirm the full AUB0912VH-SP16 marking, 12 VDC supply, 0.60 A listed current, 92 x 92 x 25 mm housing, mounting pattern, lead count, plug shape, cable length, airflow direction and any required control or monitoring signals.
