12 VDC Cooling Fan
Multiple listings for the complete AUB0812H-E-79C identifier specify 12 VDC and 0.30 A. The corresponding Delta AUB0812H-E approval specification distinguishes 0.23 A average current from 0.30 A maximum average and label current.
DELTA
Delta Electronics AUB0812H-E-79C DC Axial Fan 12VDC 80x80x25.4mm 0.30A
$9.82
Available
PRODUCT GALLERY
01 / 7

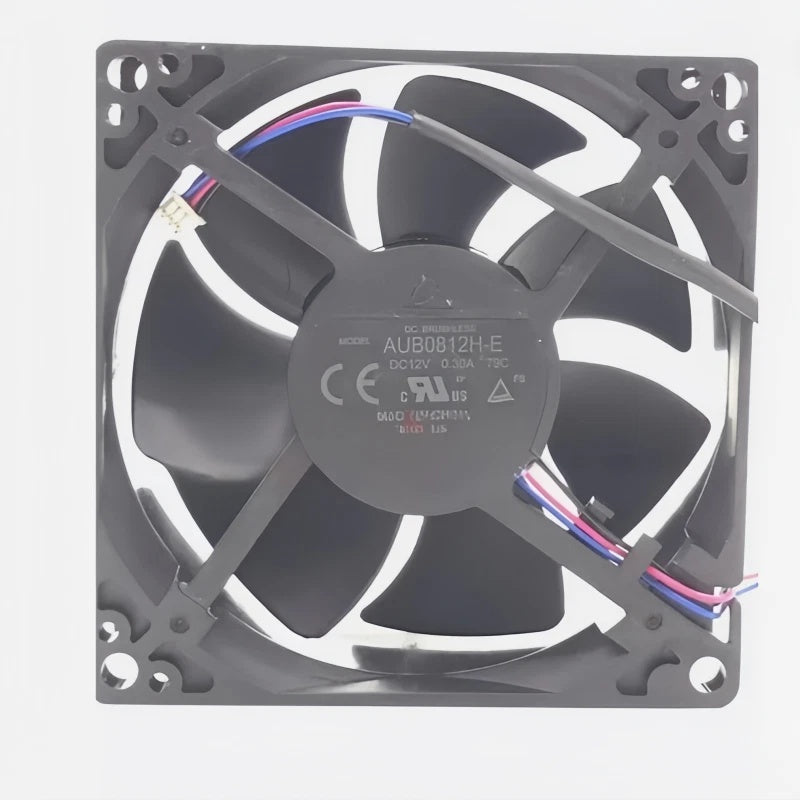

Product images for part identification
DELTA
Delta Electronics AUB0812H-E-79C DC Axial Fan 12VDC 80x80x25.4mm 0.30A
PRODUCT PRICE
USD
$9.82
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | AUB0812H-E-79C |
| Product Category | DC Axial Fan |
| Product Family | AUB Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Exact-Model Listed Voltage | 12 VDC (-79C seller listings) |
| Exact-Model Listed Current | 0.30 A (-79C seller listings and fan label descriptions) |
| Exact-Model Listed Connection | 3-Pin (-79C seller listings) |
| Reference Manufacturer Model | AUB0812H-E (Delta approval specification, May 10, 2021; suffix -79C not separately identified) |
| Reference Frame Dimensions | 80 x 80 x 25.4 mm (AUB0812H-E manufacturer drawing) |
| Reference Operating Voltage Range | 5.0–13.2 VDC (AUB0812H-E) |
| Reference Minimum Starting Voltage | 7.0 VDC or higher (AUB0812H-E) |
| Reference Average Input Current | 0.23 A (AUB0812H-E) |
| Reference Maximum Average Current | 0.30 A (AUB0812H-E; includes production tolerance) |
| Manufacturer Label Current | 0.30 A (AUB0812H-E approval specification) |
| Reference Average Input Power | 2.76 W (AUB0812H-E) |
| Reference Maximum Average Input Power | 3.60 W (AUB0812H-E) |
| Reference Rated Speed | 3900 RPM ±10% (AUB0812H-E) |
| Reference Maximum Free-Air Flow | 50.15 CFM (1.421 m³/min; AUB0812H-E) |
| Reference Minimum Specified Free-Air Flow | 45.13 CFM (1.279 m³/min; AUB0812H-E) |
| Reference Maximum Static Pressure | 0.239 inH₂O (6.080 mmH₂O; AUB0812H-E) |
| Reference Minimum Specified Maximum Pressure | 0.193 inH₂O (4.925 mmH₂O; AUB0812H-E) |
| Reference Acoustical Noise | 37.5 dB(A) average; 41.5 dB(A) maximum (AUB0812H-E) |
| Reference Bearing System | Sleeve Bearing (AUB0812H-E manufacturer specification) |
| Reference Frame Material | Plastic, UL 94 V-0 (AUB0812H-E) |
| Reference Impeller Material | Plastic, UL 94 V-0 (AUB0812H-E) |
| Reference Lead Wires | 3 lead wires, UL1430 AWG26 (AUB0812H-E) |
| Reference Wire Colors | Red: Positive (+); Black: Negative (-); Blue: Frequency Generator (FG) |
| Reference Signal Type | Open-collector FG speed-feedback output (AUB0812H-E; verify -79C connector pinout) |
| Reference Mounting Hole Spacing | 71.5 x 71.5 mm (AUB0812H-E manufacturer drawing) |
| Reference Mounting Hole Diameter | 4.5 mm (AUB0812H-E manufacturer drawing) |
| Reference Lead Length | 320 ±10 mm (AUB0812H-E manufacturer drawing) |
| Reference Rotation Direction | Clockwise when viewed from nameplate side (AUB0812H-E) |
| Reference Operating Temperature | -10°C to +85°C (AUB0812H-E) |
| Reference Storage Temperature | -40°C to +85°C (AUB0812H-E) |
| Reference Operating Humidity | 5–90% RH (AUB0812H-E) |
| Reference Weight | 78 g (AUB0812H-E) |
Key Features
80 x 80 x 25.4 mm Reference Frame
The Delta AUB0812H-E manufacturer drawing identifies an 80 mm square frame with 25.4 mm depth and 71.5 mm mounting-hole spacing. Confirm these dimensions for the -79C assembly before installation.
3900 RPM Family Performance
Delta specifies a rated speed of 3900 RPM ±10% for AUB0812H-E. A separate manufacturer performance approval for suffix -79C has not been established, so this is a family reference value.
50.15 CFM Reference Airflow
The AUB0812H-E approval specification lists 50.15 CFM maximum free-air flow and 0.239 inH₂O maximum static pressure. These represent different test endpoints and are not independently confirmed for -79C.
Sleeve Bearing Reference Design
Delta's AUB0812H-E specification identifies sleeve bearings, plastic frame and impeller materials, and an average acoustical noise level of 37.5 dB(A). Confirm the supplied -79C variant if these details are critical.
Three-Pin Listed Configuration
Complete-model -79C listings describe a three-pin connection. Delta's AUB0812H-E reference drawing identifies red positive, black negative and blue FG feedback leads, but the exact -79C connector and pin positions require verification.
Applications
- Electronic enclosure forced-air cooling
- Digital projector cooling systems with matching fan specifications
- Compact telecommunications equipment ventilation
- Industrial embedded computer cooling
- Electronic control module thermal management
- Networking equipment airflow
- Test and measurement instrument ventilation
- Maintenance of compatible AUB0812H-E-79C fan assemblies
Purchase Information
We support online purchase of the Delta Electronics AUB0812H-E-79C DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics AUB0812H-E-79C?
AUB0812H-E-79C is a Delta Electronics AUB-series DC axial fan identifier. Multiple complete-model sales listings specify 12 VDC, 0.30 A and a three-pin connection.
What supply voltage does AUB0812H-E-79C use?
Exact-model listings state 12 VDC. Delta's AUB0812H-E approval specification lists a 5.0–13.2 VDC operating range, which should be verified against the supplied -79C assembly.
What are the fan dimensions?
The manufacturer AUB0812H-E reference model measures 80 x 80 x 25.4 mm, with 71.5 mm mounting-hole spacing. A dedicated -79C mechanical drawing was not established.
Is the rated current 0.23 A or 0.30 A?
The Delta AUB0812H-E specification lists 0.23 A average input current, 0.30 A maximum average current and 0.30 A current printed on the label. Complete -79C seller listings also show 0.30 A.
What electrical power is specified?
Delta's AUB0812H-E approval lists 2.76 W average input power and 3.60 W maximum average input power. These belong to the documented -E configuration and are reference values for the -79C listing.
What is the reference rotational speed?
The Delta AUB0812H-E datasheet lists 3900 RPM ±10%. A separate suffix-specific speed approval was not found for AUB0812H-E-79C.
What is the maximum airflow?
The Delta AUB0812H-E reference specification states 50.15 CFM (1.421 m³/min) maximum free-air flow. This figure is not independently verified for the complete -79C suffix.
What is the maximum static pressure?
The reference AUB0812H-E specification lists 0.239 inH₂O (6.080 mmH₂O). Maximum pressure is measured at zero airflow, separately from the maximum free-air-flow point.
What is the listed acoustic noise?
The manufacturer states 37.5 dB(A) average and 41.5 dB(A) maximum for AUB0812H-E. This rating should be confirmed for a -79C assembly where acoustic performance is critical.
Does this fan have ball bearings or sleeve bearings?
The Delta AUB0812H-E manufacturer specification identifies a sleeve bearing, which is also shown by major component distributors. Bearing details for suffix -79C were not separately confirmed.
What does the three-pin connection provide?
The Delta AUB0812H-E reference drawing shows red positive, black negative and blue FG speed-feedback wires. Complete -79C sales records state three pins, but the connector keying and precise pinout must be checked before electrical connection.
What should be checked before ordering AUB0812H-E-79C?
Verify the complete AUB0812H-E-79C marking, 12 VDC input, 0.30 A label rating, actual 80 mm frame dimensions, mounting-hole pattern, fan thickness, connector type, three-pin wire order, feedback signal and cooling performance requirements against the installed equipment.
