12 VDC AFC Fan Family
The Delta AFC0612D designation belongs to the AFC brushless axial fan family. The manufacturer documents a 12 VDC configuration under the complete part number AFC0612D-SP07.
DELTA
Delta Electronics AFC0612D DC Axial Fan 12VDC 60x60x25.4mm
$8.68
Available
PRODUCT GALLERY
01 / 9

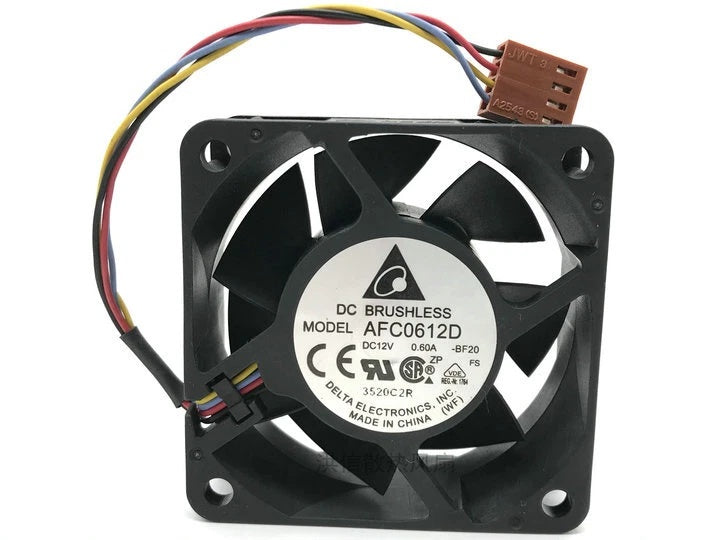

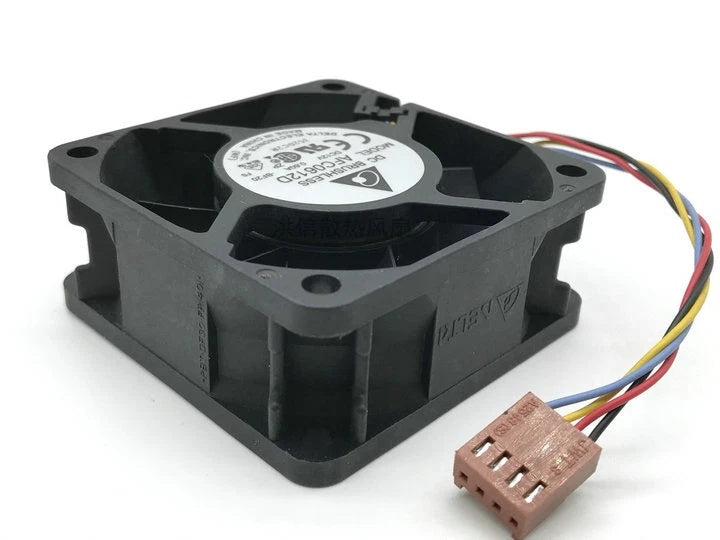

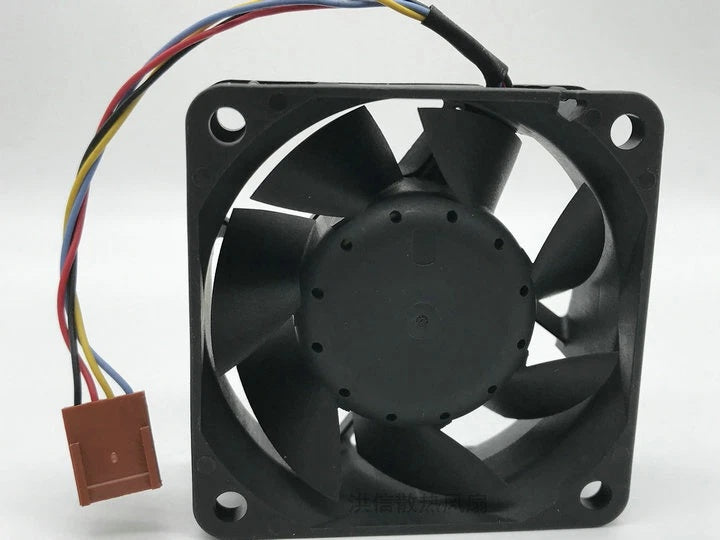

Product images for part identification
DELTA
Delta Electronics AFC0612D DC Axial Fan 12VDC 60x60x25.4mm
PRODUCT PRICE
USD
$8.68
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | AFC0612D |
| Product Category | DC Axial Fan |
| Product Family | AFC Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Documented Family Voltage | 12 VDC (AFC0612D-SP07 manufacturer specification) |
| Documented Family Dimensions | 60 x 60 x 25.4 mm (AFC0612D-SP07 manufacturer specification) |
| Documented Motor Configuration | Two-Phase, Four-Pole Brushless Motor (AFC0612D-SP07) |
| Verified Complete Variant | AFC0612D-SP07 |
| SP07 Operating Voltage Range | 10.8–13.8 VDC (Delta approval specification) |
| SP07 Input Current | 0.13 A; maximum 0.60 A |
| SP07 Input Power | 1.56 W; maximum 7.20 W |
| SP07 Reference Speed | 4250 RPM ±10% |
| SP07 Maximum Free-Air Flow | 23.38 CFM (0.662 m³/min) |
| SP07 Maximum Static Pressure | 0.211 inH₂O (5.35 mmH₂O) |
| SP07 Acoustical Noise | 34.0 dB(A) average; 38.0 dB(A) maximum |
| SP07 Bearing System | Ball Bearings |
| SP07 Electrical Connection | 4 Lead Wires |
| SP07 Control Functions | PWM Speed Control and Tachometer Feedback |
| SP07 Operating Temperature | -10°C to +70°C |
| SP07 Reference Weight | 80 g |
| SP07 Reference Lifetime | 70,000 hours at 40°C |
| Unsuffixed Model Current | Not independently verified |
| Unsuffixed Model Speed and Airflow | Not independently verified |
| Unsuffixed Model Wiring | Not established; do not assume the SP07 four-wire configuration |
| Variant Identification | Confirm the complete fan marking and any additional suffix |
Key Features
60 x 60 x 25.4 mm Reference Frame
The documented AFC0612D-SP07 has a 60 mm square frame with a 25.4 mm depth. The actual housing and mounting geometry should be confirmed for any unsuffixed or custom configuration.
Brushless Axial Airflow
The Delta approval specification for the SP07 configuration describes a two-phase, four-pole brushless axial fan motor intended to move cooling air through electronic equipment.
Documented SP07 Performance
The complete AFC0612D-SP07 version is specified at 4250 RPM and 23.38 CFM maximum free-air flow. These figures describe the SP07 variant and are not confirmed ratings for an unsuffixed AFC0612D.
Ball Bearing SP07 Version
Delta and major component distributors specify ball bearings for AFC0612D-SP07. Bearing construction for other AFC0612D variants should be checked using their complete model specifications.
Suffix-Specific Control Functions
AFC0612D-SP07 has four leads with PWM speed control and tachometer feedback. The connection and signal features of an unsuffixed AFC0612D must be verified independently before installation.
Applications
- Industrial electronic enclosure ventilation
- Embedded controller cooling assemblies
- Compact power supply forced-air cooling
- Telecommunications equipment airflow
- Industrial computing system thermal management
- Electronic instrumentation enclosure ventilation
- Networking equipment cooling assemblies
- Maintenance of compatible AFC0612D-family fan systems
Purchase Information
We support online purchase of the Delta Electronics AFC0612D DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics AFC0612D?
AFC0612D is a Delta Electronics AFC-series brushless axial cooling fan designation. A manufacturer-documented complete variant is AFC0612D-SP07.
What is the voltage of AFC0612D?
The documented AFC0612D-SP07 version operates at a nominal 12 VDC. A separate approval specification for the unsuffixed AFC0612D was not established.
What are the fan dimensions?
The documented AFC0612D-SP07 measures 60 x 60 x 25.4 mm. Verify the housing and mounting geometry for the precise fan supplied.
What current does AFC0612D require?
The SP07 manufacturer specification lists 0.13 A and a maximum of 0.60 A. These electrical ratings should not be assigned to an unsuffixed AFC0612D without verification.
What is the input power?
Delta specifies 1.56 W, maximum 7.20 W, for AFC0612D-SP07. The unsuffixed model does not have an independently established input-power rating in the reviewed documentation.
What rotational speed is specified?
AFC0612D-SP07 is specified at 4250 RPM ±10%. Other configurations can have different motor-control and speed characteristics.
What is the maximum airflow?
The manufacturer lists 23.38 CFM (0.662 m³/min) for AFC0612D-SP07 at zero static pressure. This is not a verified universal rating for every AFC0612D configuration.
What is the maximum static pressure?
AFC0612D-SP07 is specified at 0.211 inH₂O (5.35 mmH₂O) at zero airflow. Maximum static pressure and maximum free-air flow are separate operating conditions.
What acoustic noise level is documented?
Delta specifies 34.0 dB(A) average and 38.0 dB(A) maximum for the SP07 version. Noise for an unspecified AFC0612D configuration requires its matching datasheet.
Does AFC0612D use ball bearings?
Ball bearings are specified for the complete AFC0612D-SP07 variant. Bearing construction of other variants must be verified separately.
Does AFC0612D have PWM control and tachometer feedback?
The manufacturer confirms both functions for AFC0612D-SP07, which has four leads. These features cannot be assumed for the unsuffixed AFC0612D designation.
What should be checked before ordering Delta AFC0612D?
Verify the complete model marking and suffix, supply voltage, rated current, 60 mm frame compatibility, housing depth, mounting pattern, fan speed, airflow requirements, lead count, connector pinout and any PWM or tachometer interface before selecting a replacement.
