Technical Specifications

Key Features

Applications

• ATX computer power supply cooling assemblies
• Desktop workstation ventilation
• Computer chassis cooling systems with matching 135 mm mounting
• Electronic power conversion equipment ventilation
• Industrial computing enclosure cooling
• Telecommunications equipment thermal management
• Electronic equipment maintenance requiring 12 VDC axial airflow
• Service of compatible AFB1312M and specified suffix assemblies

Purchase Information

We support online purchase of the Delta Electronics AFB1312M DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

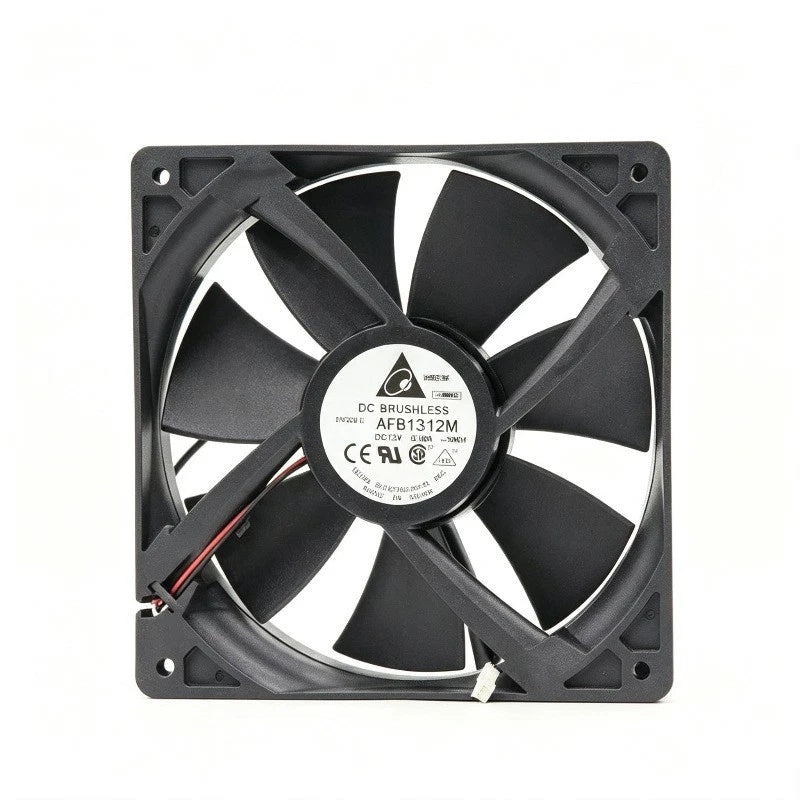

What is Delta Electronics AFB1312M?
AFB1312M is a Delta Electronics DC brushless axial cooling fan used in computer and electronic equipment cooling applications. Model-specific sales records commonly describe a 135 mm frame and 12 VDC supply.

What is the rated voltage?
AFB1312M suppliers list 12 VDC. Delta's CSA certification schedule independently confirms 12 VDC for AFB1312M-SM02, a separately identified version of the model.

What current is associated with AFB1312M?
Multiple suppliers list 0.38 A, and the Delta certification record specifies 380 mA for AFB1312M-SM02. Confirm the installed fan label when identifying the exact version.

What is the calculated electrical power?
At 12 VDC and 0.38 A, the arithmetic power is 4.56 W. This is calculated from the published electrical values and should not be interpreted as a separately verified maximum power rating.

What are the fan dimensions?
Most complete-model sales listings describe 135 x 135 x 25 mm. One supplier description for an -SM01 offering contains 127 x 127 x 38 mm data, so dimensional drawings and physical measurement are important before ordering.

What type of bearing does the fan use?
Multiple AFB1312M product listings describe dual ball bearings, and independent testing records identify the fan as a 135 mm double ball bearing unit in certain computer power supplies.

What is the rated rotational speed?
Published figures are inconsistent: a review of an AFB1312M-SM02 installation reports up to 2100 RPM, while different resellers list 3800 or 4500 RPM. No single figure was established as the manufacturer-confirmed rating for all AFB1312M assemblies.

What maximum airflow is reported?
Several aftermarket listings advertise approximately 95 CFM. A matching Delta performance specification was not established, so this figure should be treated as supplier-reported rather than a confirmed common rating.

What acoustic noise rating is specified?
Some sellers report 35 dB(A), while another source lists 45 dB(A). The exact rating depends on the documented fan version and measurement conditions and remains unconfirmed for the unsuffixed product.

Does AFB1312M have two wires?
Two-wire and two-pin configurations are common in model-specific listings, including AFB1312M-SM02. Some replacement suppliers offer additional wire arrangements, so the connector and wiring must be checked before purchase.

Where is AFB1312M used?
Independent Cybenetics test reports identify AFB1312M in selected Cooler Master Platinum-series power supplies. Other computer or industrial equipment applications require separate compatibility verification.

What should be checked before ordering Delta AFB1312M?
Verify the complete AFB1312M marking and any suffix, 12 VDC supply, 0.38 A listed current, actual fan dimensions, mounting-hole spacing, bearing type, connector configuration, cable length, rotation direction and the cooling requirements of the target equipment.
