12 VDC Brushless Motor
The Delta Electronics AFB1212VH uses a 12 VDC brushless axial-flow motor. The manufacturer specifies a 7.0–13.8 VDC operating range, 0.40 A input current and 4.80 W nominal input power.
DELTA
Delta Electronics AFB1212VH DC Axial Fan 12VDC 120x120x25.4mm 103.75CFM
$12.30
Available
PRODUCT GALLERY
01 / 9

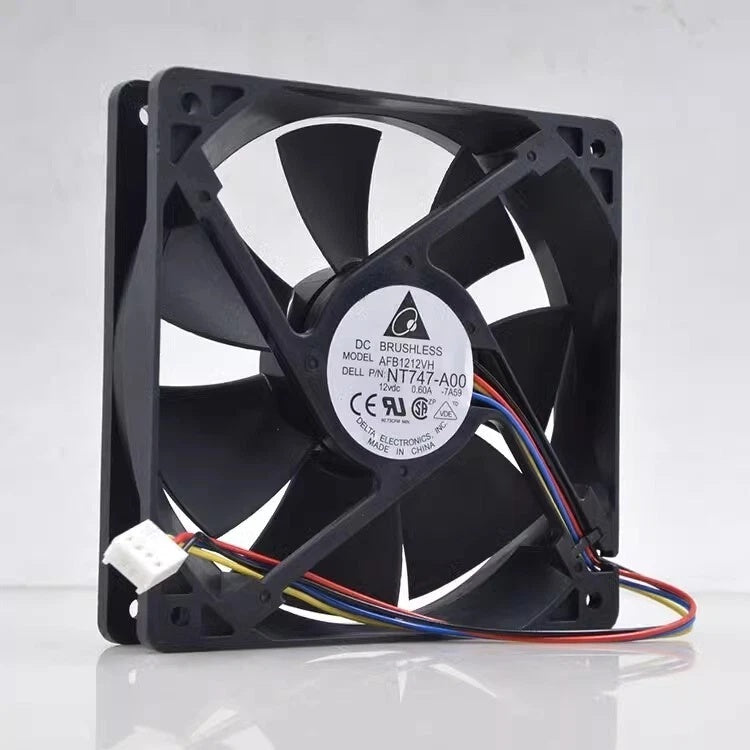

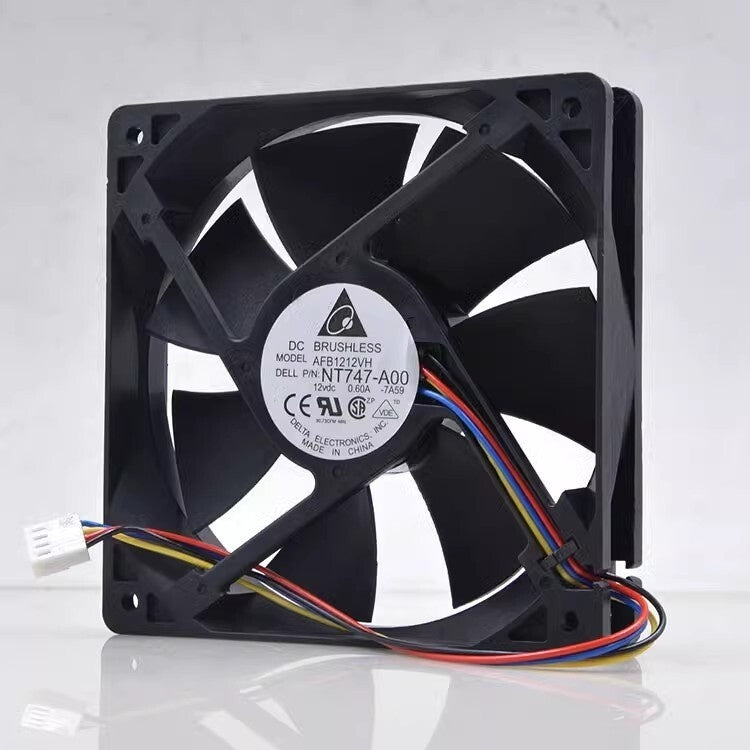

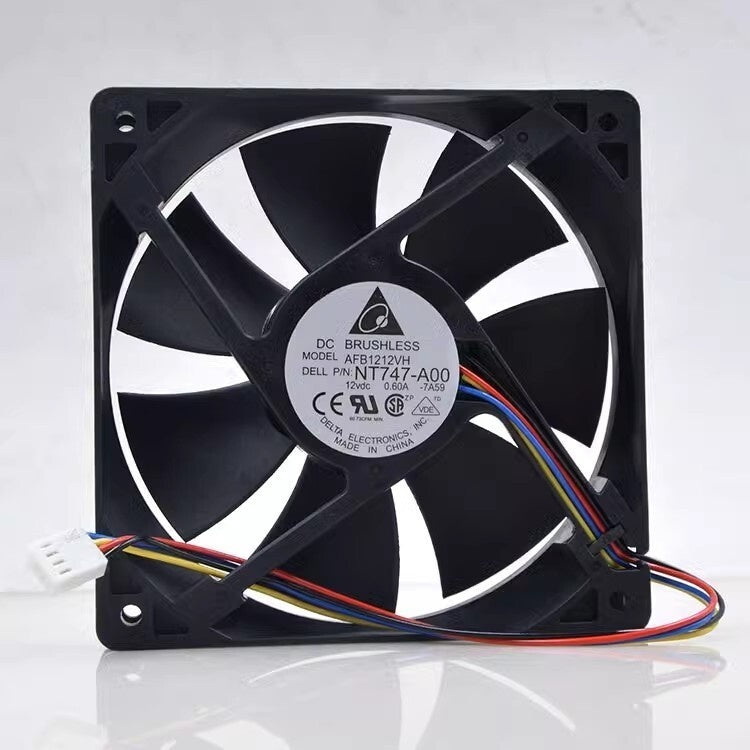

Product images for part identification
DELTA
Delta Electronics AFB1212VH DC Axial Fan 12VDC 120x120x25.4mm 103.75CFM
PRODUCT PRICE
USD
$12.30
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | AFB1212VH |
| Product Category | DC Axial Fan |
| Product Series | AFB Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Frame Dimensions | 120 x 120 x 25.4 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.0–13.8 VDC |
| Input Current | 0.40 A (maximum 0.60 A) |
| Input Power | 4.80 W (maximum 7.20 W) |
| Rated Speed | 3100 RPM (reference) |
| Maximum Free-Air Flow | 103.75 CFM (2.938 m³/min) |
| Minimum Specified Free-Air Flow | 93.37 CFM (2.644 m³/min) |
| Maximum Static Pressure | 0.371 inH₂O (9.43 mmH₂O) |
| Minimum Specified Maximum Static Pressure | 0.301 inH₂O (7.64 mmH₂O) |
| Acoustical Noise | 44.5 dB(A) average (47.5 dB(A) maximum) |
| Bearing System | Two Ball Bearings |
| Frame Material | Plastic, UL 94 V-0 |
| Impeller Material | Plastic, UL 94 V-0 |
| Lead Wire Configuration | 2 Lead Wires |
| Lead Wire Specification | UL1007-F AWG24 |
| Lead Wire Polarity | Red: Positive (+); Black: Negative (-) |
| Rotation Direction | Clockwise, viewed from nameplate side |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +75°C |
| Operating Humidity | 5–90% RH |
| Insulation Classification | UL Class A |
| Protection Function | Locked-Rotor Protection |
| Weight | 198 g |
| Manufacturer Reference Life | 70,000 hours at 40°C and 15–65% RH |
Key Features
120 x 120 x 25.4 mm Frame
The square 120 mm frame has a 25.4 mm depth. Verify mounting-hole alignment, enclosure clearance and the airflow direction when selecting a replacement cooling fan.
3100 RPM Fan Speed
The Delta manufacturer specification identifies 3100 RPM as the reference rotational speed for AFB1212VH under its stated operating conditions.
103.75 CFM Free-Air Flow
The manufacturer specifies 103.75 CFM maximum airflow at zero static pressure and 0.371 inH₂O maximum static pressure at zero airflow. Actual system airflow depends on installation resistance.
Dual Ball Bearing Assembly
AFB1212VH uses two ball bearings with UL 94 V-0 plastic frame and impeller components. Delta specifies an average acoustical noise level of 44.5 dB(A).
Two-Wire Power Connection
The manufacturer specifies UL1007-F AWG24 leads, with a red positive wire and a black negative wire. The fan also incorporates locked-rotor protection described in its product specification.
Applications
- Industrial control cabinet forced-air cooling
- Power supply enclosure ventilation
- Telecommunications equipment thermal management
- Industrial electronics enclosure air circulation
- Power conversion equipment cooling
- Server and computing system ventilation
- Electronic instrumentation cooling assemblies
- Replacement cooling fans in compatible 12 VDC equipment
Purchase Information
We support online purchase of the Delta Electronics AFB1212VH DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics AFB1212VH?
AFB1212VH is a Delta Electronics DC brushless axial cooling fan with a 120 x 120 x 25.4 mm frame, a 12 VDC rated supply and a two-ball-bearing system.
What is the rated voltage of AFB1212VH?
The manufacturer specifies a rated voltage of 12 VDC and an operating voltage range of 7.0–13.8 VDC.
What are the dimensions of AFB1212VH?
The fan measures 120 x 120 x 25.4 mm. Before replacement, compare the mounting-hole locations and installation clearance with the existing fan.
What input current does AFB1212VH require?
The Delta specification lists 0.40 A input current, with a maximum specified current of 0.60 A at the rated voltage.
What is the input power of AFB1212VH?
The manufacturer lists 4.80 W input power, with a maximum specified value of 7.20 W.
What is the rated rotational speed?
Delta lists 3100 RPM as the reference rotational speed. Actual rotational speed may vary with operating conditions.
What is the maximum airflow of AFB1212VH?
The manufacturer specifies 103.75 CFM, equivalent to 2.938 m³/min, at zero static pressure. The minimum specified free-air airflow is 93.37 CFM.
What is the maximum static pressure?
Delta specifies 0.371 inH₂O, equivalent to 9.43 mmH₂O, at zero airflow. This endpoint rating should not be interpreted as the pressure available at maximum airflow.
What noise level is specified?
The manufacturer lists an average acoustical noise level of 44.5 dB(A) and a maximum specified value of 47.5 dB(A), measured under its stated test conditions.
What type of bearing does AFB1212VH use?
The manufacturer specifies two ball bearings. The frame and impeller are made from UL 94 V-0 plastic.
How many wires does AFB1212VH have?
The manufacturer's AFB1212VH specification identifies two UL1007-F AWG24 lead wires: red for positive (+) and black for negative (-). The base model is not documented with a separate tachometer or PWM lead.
What should be checked before ordering Delta Electronics AFB1212VH?
Confirm the complete AFB1212VH model marking, 12 VDC supply, 0.40 A input current, 120 x 120 x 25.4 mm dimensions, mounting pattern, 103.75 CFM airflow requirement, two-wire connection and the fan's operating environment. Compare any additional suffix against the corresponding Delta specification before substitution.
