12 VDC Brushless Cooling
Delta Electronics AFB0912VH is a 12 VDC brushless axial fan rated at 0.40 A and 4.80 W. The published operating voltage range is 7.0–13.8 VDC.
DELTA

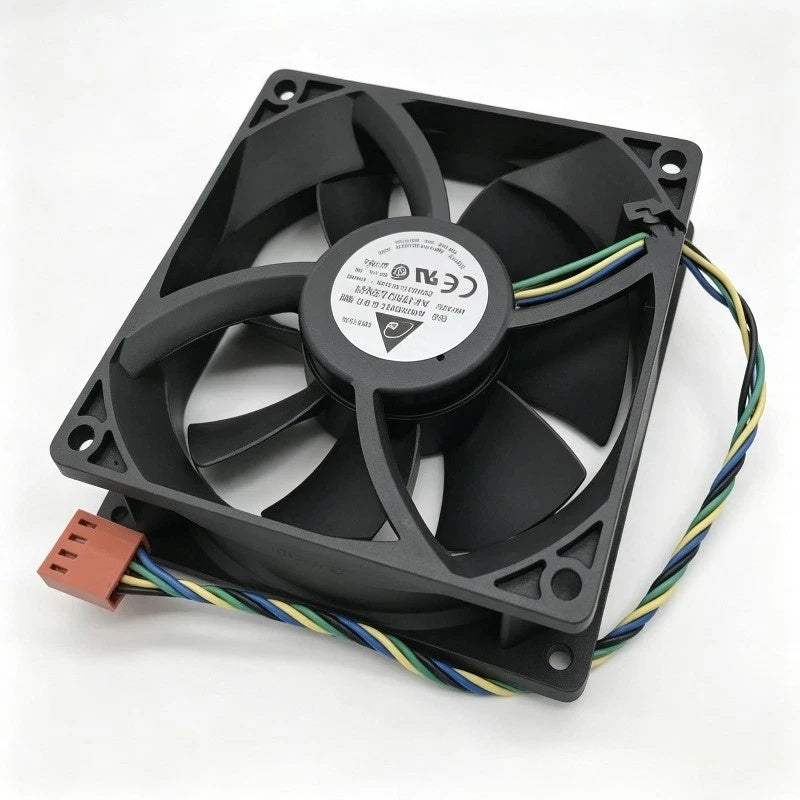

Delta Electronics AFB0912VH DC Axial Fan 12VDC 92x92x25.4mm 67.8CFM
$9.43
Available
PRODUCT GALLERY
01 / 9

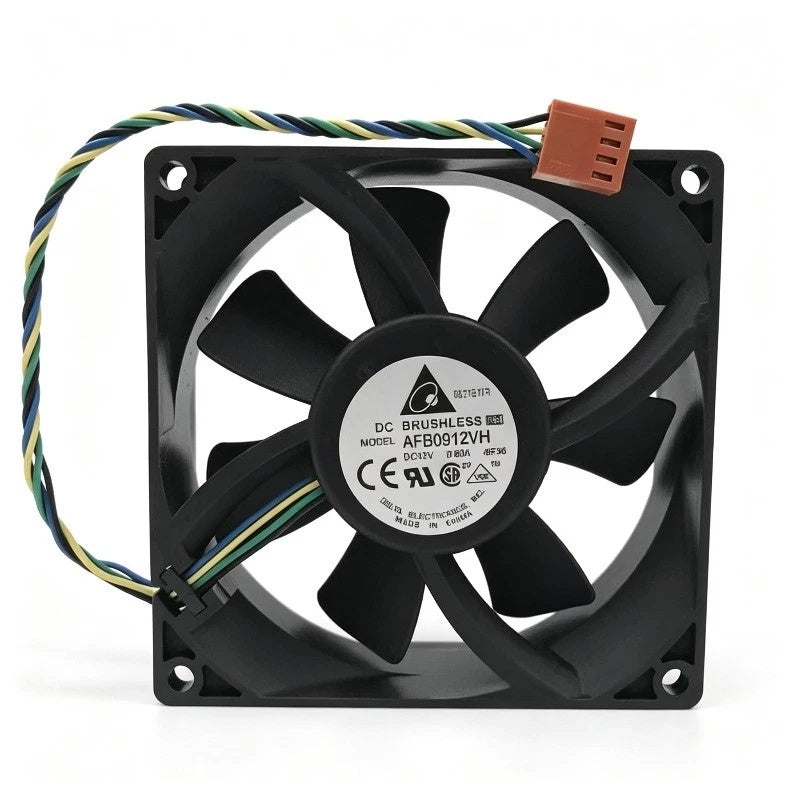

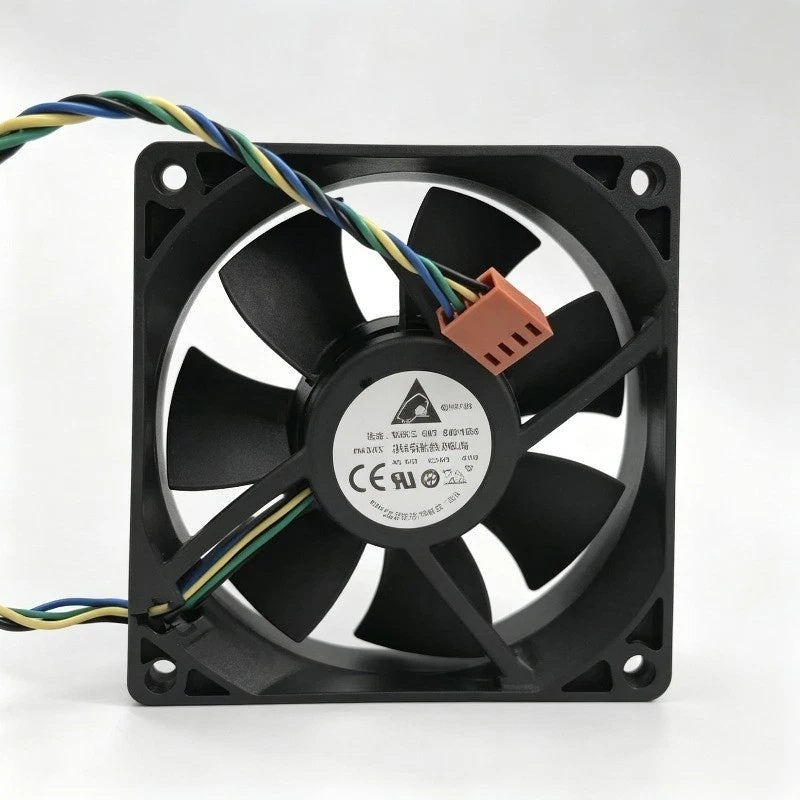

Product images for part identification
DELTA
Delta Electronics AFB0912VH DC Axial Fan 12VDC 92x92x25.4mm 67.8CFM
PRODUCT PRICE
USD
$9.43
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | AFB0912VH |
| Product Category | DC Axial Fan |
| Product Series | AFB Series |
| Fan Type | DC Brushless Tubeaxial Fan |
| Frame Dimensions | 92 x 92 x 25.4 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 7.0–13.8 VDC |
| Rated Current | 0.40 A |
| Input Power | 4.80 W |
| Rated Speed | 3800 RPM |
| Maximum Free-Air Flow | 67.80 CFM (approximately 1.92 m³/min) |
| Maximum Static Pressure | 0.302 inH₂O (7.67 mmH₂O; approximately 75.2 Pa) |
| Acoustical Noise | 45.0 dB(A) |
| Bearing System | Ball Bearings |
| Frame Material | Plastic |
| Impeller Material | Plastic |
| Electrical Termination | 2 Wire Leads |
| Lead Wire Polarity | Red: Positive (+); Black: Negative (-), according to AFB series wiring guidance |
| Protection Feature | Locked-Rotor Protection |
| Operating Temperature | -10°C to +70°C |
| Reference Weight | Approximately 99 g |
Key Features
92 x 92 x 25.4 mm Frame
The square housing measures 92 x 92 mm with a depth of 25.4 mm, providing a defined mechanical envelope for industrial electronics and equipment ventilation.
3800 RPM Rated Speed
The published rotational speed is 3800 RPM at rated voltage. The fan is intended to provide forced airflow through compatible electronic equipment cooling paths.
67.80 CFM Free-Air Flow
Maximum free-air flow is 67.80 CFM, while maximum static pressure is 0.302 inH₂O. These specifications describe separate operating points on the fan performance curve.
Ball Bearing Construction
The fan uses ball bearings with plastic frame and impeller components. Delta lists 45.0 dB(A) acoustical noise and a reference lifetime of 70,000 hours at 40°C.
Two-Wire Base Configuration
The unsuffixed AFB0912VH uses two DC power leads and includes locked-rotor protection. The separately designated -F00 and -R00 models provide additional monitoring connections.
Applications
- Industrial control cabinet forced-air ventilation
- Power supply and power electronics cooling
- PLC and industrial automation enclosure ventilation
- Server and industrial computing chassis airflow
- Telecommunications equipment thermal management
- Networking equipment cooling assemblies
- Electronic test and measurement instrument ventilation
- Maintenance of compatible 12 VDC 92 mm axial fan systems
Purchase Information
We support online purchase of the Delta Electronics AFB0912VH DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics AFB0912VH?
AFB0912VH is a Delta Electronics 12 VDC brushless axial cooling fan with a 92 x 92 x 25.4 mm frame, ball bearings and a two-wire power connection.
What is the rated supply voltage?
The rated voltage is 12 VDC. Delta component specifications list an operating voltage range of 7.0–13.8 VDC.
What are the dimensions of AFB0912VH?
The fan measures 92 x 92 x 25.4 mm. Check mounting-hole alignment, airflow direction and equipment clearance before installation.
What is the rated current?
The published current rating is 0.40 A at 12 VDC, as listed by Delta and major electronic component distributors.
What is the power consumption?
The published input power rating is 4.80 W under rated operating conditions.
What is the rotational speed?
AFB0912VH has a published rated speed of 3800 RPM. Separate model revisions may have different performance specifications.
What is the maximum airflow?
The maximum free-air flow is 67.80 CFM, approximately 1.92 m³/min. Actual installed airflow depends on enclosure airflow resistance.
What is the maximum static pressure?
The maximum static pressure is 0.302 inH₂O, approximately 7.67 mmH₂O or 75.2 Pa. Maximum pressure and maximum free-air flow occur at different operating points.
What is the acoustical noise rating?
Delta and component distributors list an acoustical noise rating of 45.0 dB(A). Actual equipment noise can vary with mounting and airflow conditions.
What bearing type does AFB0912VH use?
The fan uses ball bearings. Delta lists a reference lifetime of 70,000 hours at 40°C; this is a test-based reference rating rather than a guaranteed operating duration.
Does AFB0912VH include tachometer feedback?
The unsuffixed AFB0912VH has two wire leads and no separate tachometer signal lead. AFB0912VH-F00 is a three-wire speed-feedback version, while AFB0912VH-R00 provides a locked-rotor signal. These variants require their matching electrical interfaces.
What should be checked before ordering Delta AFB0912VH?
Confirm the full model number and suffix, 12 VDC supply, 0.40 A current rating, 92 x 92 x 25.4 mm dimensions, 3800 RPM rated speed, 67.80 CFM airflow requirement, mounting pattern, two-wire connection and the equipment operating environment.
