12 VDC Brushless Cooling
Delta AFB0612EH is a 12 VDC axial cooling fan family. Documented -A and -AB versions are rated at 0.38 A and 4.56 W, with maximum specification values of 0.48 A and 5.76 W.
DELTA
Delta Electronics AFB0612EH DC Axial Fan 12VDC 60x60x25.4mm 38.35CFM
$7.96
Available
PRODUCT GALLERY
01 / 9

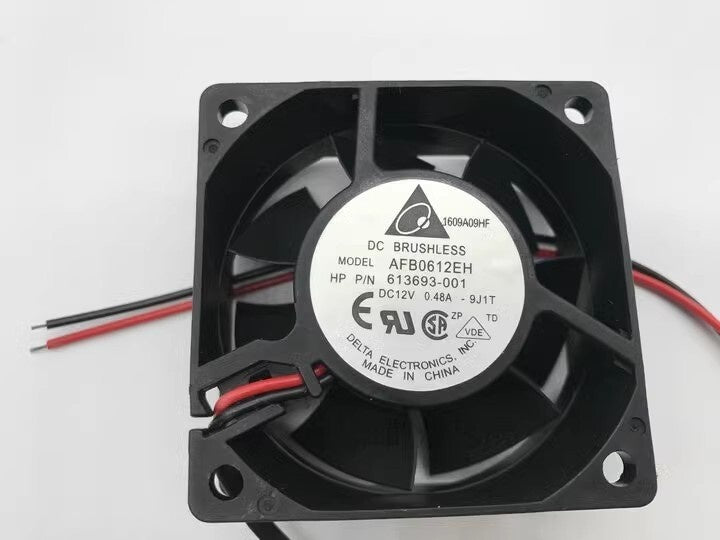

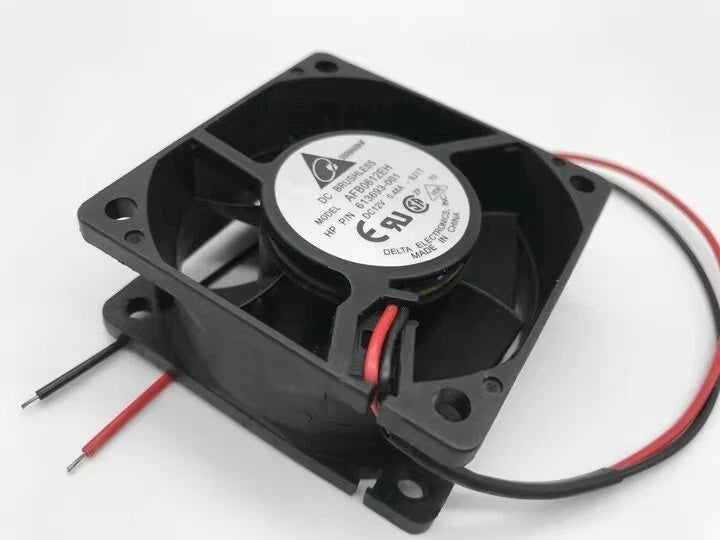

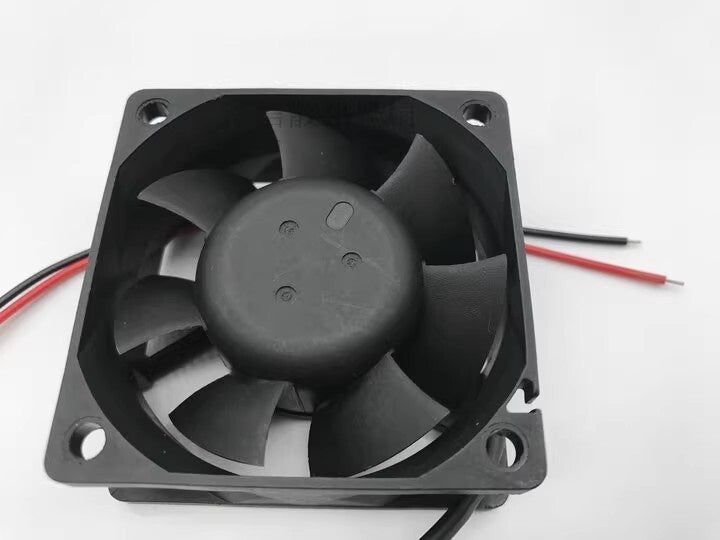

Product images for part identification
DELTA
Delta Electronics AFB0612EH DC Axial Fan 12VDC 60x60x25.4mm 38.35CFM
PRODUCT PRICE
USD
$7.96
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | AFB0612EH |
| Product Category | DC Axial Fan |
| Product Series | AFB Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Nominal Voltage | 12 VDC (documented -A, -ABF00 and -ABR00 variants) |
| Frame Dimensions | 60 x 60 x 25.4 mm (documented variants) |
| Motor Design | Two-Phase, Four-Pole Brushless Motor (-A manufacturer specification) |
| Input Current | 0.38 A; maximum 0.48 A (-A manufacturer specification) |
| Input Power | 4.56 W; maximum 5.76 W (-A manufacturer specification) |
| Reference Speed | 6800 RPM (documented variants) |
| Maximum Free-Air Flow | 38.35 CFM (1.086 m³/min; documented variants) |
| Minimum Specified Free-Air Flow | 34.50 CFM (-A manufacturer specification) |
| Maximum Static Pressure | 0.544 inH₂O (13.81 mmH₂O; documented variants) |
| Minimum Specified Maximum Static Pressure | 0.441 inH₂O (11.18 mmH₂O; -A manufacturer specification) |
| Acoustical Noise | 46.5 dB(A) average; 50.5 dB(A) maximum (-A manufacturer specification) |
| Bearing System | Two Ball Bearings (-A manufacturer specification) |
| Frame Material | Plastic, UL 94 V-0 (-A manufacturer specification) |
| Impeller Material | Plastic, UL 94 V-0 (-A manufacturer specification) |
| Operating Voltage Range | 4.0–13.8 VDC (-A manufacturer PDF; distributor summaries differ) |
| Starting Voltage | ≤4.0 VDC at 25°C (-A manufacturer specification) |
| Standard Lead Configuration | 2 power leads for AFB0612EH-A and AFB0612EH-AB |
| Speed-Sensing Lead Configuration | 3 leads, speed sensor (AFB0612EH-ABF00 / -AF00) |
| Locked-Rotor Signal Configuration | 3 leads, locked-rotor sensor (AFB0612EH-ABR00 / -AR00) |
| Lead Wire Specification | UL1007-F AWG24; red positive and black negative (-A drawing) |
| Operating Temperature | -10°C to +70°C (documented variants) |
| Storage Temperature | -40°C to +75°C (-A manufacturer specification) |
| Operating Humidity | 5–90% RH (-A manufacturer specification) |
| Weight | 80 g (documented variants) |
Key Features
60 x 60 x 25.4 mm Frame
Documented -A, -ABF00 and -ABR00 configurations use the same 60 mm square footprint and 25.4 mm frame depth. Compare mounting positions and enclosure clearance against the installed fan.
6800 RPM Reference Speed
Delta model-specific specifications identify 6800 RPM as the reference rotational speed for the documented AFB0612EH variants at nominal operating conditions.
38.35 CFM Free-Air Flow
The manufacturer lists 38.35 CFM free-air flow and 0.544 inH₂O maximum static pressure. These values describe separate endpoints of the airflow-performance curve.
Two Ball Bearings
The -A manufacturer specification confirms two ball bearings, with frame and impeller materials rated UL 94 V-0. Published average acoustical noise is 46.5 dB(A).
Suffix-Specific Electrical Leads
The -A and -AB versions have two power leads; -ABF00 and -AF00 versions add speed feedback; -ABR00 and -AR00 versions add locked-rotor sensing. Choose the complete suffix to match the equipment interface.
Applications
- Industrial control enclosure forced-air cooling
- Compact power supply ventilation
- Telecommunications equipment thermal management
- Server and network hardware cooling
- Industrial computing enclosure airflow
- Electronic instrumentation thermal management
- Power electronics assemblies requiring axial ventilation
- Maintenance of compatible 12 VDC 60 mm cooling fan systems
Purchase Information
We support online purchase of the Delta Electronics AFB0612EH DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics AFB0612EH?
AFB0612EH is a Delta Electronics brushless DC axial cooling fan designation in the AFB family. Documented versions use 12 VDC power, a 60 x 60 x 25.4 mm frame and ball bearings.
What is the rated supply voltage?
Documented AFB0612EH-A, -ABF00 and -ABR00 variants are specified at 12 VDC. Match the full suffix and fan label with the application power supply.
What are the fan dimensions?
The documented variants measure 60 x 60 x 25.4 mm. Compare the housing depth, mounting holes and wire exit position with the existing fan.
What input current and power are specified?
Delta lists 0.38 A input current and 4.56 W input power for AFB0612EH-A, with maximum values of 0.48 A and 5.76 W. Distributor listings report the same nominal values for the identified related variants.
What operating voltage range applies to AFB0612EH?
The Delta AFB0612EH-A approval specification lists 4.0–13.8 VDC; some product catalog summaries show a different range. The specific revision datasheet and unit marking should control the application design.
What is the rated rotational speed?
The documented -A, -ABF00 and -ABR00 variants are listed at a reference speed of 6800 RPM. Check the full suffix rather than assuming every custom configuration is identical.
What is the maximum free-air flow?
The manufacturer specifies 38.35 CFM (1.086 m³/min) at zero static pressure for documented variants. Actual installed airflow decreases as system resistance increases.
What is the maximum static pressure?
Delta specifies 0.544 inH₂O (13.81 mmH₂O) at zero airflow. This pressure does not occur simultaneously with maximum free-air flow.
What is the acoustical noise level?
The AFB0612EH-A manufacturer specification lists 46.5 dB(A) average and 50.5 dB(A) maximum, measured in free air under documented test conditions.
What bearing system is used?
The AFB0612EH-A manufacturer datasheet specifies two ball bearings and UL 94 V-0 plastic frame and impeller materials. Related documented variants also list ball bearings.
Does AFB0612EH have two or three wires?
Wiring depends on the exact suffix. AFB0612EH-A and -AB have two power leads; -AF00 and -ABF00 have three leads with speed feedback; -AR00 and -ABR00 have three leads with locked-rotor sensing.
What should be checked before ordering Delta AFB0612EH?
Confirm the complete suffix, 12 VDC supply, 0.38 A documented nominal current, 60 x 60 x 25.4 mm dimensions, mounting pattern, 6800 RPM reference speed, 38.35 CFM airflow requirement, bearing construction, wire count, connector and any sensor function.
