24 VDC Brushless Cooling
Delta AFB0524HHB uses a two-phase, four-pole brushless motor rated for 24 VDC operation. The manufacturer specifies 0.08 A input current and 1.92 W power, with maximum specified values of 0.12 A and 2.88 W.
DELTA
Delta Electronics AFB0524HHB DC Axial Fan 24VDC 50x50x15mm 16.24CFM
$8.28
Available
PRODUCT GALLERY
01 / 8

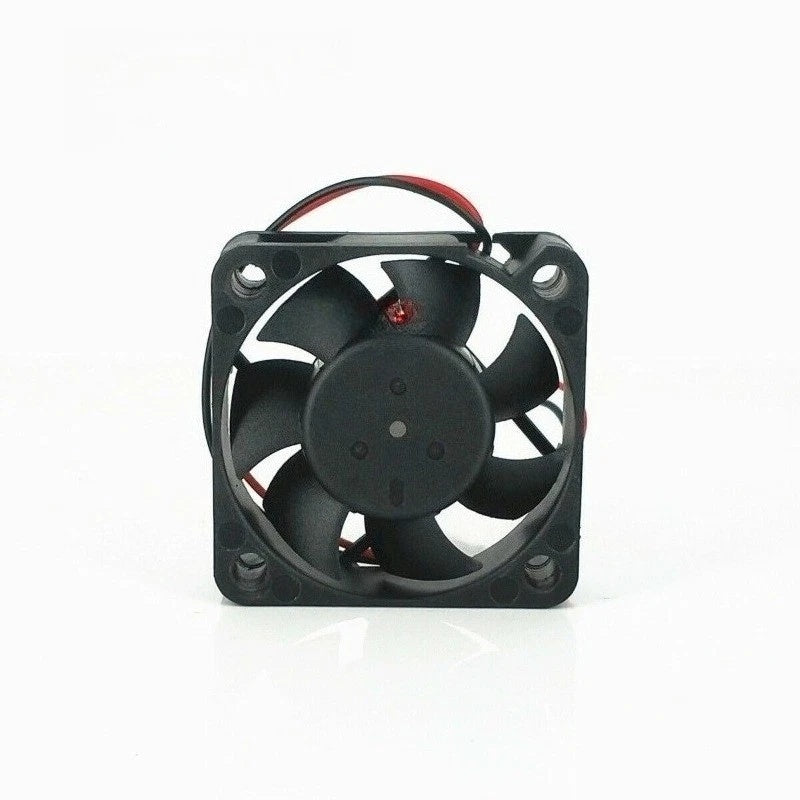

Product images for part identification
DELTA

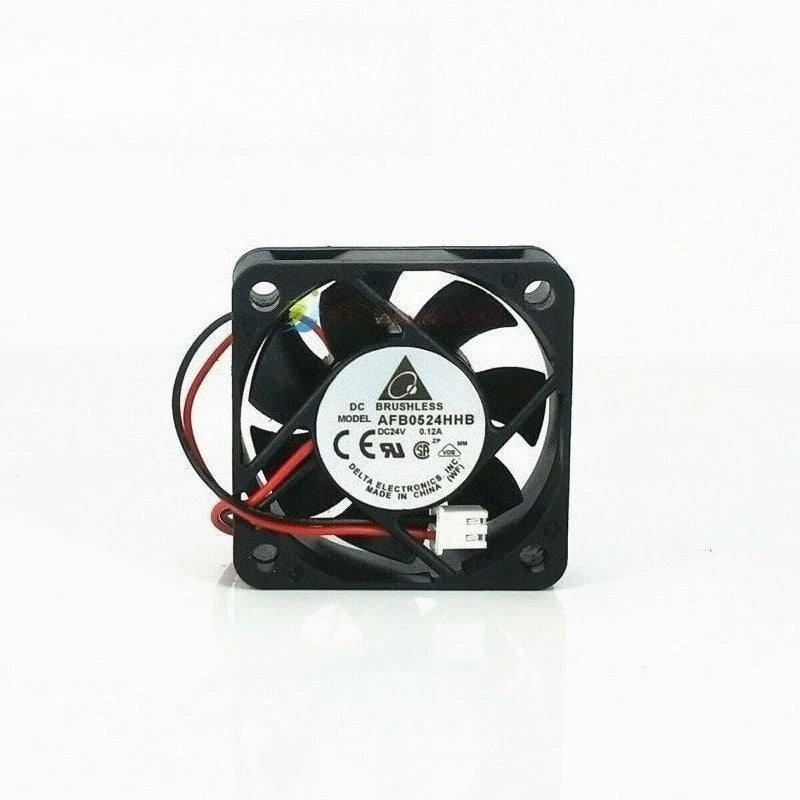

Delta Electronics AFB0524HHB DC Axial Fan 24VDC 50x50x15mm 16.24CFM
PRODUCT PRICE
USD
$8.28
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Delta Electronics |
| Model Number | AFB0524HHB |
| Product Category | DC Axial Fan |
| Product Series | AFB 50 x 50 x 15 mm Series |
| Fan Type | DC Brushless Axial Flow Fan |
| Motor Configuration | Two-Phase, Four-Pole Brushless Motor |
| Frame Dimensions | 50 x 50 x 15 mm |
| Rated Voltage | 24 VDC |
| Operating Voltage Range | 14.0–27.6 VDC |
| Input Current | 0.08 A (maximum 0.12 A) |
| Input Power | 1.92 W (maximum 2.88 W) |
| Reference Speed | 6400 RPM |
| Maximum Free-Air Flow | 16.24 CFM (0.460 m³/min) |
| Minimum Specified Free-Air Flow | 14.48 CFM (0.410 m³/min) |
| Maximum Static Pressure | 0.315 inH₂O (8.00 mmH₂O) |
| Minimum Specified Maximum Static Pressure | 0.253 inH₂O (6.44 mmH₂O) |
| Acoustical Noise | 36.0 dB(A) average (39.0 dB(A) maximum) |
| Bearing System | Ball Bearings |
| Frame Material | Plastic |
| Impeller Material | Plastic |
| Electrical Termination | 2 Lead Wires (base model) |
| Lead Wire Specification | UL1007-F AWG24 |
| Lead Wire Polarity | Red: Positive (+); Black: Negative (-) |
| Lead Wire Length | 330 ±10 mm (manufacturer drawing) |
| Mounting Hole Spacing | 40.0 x 40.0 mm |
| Mounting Hole Diameter | 4 x Ø4.3 ±0.3 mm |
| Rotation Direction | Clockwise, viewed from nameplate side |
| External Cover | Open Type |
| Operating Temperature | -10°C to +70°C |
| Weight | Approximately 32 g |
Key Features
50 x 50 x 15 mm Housing
The compact square frame measures 50 x 50 x 15 mm. The manufacturer drawing shows 40 mm mounting-hole spacing and four mounting holes with a nominal diameter of 4.3 mm.
6400 RPM Reference Speed
The Delta exact-model specification identifies 6400 RPM reference speed at rated supply voltage, measured under the published operating conditions.
16.24 CFM Free-Air Flow
Maximum free-air flow is specified at 16.24 CFM and maximum static pressure at 0.315 inH₂O. These describe different endpoints on the pressure-airflow performance curve.
Ball Bearing Construction
The manufacturer and component distributors identify ball bearings and plastic frame and impeller materials. The published average acoustical noise is 36.0 dB(A).
Two-Wire Power Interface
The base AFB0524HHB has red positive and black negative power leads. Separate -F00 and -R00 variants provide different monitoring functions and must be selected using their complete part numbers.
Applications
- Industrial control cabinet ventilation
- Compact power supply forced-air cooling
- Industrial electronic equipment thermal management
- Telecommunications device enclosure cooling
- Embedded controller and automation module ventilation
- Electronic test and measurement instrument cooling
- Networking and computing hardware airflow
- Maintenance of compatible 24 VDC 50 mm axial fan assemblies
Purchase Information
We support online purchase of the Delta Electronics AFB0524HHB DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Delta Electronics AFB0524HHB?
AFB0524HHB is a Delta Electronics 24 VDC brushless axial cooling fan with a 50 x 50 x 15 mm frame, ball bearings and two power leads.
What voltage does AFB0524HHB require?
The exact-model Delta specification identifies 24 VDC rated voltage and an operating range of 14.0–27.6 VDC.
What are the physical dimensions of AFB0524HHB?
The manufacturer drawing specifies a 50 x 50 x 15 mm frame, 40 mm mounting-hole spacing and four holes measuring approximately 4.3 mm in diameter.
What is the input current?
Delta lists 0.08 A nominal input current and a maximum specified input current of 0.12 A.
What is the input power of AFB0524HHB?
The manufacturer specifies 1.92 W input power, with a maximum value of 2.88 W at the documented operating conditions.
What is the rated rotational speed?
The Delta specification identifies 6400 RPM reference speed at rated voltage.
What is the maximum airflow?
AFB0524HHB is specified at 16.24 CFM (0.460 m³/min) maximum free-air flow. The minimum specified free-air-flow value is 14.48 CFM.
What is the maximum static pressure?
Delta specifies 0.315 inH₂O (8.00 mmH₂O) maximum static pressure at zero airflow, with a minimum specified maximum-pressure value of 0.253 inH₂O. Maximum airflow and pressure do not occur simultaneously.
What is the acoustical noise rating?
The manufacturer lists 36.0 dB(A) average and 39.0 dB(A) maximum under its defined free-air acoustic test conditions.
What bearing type does AFB0524HHB use?
Delta product information and major component distributors specify ball bearings. The fan uses plastic frame and impeller components and has an approximate weight of 32 g.
Does AFB0524HHB have two wires or a speed-feedback output?
The base AFB0524HHB is a two-wire fan, with red positive and black negative power leads. AFB0524HHB-F00 is a separately designated three-wire tachometer version, while -R00 provides a locked-rotor signal.
What should be checked before ordering Delta AFB0524HHB?
Confirm the complete part number and any optional suffix, 24 VDC supply, 0.08 A rated current and 0.12 A maximum, 50 x 50 x 15 mm frame, 40 mm mounting-hole spacing, 6400 RPM speed, 16.24 CFM airflow requirement, two-wire polarity and connector termination.
