24 VDC Electrical Supply
The AD1224HB-F51 operates at a nominal 24 VDC with a specified operating range of 21.6-26.4 VDC and a normal start-up voltage of 17 VDC.
ADDA

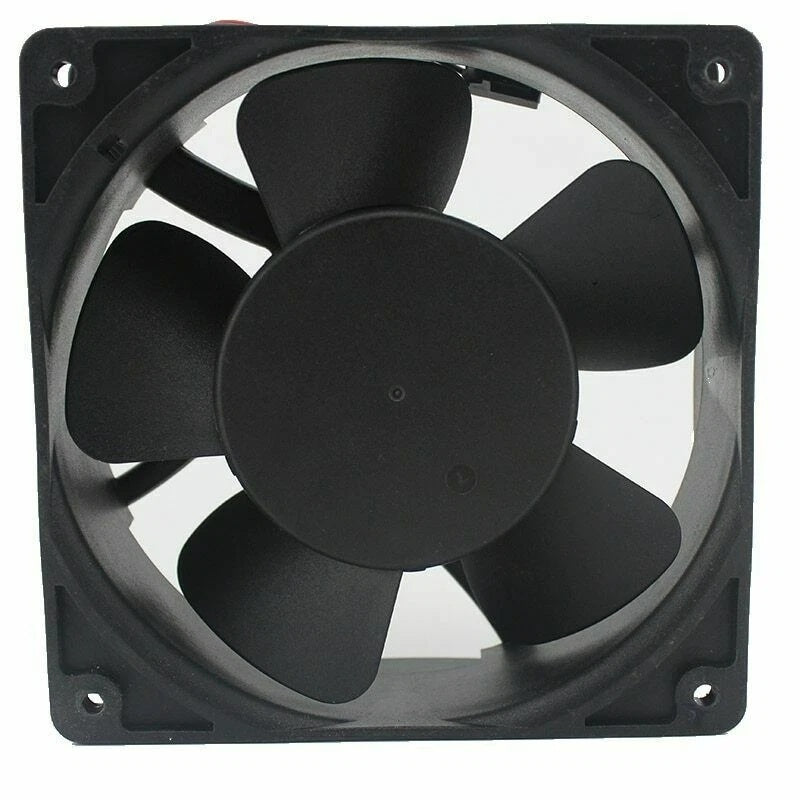

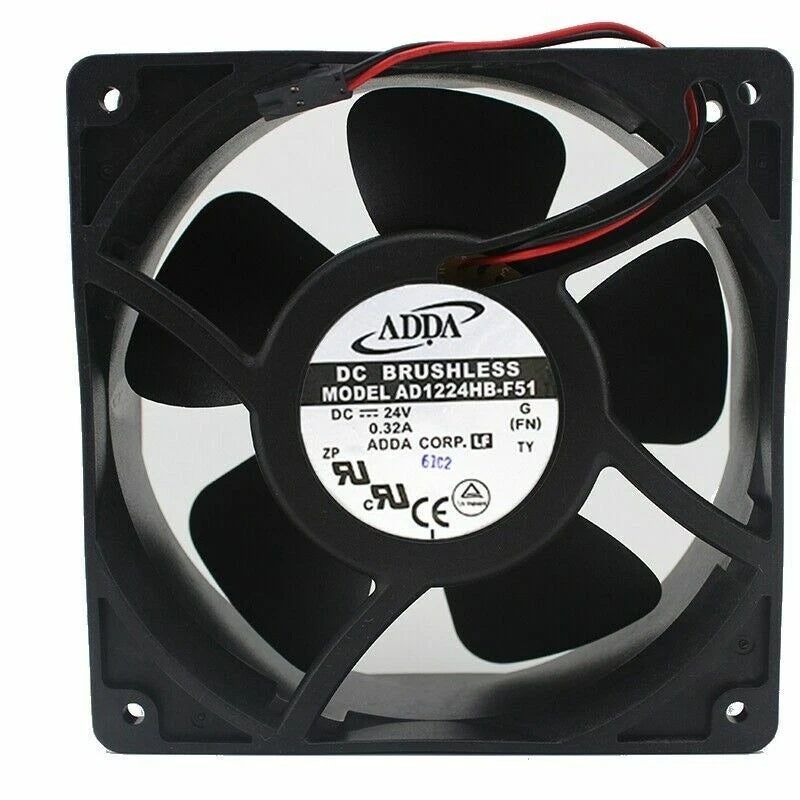

ADDA AD1224HB-F51 DC Axial Fan 24VDC 120x120x38mm 105.46CFM
$22.23
Available
PRODUCT GALLERY
01 / 2
Product images for part identification
ADDA
ADDA AD1224HB-F51 DC Axial Fan 24VDC 120x120x38mm 105.46CFM
PRODUCT PRICE
USD
$22.23
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD1224HB-F51 |
| Product Category | DC Axial Fan |
| Product Series | AD12038 |
| Fan Type | DC Brushless Axial Cooling Fan |
| Frame Dimensions | 120 x 120 x 38 mm |
| Rated Voltage | 24 VDC |
| Operating Voltage Range | 21.6-26.4 VDC |
| Normal Start-Up Voltage | 17 VDC |
| Rated Current | 0.32 A |
| Actual Current | 0.26 A |
| Rated Power | 7.68 W |
| Actual Power | 6.24 W |
| Rated Speed | 2800 RPM ±10% |
| Free-Air Flow | 105.461 CFM (2.984 m³/min) |
| Minimum Specified Airflow | 94.914 CFM |
| Static Air Pressure | 0.265 inH2O (6.731 mmH2O) |
| Noise Level | 46.7 dB(A), maximum 50.7 dB(A) |
| Bearing Type | Dual Ball Bearing |
| Frame Material | Aluminum Alloy |
| Impeller Material | Glass-Filled PBT, UL 94 V-0 |
| Motor Protection | Integrated Circuit Protection |
| Reverse Polarity Protection | Yes |
| Electrical Connection | 2 Lead Wires, UL1007 AWG24 |
| Lead Wire Length | 280 ±10 mm |
| Wire Identification | Red: Positive; Black: Negative |
| Mounting Hole Spacing | 104.8 x 104.8 mm (drawing) |
| Mounting Holes | 8 holes, 4.5 mm diameter |
| Rotation Direction | Counterclockwise Viewed from Impeller Side |
| Operating Temperature | -10°C to +70°C |
| Life Expectancy (Specified Test Conditions) | 70,000 hours at 40°C and 65% RH |
| Net Weight | 297 g |
| Listed Safety Approvals | UL, cUL, CSA, TÜV, CE |
Key Features
120 x 120 x 38 mm Frame
An aluminum-alloy frame measures 120 x 120 x 38 mm. The manufacturer drawing identifies 104.8 mm mounting-hole spacing and 4.5 mm holes.
2800 RPM Rated Speed
The complete-model ADDA datasheet specifies a rated speed of 2800 RPM ±10% under free-air conditions at the nominal voltage.
105.461 CFM Airflow
The manufacturer documents 105.461 CFM free-air flow, equivalent to 2.984 m³/min, with a static pressure rating of 0.265 inH2O.
Dual Ball Bearing Assembly
Uses two ball bearings, an aluminum-alloy frame and an impeller made from glass-filled PBT with UL 94 V-0 flammability classification.
Motor and Polarity Protection
Includes integrated motor protection and reverse-polarity protection. The two-wire connection uses red positive and black negative UL1007 AWG24 leads.
Applications
- Industrial automation cabinet ventilation
- Power supply equipment cooling
- Industrial electronics enclosure airflow
- Communication equipment ventilation
- Electrical control panel cooling
- Power electronics thermal management
- Machinery control equipment air circulation
- Replacement cooling fans in compatible 24 VDC equipment
Purchase Information
We support online purchase of the ADDA AD1224HB-F51 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD1224HB-F51?
ADDA AD1224HB-F51 is a 24 VDC brushless axial cooling fan in the AD12038 series with a 120 x 120 x 38 mm frame, dual ball bearings and an aluminum-alloy housing.
What is the rated voltage of AD1224HB-F51?
The manufacturer specifies a 24 VDC nominal supply with an operating voltage range of 21.6-26.4 VDC.
What are the dimensions of AD1224HB-F51?
The fan measures 120 x 120 x 38 mm. The complete-model drawing identifies approximately 104.8 mm mounting-hole spacing and 4.5 mm diameter mounting holes.
What are the rated and actual current values?
The September 2013 ADDA complete-model datasheet specifies 0.32 A rated current and 0.26 A actual current. Older series tables may present 0.26 A without distinguishing these values.
What are the rated and actual power values?
The same manufacturer datasheet specifies 7.68 W rated power and 6.24 W actual power for the documented configuration.
What is the rated speed of AD1224HB-F51?
The ADDA manufacturer lists 2800 RPM ±10% at the rated voltage in free air.
What is the airflow of AD1224HB-F51?
The complete-model datasheet lists 105.461 CFM (2.984 m³/min) free-air flow, with a specified minimum of 94.914 CFM. Actual airflow depends on installed system resistance.
What is the static pressure rating?
The manufacturer identifies 0.265 inH2O, equivalent to 6.731 mmH2O, under its specified test conditions.
What bearing type does AD1224HB-F51 use?
The manufacturer documentation marks the two-ball-bearing configuration for this model.
What is the documented noise level?
The manufacturer specifies 46.7 dB(A), with a maximum of 50.7 dB(A), measured under its stated noise test conditions.
How is AD1224HB-F51 connected?
The manufacturer drawing shows two UL1007 AWG24 power leads, 280 ±10 mm long. Red is positive and black is negative. The datasheet also identifies reverse-polarity protection.
What should be checked before ordering ADDA AD1224HB-F51?
Verify the complete model number, 24 VDC supply, current and power ratings, 120 x 120 x 38 mm dimensions, mounting pattern, cooling demand, two-wire connections and any revision-specific differences against the installed equipment.
Need help confirming a model?
Send us your part number and technical requirements.
