24 VDC Electrical Supply
The AD0924HB-A71GL uses a nominal 24 VDC supply with a published rated current of 0.15 A and power rating of 3.60 W.
ADDA

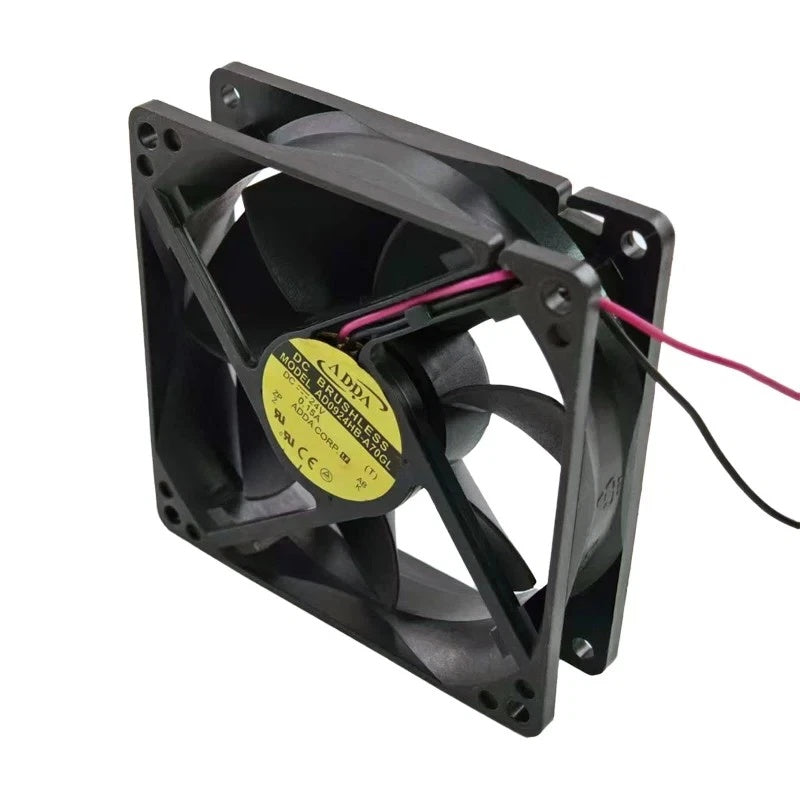

ADDA AD0924HB-A71GL DC Axial Fan 24VDC 92x92x25mm 49.69CFM
$14.54
Available
PRODUCT GALLERY
01 / 4

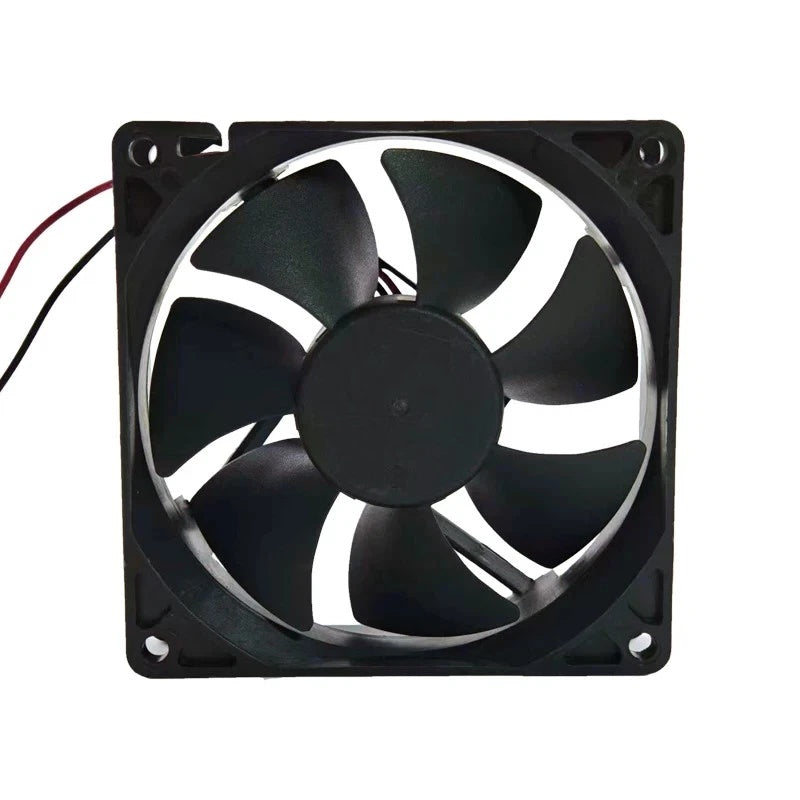

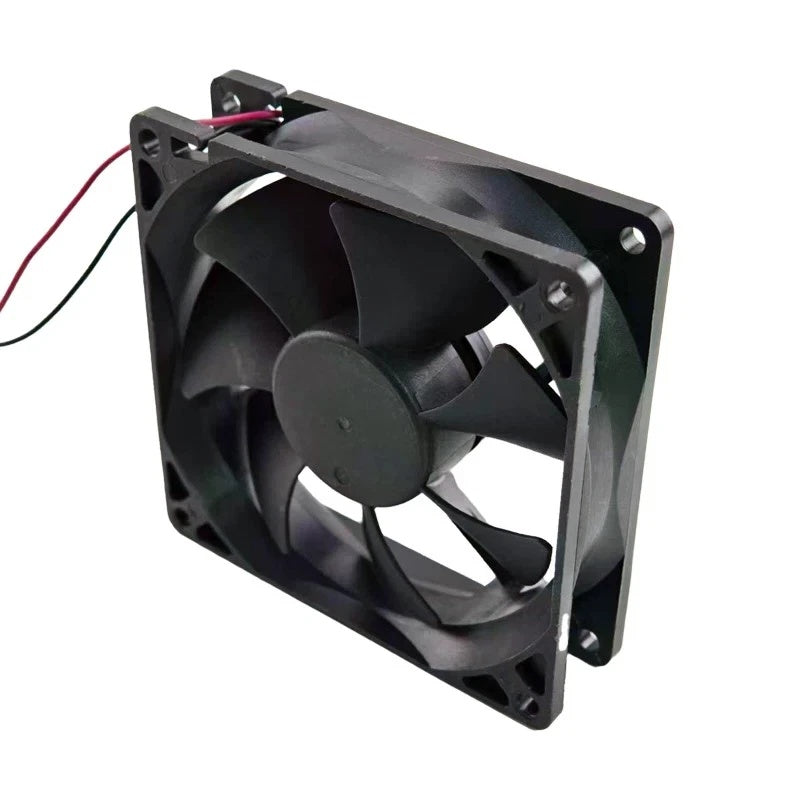

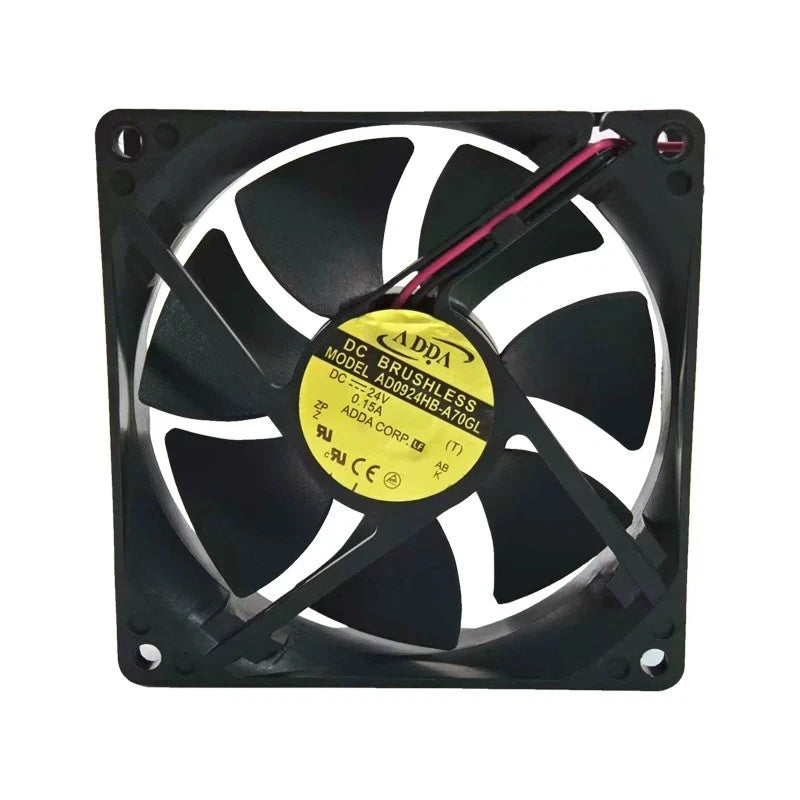

Product images for part identification
ADDA
ADDA AD0924HB-A71GL DC Axial Fan 24VDC 92x92x25mm 49.69CFM
PRODUCT PRICE
USD
$14.54
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0924HB-A71GL |
| Product Category | DC Axial Fan |
| Product Series | AD 92x25 |
| Fan Type | DC Brushless Axial Cooling Fan |
| Nominal Frame Dimensions | 92 x 92 x 25 mm |
| Rated Voltage | 24 VDC |
| Rated Current | 0.15 A |
| Rated Power | 3.60 W |
| Rated Speed | 2900 RPM |
| Maximum Air Flow | 49.69 CFM (1.400 m³/min) |
| Maximum Static Pressure | 0.116 inAq (2.89 mmAq) |
| Noise Level | 35.0 dB(A) |
| Bearing Type | Ball Bearing |
| Frame Material | Plastic, UL 94 V-0 |
| Impeller Material | Plastic, UL 94 V-0 |
| Lead Wire Specification | UL1007 AWG24 |
| Mounting Hole Spacing | 82.5 x 82.5 mm (series drawing) |
| Operating Temperature | -10°C to +70°C (series specification) |
| Fan Weight | 101 g |
Key Features
92 x 92 x 25 mm Frame
The ADDA 92x25 series uses a nominal 92 mm square frame with a 25 mm depth and 82.5 mm mounting-hole spacing.
2900 RPM Rated Speed
The manufacturer series datasheet specifies a rated rotational speed of 2900 RPM for the complete AD0924HB-A71GL model.
49.69 CFM Free-Air Flow
The model-specific ADDA 92x25 datasheet lists 49.69 CFM maximum airflow and 0.116 inAq maximum static pressure.
Ball Bearing Construction
The HB model uses a ball bearing system, with plastic frame and impeller materials identified as UL 94 V-0 in the series document.
35.0 dB(A) Noise Rating
The ADDA datasheet lists 35.0 dB(A) under its stated noise measurement conditions. Electrical connection details should be checked on the supplied fan.
Applications
- Industrial control cabinet ventilation
- Power supply assembly cooling
- Communication equipment thermal management
- Electronic equipment enclosure airflow
- Automation control system ventilation
- Electrical panel forced-air cooling
- Industrial instrumentation cooling
- Maintenance of compatible 24 VDC cooling fans
Purchase Information
We support online purchase of the ADDA AD0924HB-A71GL DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0924HB-A71GL?
ADDA AD0924HB-A71GL is a 24 VDC brushless axial cooling fan in the ADDA 92x25 series, with a 92 x 92 x 25 mm frame and ball bearing construction.
What is the rated voltage of AD0924HB-A71GL?
The manufacturer specifies a nominal rated voltage of 24 VDC.
What is the rated current of AD0924HB-A71GL?
The complete-model ADDA datasheet lists a rated current of 0.15 A.
What is the rated power consumption?
The published ADDA series specification identifies a rated power of 3.60 W.
What are the dimensions of AD0924HB-A71GL?
The nominal frame size is 92 x 92 x 25 mm. The series mechanical drawing shows approximately 82.5 mm mounting-hole spacing; verify fit against the equipment.
What is the rated fan speed?
The manufacturer lists 2900 RPM for AD0924HB-A71GL.
What is the maximum airflow of AD0924HB-A71GL?
The exact-model ADDA 92x25 datasheet lists 49.69 CFM (1.400 m³/min). Some reseller listings use 52.5 CFM, which is also published for a related A70GL variant; confirm the revision if this difference matters.
What is the maximum static pressure?
The exact-model manufacturer series table specifies 0.116 inAq, equivalent to 2.89 mmAq.
What bearing type does AD0924HB-A71GL use?
The model is identified with ball bearing construction. Confirm the complete suffix when comparing it with other AD0924 variants.
What is the specified noise level?
The manufacturer series specification lists 35.0 dB(A) under its published test conditions.
What is the electrical lead specification?
The ADDA 92x25 series document identifies UL1007 AWG24 lead wire. Check the number of wires, termination and pin assignment on the particular fan before installation.
What should be checked before ordering ADDA AD0924HB-A71GL?
Verify the complete model number and any added suffix, 24 VDC supply, 0.15 A current rating, 92 x 92 x 25 mm size, mounting pattern, airflow requirements, ball bearing type and electrical connection with the existing equipment.
