12 VDC Operation
Operates from a nominal 12 VDC supply with a documented operating voltage range of 11.4-12.6 VDC and a rated current of 0.50 A.
ADDA

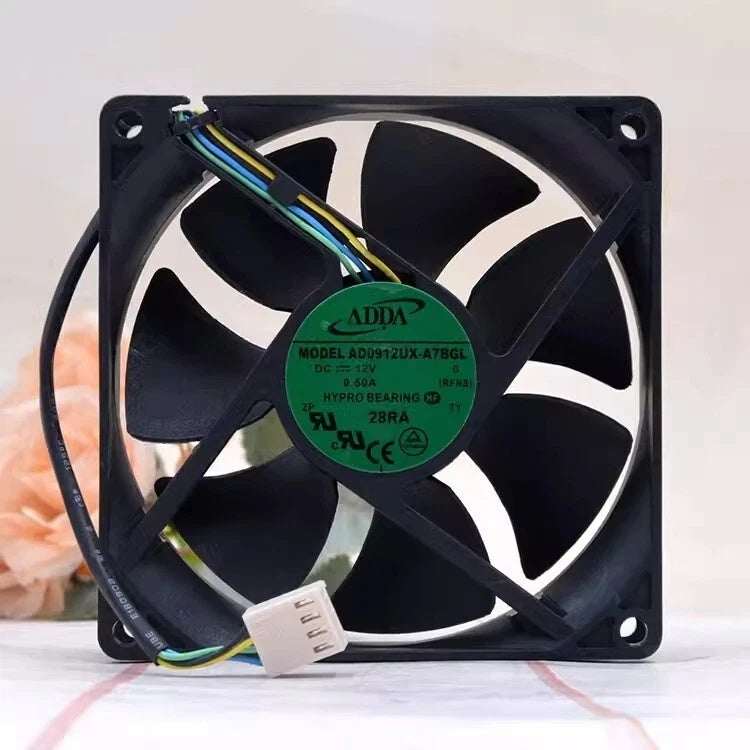

ADDA AD0912UX-A7BGL DC Axial Fan 12VDC 92x92x25mm 73CFM
$13.05
Available
PRODUCT GALLERY
01 / 1
Product images for part identification
ADDA
ADDA AD0912UX-A7BGL DC Axial Fan 12VDC 92x92x25mm 73CFM
PRODUCT PRICE
USD
$13.05
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0912UX-A7BGL |
| Product Category | DC Axial Fan |
| Fan Type | DC Brushless Axial Cooling Fan |
| Dimensions | 92 x 92 x 25 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 11.4-12.6 VDC |
| Rated Current | 0.50 A |
| Measured Current | 0.40 A |
| Rated Power | 6.00 W |
| Measured Power | 4.80 W |
| Rated Speed | 3800 RPM ±10% |
| Air Flow | 73 CFM (2.065 m³/min) |
| Static Pressure | 0.250 inH2O (6.350 mmH2O) |
| Noise Level | 46 dB(A) |
| Bearing Type | Hypro Bearing |
| PWM Duty Cycle Range | 30%-100% |
| Speed Control | PWM Input |
| Speed Monitoring | FG Signal Output |
| Electrical Connection | 4 Lead Wires, AWG 26 |
| Lead Wire Length | 290 ±10 mm |
| Wire Identification | Red: Positive; Black: Negative; White: FG; Blue: PWM |
| Motor Protection | Integrated Circuit Protection |
| Polarity Protection | Yes |
| Frame Material | Glass-Filled PBT, UL 94 V-0 |
| Impeller Material | Glass-Filled PBT, UL 94 V-0 |
| Rotation Direction | Counterclockwise Viewed from Impeller Side |
| Operating Temperature | -10°C to +70°C |
| Net Weight | 98 g |
| Safety Approvals | UL, cUL, TÜV, CE |
Key Features
92 x 92 x 25 mm Frame
Features a square 92 mm frame with a depth of 25 mm for electronic equipment ventilation installations.
3800 RPM Rated Speed
The manufacturer specifies a rated rotational speed of 3800 RPM ±10% at 100% duty cycle.
73 CFM Airflow
The ADDA manufacturer datasheet identifies 73 CFM free-air flow and a static pressure rating of 0.250 inH2O.
PWM Speed Control and FG Output
Supports a PWM control input and an FG speed monitoring output through the documented four-wire electrical connection.
Hypro Bearing and Motor Protection
Uses Hypro bearing construction with integrated circuit motor protection and reverse-polarity protection.
Applications
- Electronic equipment enclosure ventilation
- Industrial control cabinet cooling
- Power electronics thermal management
- Communication equipment ventilation
- Computer system cooling assemblies
- Embedded electronic equipment cooling
- PWM-controlled equipment ventilation
- Fan speed monitoring applications
Purchase Information
We support online purchase of the ADDA AD0912UX-A7BGL DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0912UX-A7BGL?
ADDA AD0912UX-A7BGL is a 12 VDC brushless axial cooling fan with a 92 x 92 x 25 mm frame, Hypro bearing and PWM speed control functionality.
What is the rated voltage of AD0912UX-A7BGL?
The manufacturer specifies a rated voltage of 12 VDC and an operating voltage range of 11.4-12.6 VDC.
What are the dimensions of AD0912UX-A7BGL?
The fan measures 92 x 92 x 25 mm. Mounting hole spacing and installation clearances should be verified against the existing equipment.
What is the rated current and power consumption?
The manufacturer specifies a rated current of 0.50 A and rated power of 6.00 W at 100% duty cycle. The datasheet separately lists measured values of 0.40 A and 4.80 W.
What is the rated speed of AD0912UX-A7BGL?
The manufacturer datasheet specifies 3800 RPM ±10% at the rated voltage and 100% duty cycle.
What is the airflow rating?
The documented free-air flow rating is 73 CFM, equivalent to approximately 2.065 m³/min. Actual installed airflow depends on system resistance.
What is the static pressure rating?
The manufacturer specifies 0.250 inH2O, equivalent to 6.350 mmH2O.
What bearing type does AD0912UX-A7BGL use?
The manufacturer identifies a Hypro bearing configuration for this model.
Does AD0912UX-A7BGL support PWM speed control?
Yes. The manufacturer specifies a PWM operating duty cycle range of 30%-100%. Without a PWM drive signal, the fan operates at its rated speed.
Does the fan provide a speed monitoring signal?
Yes. The documented wiring includes a white FG signal lead for speed monitoring and a blue PWM control lead.
What is the operating temperature range?
The manufacturer specification identifies an operating temperature range of -10°C to +70°C under the stated environmental conditions.
What should be checked before ordering ADDA AD0912UX-A7BGL?
Verify the complete model number, 12 VDC supply, rated current, 92 x 92 x 25 mm dimensions, required airflow, PWM control requirements, FG signal connection, mounting dimensions and lead wire arrangement against the existing equipment.
Need help confirming a model?
Send us your part number and technical requirements.
