24 VDC Power Supply
AD0824UB-Y51 operates from a nominal 24 VDC supply. Manufacturer series data distinguishes 0.18 A rated current from 0.15 A actual current under its specified conditions.
ADDA
ADDA AD0824UB-Y51 DC Axial Fan 24VDC 80x80x32mm 4200RPM
$20.78
Available
PRODUCT GALLERY
01 / 4

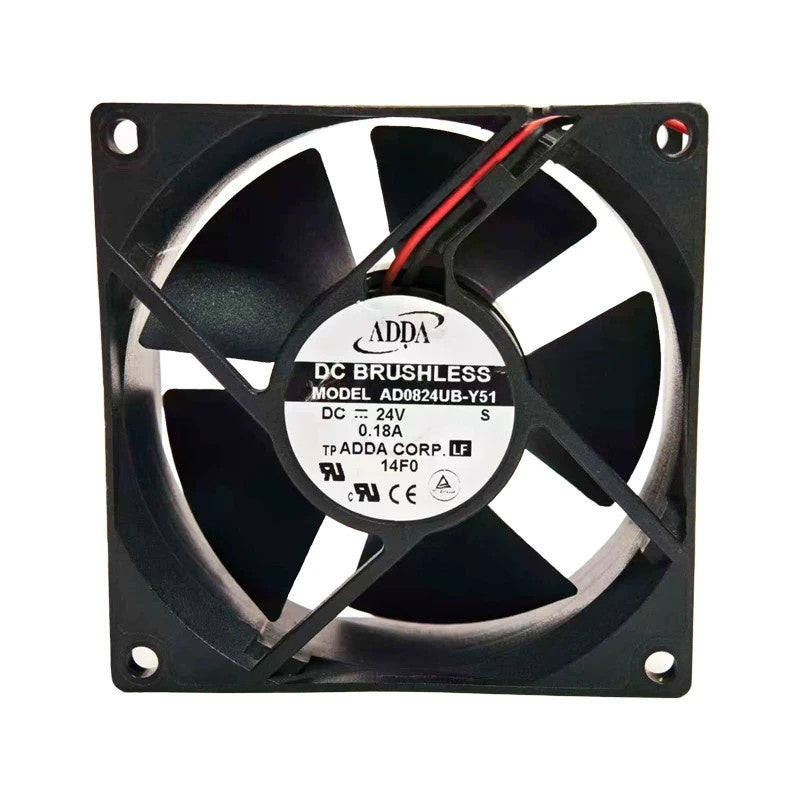

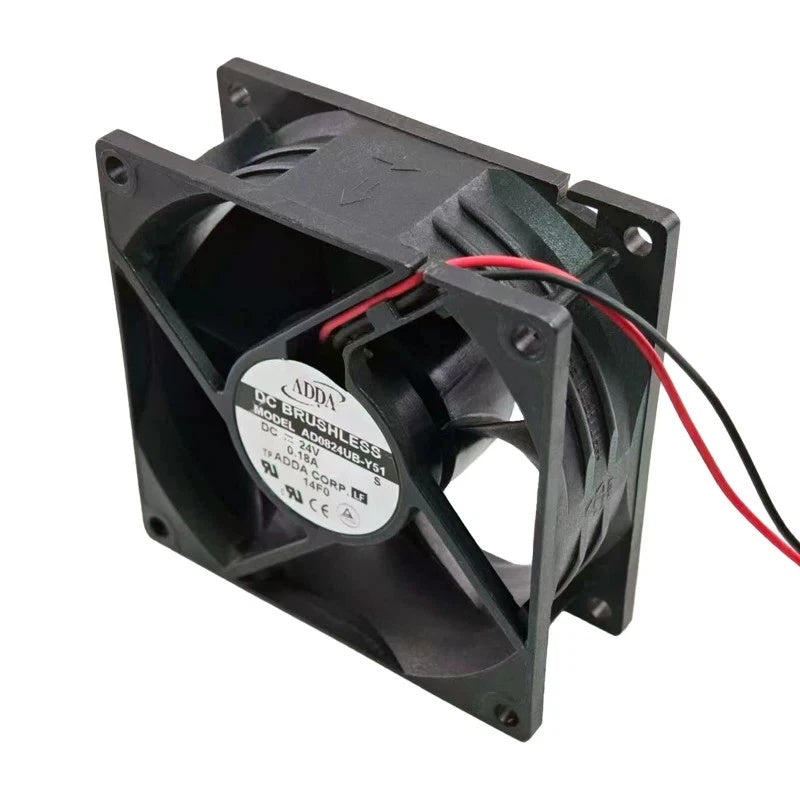

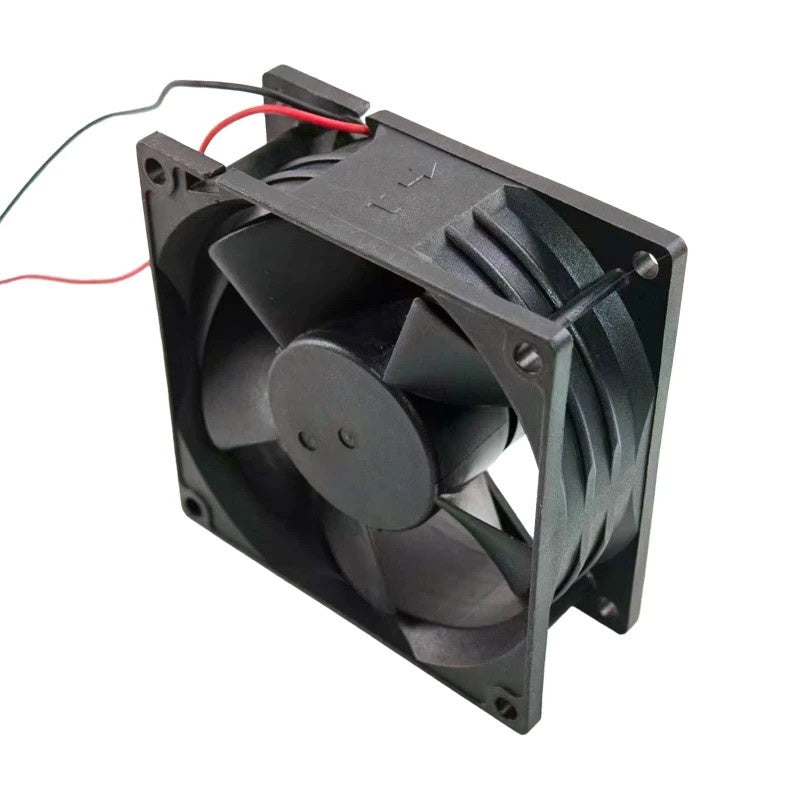

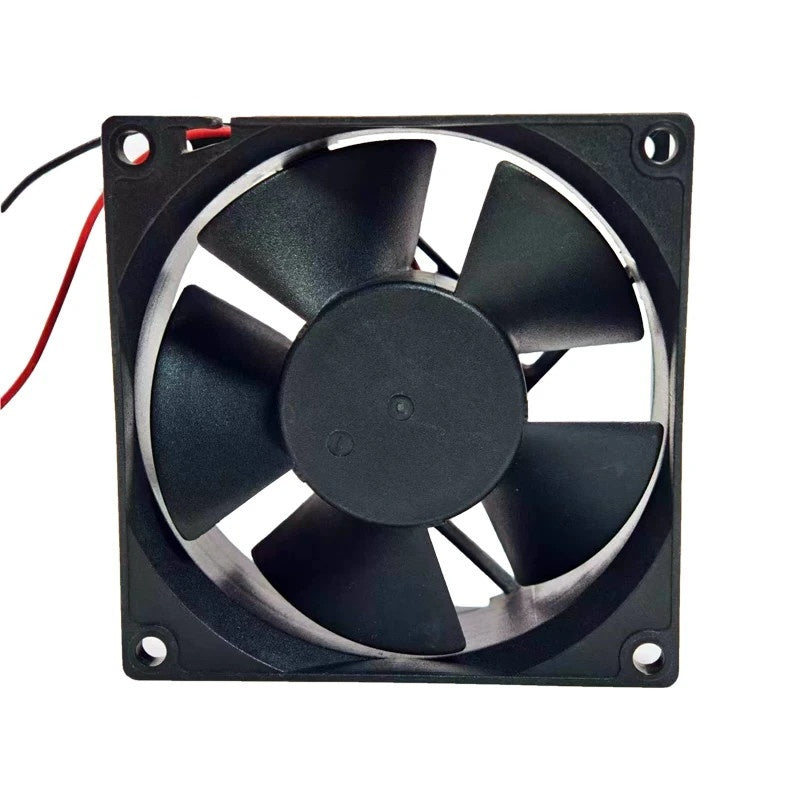

Product images for part identification
ADDA
ADDA AD0824UB-Y51 DC Axial Fan 24VDC 80x80x32mm 4200RPM
PRODUCT PRICE
USD
$20.78
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0824UB-Y51 |
| Product Category | DC Axial Fan |
| Product Series | AD8032 Series |
| Fan Type | DC Brushless Axial Cooling Fan |
| Frame Dimensions | 80 x 80 x 32 mm |
| Rated Voltage | 24 VDC |
| Rated Current | 0.18 A |
| Actual Current | 0.15 A (manufacturer series data) |
| Rated Power | 4.32 W |
| Actual Power | 3.60 W |
| Rated Speed | 4200 RPM |
| Manufacturer Maximum Airflow | 54.50 CFM (1.542 m³/min) |
| Distributor Listed Airflow | 55.3 CFM (Newark listing) |
| Maximum Static Pressure | 0.291 inAq (7.39 mmAq; manufacturer series data) |
| Noise Level | 43.8 dB(A) |
| Bearing Type | Ball Bearing |
| Electrical Termination | 2 Lead Wires |
| Lead Wire Specification | UL1007 AWG24 (manufacturer series data) |
| Frame Material | Plastic, UL 94 V-0 (manufacturer series data) |
| Impeller Material | Plastic, UL 94 V-0 (manufacturer series data) |
| Housing Material | Glass-Filled Polyester (distributor listing) |
| Series Weight | 108 g (manufacturer series data) |
Key Features
80 x 80 x 32 mm Frame
The AD8032 series uses an 80 mm square frame with 32 mm depth, suitable for equipment designed around this fan size and matching mounting geometry.
4200 RPM Rated Speed
The manufacturer AD8032 table and major electronic component distributors identify a rated rotational speed of 4200 RPM for AD0824UB-Y51.
54.5 CFM Manufacturer Airflow
The manufacturer series table lists 54.50 CFM free-air flow. Newark publishes 55.3 CFM for the same complete model; installed airflow depends on system resistance.
Ball Bearing Construction
The model is specified with ball bearings and a plastic frame and impeller. Distributor information also describes a glass-filled polyester housing.
Two-Wire Connection
Newark and Mouser identify a two-lead electrical termination. Confirm wire polarity, length and any connector arrangement before replacing the installed fan.
Applications
- Industrial automation control enclosure ventilation
- Power supply cooling assemblies
- Industrial electronics cabinet airflow
- Telecommunications equipment cooling
- Power conversion equipment thermal management
- Embedded electronic system ventilation
- Electronic instrumentation enclosure cooling
- Replacement cooling fans in compatible 24 VDC equipment
Purchase Information
We support online purchase of the ADDA AD0824UB-Y51 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0824UB-Y51?
ADDA AD0824UB-Y51 is a 24 VDC brushless axial cooling fan from the AD8032 series with an 80 x 80 x 32 mm frame and ball bearing construction.
What is the rated voltage of AD0824UB-Y51?
The nominal operating voltage is 24 VDC, as identified in the manufacturer series specifications and distributor product listings.
What are the dimensions of AD0824UB-Y51?
The frame measures 80 x 80 x 32 mm. Confirm mounting-hole placement and enclosure clearance before replacing an existing fan.
What is the rated current of AD0824UB-Y51?
ADDA manufacturer series data identifies 0.18 A rated current and 0.15 A actual current. Some supplier descriptions refer to the 0.15 A value, so the two figures should not be treated as contradictory measurements of the same rating.
What are the rated and actual power figures?
The manufacturer table lists 4.32 W rated power and 3.60 W actual power at the nominal 24 VDC supply.
What is the rated rotational speed?
AD0824UB-Y51 is specified at 4200 RPM under nominal operating conditions.
What is the maximum airflow?
ADDA manufacturer series data lists 54.50 CFM, while Newark lists 55.3 CFM for the complete model. These are published free-air values rather than guaranteed airflow inside equipment.
What is the maximum static pressure?
The manufacturer AD8032 series table lists 0.291 inAq, approximately 7.39 mmAq, for AD0824UB-Y51.
What noise level is specified?
The manufacturer and distributors list 43.8 dB(A) under their stated measurement conditions.
What bearing type does AD0824UB-Y51 use?
The model is specified with ball bearings in both the manufacturer series table and major distributor listings.
Does AD0824UB-Y51 have two or three wires?
The complete-model Newark and Mouser listings identify two lead wires. Do not assume the fan has a tachometer or PWM control lead without documentation for a specific alternate version.
What should be checked before ordering ADDA AD0824UB-Y51?
Confirm the complete model number, 24 VDC supply, rated current, 80 x 80 x 32 mm dimensions, mounting pattern, airflow requirement, ball bearing type and two-wire electrical connection. Do not substitute a different AD8032 suffix without comparing its electrical and mechanical specifications.
