24 VDC Operation
The AD0824HS-A70GL is specified for a nominal 24 VDC electrical supply with a rated current of 0.16 A.
ADDA
ADDA AD0824HS-A70GL DC Axial Fan 24VDC 80x80x25mm 38.6CFM
$15.72
Available
PRODUCT GALLERY
01 / 4

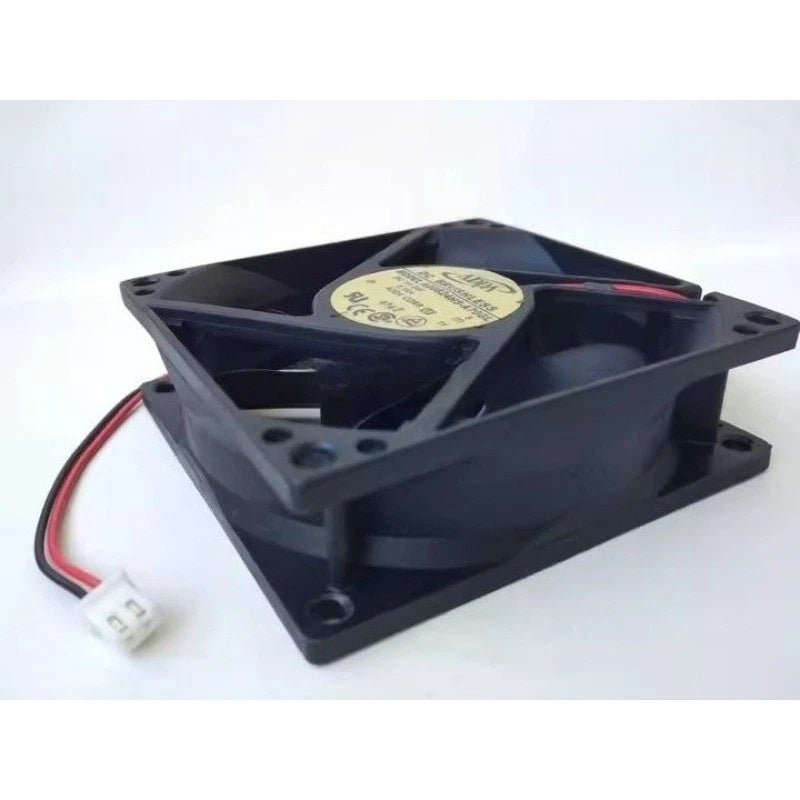

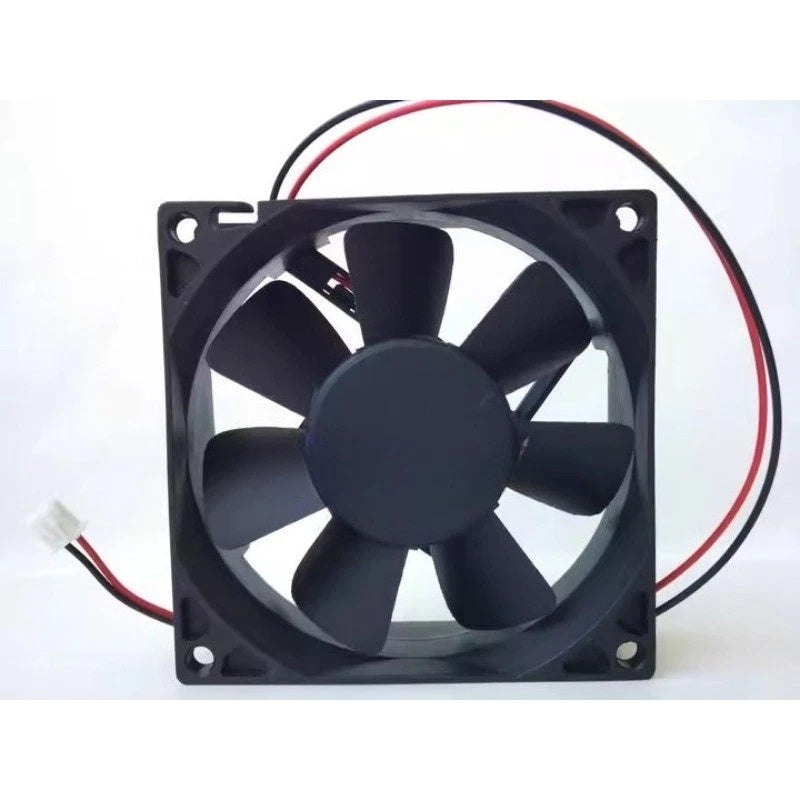

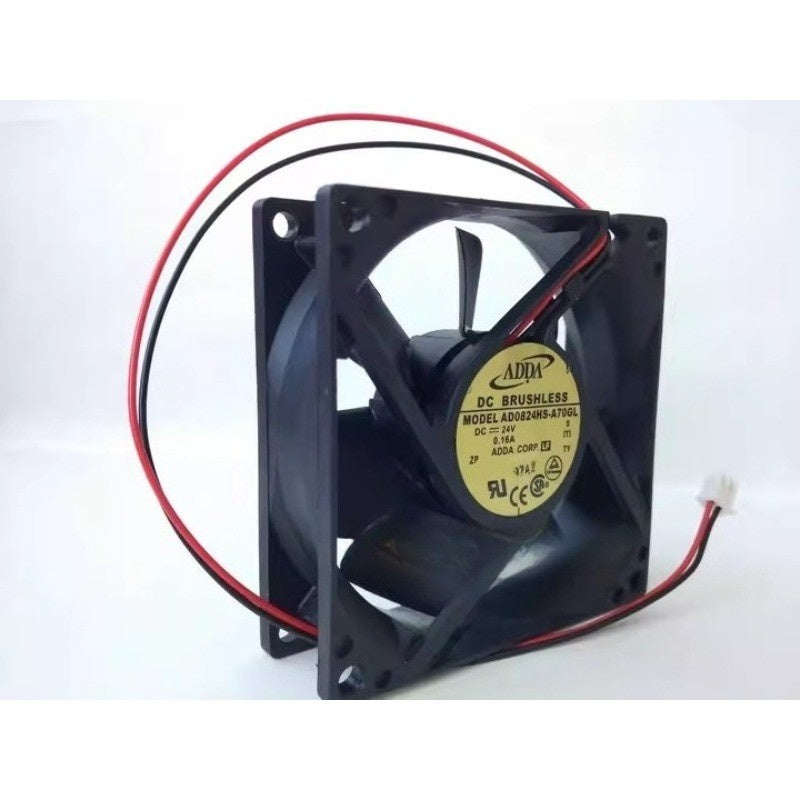

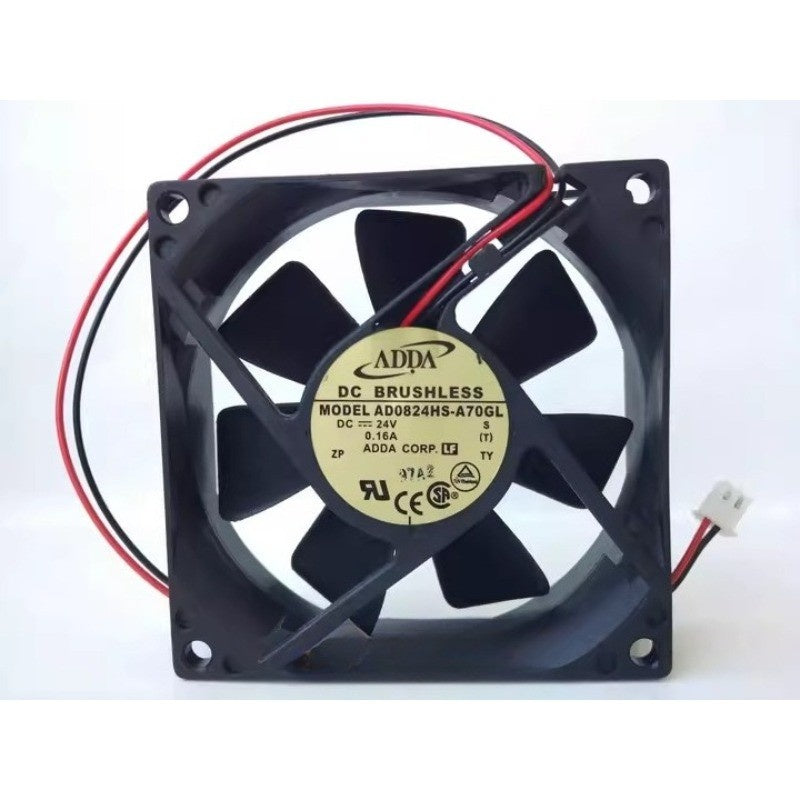

Product images for part identification
ADDA
ADDA AD0824HS-A70GL DC Axial Fan 24VDC 80x80x25mm 38.6CFM
PRODUCT PRICE
USD
$15.72
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0824HS-A70GL |
| Product Category | DC Axial Fan |
| Fan Type | DC Axial Cooling Fan |
| Frame Dimensions | 80 x 80 x 25 mm |
| Rated Voltage | 24 VDC |
| Rated Current | 0.16 A |
| Rated Power | 3.84 W |
| Rated Speed | 3010 RPM |
| Air Flow | 38.6 CFM |
| Static Pressure | 0.160 inH2O |
| Noise Level | 34.4 dB(A) |
| Bearing Type | Sleeve Bearing |
| Weight | 86 g |
| Listed Safety Approvals | UL, TÜV, CSA, CE |
Key Features
80 x 80 x 25 mm Frame
Features an 80 mm square frame with a 25 mm depth for equipment ventilation installations.
3010 RPM Rated Speed
The manufacturer specifies a rated rotational speed of 3010 RPM for this fan configuration.
38.6 CFM Airflow
The ADDA specification table identifies a free-air flow rating of 38.6 CFM under its specified test conditions.
Sleeve Bearing Construction
Uses the sleeve bearing configuration identified for the complete AD0824HS-A70GL model.
3.84 W Power Rating
The published specifications identify 3.84 W rated power, 0.160 inH2O static pressure and a noise level of 34.4 dB(A).
Applications
- Industrial control cabinet ventilation
- Power supply enclosure cooling
- Industrial electronic equipment ventilation
- Communication equipment air circulation
- Embedded controller thermal management
- Electrical panel cooling systems
- Industrial machinery electronics ventilation
- Forced-air cooling assemblies
Purchase Information
We support online purchase of the ADDA AD0824HS-A70GL DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0824HS-A70GL?
ADDA AD0824HS-A70GL is a 24 VDC axial cooling fan with an 80 x 80 x 25 mm frame and sleeve bearing construction.
What is the rated voltage of AD0824HS-A70GL?
The manufacturer specifies a nominal rated voltage of 24 VDC.
What is the rated current?
The ADDA manufacturer specification lists a rated current of 0.16 A.
What is the rated power of AD0824HS-A70GL?
The published rated power is 3.84 W.
What are the dimensions of this fan?
The fan frame measures 80 x 80 x 25 mm. Mounting hole positions and installation clearances should be checked against the equipment.
What is the rated fan speed?
The manufacturer specifies a rotational speed of 3010 RPM for the AD0824HS-A70GL.
What is the airflow rating?
The published free-air flow rating is 38.6 CFM. Actual installed airflow depends on airflow resistance within the equipment.
What is the static pressure rating?
The ADDA specification table lists a static pressure rating of 0.160 inH2O.
What bearing type does AD0824HS-A70GL use?
The manufacturer identifies a sleeve bearing configuration. Other AD0824 variants may use different bearing designs.
What is the published noise level?
The manufacturer specifies a noise level of 34.4 dB(A) under its stated test conditions.
Can AD0824HS-A70GL be considered for industrial control cabinet cooling?
It can be considered after confirming supply voltage, cooling demand, mounting dimensions, installation environment and electrical connection requirements.
What should be checked before ordering ADDA AD0824HS-A70GL?
Verify the complete model number, 24 VDC supply, 0.16 A rated current, 80 x 80 x 25 mm dimensions, airflow requirements, sleeve bearing construction, mounting arrangement and electrical connections against the existing equipment specifications.
