12 VDC Power Supply
The AD0812LB-A76GL is identified as a 12 VDC brushless axial cooling fan. Standard-model listings specify 0.12 A and 1.44 W.
ADDA
ADDA AD0812LB-A76GL DC Axial Fan 12VDC 80x80x25mm 26.2CFM
$15.89
Available
PRODUCT GALLERY
01 / 3

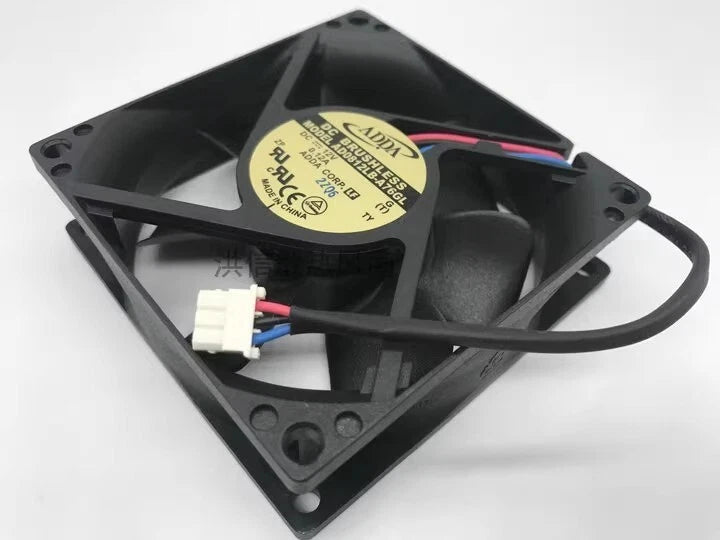

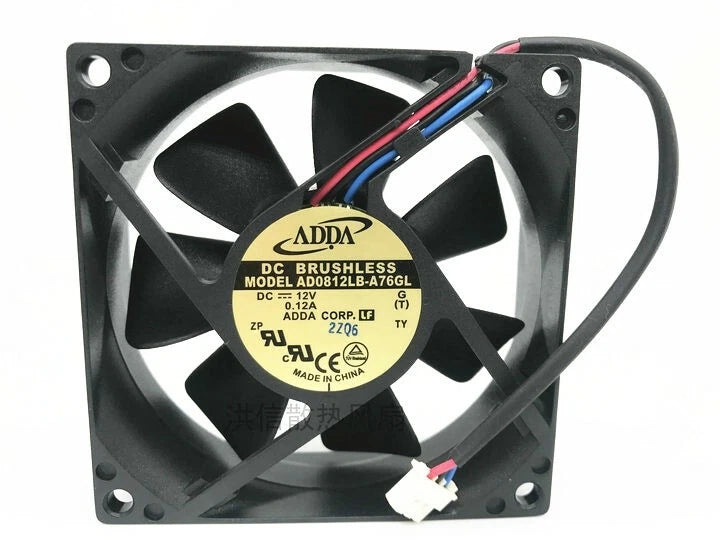

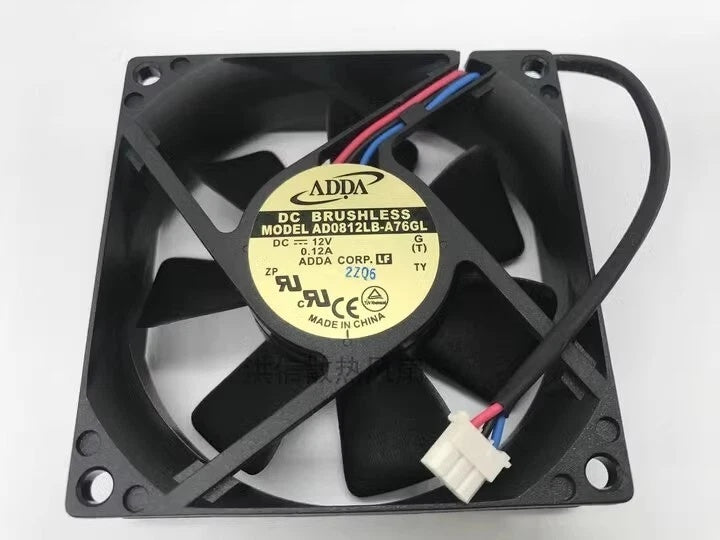

Product images for part identification
ADDA
ADDA AD0812LB-A76GL DC Axial Fan 12VDC 80x80x25mm 26.2CFM
PRODUCT PRICE
USD
$15.89
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0812LB-A76GL |
| Product Category | DC Axial Fan |
| Fan Type | DC Brushless Axial Cooling Fan |
| Frame Dimensions | 80 x 80 x 25 mm |
| Rated Voltage | 12 VDC |
| Listed Current | 0.12 A |
| Listed Power | 1.44 W |
| Rated Speed | 2030 RPM |
| Air Flow | 26.2 CFM |
| Noise Level | 22.5 dB(A) |
| Bearing Type | Ball Bearing |
| Electrical Connection | 3 Lead Wires (model listings) |
| Weight | 86 g (AD8025 series specification) |
Key Features
80 x 80 x 25 mm Frame
The 80 mm square frame with a 25 mm depth can be evaluated for ventilation in industrial and electronic equipment enclosures.
2030 RPM Rated Speed
The standard AD0812LB-A76GL-LF listing in the Mouser ADDA catalog specifies a speed of 2030 RPM.
26.2 CFM Airflow
The catalog identifies 26.2 CFM free-air flow for the standard A76GL-LF version; installed airflow varies with system resistance.
Ball Bearing Construction
The AD0812LB series uses ball bearing construction, as identified in ADDA manufacturer specifications for the corresponding fan family.
Three-Wire Configuration
Model-specific supplier listings describe a three-wire configuration with a speed signal. Connector style and pinout should be checked against the supplied fan.
Applications
- Industrial electronics enclosure ventilation
- Power supply assembly cooling
- Industrial control equipment air circulation
- Communication equipment ventilation
- Computer chassis thermal management
- Embedded electronics cooling
- Instrument enclosure forced-air cooling
- Replacement cooling fans for compatible 12 VDC equipment
Purchase Information
We support online purchase of the ADDA AD0812LB-A76GL DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0812LB-A76GL?
ADDA AD0812LB-A76GL is a DC axial cooling fan with a nominal 12 VDC supply and an 80 x 80 x 25 mm frame.
What is the operating voltage of AD0812LB-A76GL?
The standard model uses a nominal 12 VDC power supply. The applicable allowable voltage range should be confirmed from the particular fan label or datasheet.
What are the fan dimensions?
The frame measures 80 x 80 x 25 mm. Check mounting positions and enclosure clearances before ordering.
What is the listed current rating?
For the standard non-LTC A76GL configuration, model-specific listings commonly specify 0.12 A. The separate AD0812LB-A76GL(LTC) version has different published electrical ratings.
What is the listed power rating?
The Mouser ADDA catalog lists 1.44 W for AD0812LB-A76GL-LF, the standard lead-free version.
What is the rated fan speed?
The standard AD0812LB-A76GL-LF catalog specification lists 2030 RPM. ADDA separately lists 2100 RPM for an LTC variant, so check the complete part designation.
What is the airflow rating?
The standard A76GL-LF version is listed at 26.2 CFM free-air flow. The LTC variant has a different published airflow specification.
What is the listed noise level?
The Mouser ADDA catalog lists 22.5 dB(A) for AD0812LB-A76GL-LF under the catalog test conditions.
What type of bearing is used?
The corresponding ADDA LB axial fan family uses a ball bearing assembly.
Does AD0812LB-A76GL have a speed signal?
Some model-specific supplier listings identify a three-lead configuration with a tachometer signal. Verify the individual fan wiring and connector before using a monitoring input.
Is AD0812LB-A76GL the same as AD0812LB-A76GL(LTC)?
No. ADDA publishes separate LTC specifications with different electrical and airflow figures; do not assume their ratings are identical.
What should be checked before ordering ADDA AD0812LB-A76GL?
Confirm the full model and any LTC or LF suffix, 12 VDC supply, current rating, 80 x 80 x 25 mm dimensions, electrical connection, mounting arrangement and required airflow against the installed equipment.
