24 VDC Power Supply
The AD0624UB-D71 is listed for operation from a 24 VDC electrical supply with a current rating of 0.11 A.
ADDA
ADDA AD0624UB-D71 DC Axial Fan 24VDC 60x60x15mm 0.11A
$15.40
Available
PRODUCT GALLERY
01 / 3

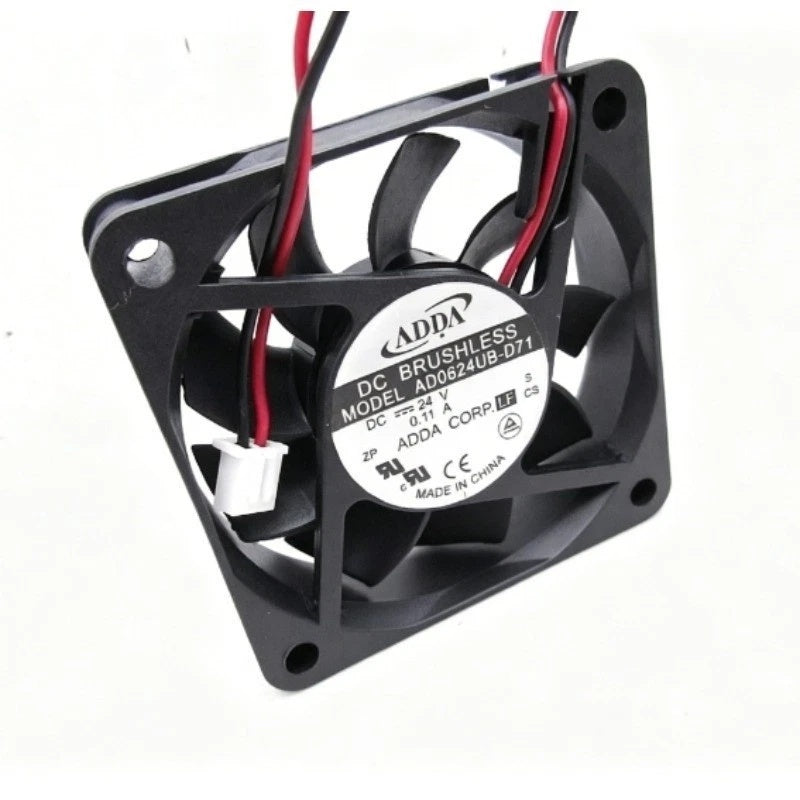

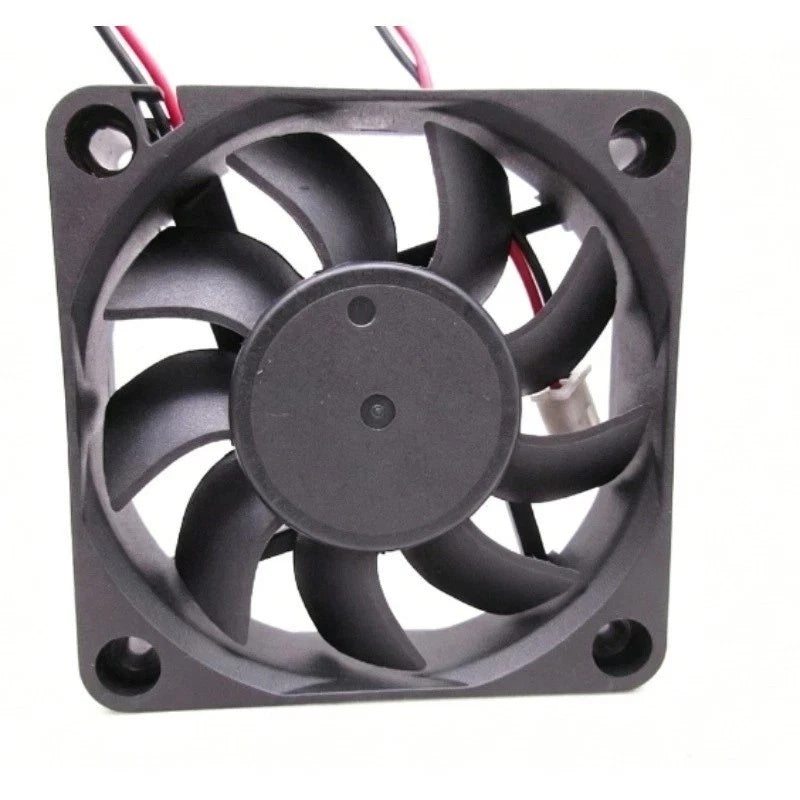

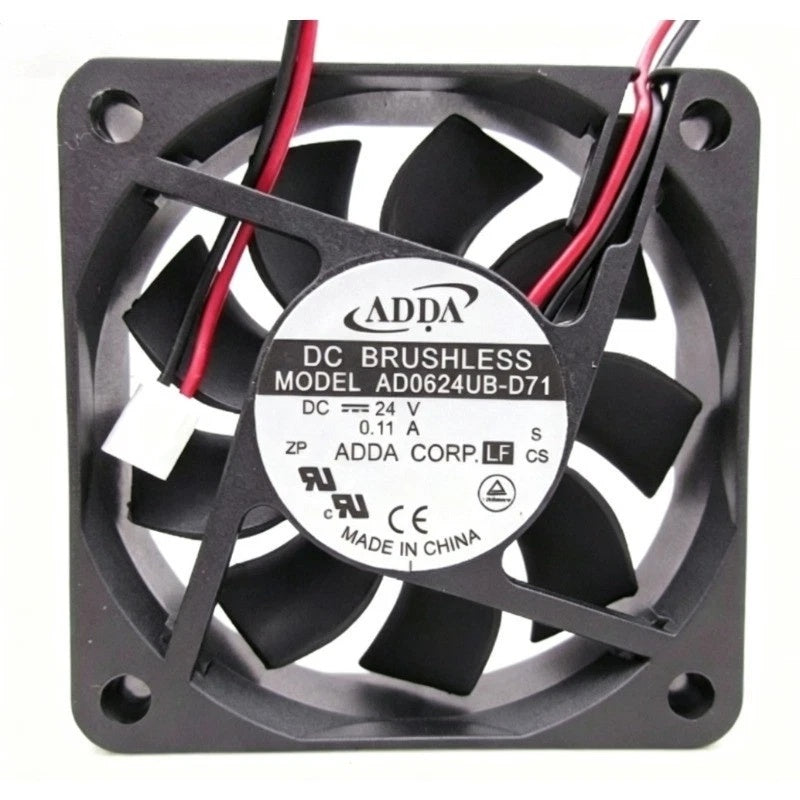

Product images for part identification
ADDA
ADDA AD0624UB-D71 DC Axial Fan 24VDC 60x60x15mm 0.11A
PRODUCT PRICE
USD
$15.40
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0624UB-D71 |
| Product Category | DC Axial Fan |
| Fan Type | DC Brushless Axial Cooling Fan |
| Frame Dimensions | 60 x 60 x 15 mm |
| Rated Voltage | 24 VDC |
| Listed Current | 0.11 A |
| Nominal Electrical Input | 2.64 W (24 V x 0.11 A, calculated) |
| Bearing Type | Dual Ball Bearing |
| Electrical Connection | 2 Lead Wires |
| Power Wire Identification | Red: Positive; Black: Negative |
Key Features
60 x 60 x 15 mm Frame
Features a 60 mm square frame and 15 mm depth for ventilation in compact electronic assemblies.
Dual Ball Bearing Construction
Product-specific parts listings describe a dual ball bearing configuration. Verify the bearing specification if replacing a fan with a different suffix.
Two-Wire Power Connection
The identified model uses two power leads. Connector termination and polarity should be confirmed on the existing equipment.
Brushless DC Axial Design
The axial fan design moves air along the motor axis for forced-air cooling of electronics.
2.64 W Nominal Input Calculation
At 24 V and 0.11 A, the nominal electrical input calculates to approximately 2.64 W; this is not a separately verified operating measurement.
Applications
- Industrial power supply cooling
- Compact drive enclosure ventilation
- Electronic control equipment airflow
- Industrial electronics thermal management
- Communication equipment cooling
- Electrical panel forced-air circulation
- Embedded equipment ventilation
- Cooling fan replacement in compatible 24 VDC assemblies
Purchase Information
We support online purchase of the ADDA AD0624UB-D71 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0624UB-D71?
ADDA AD0624UB-D71 is a 24 VDC brushless axial cooling fan in a 60 x 60 x 15 mm frame, listed with two lead wires and dual ball bearings.
What is the rated voltage of AD0624UB-D71?
Product-specific listings identify a nominal electrical supply of 24 VDC.
What is the listed current rating?
The identified model is listed at 0.11 A. Compare this with the rating on the fan label before replacing an existing unit.
What are the dimensions of AD0624UB-D71?
The fan measures 60 x 60 x 15 mm. Check the mounting hole spacing and available clearance against the existing fan.
What type of cooling fan is AD0624UB-D71?
It is an axial cooling fan powered by a DC brushless motor.
What bearing design is used?
Product-specific fan listings describe dual ball bearing construction. Confirm the complete model marking before ordering.
How many electrical leads does AD0624UB-D71 use?
The listed configuration uses two power leads. The identified connections are red for positive and black for negative; verify polarity on the actual unit.
What is the nominal power consumption?
Multiplying the listed 24 V supply by 0.11 A gives approximately 2.64 W. This is a calculation from the listed ratings, not a separately measured power value.
What is the airflow rating of AD0624UB-D71?
Published reseller estimates vary, and a complete-model manufacturer airflow rating has not been reliably established. Check the applicable ADDA datasheet when airflow is critical.
Does AD0624UB-D71 include PWM speed control?
The identified two-lead configuration does not document a separate PWM input or FG signal output. Check the wiring and manufacturer documentation before assuming control functions.
Can AD0624UB-D71 be used for industrial power supply cooling?
It can be considered where the equipment requires a compatible 24 VDC axial cooling fan, subject to mechanical fit, airflow, wiring and operating-environment checks.
What should be checked before ordering ADDA AD0624UB-D71?
Verify the complete model number, 24 VDC power supply, 0.11 A listed current, 60 x 60 x 15 mm dimensions, two-wire configuration, mounting arrangement and cooling requirements against the installed equipment.
