24 VDC Operation
The AD0624MB-A70GL operates from a nominal 24 VDC electrical supply with a manufacturer-listed current rating of 0.08 A.
ADDA
ADDA AD0624MB-A70GL DC Axial Fan 24VDC 60x60x25mm 18CFM
$13.42
Available
PRODUCT GALLERY
01 / 3

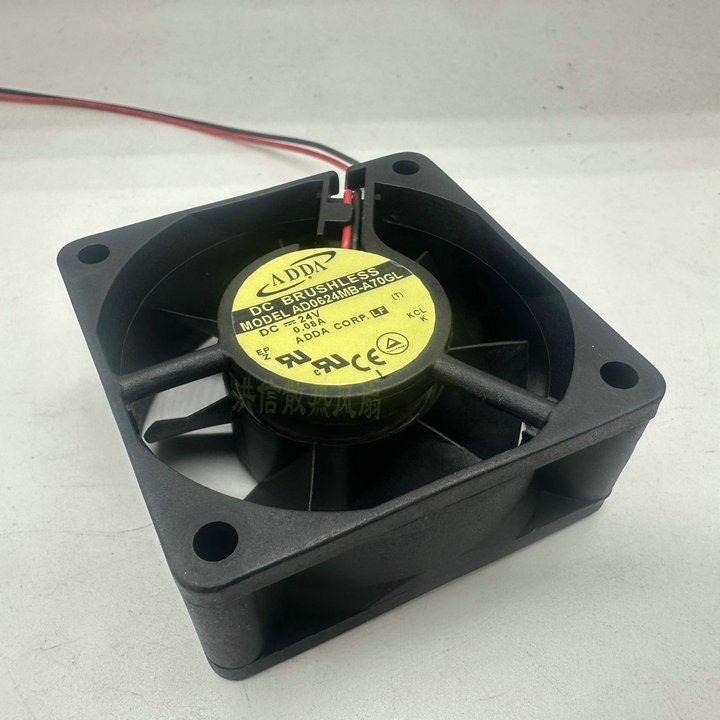

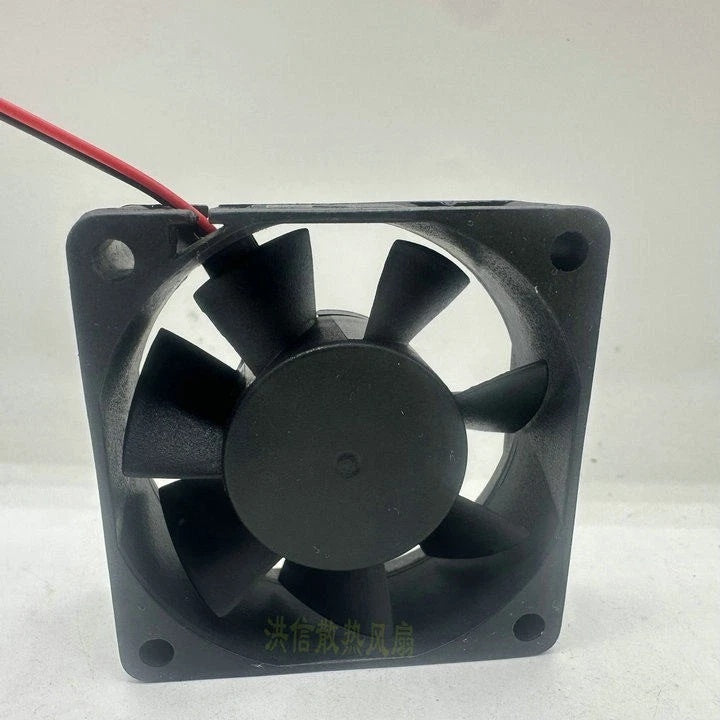

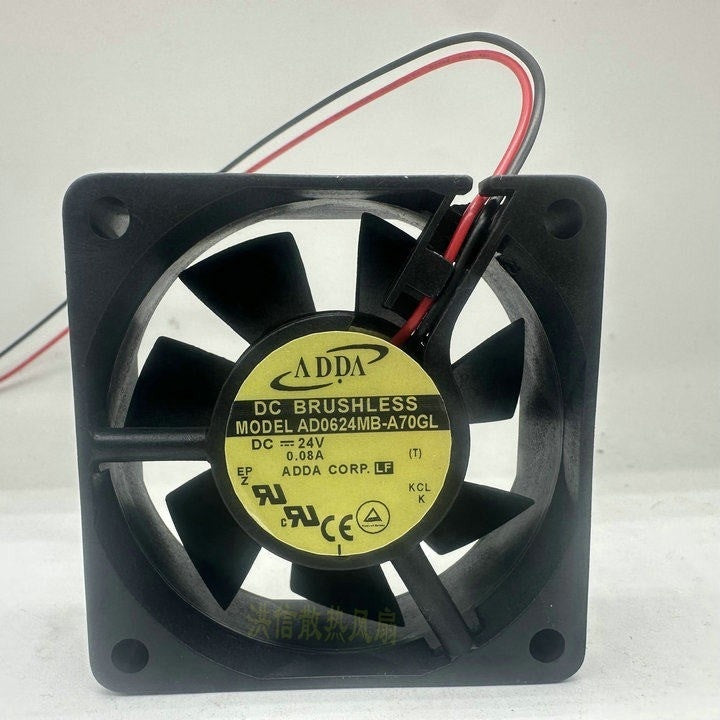

Product images for part identification
ADDA
ADDA AD0624MB-A70GL DC Axial Fan 24VDC 60x60x25mm 18CFM
PRODUCT PRICE
USD
$13.42
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0624MB-A70GL |
| Product Category | DC Axial Fan |
| Product Series | AD6025 |
| Fan Type | DC Axial Cooling Fan |
| Frame Dimensions | 60 x 60 x 25 mm |
| Rated Voltage | 24 VDC |
| Rated Current | 0.08 A |
| Rated Power | 1.92 W |
| Rated Speed | 3500 RPM |
| Maximum Air Flow | 18.0 CFM (0.51 m³/min) |
| Maximum Static Pressure | 0.118 inH2O (approximately 3.0 mmH2O) |
| Noise Level | 24.0 dB(A) |
| Bearing Type | Ball Bearing |
| Weight | 68 g |
| Listed Safety Approvals | UL, cUL, TÜV, CSA, CE |
Key Features
60 x 60 x 25 mm Frame
Features a 60 mm square axial fan frame with a depth of 25 mm for equipment ventilation installations.
3500 RPM Rated Speed
The ADDA specification identifies a rated rotational speed of 3500 RPM for this fan model.
18.0 CFM Airflow
The published maximum free-air flow is 18.0 CFM, equivalent to approximately 0.51 m³/min, under the specified test conditions.
Ball Bearing Construction
Uses a ball bearing assembly to support axial fan rotation within the 60 x 60 x 25 mm housing.
1.92 W Rated Power
The manufacturer lists a rated power of 1.92 W, maximum static pressure of 0.118 inH2O and a noise level of 24.0 dB(A).
Applications
- Industrial electronic equipment ventilation
- Compact power supply enclosure cooling
- Industrial control cabinet airflow circulation
- Communication equipment cooling
- Embedded controller thermal management
- Electrical equipment forced-air cooling
- Industrial instrument enclosure ventilation
- Cooling fan maintenance for electronic assemblies
Purchase Information
We support online purchase of the ADDA AD0624MB-A70GL DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0624MB-A70GL?
ADDA AD0624MB-A70GL is a 24 VDC axial cooling fan in the AD6025 series, featuring a 60 x 60 x 25 mm frame and ball bearing construction.
What is the rated voltage of AD0624MB-A70GL?
The manufacturer specifies a nominal rated voltage of 24 VDC.
What is the rated current of AD0624MB-A70GL?
The ADDA USA specification lists a rated current of 0.08 A for the AD0624MB-A70GL.
What is the rated power consumption?
The manufacturer specification identifies a rated power of 1.92 W.
What are the dimensions of AD0624MB-A70GL?
The fan measures 60 x 60 x 25 mm. Mounting hole spacing and installation clearances should be verified against the existing equipment.
What is the rated fan speed?
The manufacturer lists a rated rotational speed of 3500 RPM.
What is the maximum airflow of AD0624MB-A70GL?
The published maximum free-air flow is 18.0 CFM, equivalent to approximately 0.51 m³/min. Actual airflow depends on equipment airflow resistance.
What is the maximum static pressure?
The ADDA specification identifies a maximum static pressure of 0.118 inH2O, approximately 3.0 mmH2O.
What bearing type does AD0624MB-A70GL use?
The manufacturer identifies a ball bearing construction for this model.
What is the specified noise level?
The ADDA USA specification lists a noise level of 24.0 dB(A) under the documented test conditions.
Can AD0624MB-A70GL be considered for industrial electronics cooling?
It can be considered after checking the electrical supply, airflow requirements, mounting dimensions, electrical connection and equipment operating conditions.
What should be checked before ordering ADDA AD0624MB-A70GL?
Verify the complete model number and any additional suffix, 24 VDC supply, 0.08 A rated current, 60 x 60 x 25 mm dimensions, cooling requirements, mounting arrangement and electrical connection against the existing equipment specifications.
