12 VDC Electrical Supply
The manufacturer specifies 12 VDC rated voltage with an operating range of 11.4-12.6 VDC, rated current of 0.12 A and rated power of 1.44 W at 100% duty cycle.
ADDA
ADDA AD0612LB-D9B DC Axial Fan 12VDC 60x60x15mm 16.99CFM
$13.64
Available
PRODUCT GALLERY
01 / 2

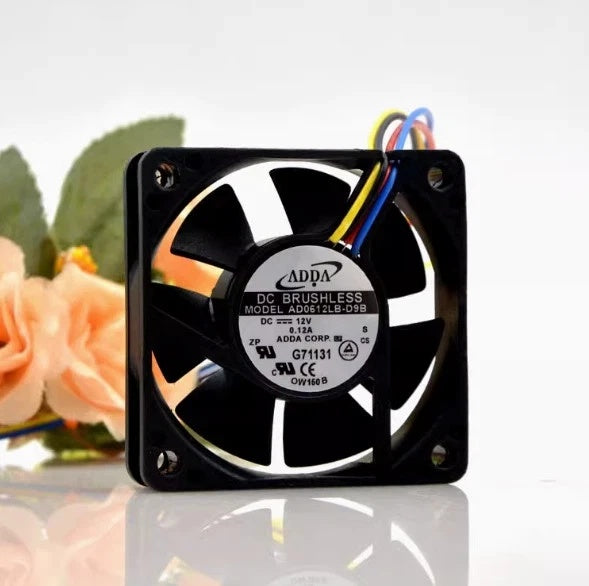

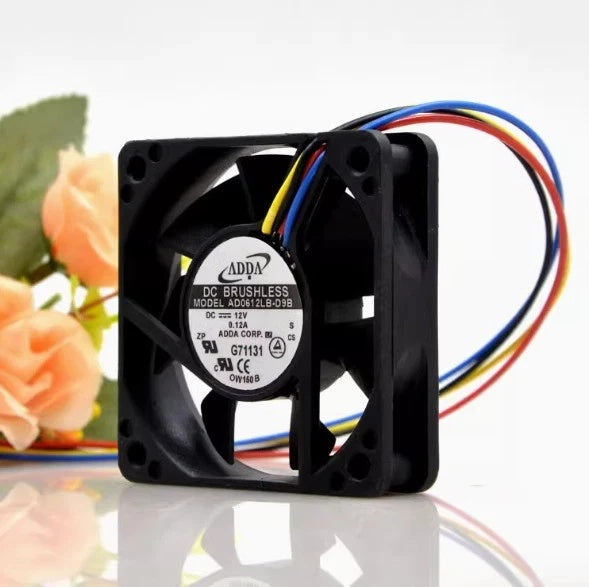

Product images for part identification
ADDA
ADDA AD0612LB-D9B DC Axial Fan 12VDC 60x60x15mm 16.99CFM
PRODUCT PRICE
USD
$13.64
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0612LB-D9B |
| Product Category | DC Axial Fan |
| Fan Type | DC Brushless Axial Cooling Fan |
| Dimensions | 60 x 60 x 15 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 11.4-12.6 VDC |
| PWM Operating Duty Cycle | 30%-100% |
| Rated Current | 0.12 A (100% duty cycle) |
| Measured Current | 0.07 A |
| Rated Power | 1.44 W (100% duty cycle) |
| Measured Power | 0.84 W |
| Rated Speed | 3500 RPM ±10% (100% duty cycle) |
| Free-Air Flow | 16.990 CFM (0.480 m³/min) |
| Static Pressure | 0.087 inH2O (2.209 mmH2O) |
| Noise Level | 28.5 dB(A) |
| Bearing Type | Dual Ball Bearing |
| Motor Protection | Integrated Circuit |
| Reverse Polarity Protection | Yes |
| Speed Control | PWM Input |
| Speed Signal | FG Output |
| Electrical Connection | 4 Lead Wires, AWG 26 |
| Lead Wire Length | 130 ±10 mm |
| Wire Identification | Red: Positive; Black: Negative; White: FG; Blue: PWM |
| Frame and Impeller Material | Glass-Filled PBT, UL 94 V-0 |
| Mounting Hole Spacing | 50 x 50 mm |
| Mounting Hole Diameter | 4.4 mm |
| Operating Temperature | -10°C to +70°C |
| Life Expectancy (Specified Conditions) | 70,000 hours at 40°C and 65% RH |
| Net Weight | 38 g |
| Listed Safety Approvals | UL, cUL, TÜV, CE |
Key Features
60 x 60 x 15 mm Frame
A 60 mm square frame with 15 mm depth and 50 mm mounting-hole spacing provides the mechanical dimensions required for fit checks.
3500 RPM and 16.99 CFM
The ADDA datasheet specifies 3500 RPM ±10% rated speed and 16.990 CFM free-air flow at the nominal voltage and 100% duty cycle.
PWM Control with FG Feedback
The four-wire configuration has a blue PWM speed-control input and a white FG output for speed monitoring; the documented duty cycle range is 30%-100%.
Dual Ball Bearing Assembly
The manufacturer specification identifies a two-ball-bearing system with glass-filled PBT frame and impeller materials classified UL 94 V-0.
Integrated Motor Protection
Includes locked-rotor protection and reverse-polarity protection according to the manufacturer datasheet; the specified noise level is 28.5 dB(A).
Applications
- Compact industrial controller ventilation
- Communication equipment cooling
- Electronic instrument enclosure airflow
- Power supply assembly ventilation
- Embedded electronics thermal management
- PWM-controlled cooling installations
- Fan speed monitoring assemblies
- Maintenance of compatible equipment cooling systems
Purchase Information
We support online purchase of the ADDA AD0612LB-D9B DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0612LB-D9B?
ADDA AD0612LB-D9B is a 12 VDC brushless axial cooling fan with a 60 x 60 x 15 mm frame, dual ball bearing design, PWM input and FG output.
What voltage does AD0612LB-D9B require?
The manufacturer specifies a nominal voltage of 12 VDC and an operating voltage range of 11.4-12.6 VDC.
What are the dimensions of AD0612LB-D9B?
The fan frame measures 60 x 60 x 15 mm, with 50 x 50 mm mounting-hole spacing and 4.4 mm mounting holes according to the manufacturer drawing.
What is the rated current and power consumption?
The datasheet specifies 0.12 A rated current and 1.44 W rated power at 100% duty cycle. It separately lists 0.07 A measured current and 0.84 W measured power.
What is the rated fan speed?
The manufacturer specifies 3500 RPM ±10% at the rated voltage and 100% PWM duty cycle.
What is the airflow rating of AD0612LB-D9B?
The specified free-air flow is 16.990 CFM, equivalent to 0.480 m³/min. Airflow in an installed enclosure depends on system resistance.
What is the static pressure rating?
The manufacturer specifies 0.087 inH2O, equivalent to 2.209 mmH2O, under the stated test conditions.
Does AD0612LB-D9B support PWM speed control?
Yes. The manufacturer datasheet documents a blue PWM input with a 30%-100% operating duty cycle range. It states that the fan runs at rated speed if no PWM signal is connected.
Does the fan provide a speed-monitoring output?
Yes. The documented four-wire configuration has a white FG signal lead for speed monitoring, alongside red positive, black negative and blue PWM leads.
What bearing type does AD0612LB-D9B use?
The manufacturer specification identifies a dual ball bearing system. The documented operating temperature range is -10°C to +70°C.
What is the specified noise level?
The ADDA datasheet lists a nominal noise level of 28.5 dB(A), with a specified maximum of 32.5 dB(A), measured under the manufacturer test conditions.
What should be checked before ordering AD0612LB-D9B?
Confirm the full model number, 12 VDC power supply, 60 x 60 x 15 mm dimensions, mounting holes, four-wire arrangement, PWM and FG connections, and airflow requirements. Compare the supplied fan configuration with the equipment wiring because product listings may describe different wiring variants.
