12 VDC Operation
The AD0612HB-A70GL operates from a nominal 12 VDC supply with a rated current of 0.23 A.
ADDA

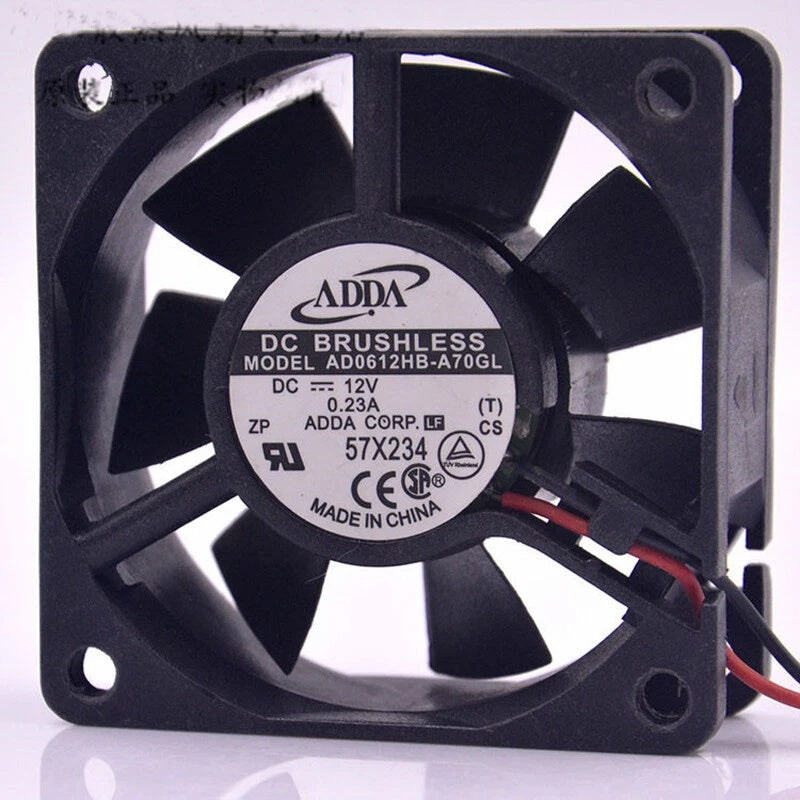

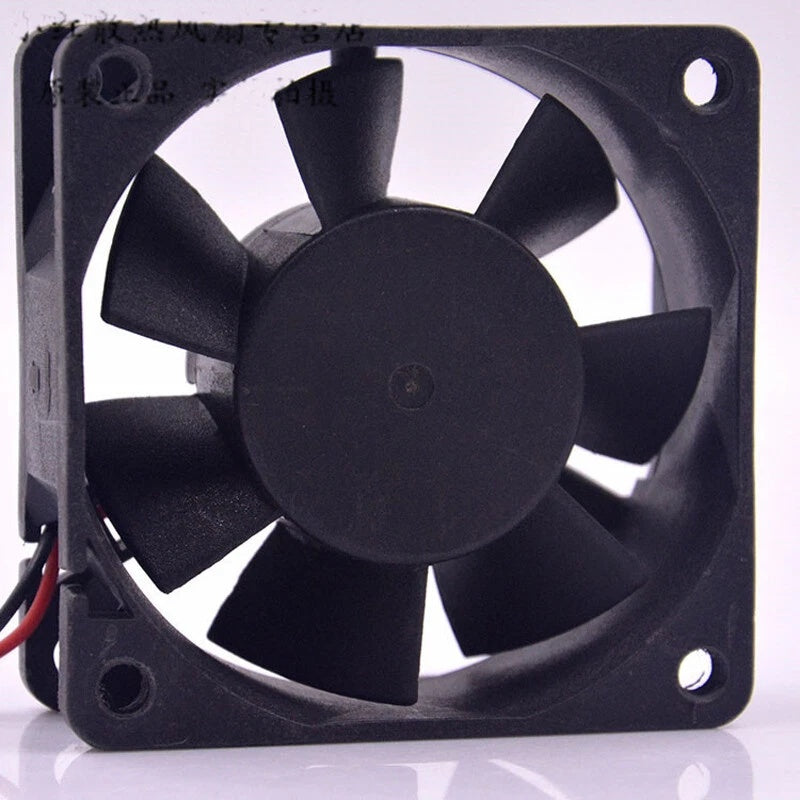

ADDA AD0612HB-A70GL DC Axial Fan 12VDC 60x60x25mm 4500RPM
$13.72
Available
PRODUCT GALLERY
01 / 2
Product images for part identification
ADDA
ADDA AD0612HB-A70GL DC Axial Fan 12VDC 60x60x25mm 4500RPM
PRODUCT PRICE
USD
$13.72
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0612HB-A70GL |
| Product Category | DC Axial Fan |
| Fan Type | DC Brushless Axial Fan |
| Frame Dimensions | 60 x 60 x 25 mm |
| Rated Voltage | 12 VDC |
| Rated Current | 0.23 A |
| Rated Power | 2.76 W |
| Rated Speed | 4500 RPM |
| Bearing Type | Ball Bearing |
| Frame Material | Plastic, UL 94 V-0 |
| Impeller Material | Plastic, UL 94 V-0 |
| Lead Wire Specification | UL1007 AWG24 |
| Operating Temperature | -10°C to +70°C |
| Weight | 68 g |
| Listed Safety Approvals | UL, cUL, TÜV, CSA, CE |
Key Features
60 x 60 x 25 mm Frame
Features a 60 mm square frame with a depth of 25 mm for equipment cooling installations.
4500 RPM Rated Speed
The manufacturer specifies a rated rotational speed of 4500 RPM for this fan configuration.
Ball Bearing Construction
Uses a ball bearing system to support the rotating fan assembly.
2.76 W Rated Power
The documented electrical specifications identify 2.76 W rated power at 12 VDC.
UL 94 V-0 Plastic Construction
The manufacturer series documentation identifies plastic frame and impeller materials with a UL 94 V-0 flammability classification.
Applications
- Industrial electronics enclosure cooling
- Compact power supply ventilation
- Industrial control equipment air circulation
- Communication equipment cooling
- Embedded system thermal management
- Electrical equipment ventilation
- Small machinery electronics cooling
- Forced-air cooling assemblies
Purchase Information
We support online purchase of the ADDA AD0612HB-A70GL DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0612HB-A70GL?
ADDA AD0612HB-A70GL is a 12 VDC brushless axial cooling fan with a 60 x 60 x 25 mm frame and ball bearing construction.
What is the rated voltage of AD0612HB-A70GL?
The manufacturer specifies a nominal supply voltage of 12 VDC.
What is the rated current?
The documented current rating is 0.23 A.
What is the rated power of AD0612HB-A70GL?
The published power rating is 2.76 W.
What are the dimensions of this fan?
The fan frame measures 60 x 60 x 25 mm. Mounting hole positions and installation clearances should be verified before ordering.
What is the rated fan speed?
The manufacturer specifies a rotational speed of 4500 RPM under the documented operating conditions.
What bearing type does AD0612HB-A70GL use?
The fan uses a ball bearing construction as identified in the manufacturer specifications.
What materials are used for the frame and impeller?
The manufacturer series documentation identifies plastic frame and impeller materials with a UL 94 V-0 flammability classification.
What is the operating temperature range?
The manufacturer series documentation identifies an operating temperature range of -10°C to +70°C for the applicable ball bearing configuration.
What is the documented fan weight?
The manufacturer specifications list a weight of 68 g.
Can AD0612HB-A70GL be considered for industrial electronics cooling?
It can be considered after verifying the electrical supply, airflow requirements, mounting dimensions, electrical connections and operating environment against the existing equipment.
What should be checked before ordering ADDA AD0612HB-A70GL?
Confirm the complete model number, 12 VDC supply, 0.23 A rated current, 60 x 60 x 25 mm dimensions, ball bearing configuration, cooling requirements and electrical connection arrangement before purchasing.
