12 VDC Operation
The AD0412HB-K96 is a DC brushless axial fan with a nominal supply voltage of 12 VDC and a rated current of 0.08 A.
ADDA
ADDA AD0412HB-K96 DC Axial Fan 12VDC 0.08A 40x40x6mm
$15.15
Available
PRODUCT GALLERY
01 / 3

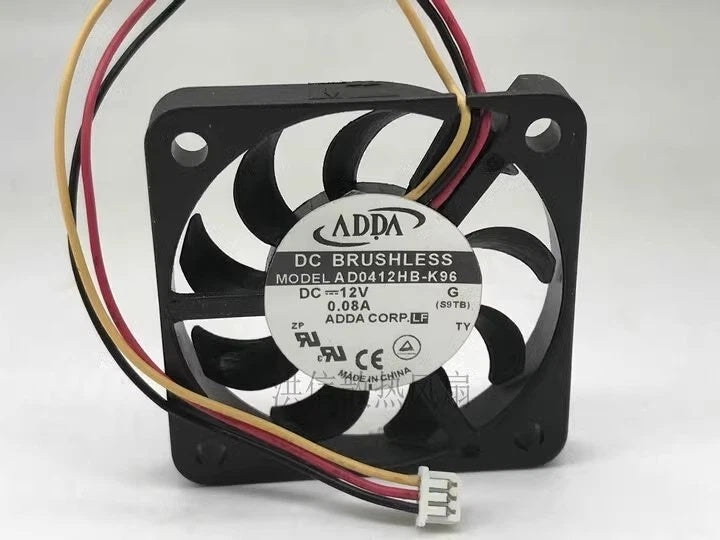

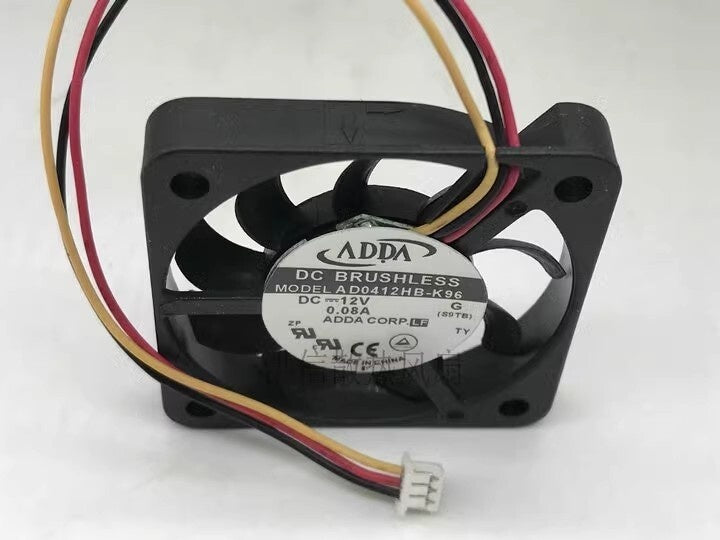

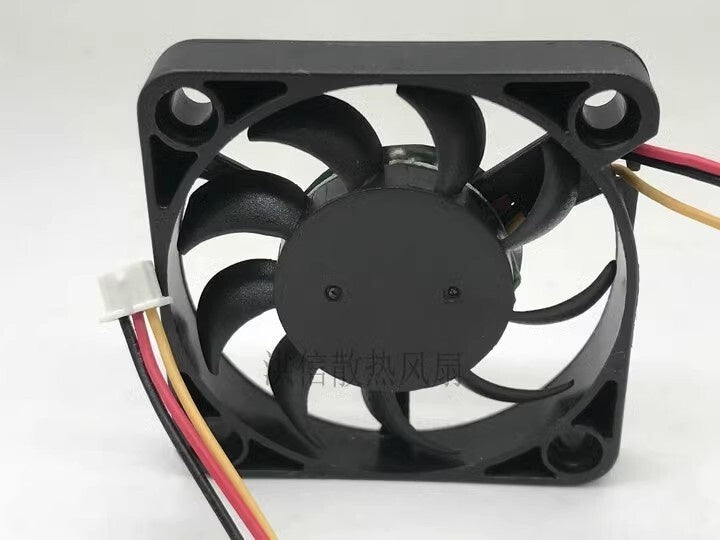

Product images for part identification
ADDA
ADDA AD0412HB-K96 DC Axial Fan 12VDC 0.08A 40x40x6mm
PRODUCT PRICE
USD
$15.15
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0412HB-K96 |
| Product Category | DC Axial Fan |
| Fan Type | DC Brushless Axial Cooling Fan |
| Datasheet Configuration | AD0412HB-K96 (S) |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 10.8-13.2 VDC |
| Start-Up Voltage | 9 VDC |
| Rated Current | 0.08 A |
| Rated Power | 0.96 W |
| Rated Speed | 6600 RPM |
| Air Flow | 5.8 CFM |
| Static Pressure | 0.090 inH2O |
| Noise Level | 31 dB(A) |
| Dimensions | 40 x 40 x 6 mm |
| Bearing Type | One Ball and One Sleeve |
| Frame Material | Glass-Filled PBT |
| Impeller Material | Glass-Filled PBT |
| Motor Protection | Impedance Protection |
| Polarity Protection | Yes |
| Electrical Connection | 3 Lead Wires, AWG 28 |
| Signal Function | FG Speed Signal |
| Operating Temperature | -10°C to +70°C |
| Net Weight | 9 g |
Key Features
Compact 40 mm Frame
The manufacturer AD0412HB-K96 (S) specification identifies a 40 x 40 x 6 mm fan configuration for compact electronic equipment cooling.
6600 RPM Rated Speed
The documented (S) configuration has a rated rotational speed of 6600 RPM at its specified operating voltage.
5.8 CFM Airflow
The manufacturer (S) specification identifies 5.8 CFM free-air flow and 0.090 inH2O static pressure.
Ball and Sleeve Bearing System
The manufacturer (S) design uses one ball bearing and one sleeve bearing to support fan rotation.
FG Speed Signal
The documented three-wire (S) configuration includes positive and negative power leads and a blue FG speed signal lead.
Applications
- Compact electronic equipment cooling
- Small communication device ventilation
- Embedded controller thermal management
- Compact networking equipment cooling
- Electronic circuit enclosure ventilation
- Small industrial instrument cooling
- Low-profile electronic assembly ventilation
- Fan rotation monitoring applications
Purchase Information
We support online purchase of the ADDA AD0412HB-K96 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0412HB-K96?
ADDA AD0412HB-K96 is a 12 VDC brushless axial cooling fan designed for forced-air ventilation of compact electronic equipment.
What is the rated voltage of AD0412HB-K96?
The manufacturer specification identifies a nominal voltage of 12 VDC.
What is the rated current of AD0412HB-K96?
The documented rated current is 0.08 A.
What are the dimensions of AD0412HB-K96?
The manufacturer (S) configuration specifies 40 x 40 x 6 mm. Other catalog references list different thickness values, so the physical dimensions of the specific supplied version should be verified before ordering.
What is the operating voltage range?
The manufacturer (S) specification lists an operating voltage range of 10.8-13.2 VDC and a normal start-up voltage of 9 VDC.
What is the rated fan speed?
The AD0412HB-K96 (S) manufacturer datasheet specifies 6600 RPM under its stated test conditions.
What is the airflow rating?
The documented (S) configuration provides 5.8 CFM free-air flow. Actual airflow depends on equipment airflow resistance.
What bearing type does AD0412HB-K96 use?
The manufacturer (S) datasheet specifies a combination of one ball bearing and one sleeve bearing. Bearing configuration should be checked for other suffix versions.
What is the documented noise level?
The manufacturer specifies 31 dB(A) for the documented (S) configuration under its stated testing conditions.
Does AD0412HB-K96 support a fan speed signal?
The documented (S) configuration includes an FG signal on a blue lead wire. The connection arrangement should be verified for the exact supplied version.
What is the operating temperature range?
The manufacturer (S) specification identifies an operating temperature range of -10°C to +70°C under its stated environmental conditions.
What should be checked before ordering ADDA AD0412HB-K96?
Verify the complete model number and any suffix, 12 VDC supply, rated current, frame thickness, bearing configuration, airflow requirements, mounting dimensions and electrical lead arrangement against the existing equipment.
