ADDA AD0412HB-C50 DC Axial Fan 12VDC 40x40x20mm 8.8CFM
$13.62
Available
PRODUCT GALLERY
01 / 1

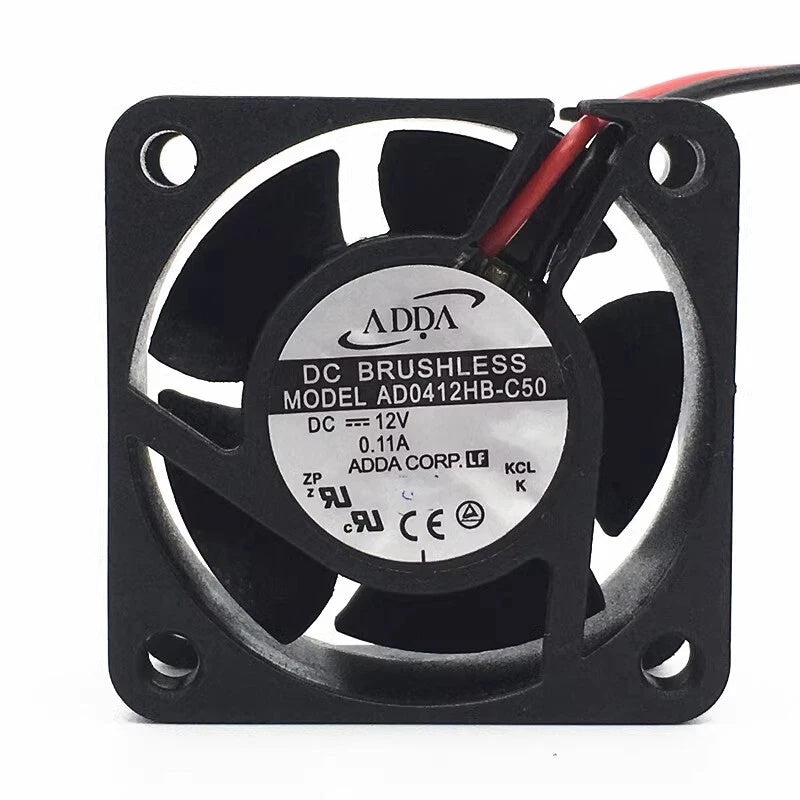

Product images for part identification
ADDA
ADDA AD0412HB-C50 DC Axial Fan 12VDC 40x40x20mm 8.8CFM
PRODUCT PRICE
USD
$13.62
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0412HB-C50 |
| Product Category | DC Axial Fan |
| Product Series | AD4020 |
| Fan Type | DC Brushless Axial Fan |
| Dimensions | 40 x 40 x 20 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 10.8-13.2 VDC |
| Start-Up Voltage | 9 VDC |
| Rated Current | 0.10 A |
| Rated Power | 1.20 W |
| Rated Speed | 7800 RPM |
| Air Flow | 8.8 CFM (0.249 m³/min) |
| Maximum Static Pressure | 0.280 inH2O (7.112 mmH2O) |
| Noise Level | 36 dB(A) |
| Bearing Type | Ball Bearing |
| Frame Material | Glass-Filled PBT, UL 94 V-0 |
| Impeller Material | Glass-Filled PBT, UL 94 V-0 |
| Motor Protection | Integrated Circuit Protection |
| Electrical Connection | 2 Lead Wires, AWG 26 |
| Lead Length | 295 ±10 mm |
| Rotation Direction | Counterclockwise Viewed from Impeller Side |
| Operating Temperature | -10°C to +70°C |
| Net Weight | 28 g |
| Listed Safety Approvals | UL, cUL, TÜV, CE |
Key Features
40 x 40 x 20 mm Frame
Features a square 40 mm frame with a depth of 20 mm for compact equipment ventilation installations.
7800 RPM Rated Speed
The manufacturer specifies a rated rotational speed of 7800 RPM under free-air operating conditions at the rated voltage.
8.8 CFM Airflow
The ADDA manufacturer datasheet identifies 8.8 CFM free-air flow and a maximum static pressure of 0.280 inH2O.
Ball Bearing Construction
Uses a ball bearing assembly with a glass-filled PBT frame and impeller.
Integrated Motor Protection
Includes an integrated motor protection circuit for locked-rotor conditions. The documented configuration uses two AWG 26 power leads.
Applications
- Compact electronic equipment cooling
- Industrial controller enclosure ventilation
- Small power supply cooling
- Communication equipment ventilation
- Embedded system thermal management
- Electronic circuit enclosure airflow
- Industrial instrumentation cooling
- Forced-air cooling of compact electronic assemblies
Purchase Information
We support online purchase of the ADDA AD0412HB-C50 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0412HB-C50?
ADDA AD0412HB-C50 is a 12 VDC brushless axial cooling fan from the AD4020 series, featuring a 40 x 40 x 20 mm frame and ball bearing construction.
What is the rated voltage of AD0412HB-C50?
The manufacturer specifies a nominal supply voltage of 12 VDC.
What is the operating voltage range?
The documented operating voltage range is 10.8-13.2 VDC, with a normal start-up voltage of 9 VDC.
What are the dimensions of AD0412HB-C50?
The fan measures 40 x 40 x 20 mm. Mounting hole positions and installation clearances should be checked before ordering.
What is the rated current and power consumption?
The manufacturer specifies a rated current of 0.10 A and rated power of 1.20 W.
What is the rated fan speed?
The manufacturer datasheet identifies a rated speed of 7800 RPM with a tolerance of ±10%.
What is the airflow rating of AD0412HB-C50?
The ADDA manufacturer datasheet specifies 8.8 CFM free-air flow at the rated voltage. Actual airflow depends on the resistance of the installed cooling system.
What is the maximum static pressure?
The documented maximum static pressure is 0.280 inH2O, equivalent to 7.112 mmH2O.
What bearing type does AD0412HB-C50 use?
The documented configuration uses a ball bearing assembly.
What is the noise level of AD0412HB-C50?
The manufacturer specifies a noise level of 36 dB(A) under its stated test conditions.
What is the electrical connection arrangement?
The documented fan uses two AWG 26 lead wires. The red wire is positive and the black wire is negative. Correct polarity must be checked before connecting power because the specified configuration does not include reverse-polarity protection.
What should be checked before ordering ADDA AD0412HB-C50?
Verify the complete model number, 12 VDC supply, rated current, 40 x 40 x 20 mm dimensions, required airflow, bearing configuration, mounting details and electrical lead arrangement against the existing equipment specifications.
