5 VDC Operation
Operates from a nominal 5 VDC supply for compact equipment ventilation.
ADDA

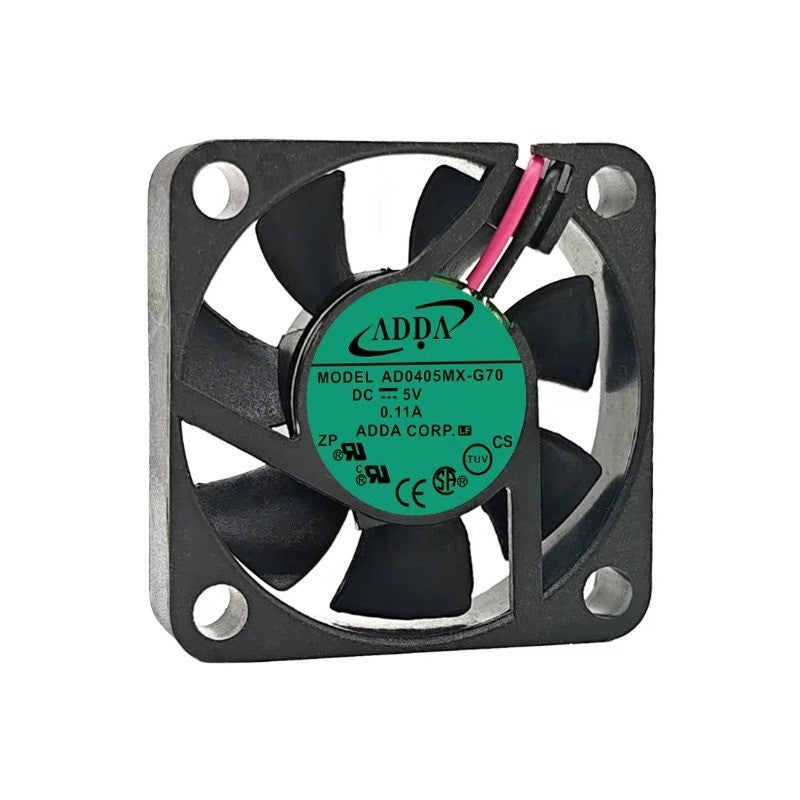

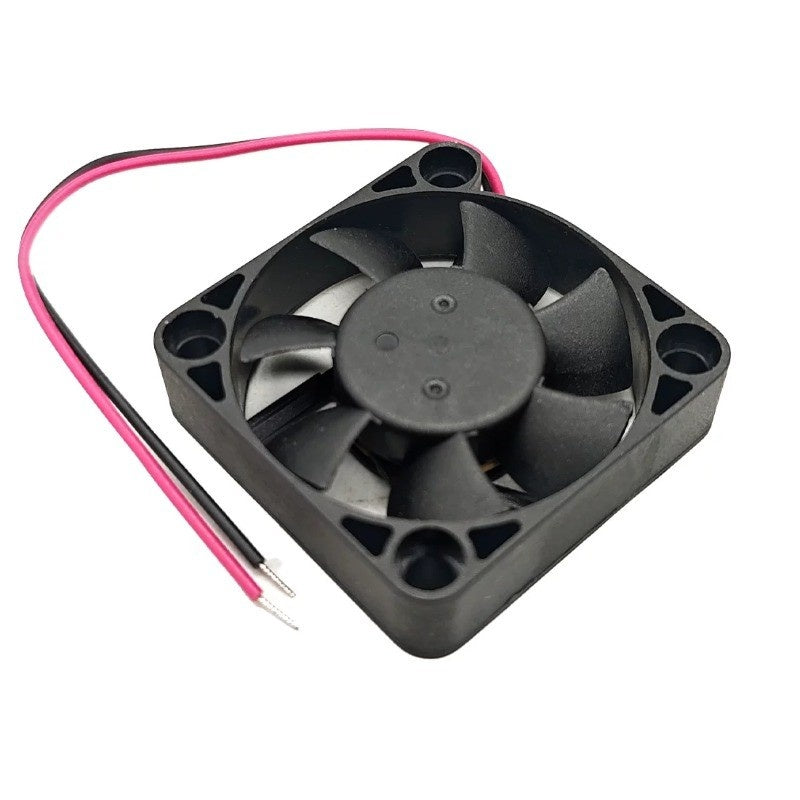

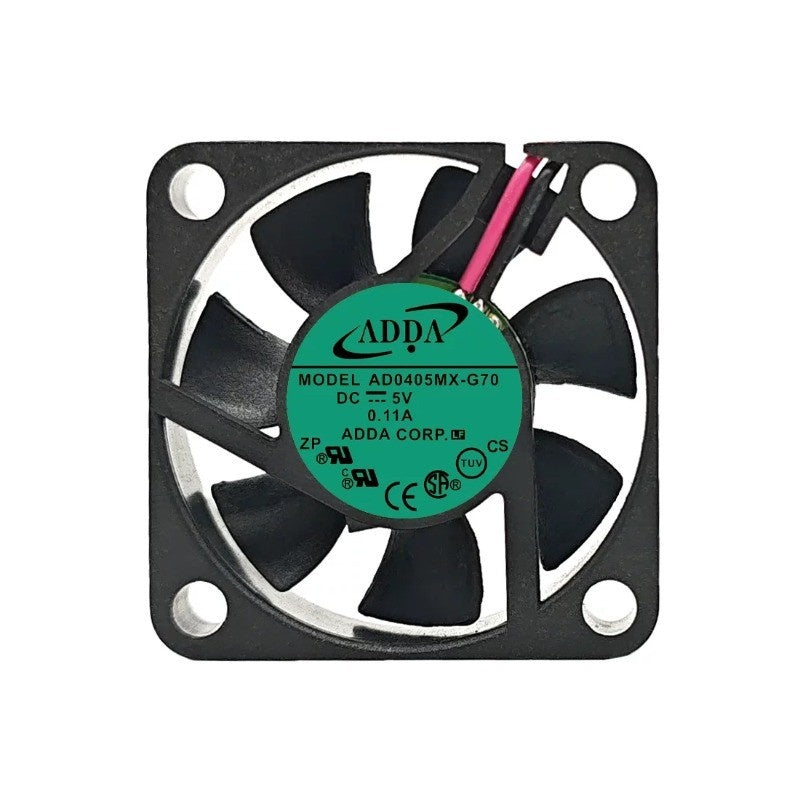

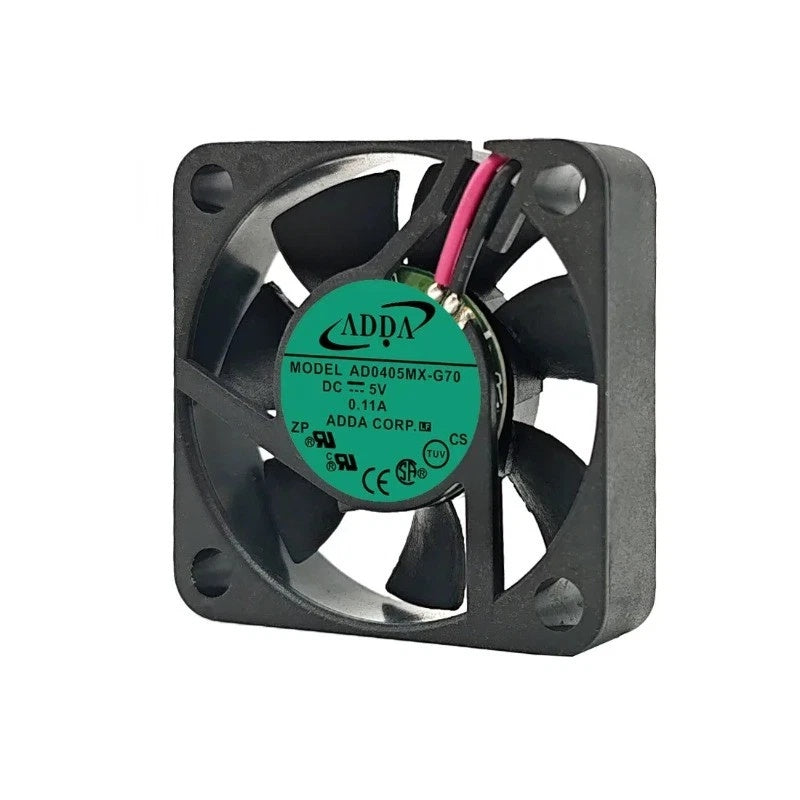

ADDA AD0405MX-G70 DC Axial Fan 5VDC 40x40x10mm 5.7CFM
$12.45
Available
PRODUCT GALLERY
01 / 4
Product images for part identification
ADDA
ADDA AD0405MX-G70 DC Axial Fan 5VDC 40x40x10mm 5.7CFM
PRODUCT PRICE
USD
$12.45
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0405MX-G70 |
| Product Category | DC Axial Fan |
| Fan Type | DC Axial Fan |
| Dimensions | 40 x 40 x 10 mm |
| Rated Voltage | 5 VDC |
| Rated Current | 0.11 A |
| Power Consumption | 0.55 W |
| Rated Speed | 4800 RPM |
| Air Flow | 5.7 CFM |
| Bearing Type | Hypro |
| Noise Level | 19 dB(A) |
| Safety Approvals | UL, cUL, TÜV, CE |
Key Features
40 x 40 x 10 mm Frame
The 40 mm square frame and 10 mm depth provide a defined footprint for equipment cooling assemblies.
0.11 A Rated Current
The published electrical ratings are 0.11 A current and 0.55 W power consumption.
4800 RPM Fan Speed
The manufacturer lists a nominal rotational speed of 4800 RPM.
5.7 CFM Airflow
The documented free-air flow rating is 5.7 CFM under the specified test conditions.
Hypro Bearing
Uses the Hypro bearing configuration identified in the manufacturer specifications.
Applications
- Compact electronics enclosure ventilation
- Embedded control equipment cooling
- Small power supply ventilation
- Industrial instrument enclosure airflow
- Communications equipment cooling
- Control board thermal management
- Forced-air cooling for small electronic assemblies
- Equipment ventilation maintenance
Purchase Information
We support online purchase of the ADDA AD0405MX-G70 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0405MX-G70?
ADDA AD0405MX-G70 is a 5 VDC axial cooling fan with a 40 x 40 x 10 mm frame and a Hypro bearing.
What is the rated voltage of AD0405MX-G70?
The manufacturer specifies a nominal supply voltage of 5 VDC.
What is the rated current?
The documented rated current is 0.11 A.
What is the power consumption?
The manufacturer lists a power consumption of 0.55 W.
What are the fan dimensions?
The frame measures 40 x 40 x 10 mm. Mounting and clearance requirements should be checked against the equipment.
What is the rated fan speed?
The manufacturer lists a fan speed of 4800 RPM.
What is the airflow rating?
The published free-air flow is 5.7 CFM. Actual installed airflow depends on system resistance.
Which bearing type does this model use?
AD0405MX-G70 uses the Hypro bearing configuration.
What is the specified noise level?
The manufacturer specification table lists 19 dB(A) under its stated test conditions.
Can this fan be considered for compact electronic equipment?
It can be considered after verifying supply voltage, dimensions, airflow requirements, mounting and electrical connections.
What should be checked before ordering AD0405MX-G70?
Verify the complete model number, 5 VDC supply, 0.11 A current, frame dimensions, required airflow and connection arrangement against the existing equipment.
