SIN/COS 1Vpp Encoder Interface
Designed for incremental encoders with SIN/COS 1Vpp signal output for precise position feedback.
SIEMENS

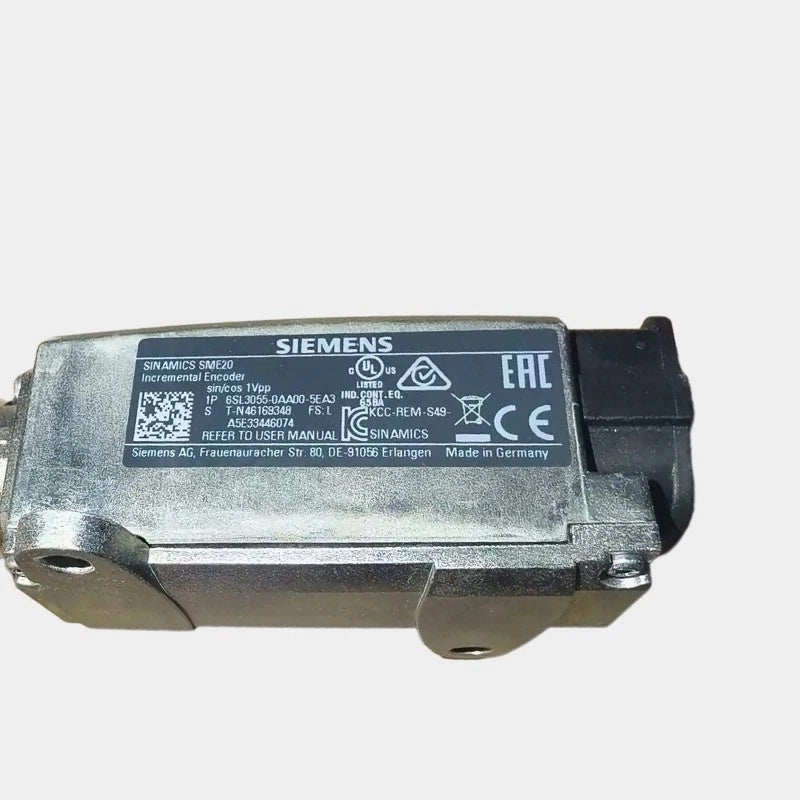

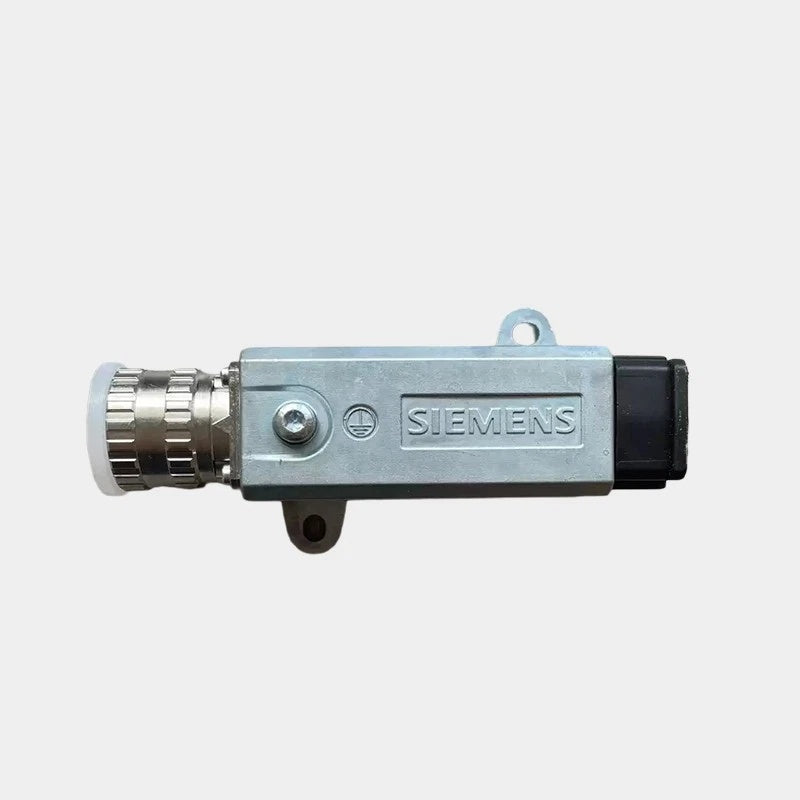

SIEMENS 6SL3055-0AA00-5EA3 Module SINAMICS Sensor Module
$266.01
Available
PRODUCT GALLERY
01 / 2
Product images for part identification
SIEMENS
SIEMENS 6SL3055-0AA00-5EA3 Module SINAMICS Sensor Module
PRODUCT PRICE
USD
$266.01
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SL3055-0AA00-5EA3 |
| Product Category | Module |
| Product Family | SINAMICS SME20/SME25 |
| Module Type | Sensor Module SME20 |
| Encoder Interface | Incremental encoder, SIN/COS 1Vpp |
| Maximum Encoder Frequency | 500 kHz |
| Signal Interpolation | Up to 16,384 times, 14-bit resolution |
| Input Voltage | 24 V DC |
| Current Consumption | 0.11 A (encoder not included) |
| Sensor Voltage Supply | 5 V DC at 0.35 A |
| Protection Rating | IP67 |
| Dimensions (W x H x D) | 58 mm x 112 mm x 44 mm |
Key Features
High-Frequency Encoder Input
Supports encoder frequencies up to 500 kHz for demanding motion control applications.
High-Resolution Signal Interpolation
Provides signal interpolation up to 16,384 times with 14-bit resolution for accurate position acquisition.
IP67 Protection
Rugged IP67 protection rating suitable for harsh industrial environments.
External Sensor Module
External SME20 sensor module format for flexible integration into SINAMICS drive systems.
Applications
- SINAMICS drive systems position feedback
- Motion control with incremental encoders
- Machine tool encoder signal acquisition
- Industrial automation position sensing
- Servo drive encoder interfacing
- Harsh environment motion control
Purchase Information
We support online purchase of the SIEMENS 6SL3055-0AA00-5EA3 Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6SL3055-0AA00-5EA3? The 6SL3055-0AA00-5EA3 is a SINAMICS SME20 sensor module for incremental encoders.
What encoder signal type does it support? It supports incremental encoders with SIN/COS 1Vpp signal output.
What is the maximum encoder frequency? The maximum encoder frequency is 500 kHz.
What signal interpolation is supported? The module supports signal interpolation up to 16,384 times with 14-bit resolution.
What is the input voltage requirement? The module requires a 24 V DC input voltage.
What is the sensor voltage supply? The module provides a 5 V DC sensor voltage supply at 0.35 A.
What is the protection rating? The module has an IP67 protection rating.
Does it include a DRIVE-CLiQ cable? No, the module is supplied without a DRIVE-CLiQ cable.
