1 Normally Closed Contact
The 800F-X01 provides one normally closed contact for switching functions in industrial control circuits.
1 / 11
Allen-Bradley

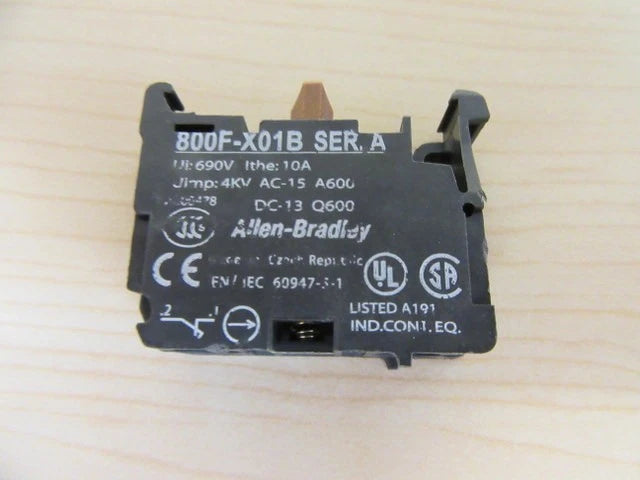

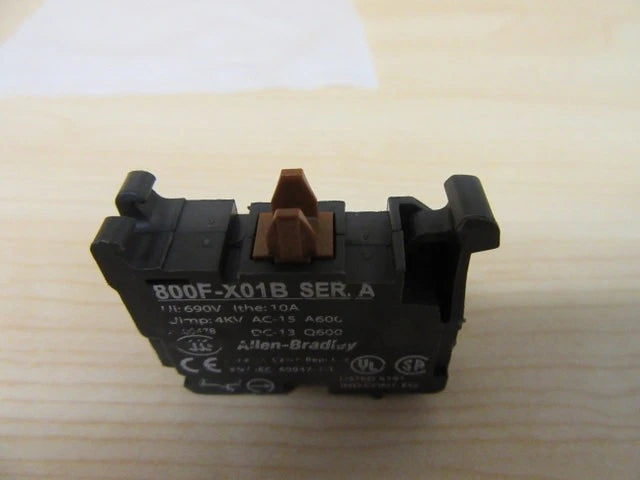

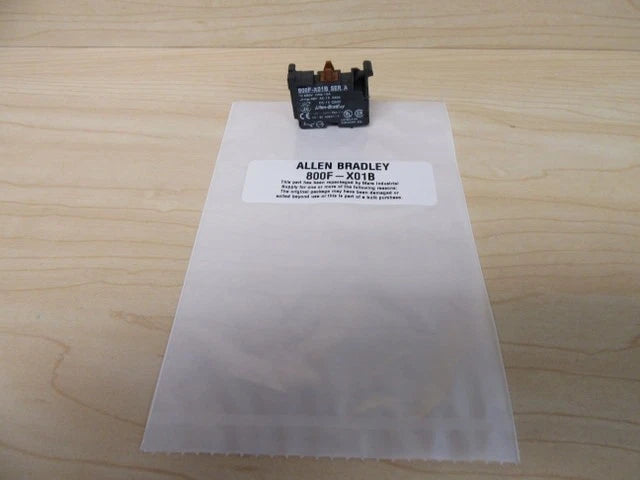

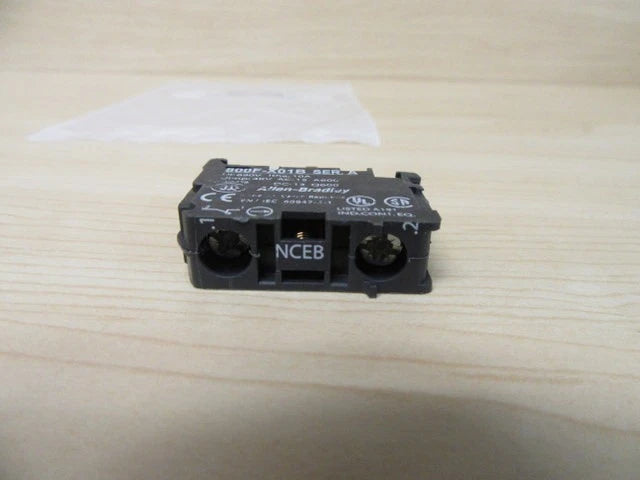

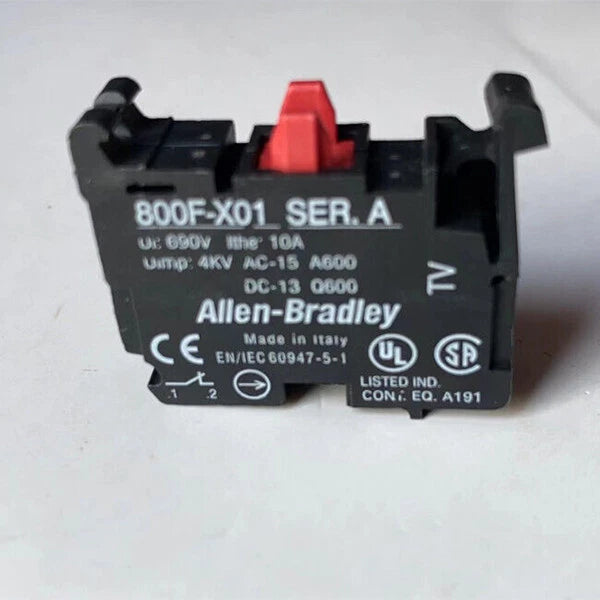

Allen-Bradley 800F-X01 Contact Block 1NC 10A 600V Screw Terminal
PRODUCT PRICE
USD
$9.82
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 800F-X01 |
| Product Category | Contact Block |
| Series | 800F |
| Operator Mounting Hole | 22.5 mm |
| Contact Configuration | 1 Normally Closed (1 NC) |
| Contact Block Type | Standard |
| Termination Style | Screw |
| Latch Style | No Latch |
| Maximum Operational Voltage | 600 V (A600, Q600) |
| Thermal Current Rating | 10 A |
| AC Utilization Category | A600, AC-15 |
| DC Utilization Category | Q600, DC-13 |
| Wire Range | 18–12 AWG (0.75–2.5 mm²) |
| Terminal Tightening Torque | 0.7–0.9 N-m (6–8 in-lb) |
| Mechanical Durability | 1.0E7 Operations |
| Shock | 100 g |
| Vibration | 10 g |
Key Features
22.5mm 800F Design
The contact block is designed for the Allen-Bradley Bulletin 800F 22.5 mm operator system.
Screw Termination
Screw terminals support documented conductor sizes from 18 to 12 AWG (0.75 to 2.5 mm²).
10A Thermal Rating
The contact block has a documented thermal current rating of 10 A for applicable control circuit installations.
A600 and Q600 Ratings
The documented utilization categories include A600 AC-15 and Q600 DC-13 with screw termination.
Standard Contact Block
The 800F-X01 is specified as a standard contact block with a no-latch configuration.
Applications
- Industrial push button stations
- Machine control panels
- Operator control interfaces
- Stop and control circuits
- Industrial automation equipment
- Control cabinet assemblies
- Production machinery controls
- Panel-mounted control devices
Purchase Information
We support online purchase of the Allen-Bradley 800F-X01 Contact Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 800F-X01?
The 800F-X01 is a standard contact block for the Bulletin 800F 22.5 mm operator system, configured with one normally closed contact and screw termination.
What contact configuration does 800F-X01 use?
The documented configuration is one normally closed contact, commonly written as 1 NC.
What termination style does 800F-X01 use?
The contact block uses screw termination.
What is the thermal current rating of 800F-X01?
The documented thermal current rating is 10 A.
What is the maximum operational voltage of 800F-X01?
The documented maximum operational voltage is 600 V with A600 and Q600 ratings for the screw-terminal configuration.
What AC utilization category does 800F-X01 have?
The documented AC utilization category is A600, AC-15.
What DC utilization category does 800F-X01 have?
The documented DC utilization category is Q600, DC-13.
What wire sizes can be connected to 800F-X01?
The documented wire range is 18 to 12 AWG, equivalent to 0.75 to 2.5 mm².
What terminal tightening torque is specified?
The documented tightening torque is 0.7 to 0.9 N-m, equivalent to 6 to 8 in-lb.
Does 800F-X01 include a latch?
No. The documented latch style for this catalog number is no latch.
Can 800F-X01 be considered for an existing 800F control device?
It can be considered after the complete catalog number, 1 NC contact configuration, screw termination, mounting arrangement and electrical ratings have been checked against the existing control device requirements.
What should be checked before ordering 800F-X01?
Check the complete catalog number, 1 NC contact requirement, screw termination, 22.5 mm operator system, electrical ratings, conductor size and mounting requirements for the intended application.
