24 V DC / 20 A Output
Provides a stabilized 24 V DC output with 20 A current capacity for industrial loads.
SIEMENS
SIEMENS 6EP1336-2BA10 Power Supply Module 120-230VAC 24VDC 20A
$217.40
Available
PRODUCT GALLERY
01 / 3

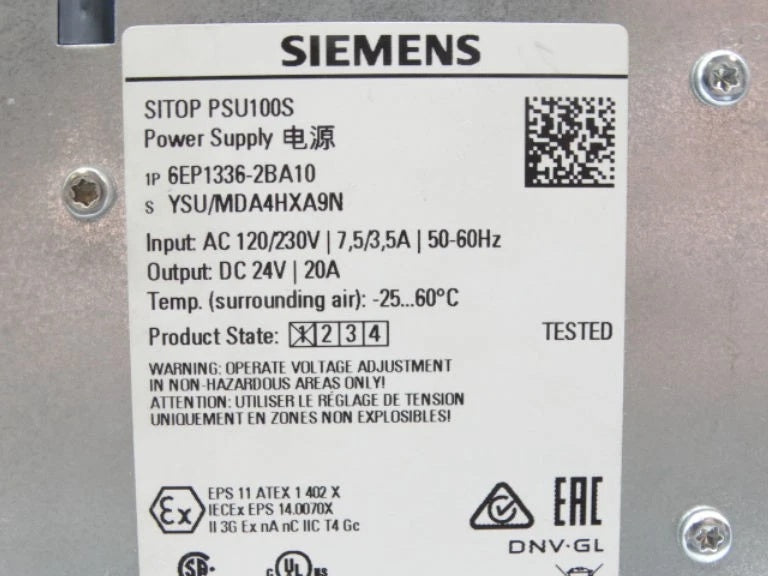

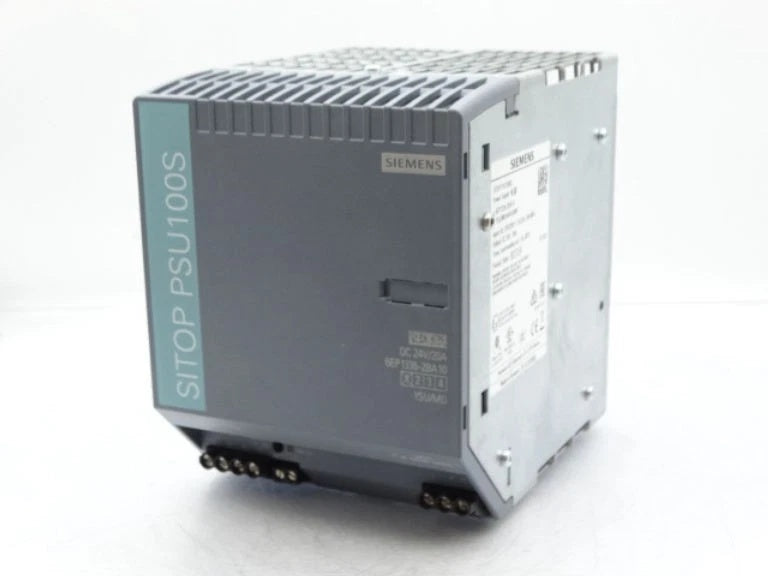

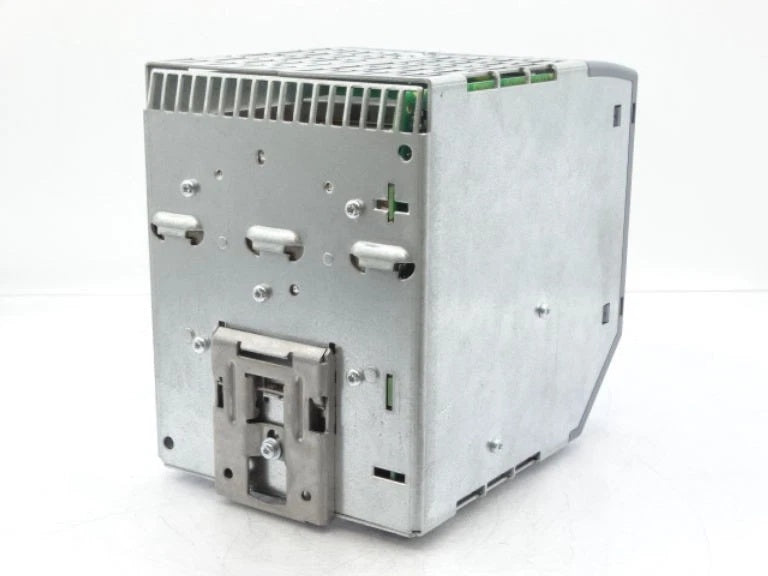

Product images for part identification
SIEMENS
SIEMENS 6EP1336-2BA10 Power Supply Module 120-230VAC 24VDC 20A
PRODUCT PRICE
USD
$217.40
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6EP1336-2BA10 |
| Product Category | Power Supply Module |
| Product Family | SITOP PSU100S |
| Input Voltage | 120/230 V AC (single-phase) |
| Output Voltage | 24 V DC |
| Output Current | 20 A |
| Output Power | 480 W |
| Input Current at 120 V | 7.5 A |
| Input Current at 230 V | 3.5 A |
| Overvoltage Overload Capability | 2.3 × Vin rated, 1.3 ms |
| Mounting | DIN rail |
| Type | Switched-mode power supply |
Key Features
120/230 V AC Input
Wide input voltage range of 120/230 V AC single-phase for global compatibility.
480 W Output Power
Delivers up to 480 W of output power for demanding industrial applications.
Switched-Mode Design
Switched-mode power supply for efficient and reliable voltage conversion.
DIN Rail Mounting
Designed for DIN rail mounting for easy installation in control cabinets.
Applications
- Industrial control cabinet power supply
- Automation system 24 V DC power
- PLC and I/O module power supply
- Sensor and actuator power supply
- Machine and plant engineering
- Process control system power
Purchase Information
We support online purchase of the SIEMENS 6EP1336-2BA10 Power Supply Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6EP1336-2BA10? The 6EP1336-2BA10 is a SITOP PSU100S stabilized power supply module from Siemens.
What is the output voltage and current? The output is 24 V DC at 20 A, providing 480 W of output power.
What is the input voltage? The input voltage is 120/230 V AC single-phase.
What is the input current at rated voltage? The input current is 7.5 A at 120 V and 3.5 A at 230 V.
What type of power supply is it? It is a switched-mode power supply designed for DIN rail mounting.
What is the overvoltage overload capability? The overvoltage overload capability is 2.3 times the rated input voltage for 1.3 ms.
Where is this power supply typically used? It is used for industrial control cabinets, PLC systems, and automation equipment requiring 24 V DC power.
