1 Analog Output Channel
The SB 1232 signal board provides one analog output channel for SIMATIC S7-1200 systems, supporting voltage or current output configurations.
SIEMENS
SIEMENS 6ES7232-4HA30-0XB0 PLC Module 4 Analog Outputs 0-10V
$85.98
Available
PRODUCT GALLERY
01 / 5

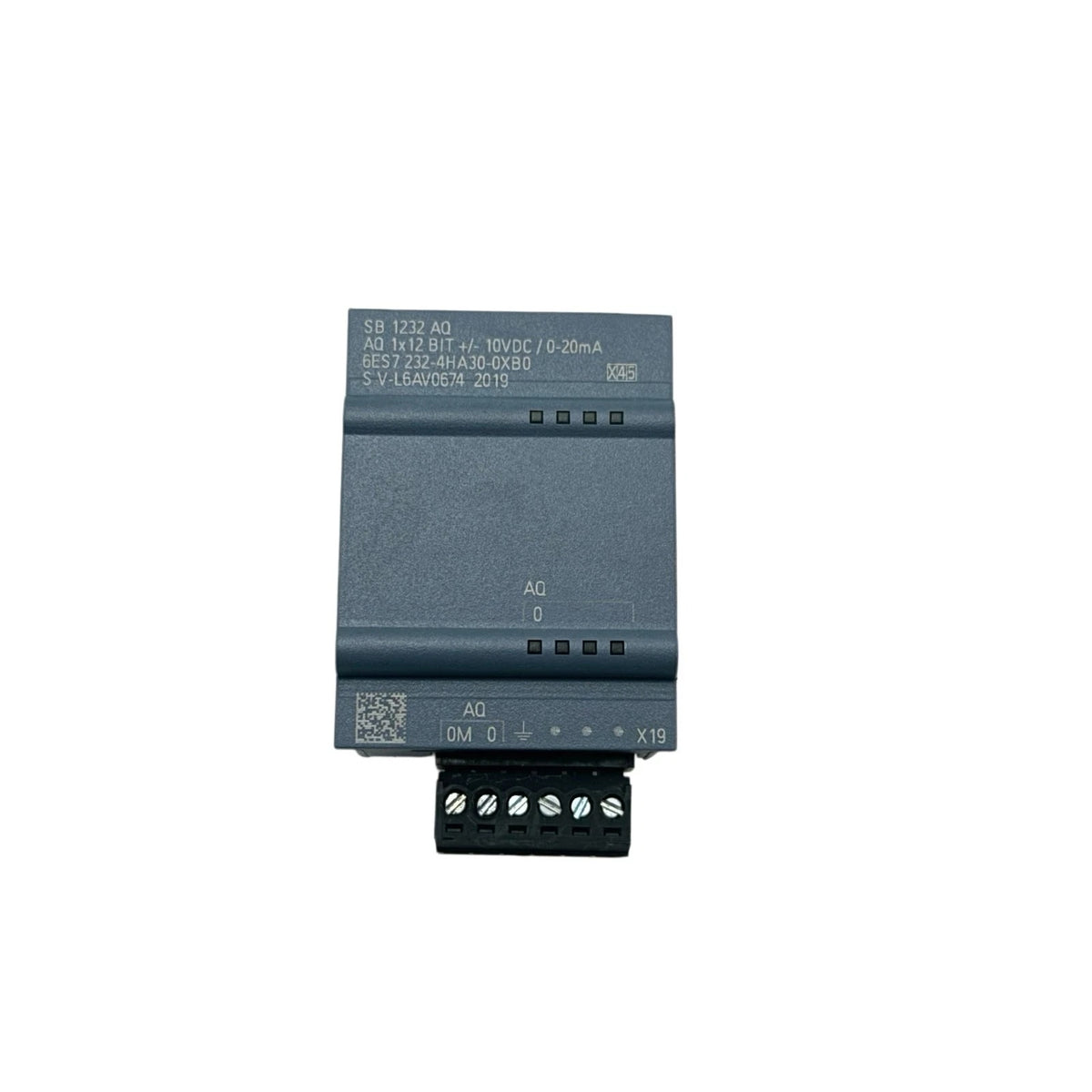

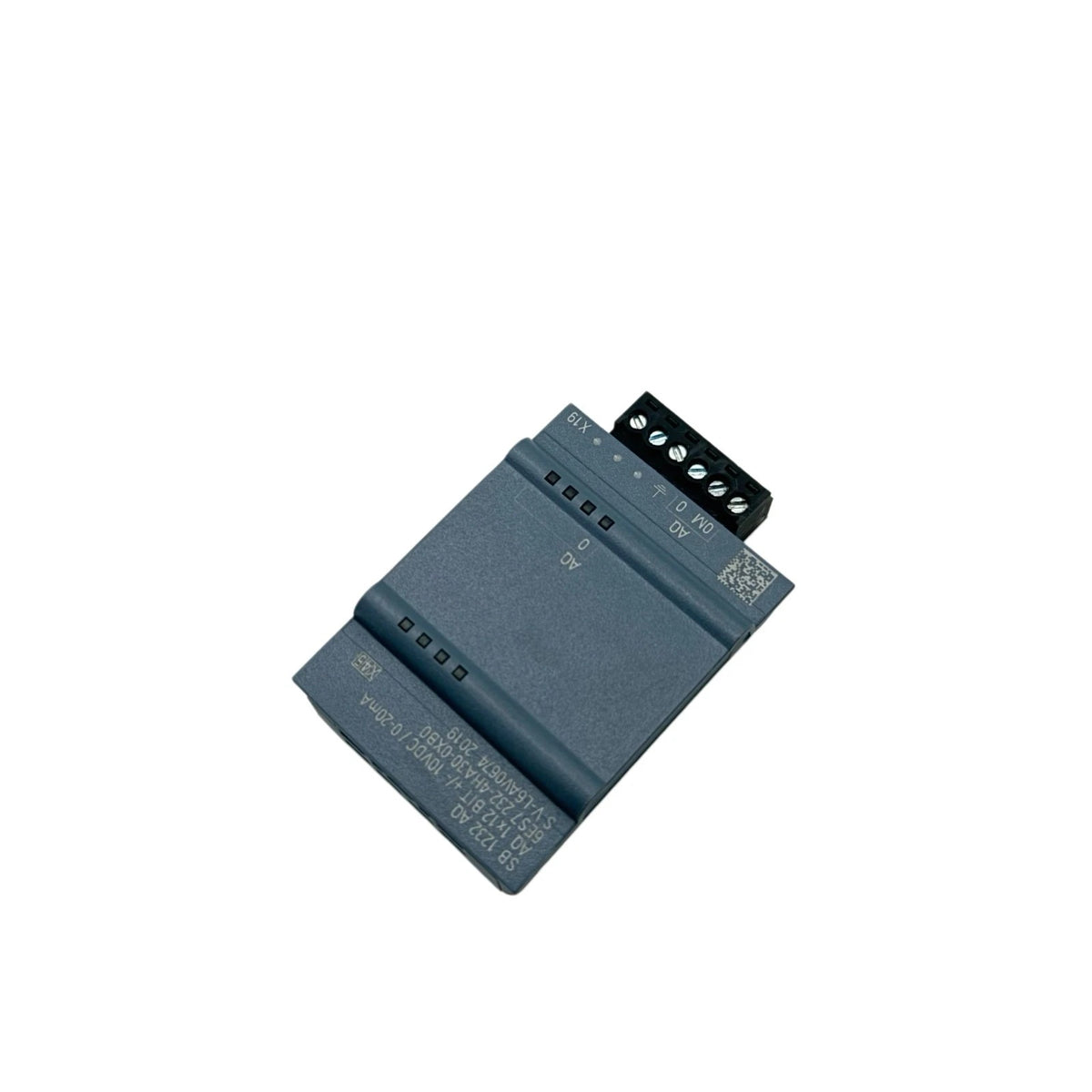

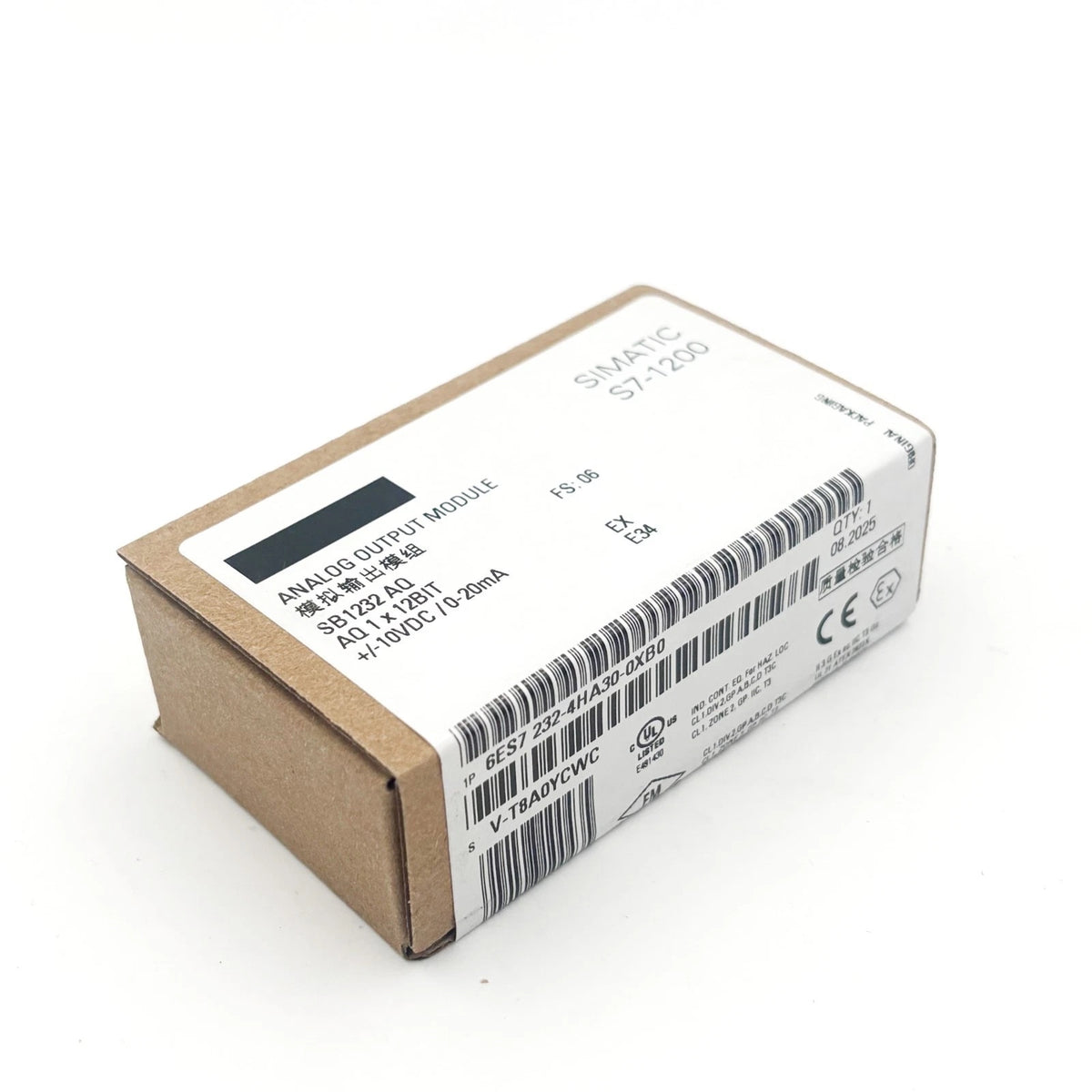

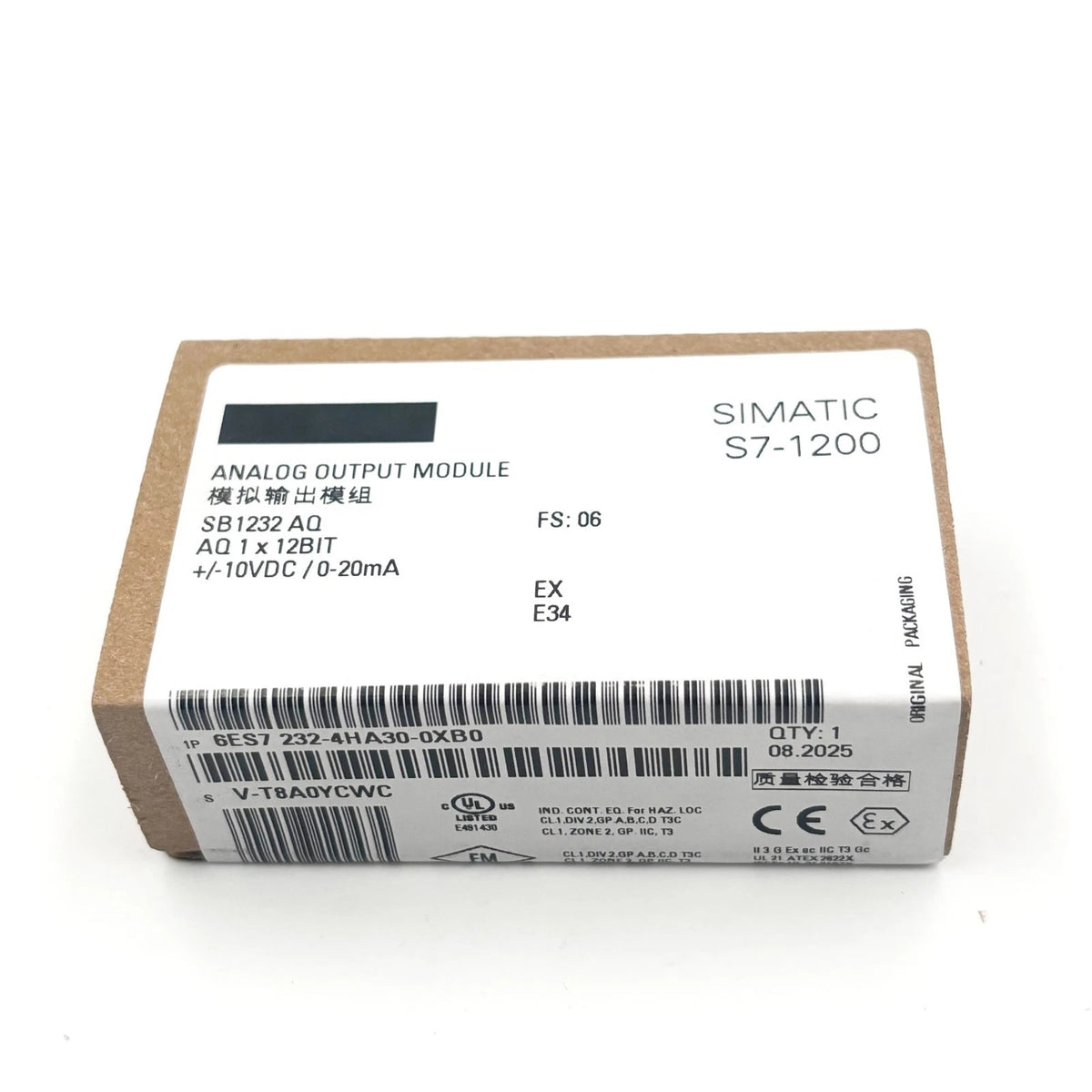

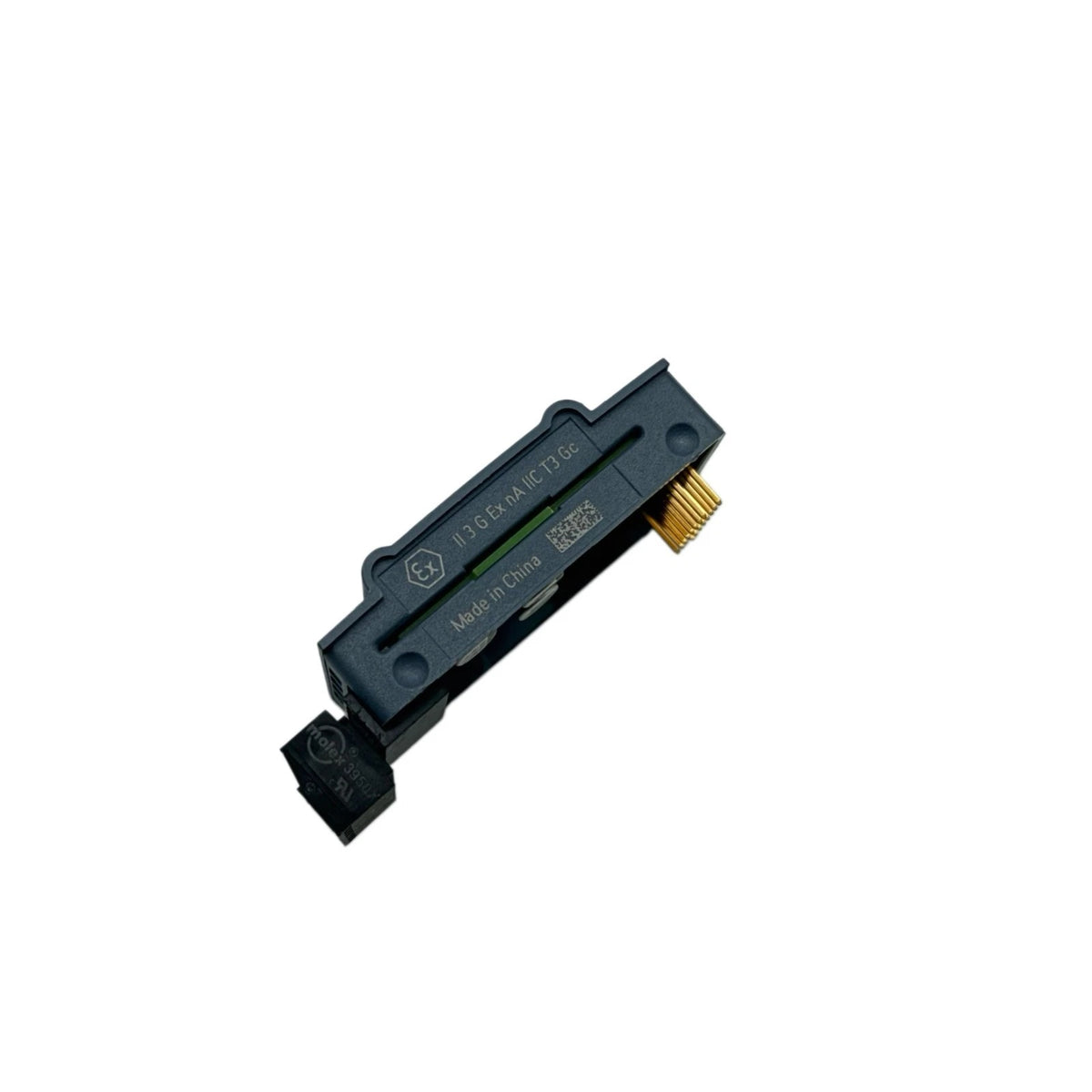

Product images for part identification
SIEMENS
SIEMENS 6ES7232-4HA30-0XB0 PLC Module 4 Analog Outputs 0-10V
PRODUCT PRICE
USD
$85.98
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7232-4HA30-0XB0 |
| Product Category | PLC Module 4 Analog Outputs 0-10V |
| Product Family | SIMATIC S7-1200 |
| Module Type | SB 1232 Analog Output Signal Board |
| Number of Analog Outputs | 1 |
| Output Ranges (Voltage) | -10 V to +10 V DC |
| Output Ranges (Current) | 0 to 20 mA |
| Resolution (Voltage) | 12 bit |
| Resolution (Current) | 11 bit |
| Supply Current (max., to transmitters) | 25 mA |
| Power Loss (typ.) | 1.5 W |
| Load Impedance (Voltage Outputs, min.) | 1000 Ohm |
| Load Impedance (Current Outputs, max.) | 600 Ohm |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (W x H x D) | 38 mm x 62 mm x 21 mm |
| Weight (approx.) | 40 g |
Key Features
±10 V and 0-20 mA Ranges
Supports a voltage output range of -10 V to +10 V DC with 12-bit resolution, and a current output range of 0 to 20 mA with 11-bit resolution.
Diagnostics Function
Includes diagnostics capability with a status LED for the output, supporting troubleshooting in S7-1200 applications.
Compact Signal Board Format
Measures 38 mm x 62 mm x 21 mm and weighs approximately 40 g, designed for integration into the S7-1200 platform.
Wide Temperature Tolerance
Operates from -20°C to +60°C, with storage and transport tolerance from -40°C to +70°C.
Applications
- Analog signal output expansion for SIMATIC S7-1200 PLC systems
- Voltage or current control of compatible industrial actuators
- Process control loops requiring a single analog output channel
- Signal conversion from PLC logic to -10 V to +10 V or 0-20 mA field signals
- Machine control panels with S7-1200 platform requirements
- Industrial automation projects needing compact analog output expansion
Purchase Information
We support online purchase of the SIEMENS 6ES7232-4HA30-0XB0 PLC Module 4 Analog Outputs 0-10V. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7232-4HA30-0XB0? The 6ES7232-4HA30-0XB0 is an SB 1232 analog output signal board for the SIMATIC S7-1200 PLC family, providing one analog output.
How many analog outputs does it have? It provides one analog output channel.
What output ranges are supported? The module supports -10 V to +10 V DC voltage output and 0 to 20 mA current output.
What is the resolution? Voltage output resolution is 12 bit, and current output resolution is 11 bit.
What is the maximum supply current to transmitters? The maximum supply current to transmitters is 25 mA.
What is the typical power loss? The typical power loss is 1.5 W.
What are the load impedance specifications? For voltage outputs, the minimum load impedance is 1000 Ohm; for current outputs, the maximum load impedance is 600 Ohm.
What is the operating temperature range? The operating temperature range is -20°C to +60°C.
What are the dimensions and weight? Dimensions are 38 mm x 62 mm x 21 mm (W x H x D), and the weight is approximately 40 g.
What should be checked before ordering? Confirm the complete 6ES7232-4HA30-0XB0 catalog number, the required output signal type (voltage or current), the S7-1200 CPU compatibility, and the load characteristics of the connected actuator.
