16 DI / 16 DO Configuration
Combines 16 digital inputs and 16 relay digital outputs in a single S7-1200 signal module.
SIEMENS

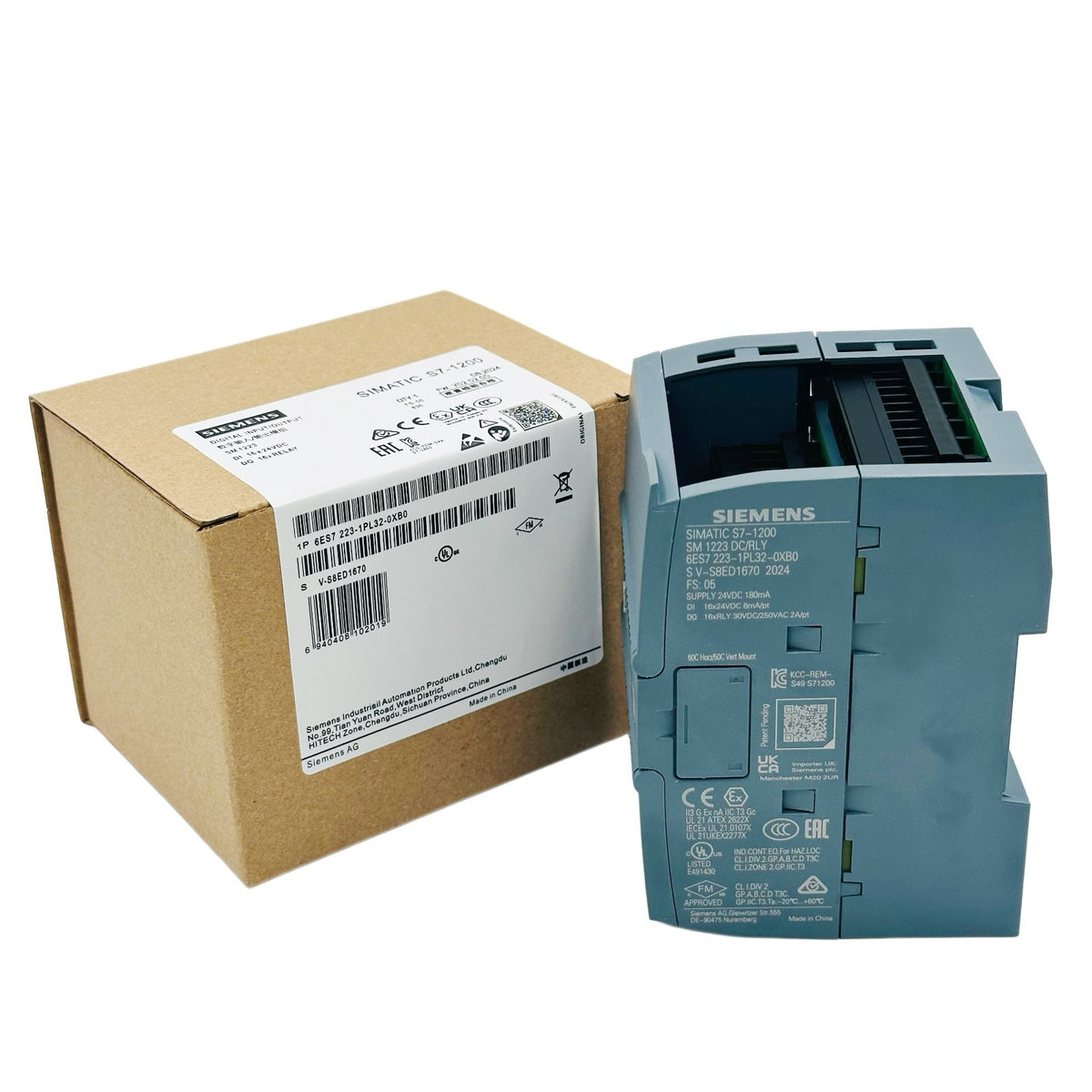

SIEMENS 6ES7223-1PL32-0XB0 PLC Module 24VDC 16 DI 16 DO
$97.40
Available
PRODUCT GALLERY
01 / 4

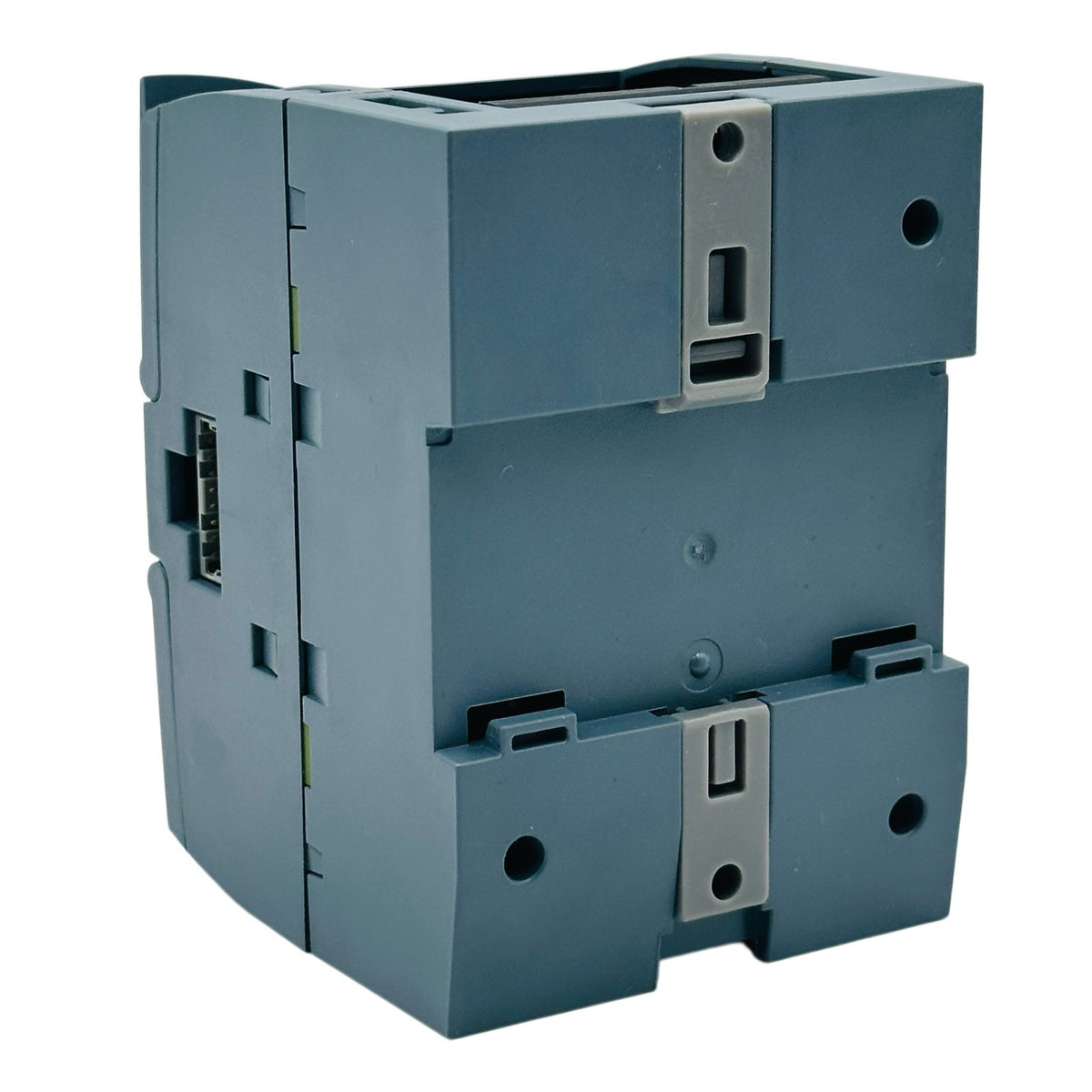

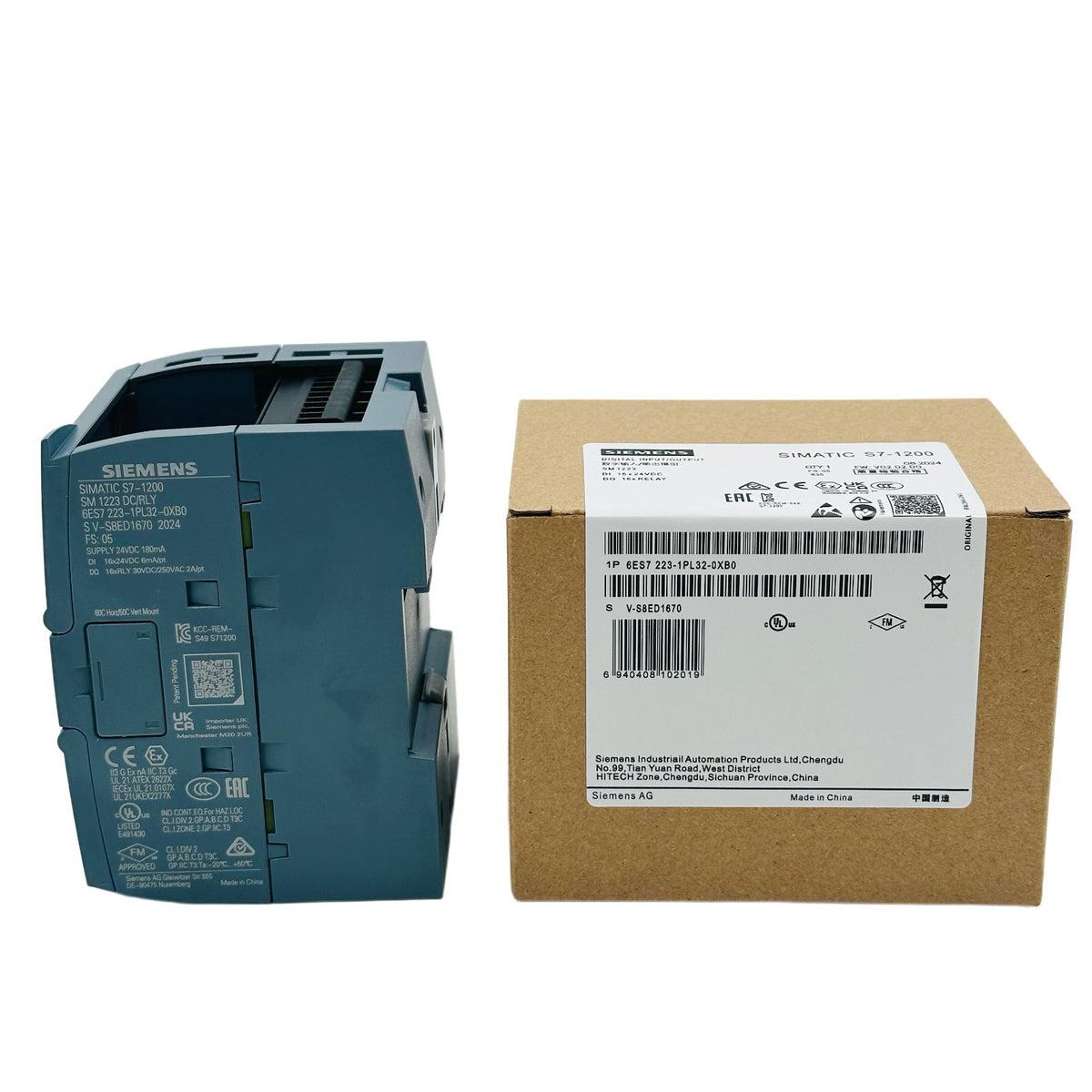

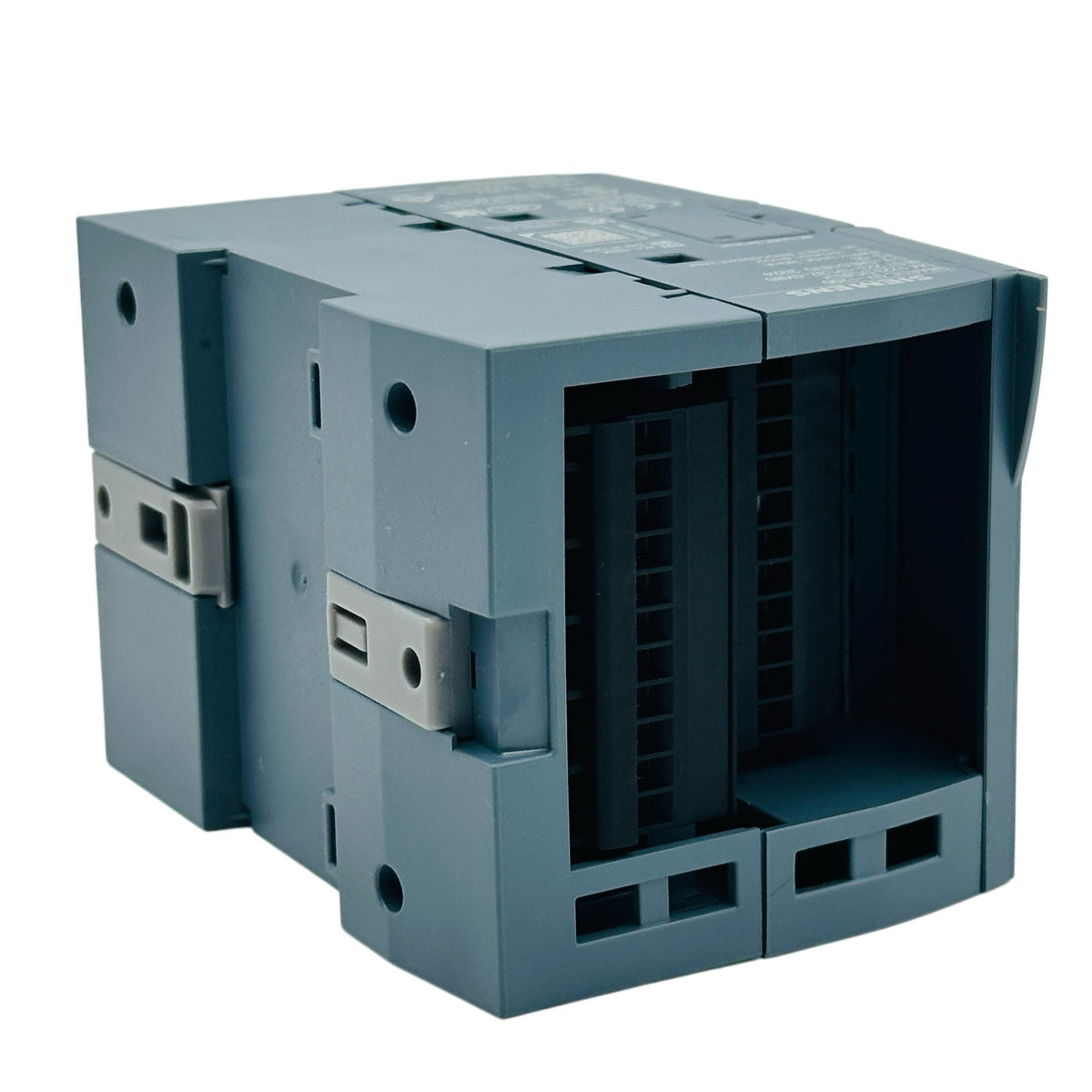

Product images for part identification
SIEMENS
SIEMENS 6ES7223-1PL32-0XB0 PLC Module 24VDC 16 DI 16 DO
PRODUCT PRICE
USD
$97.40
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7223-1PL32-0XB0 |
| Product Category | PLC Module |
| Product Family | SIMATIC S7-1200 |
| Module Type | SM 1223 Digital I/O Module |
| Digital Inputs | 16 DI, 24 V DC, Sink/Source |
| Digital Outputs | 16 DO, Relay 2 A |
| Supply Voltage | 24 V DC (20.4 V to 28.8 V) |
| Input Characteristic | IEC 61131 Type 1 |
| Power Loss | 10 W typical |
| Backplane Bus Current | 180 mA at 5 V DC |
Key Features
Sink/Source Inputs
Digital inputs support sink/source wiring configurations for flexible sensor integration.
Relay Outputs
Sixteen relay outputs rated at 2 A provide dry-contact switching for AC and DC loads.
IEC 61131 Type 1 Inputs
Inputs conform to IEC 61131 Type 1 characteristics for reliable signal detection.
S7-1200 System Compatibility
Designed as a signal module for the SIMATIC S7-1200 controller platform.
Applications
- Combined input and output expansion for S7-1200 PLCs
- Relay-based control of industrial loads
- Sensor and switch input acquisition
- Machine control panels with mixed I/O requirements
- AC and DC actuator switching
- Industrial automation and process control
- Panel building and system integration
- Discrete manufacturing control systems
Purchase Information
We support online purchase of the SIEMENS 6ES7223-1PL32-0XB0 PLC Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7223-1PL32-0XB0? It is a SIMATIC S7-1200 SM 1223 digital I/O module with 16 digital inputs and 16 relay outputs.
How many digital inputs does it have? The module provides 16 digital inputs rated for 24 V DC with sink/source capability.
What type of outputs does it use? It has 16 relay outputs rated at 2 A.
What is the supply voltage? The module operates with a 24 V DC supply in the range of 20.4 V to 28.8 V.
Do the inputs conform to a standard input characteristic? Yes, the inputs conform to IEC 61131 Type 1.
What is the typical power loss? The typical power loss is 10 W.
What is the backplane bus current consumption? The module draws 180 mA from the 5 V DC backplane bus.
Can the relay outputs switch both AC and DC loads? Yes, the relay outputs are suitable for switching both AC and DC loads within their ratings.
What should be checked before ordering? Confirm the required input/output count, signal type, load ratings, and compatibility with the S7-1200 system architecture.
